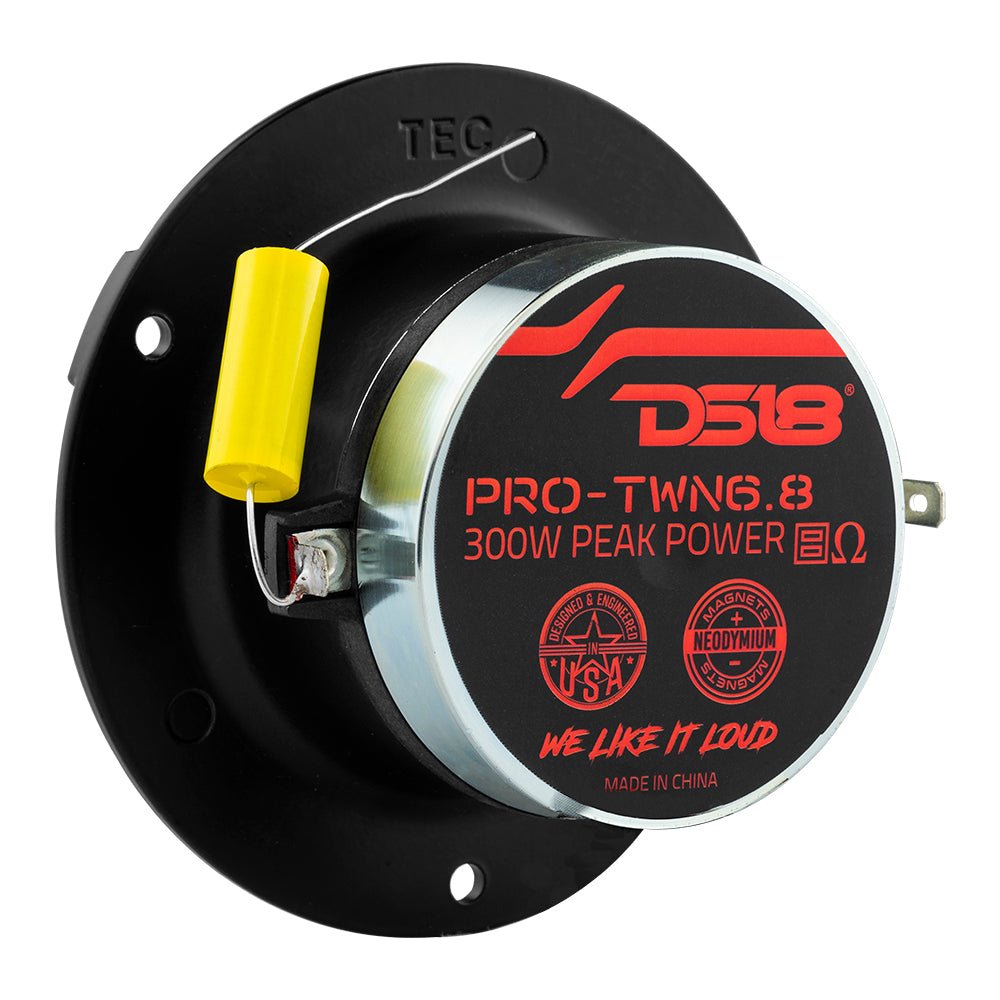

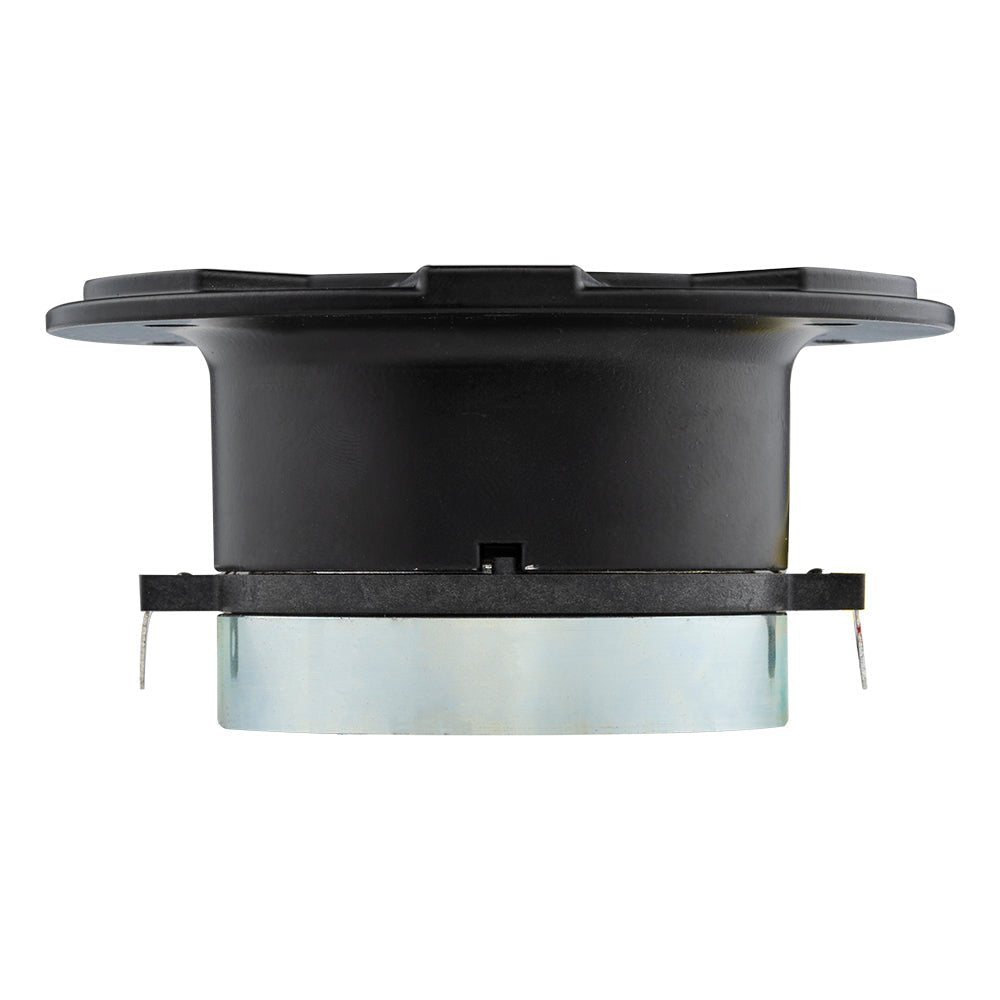

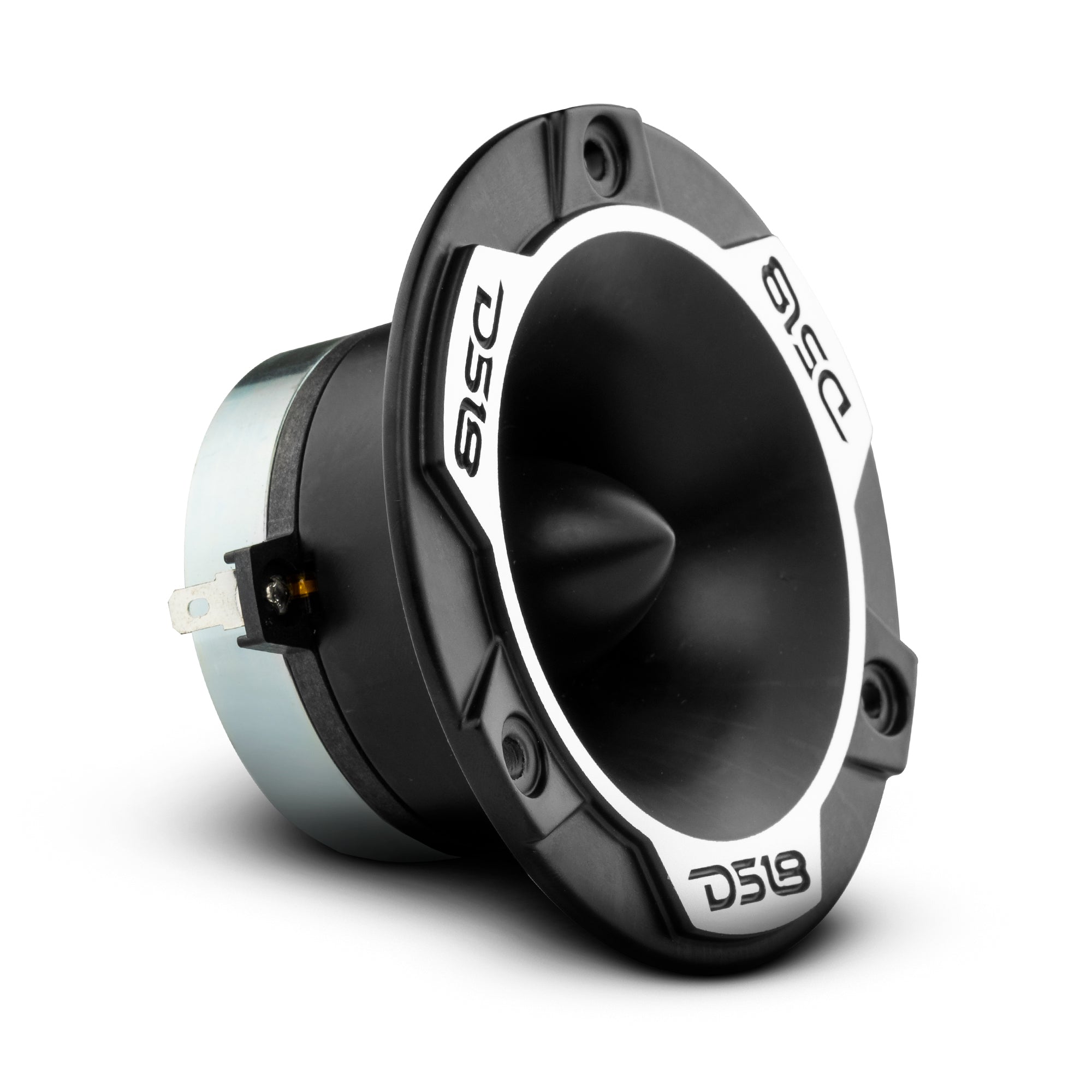

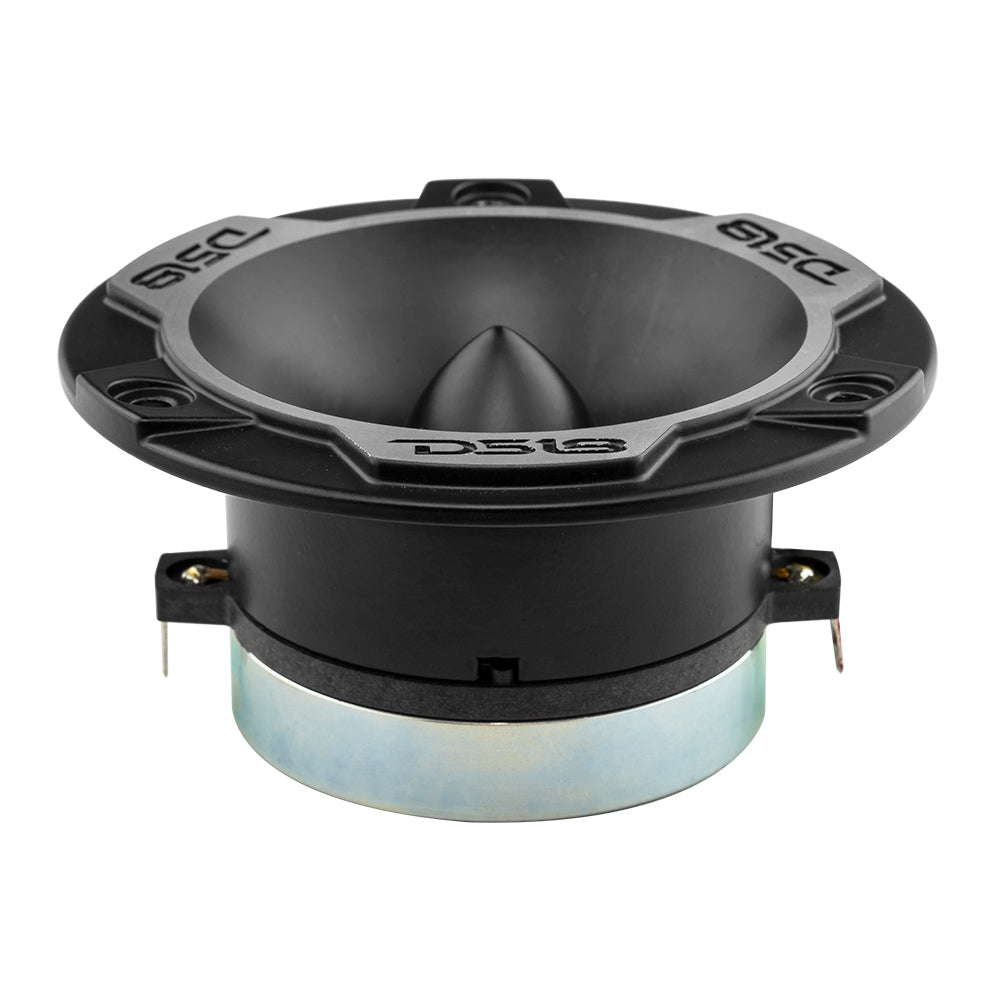

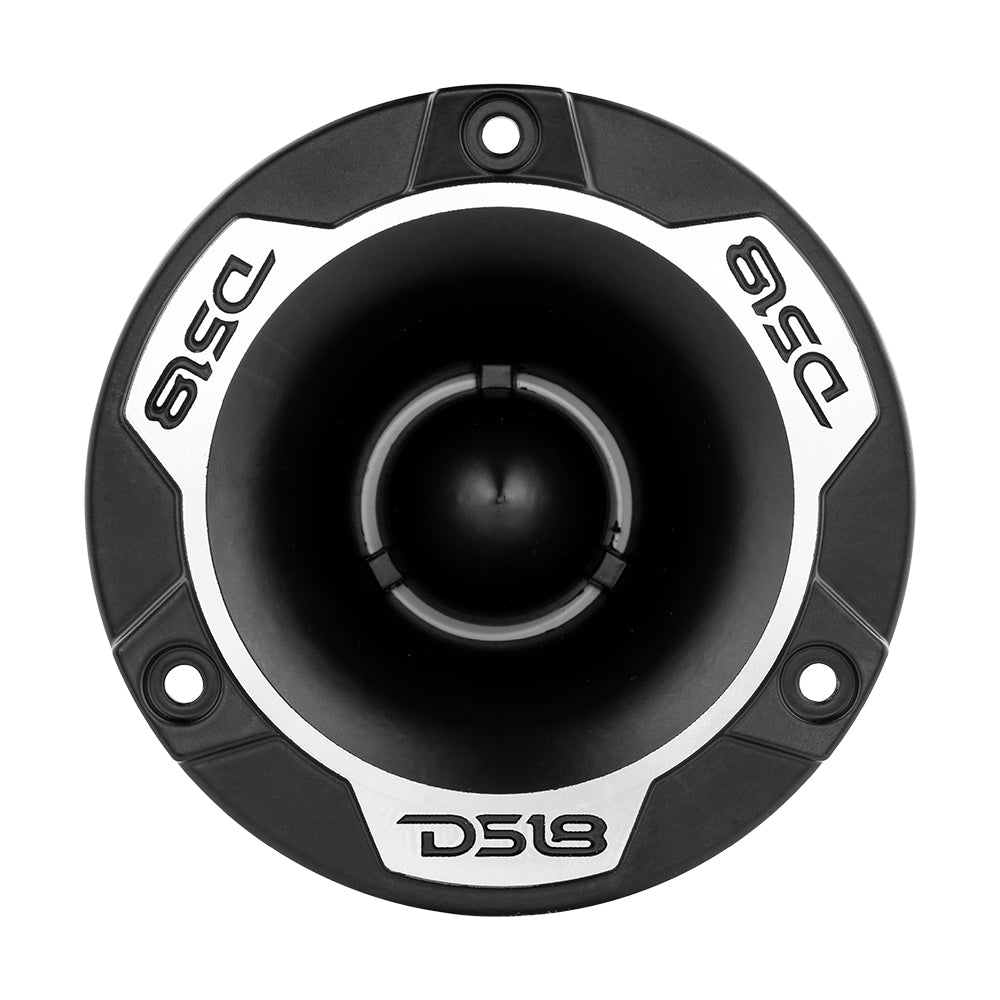

DS18 PRO-TWN6.8 4″ High Compression Neodymium Tweeter | 150W 1.25″ Polyimide 8-Ohm Vc
$69.95
The details
Product Overview
The PRO-TWN Series Tweeter, a staple in the competitive professional audio scene, is back with boosted brilliance and clarity.
This 4” Neodymium Super Bullet Tweeter is equipped with a 1.25” Voice Coil and handles AES power at 75W, Program Power at 150W, and Peak Power at 300W. The neodymium magnet increases the tweeters efficiency and significantly lowers its weight.
With an extremely high sensitivity of 109 dB, it doesn’t take too much for these tweeters to get extremely LOUD! With minimal amounts of power, these tweeters still deliver vibrant highs with endless altitude!
This 8-ohm tweeter is guaranteed to enrich your high frequency response and would be a complement to every sound system!
Highlights
Great For
Technical Details Download PRO-TWN6.8 Product Manual
By the numbers
- Impedance
- 8 Ohms
- Nominal Impedance
- 8 ohms
- AES Power Handling
- 75 Watts
- Program Power Handling
- 150 Watts
- Peak Power Handling
- 300 Watts
- Recommended Hi Pass Crossover
- 3KHz
- Sensitivity
- 109 dB
- Frequency Response
- 2K-20KHz
- Sensitivity (1w/1m)
- 109 dB
- Voice Coil
- 1.25 inch
- Body Material
- Alumium
- Body Color / Finish
- Black / Machined
- Bullet Material
- Alumium
- Voice Coil Diameter
- 1.25″ / 32mm
- Voice Coil Former Material
- Kapton
- Winding Material
- CCAR
- Diaphragm Material
- Polyimide
- Magnet Material
- Neodymium
- Magnet Weight
- 1.05 oz
- Size
- 4 inch
- Mounting Depth
- 1.77″ / 45mm
- Nominal Diameter
- 4″ / 100mm
- Overall Diameter
- 3.93″ / 100mm
- Overall Depth
- 1.96″ / 50mm
- Front Mount Baffle Cutout
- 3.22″ / 82mm
- Pair or Single
- Single
