Description

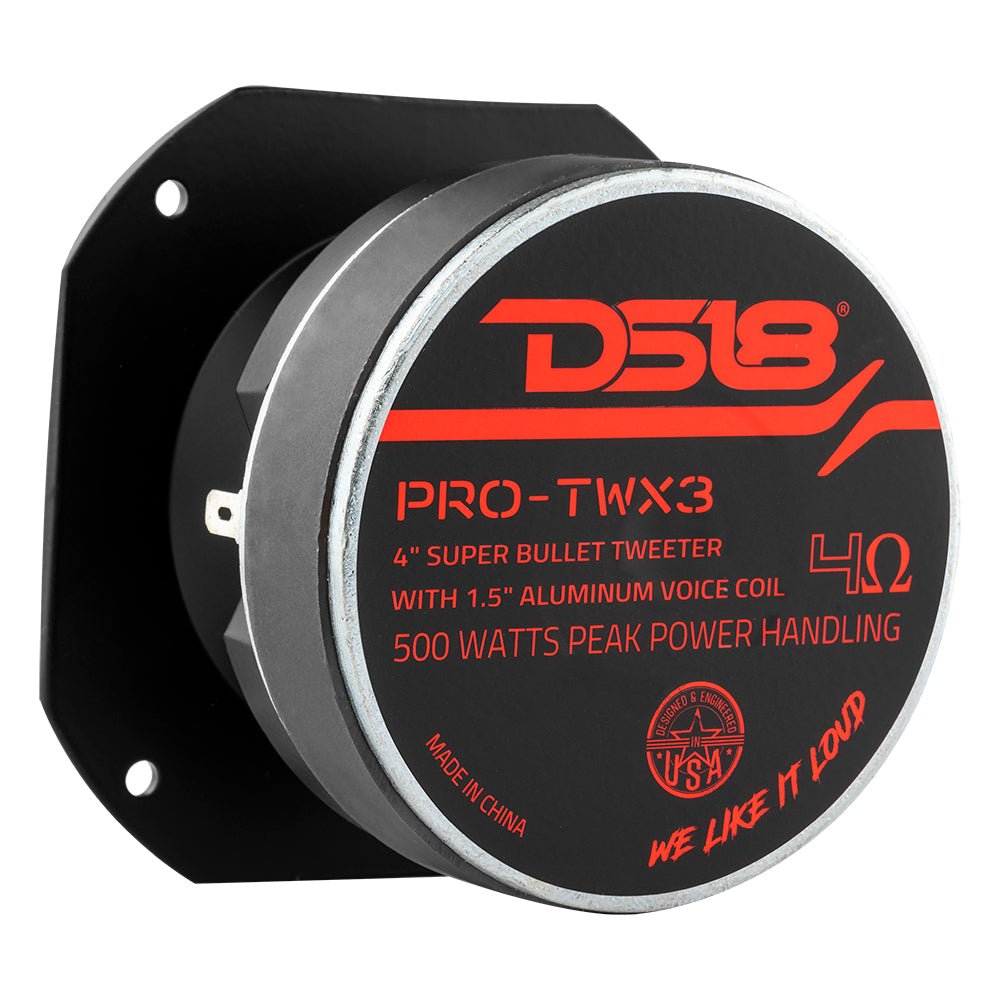

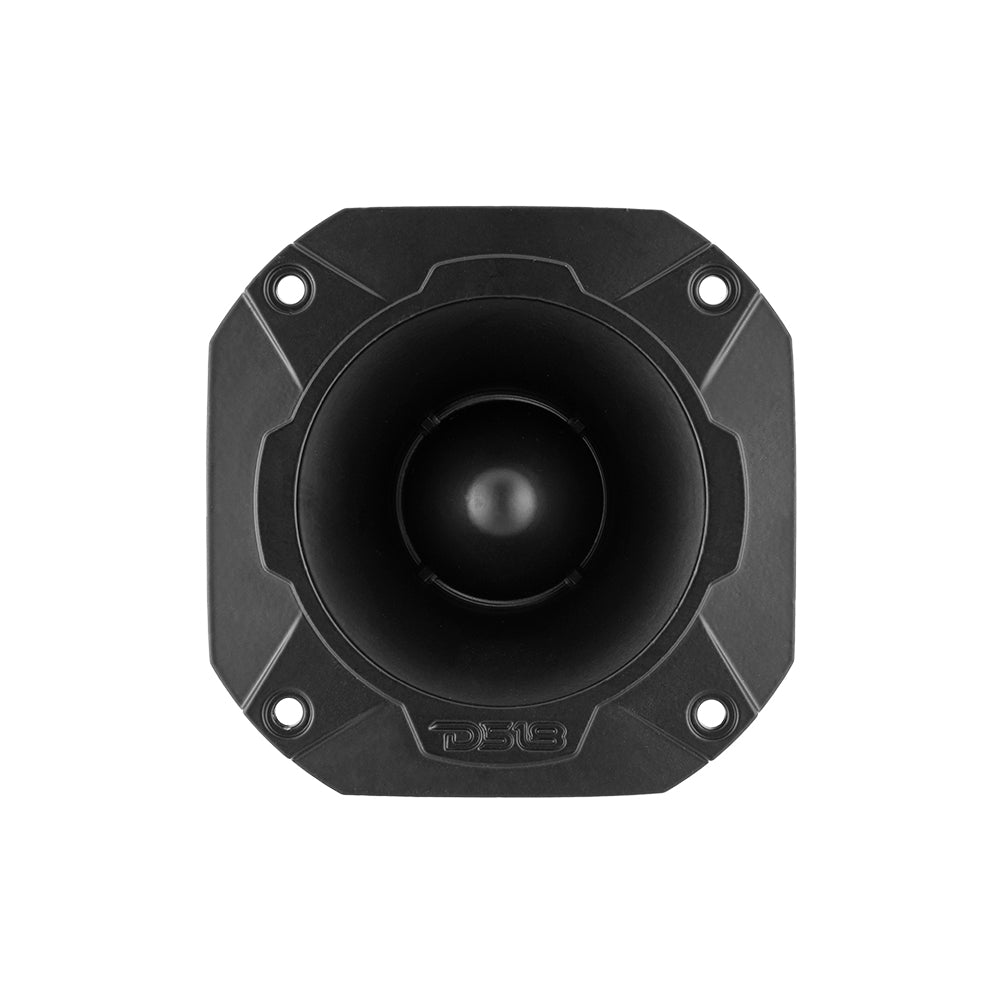

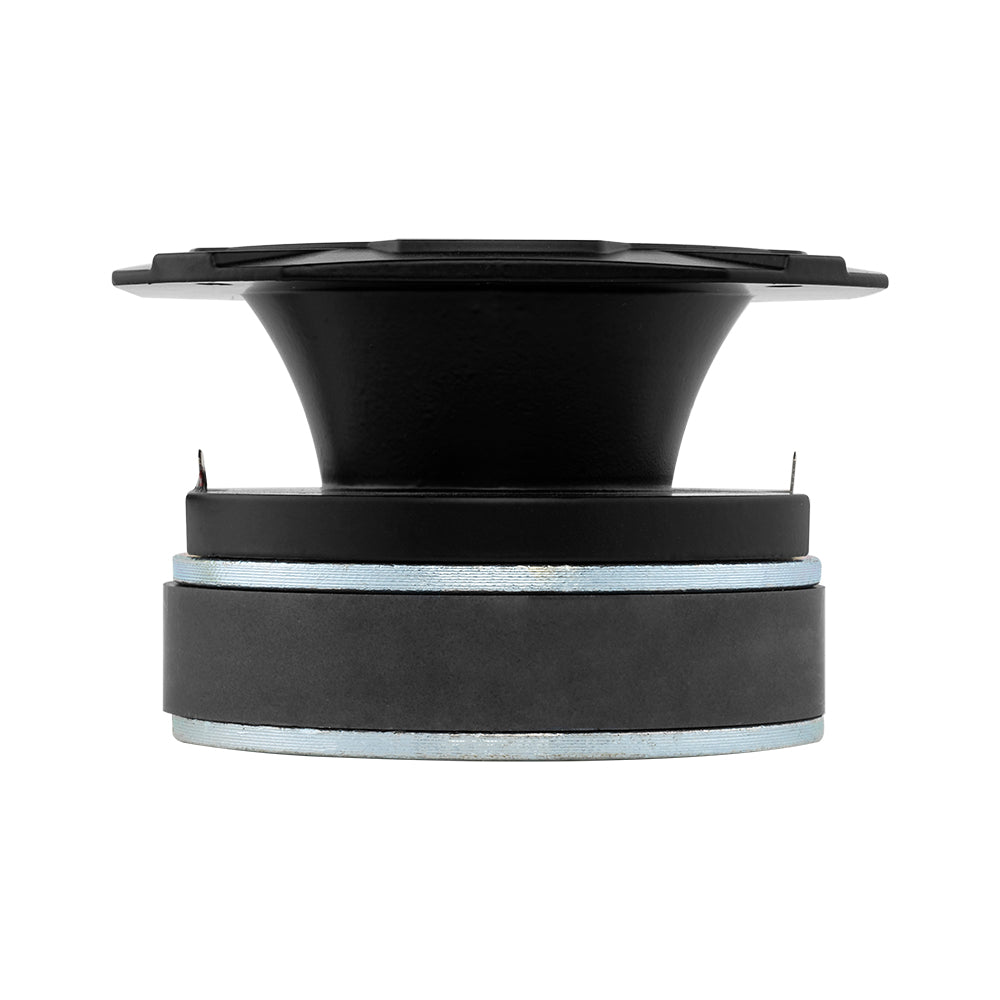

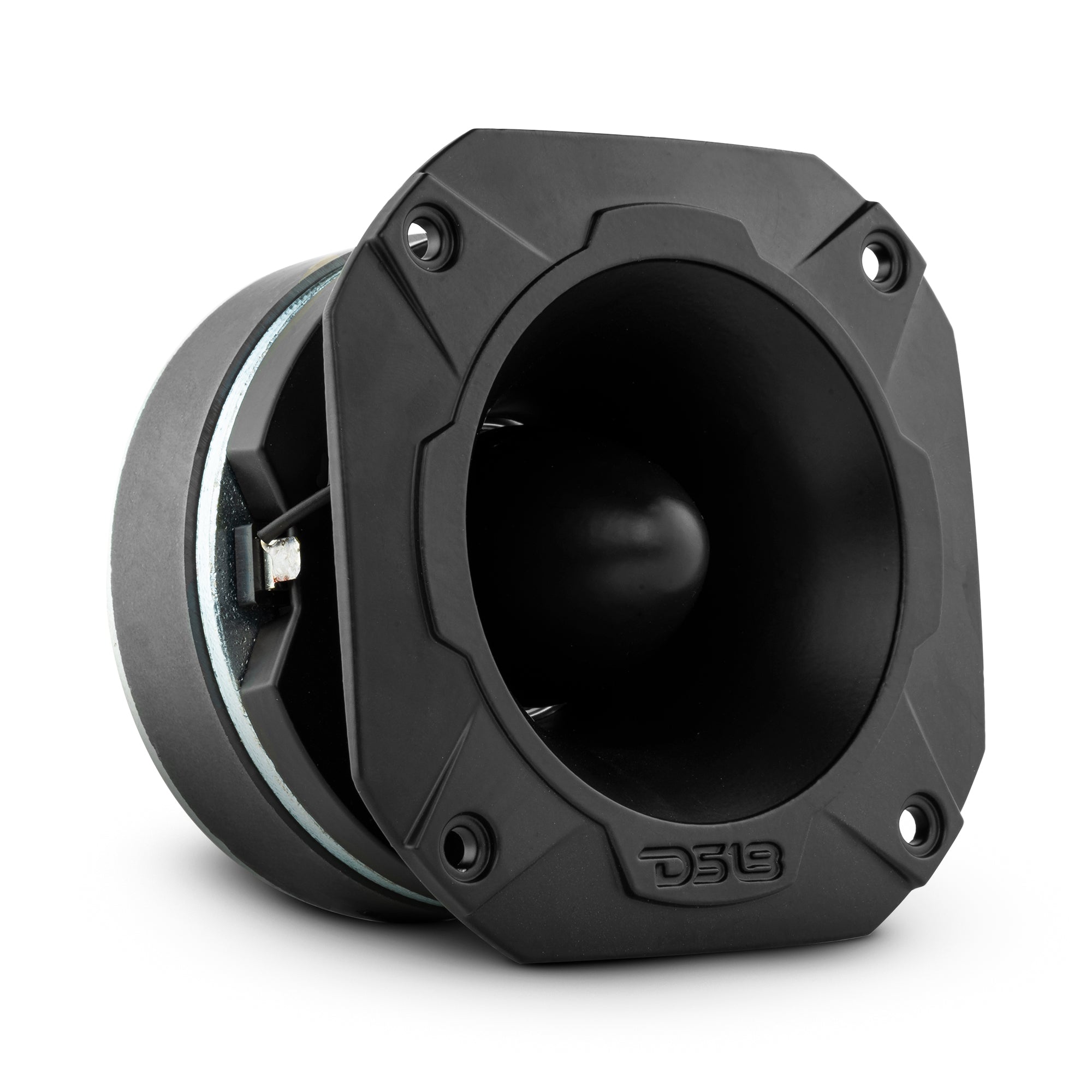

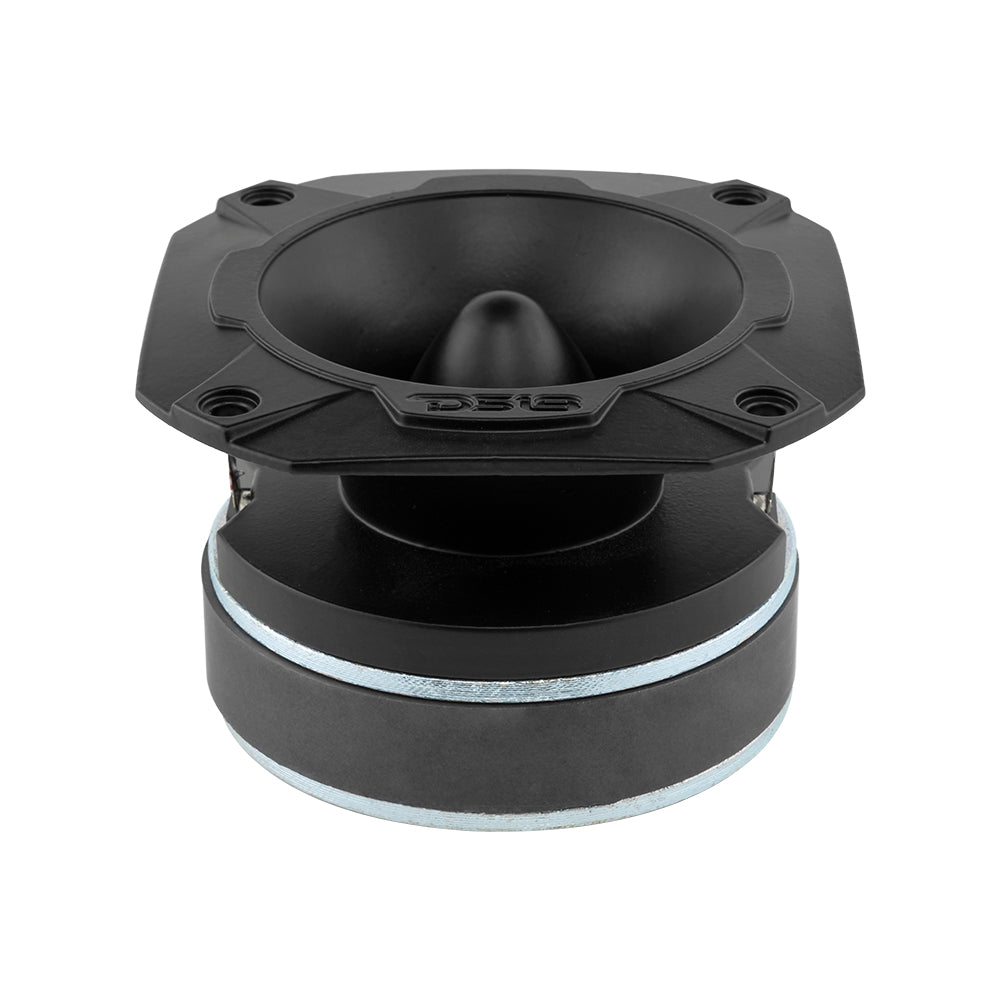

DS18 PRO-TWX3 4″ Super Bullet Tweeter 480 Watts 1.5″ Aluminum 4-Ohm Voice Coil – Sold as Single
The Pro TW series brings pro audio to a bright new level of elegance, clarity, and loudness.
These speakers were designed specifically for the audio enthusiast that wants unparalleled volumes with amazing sound quality all while absorbing the power thrown at efficiently allowing it to play up to extreme volumes with authority for extended periods of time. The PRO-TWX3 has a beautiful black face with strong black on black frame.
This 4-ohm Super tweeter handles an enormous 125 watts AES handling and 250 Program watts, ensuring screaming loud mid and high range frequencies be acute and clear.
Highlights
- 4″ Nominal diameter Bullet black on black Pro-Audio Super tweeter.
- AES Power Handling 125W
- Program Power Handling 250W
- Peak Power Handling 500W
- Frequency Response: 3Khz- 20Khz
- Voice Coil Diameter: 1.5″
- Voice Coil Material: Aluminum
- Impedance: 4-Ohm
-
Sensitivity: 98Db
- Magnet Weight: 14Oz
- Magnet Material: Ferrite
- Mounting Depth: 2.36″
- Recommended High Pass: 3Khz
Great For:
- Car Audio
- Pro Audio
- Motorcycles
- Home Studio
- Hi-Fi Installation
- Surround Sound
- Bookshelf Speakers
- Stunt Walls
- DIY Projects
Technical Details
PRO-TWX3 Product Manual
| SPECIFICATIONS | |
| Nominal Diameter | 4” / 102 mm |
| Nominal Impedance | 4 Ohms |
| AES Power Handling | 125W |
| Program Power Handling | 250W |
| Peak Power Handling | 500W |
| Sensitivity (1w/1m) | 106 dB |
| Frequency Response | 3K-20KHz |
| Recommended Hi Pass Crossover | 3KHz |
| Replacement Diaphragm: | PRO-TW3VC |
| BODY / FEATURES | |
| Pair or Single | Single |
| Body Material | Aluminum |
| Body Color / Finish | Black |
| Bullet Material | Aluminum |
| MOTOR | |
| Voice Coil Diameter | 1.5” / 38 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Ferrite |
| Magnet Weight | 14 Oz |
| MEASUREMENT | |
| Overall Diameter | 4”/ 102 mm |
| Overall Depth | 2.58”/ 65.5 mm |
| Front Mount Baffle Cutout | 3.62” / 92 mm |
| Mounting Depth | 2.36” / 60 mm |
| Motor Diameter | 3.5″ / 90mm |
Technologies
Wiring Wizard
test info
Specifications
- 4”
- Super Bullet
- 250 Watts RMS
- 1.5” Titanium Vc
- 4Ω
