DS18 PRO-X6.4MSQ PRO 6.5″ Square Midrange Loudspeaker 450 Watts 4-ohm
$59.95
The details
Product Overview
Why we stock the DS18 PRO-X6.4MSQ

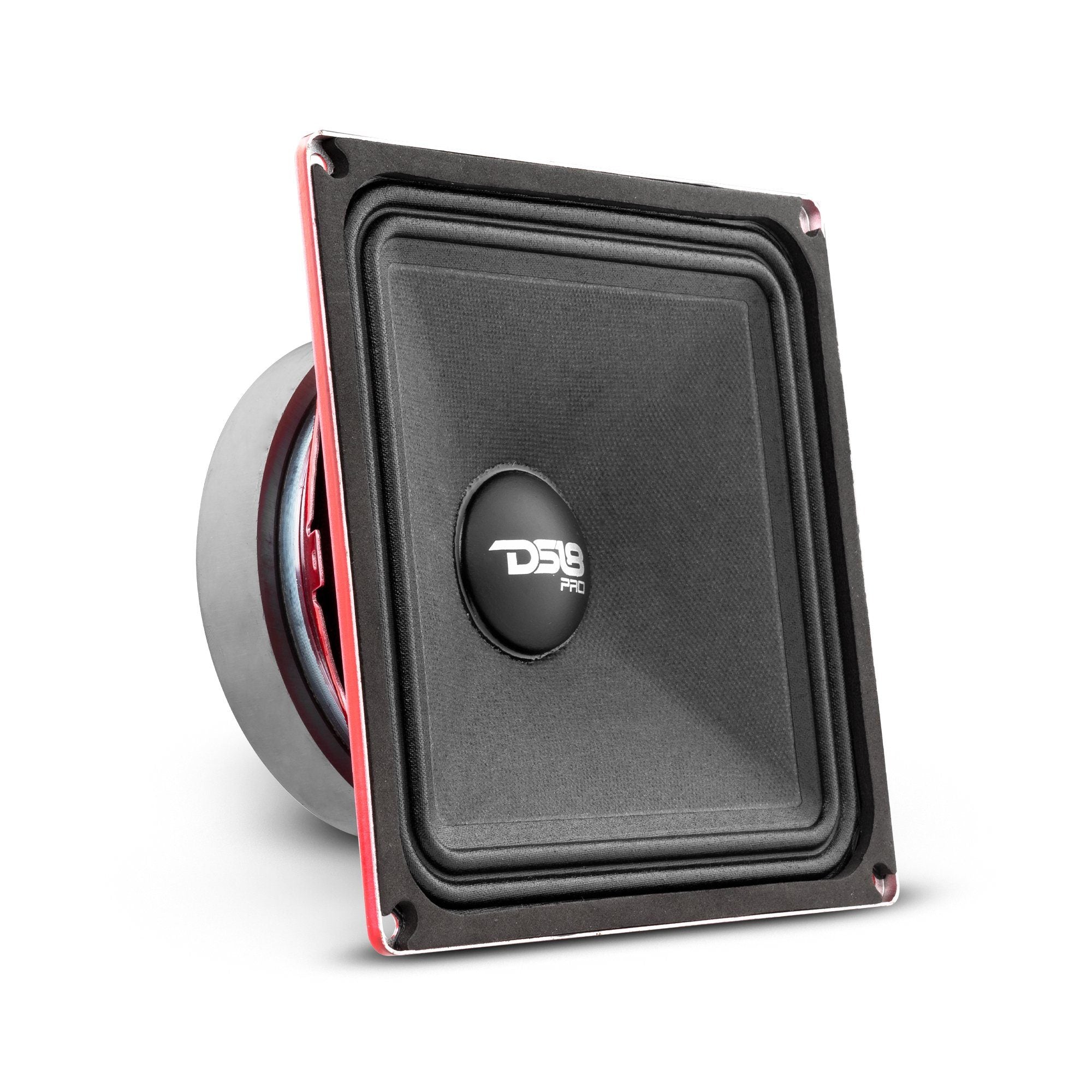

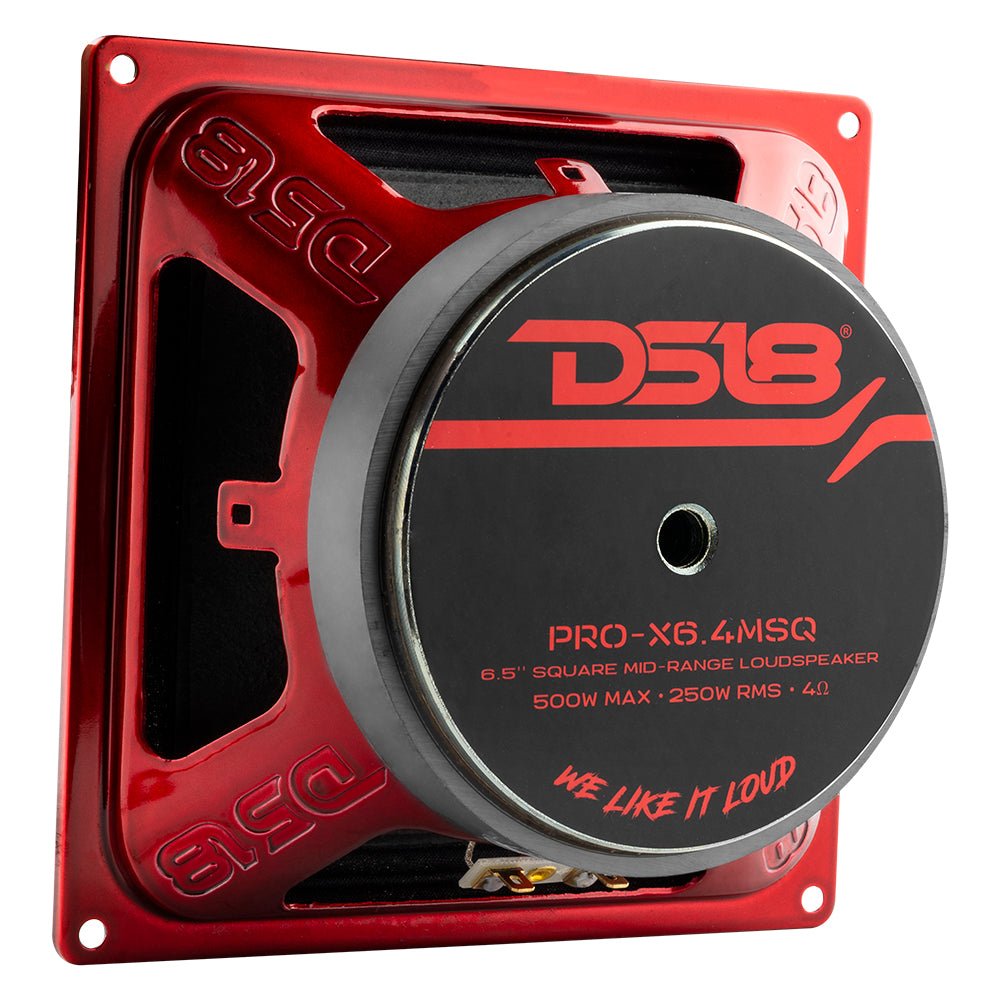

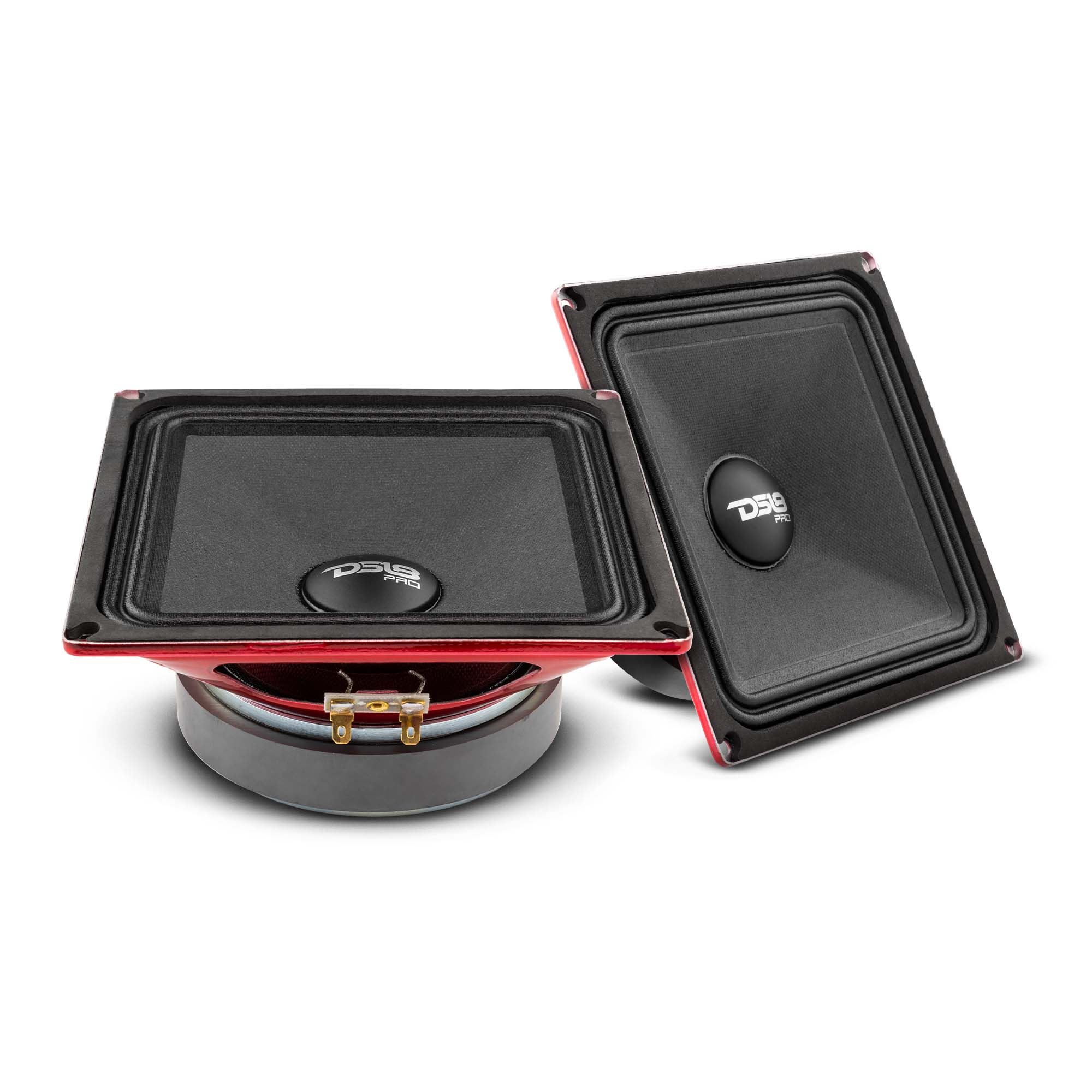

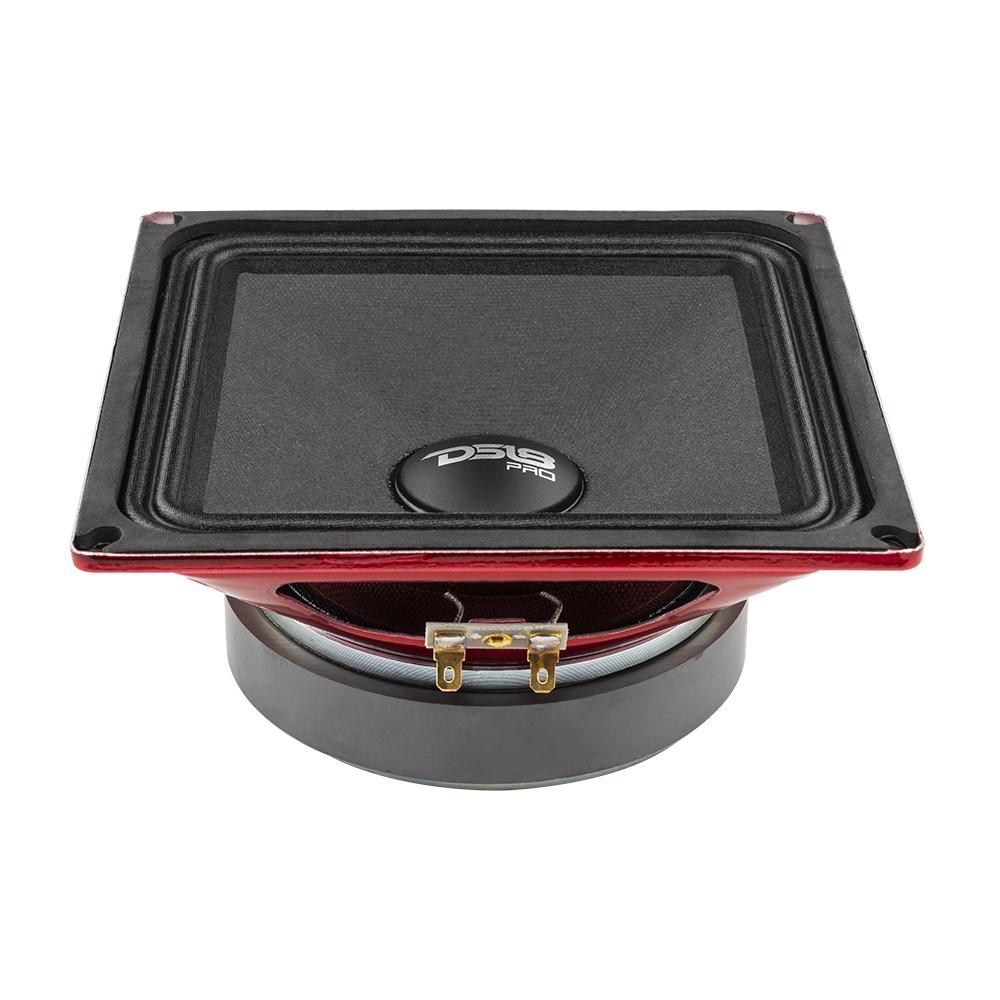

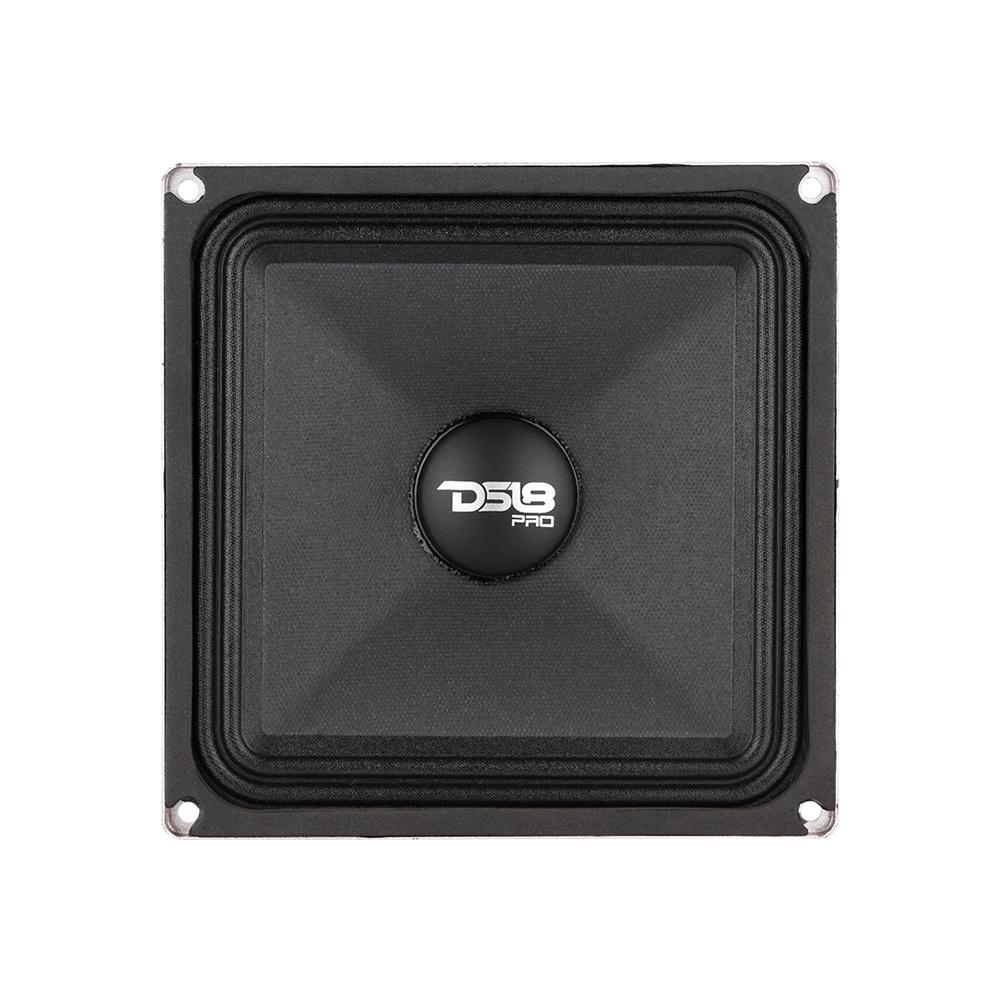

The DS18 PRO-X6.4MSQ is a square 6.5″ PRO-X midrange at 4 ohms. With 95 dB sensitivity and an 80Hz to 16.5kHz range, it has the sound of the PRO-X6.4M in a square frame that fills more of a panel.
The square shape gives a bold, custom look in doors and walls. It needs 2.87″ of depth. Prefer a round driver? Use the PRO-X6.4M.
DS18 is always innovating and dominating on the pro audio scene. The newest addition to our pro audio PRO line is the extremely loud PRO-X6.4MSQ. This amazing speaker shares all the characteristics of our very popular X6.4M but is completely square in construction to maximize cone area. This speaker comes in at 250w RMS and 500w Peak power with a 95dB sensitivity so you will have no problem getting loud easily. The added cone area will bring that added sensitivity and sound fullness for crazy loud PRO Audio sound.
Highlights
Technical details PRO- X6.4MSQ Product Manual
By the numbers
- RMS Power
- 250 Watts RMS
- Peak Power
- 500 Watts Max
- Impedance
- 4 Ohms
- Nominal Impedance
- 4 Ohms
- RMS Power Handling
- 250W
- MAX Power Handling
- 500W
- Recommended Hi Pass Crossover
- 120 Hz
- Sensitivity
- 95 dB
- Frequency Response
- 80Hz – 16.5KHz
- Sensitivity (1w/1m)
- 95 dB
- Voice Coil Diameter
- 1.5″ / 38.6mm
- Voice Coil Former Material
- Kapton
- Winding Material
- CCAW
- Cone Material
- Paper
- Dust Cap Material
- Paper
- Surround Material
- Cloth
- Basket Material
- Steel
- Basket Color/Finish
- Glossy Red
- Magnet Material
- Ferrite
- Magnet Weight
- 30 Oz
- Motor Diameter
- 4.72″ / 120mm
- Size
- 6.5 inch
- Mounting Depth
- 2.87″ / 73mm
- Nominal Diameter
- 6.5×6.5″ Square
- Displacement Volume
- 0.32L
- Overall Diameter
- 6.61″ x 6.61/ 168 x 168mm
- Overall Depth
- 3.11″ / 79mm
- Front Mount Baffle Cutout
- 6.02″ x 6.02/ 153 x 153mm
