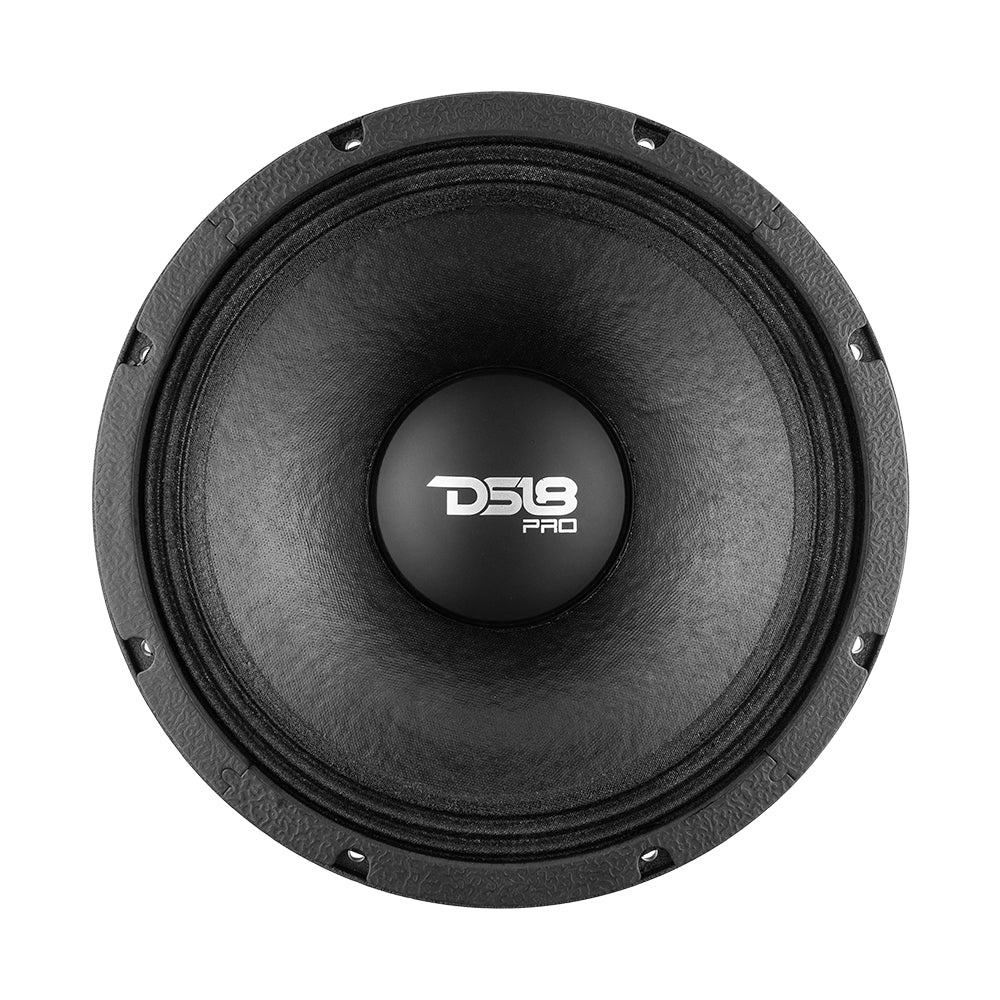

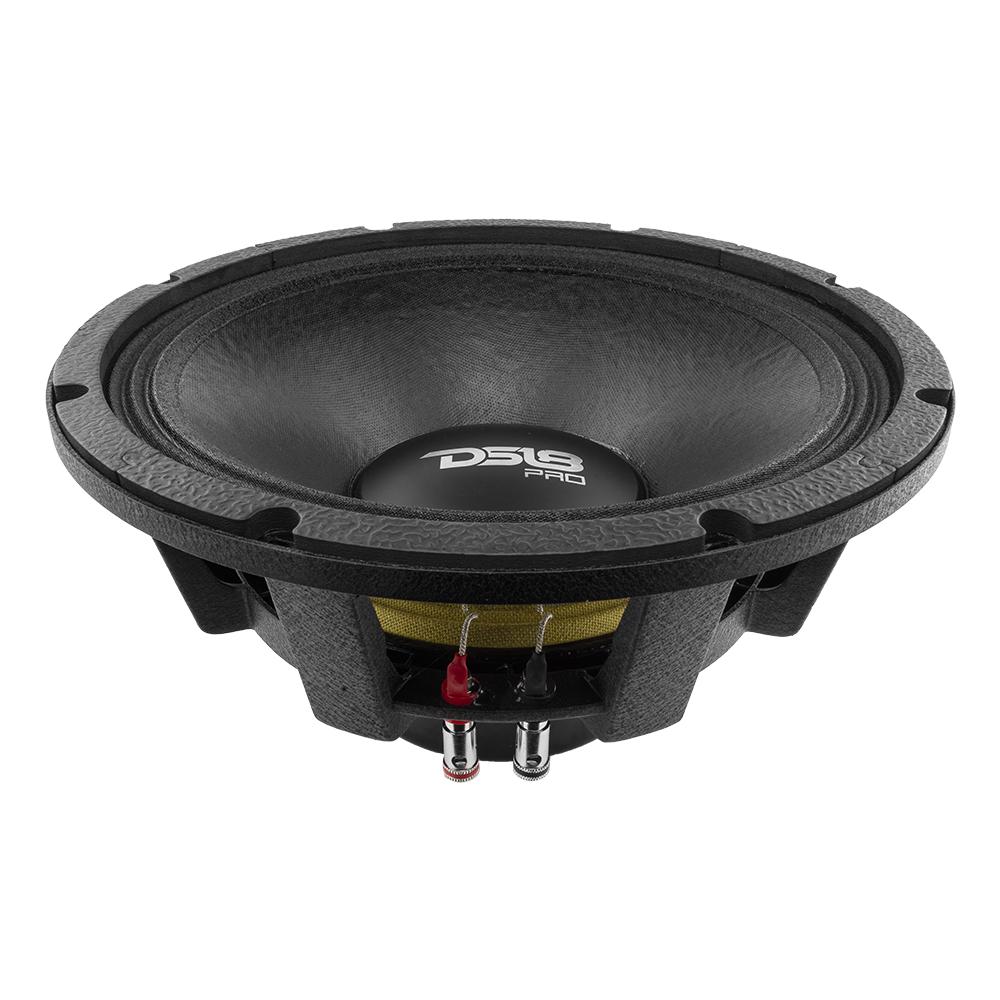

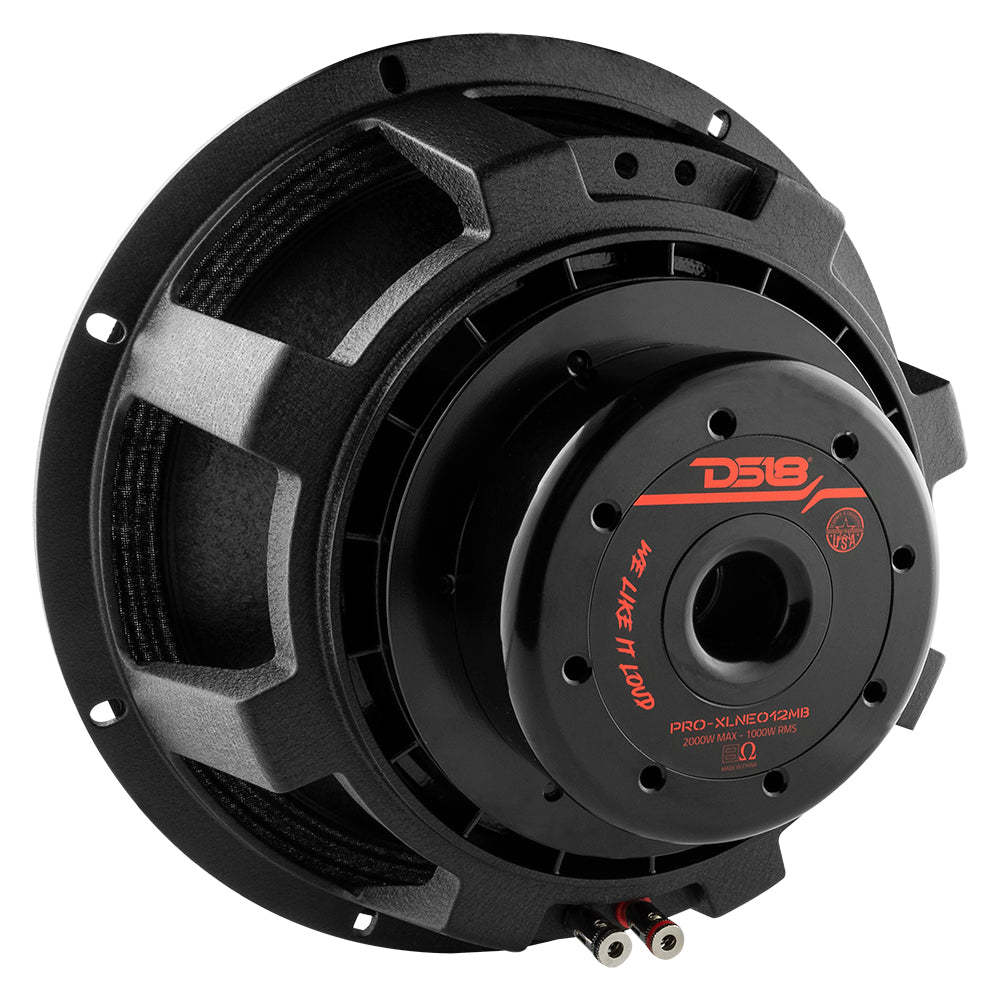

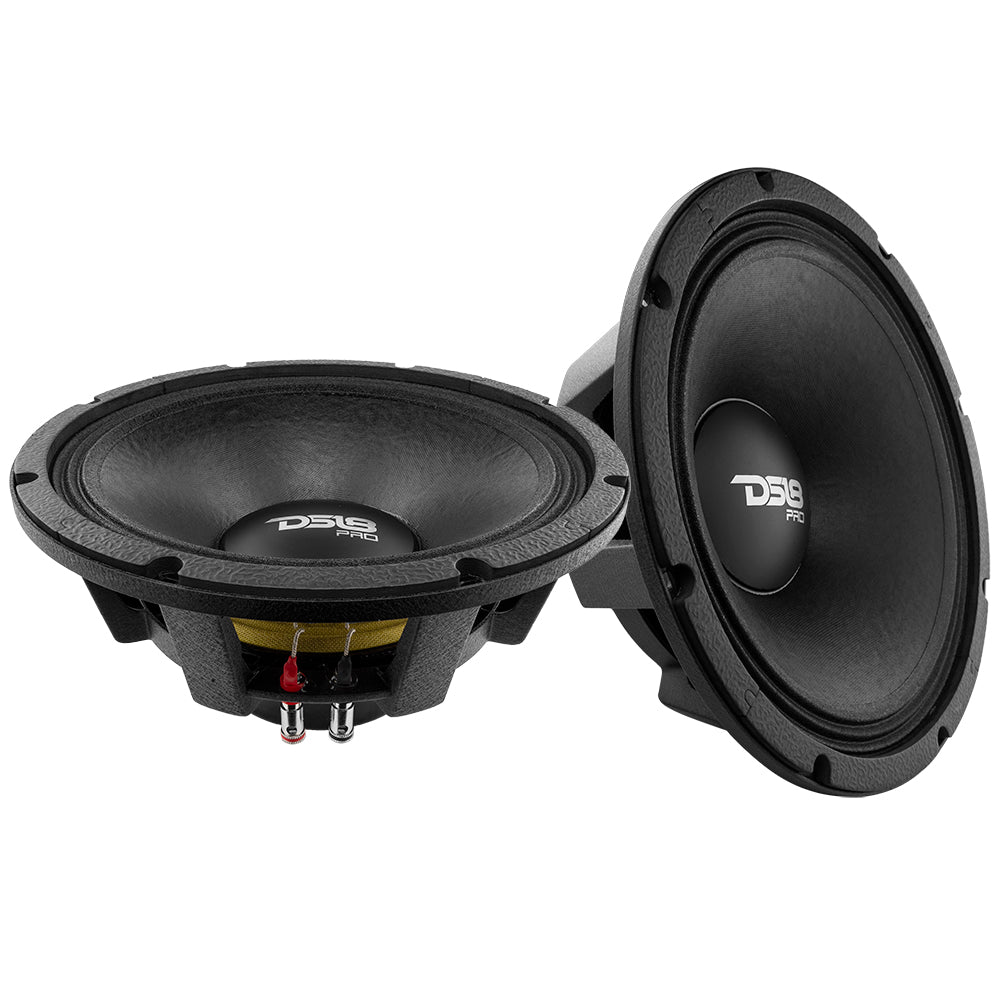

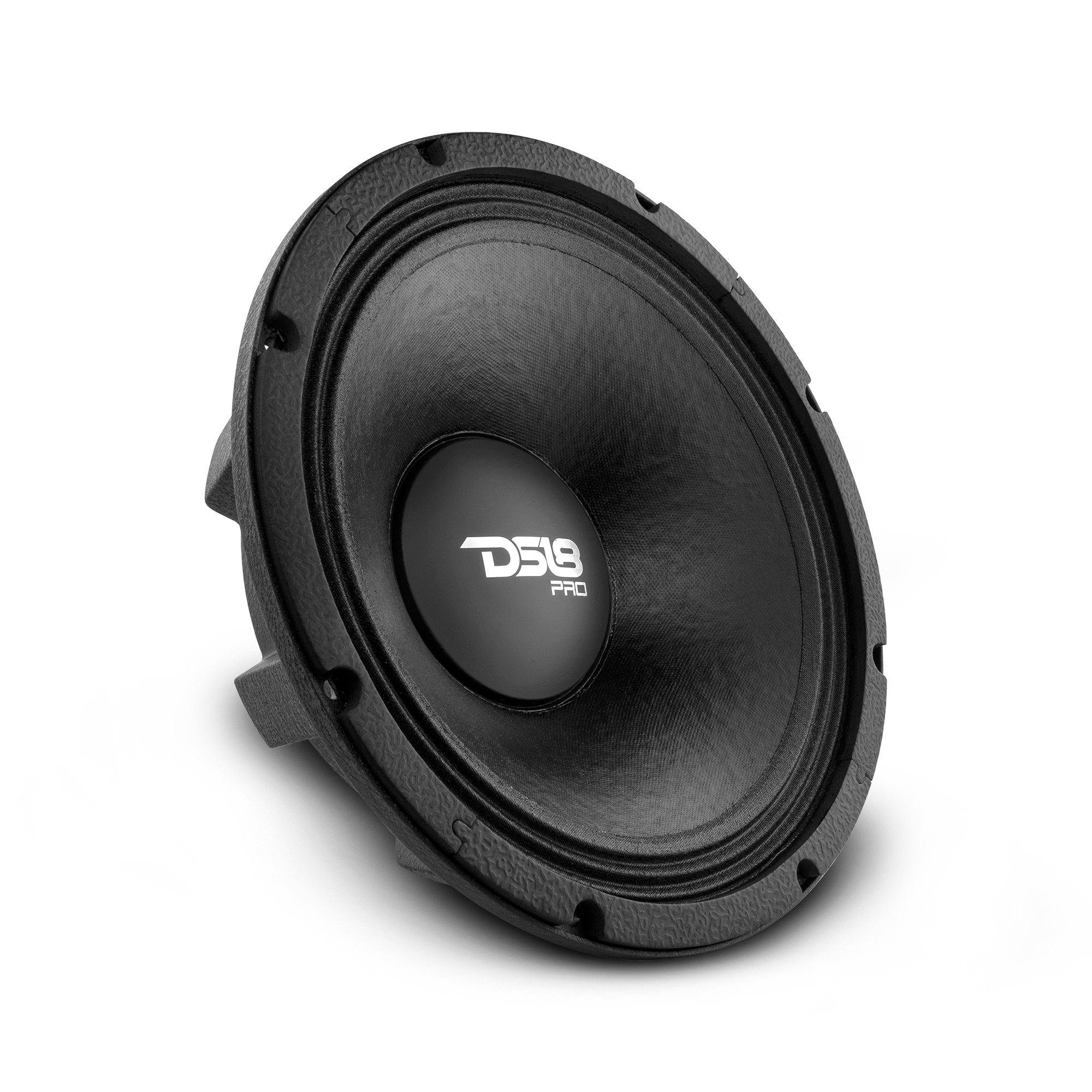

DS18 PRO-XLNEO12MB PRO 12″ Neodymium Mid-Bass Loudspeaker 1000 Watts Rms 8-Ohm
$359.95
Lease for as low as $16.27/week. Apply Now
Our newest addition just came raging into our massive pro audio line, the PRO-XLNEO12MB !
- RMS Power Handling@8 OHMS: 1000W
- MAX Power Handling@8 OHMS: 2000W
- Impedance: 8 ohms
- Frequency Response: 45Hz – 7KHz
- Sensitivity (1w/1m): 98.2 dB
- Mounting Depth: 5.45” / 138.5mm
The details
Product Overview
Our newest addition just came raging into our massive pro audio line, the PRO-XLNEO12MB ! This monster mid-bass speaker is backed by the full power of neodymium technology, which helps this mammoth mid-bass speaker handle more power, handle that power more efficiently, operate cooler, and are overall lighter than traditional ferrite motors. This mid-bass is great for those wanting to bring frequencies of 50+Hz with authority and full volume to accompany all your other frequencies for an amazing sound quality and full audio range. This neo mid-bass speaker comes with a gigantic 4 inch voice coil that handles 1000w RMS and 2000w max power so you can be sure that your mid-bass will turn all heads in a crowd!
By the numbers
Excursion
Scale 0 to 16mm- RMS Power Handling@8 OHMS
- 1000W
- MAX Power Handling@8 OHMS
- 2000W
- Recommended HI Pass Crossover
- 80Hz
- Impedance
- 8 ohms
- Sensitivity (1w/1m)
- 98.2 dB
- Frequency Response
- 45Hz – 7KHz
- Excursion (one way)
- Xmax: 13.8 mm
- Free Air Resonance
- Fs: 72Hz
- BL Factor
- Bl: 23.553
- Xmax
- 13.8 mm
- Voice Coil Diameter
- 4” / 99.8mm
- VC Former Material
- Glass Fiber
- Winding Material
- CCAW
- Cone Material
- Paper
- Dustcap Material
- Paper
- Surround Materia
- Cloth
- Basket Material
- Aluminum
- Basket Color
- Sandblasted Black
- Magnet Material
- Neodymium
- Magnet Weight
- 18.5 Oz
- Voice Coil Inductance
- Le: 32.64mH
- Cone Area
- Sd: 522.79CM²
- Motor Diameter
- 5.86”/149mm
- Displacement Volume
- 2.32L / 0.082ft3
- Equivalent Volume
- Vas: 22.76L / 0.8ft3
- Overall Diameter
- 12.32“ / 313mm
- Overall Depth
- 5.92” / 150.5mm
- Front Mount Baffle Cutout
- 11.2“ / 284.5mm
- Mounting Depth
- 5.45” / 138.5mm
- Pair or Single
- Single
- Mechanical Factor
- Qms: 1.61
- Electrical Factor
- Qes: 0.359
- Total Factor
- Qts: 0.294
- Mechanical Mass
- Mms: 83.362g
- Mechanical Compliance
- Cms: 0.059mm/N
- DC Resistance
- Re: 5.2 Ohm
- Mechanical Mass w/o Air
- Mmd: 69.855g
