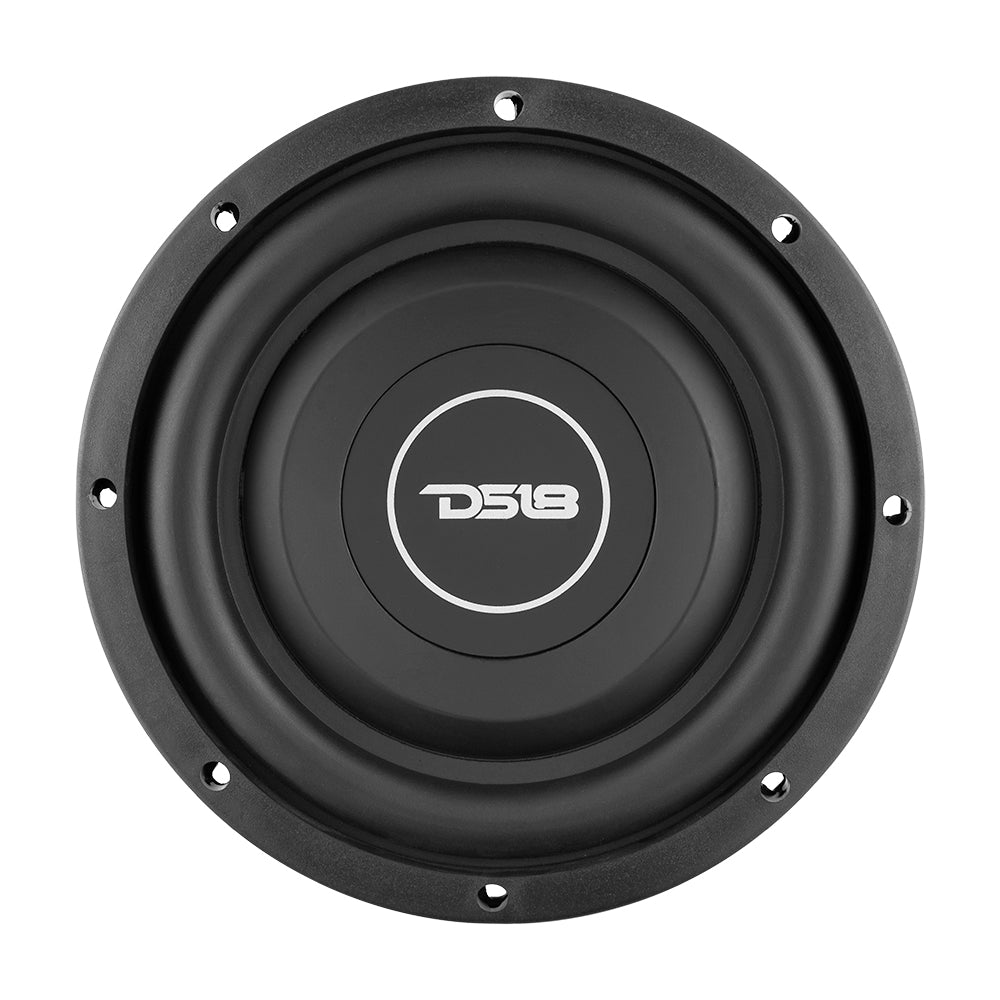

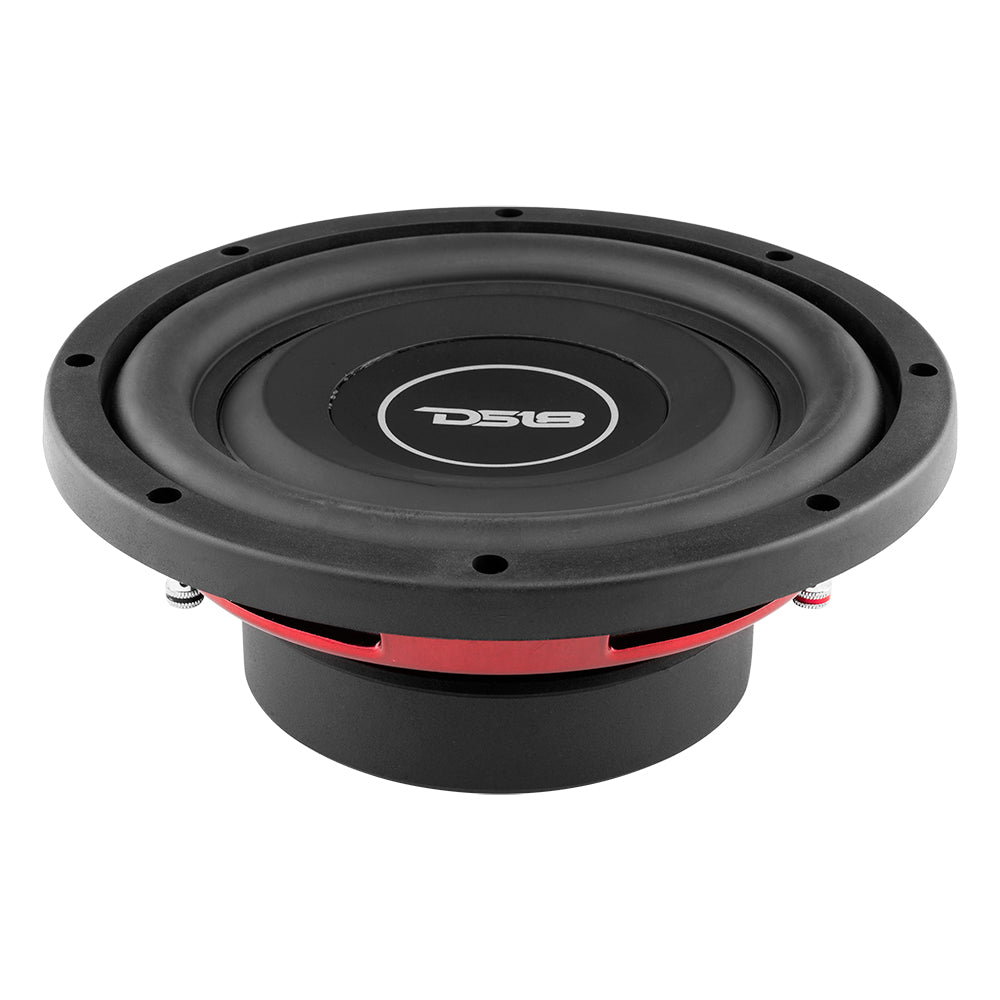

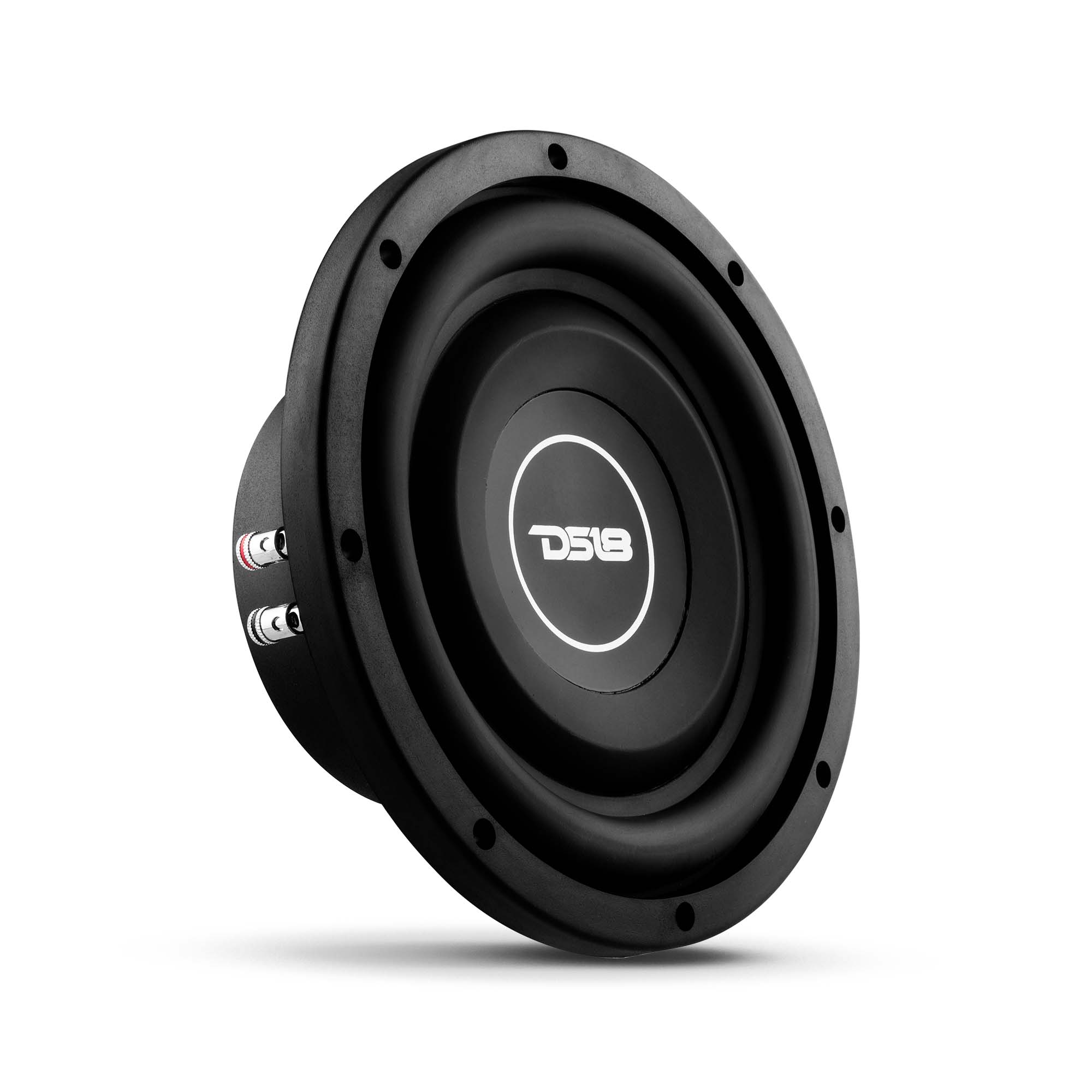

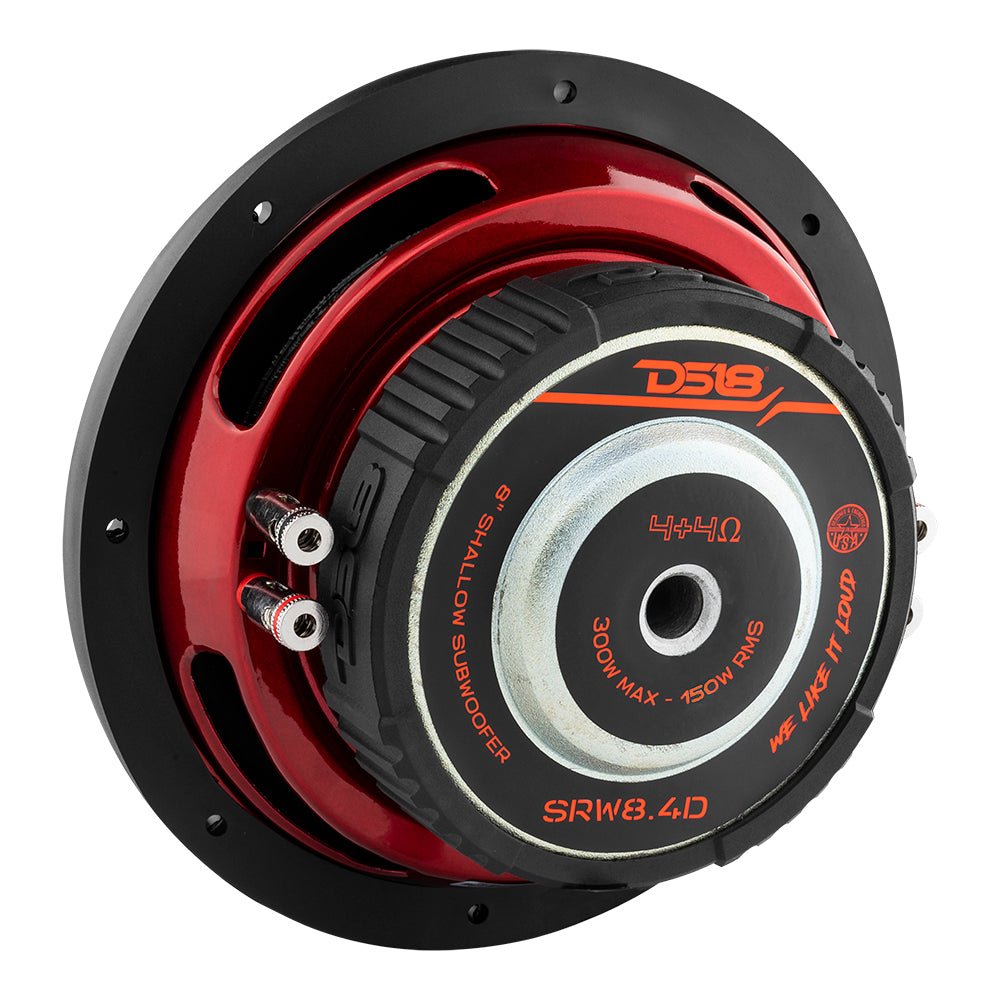

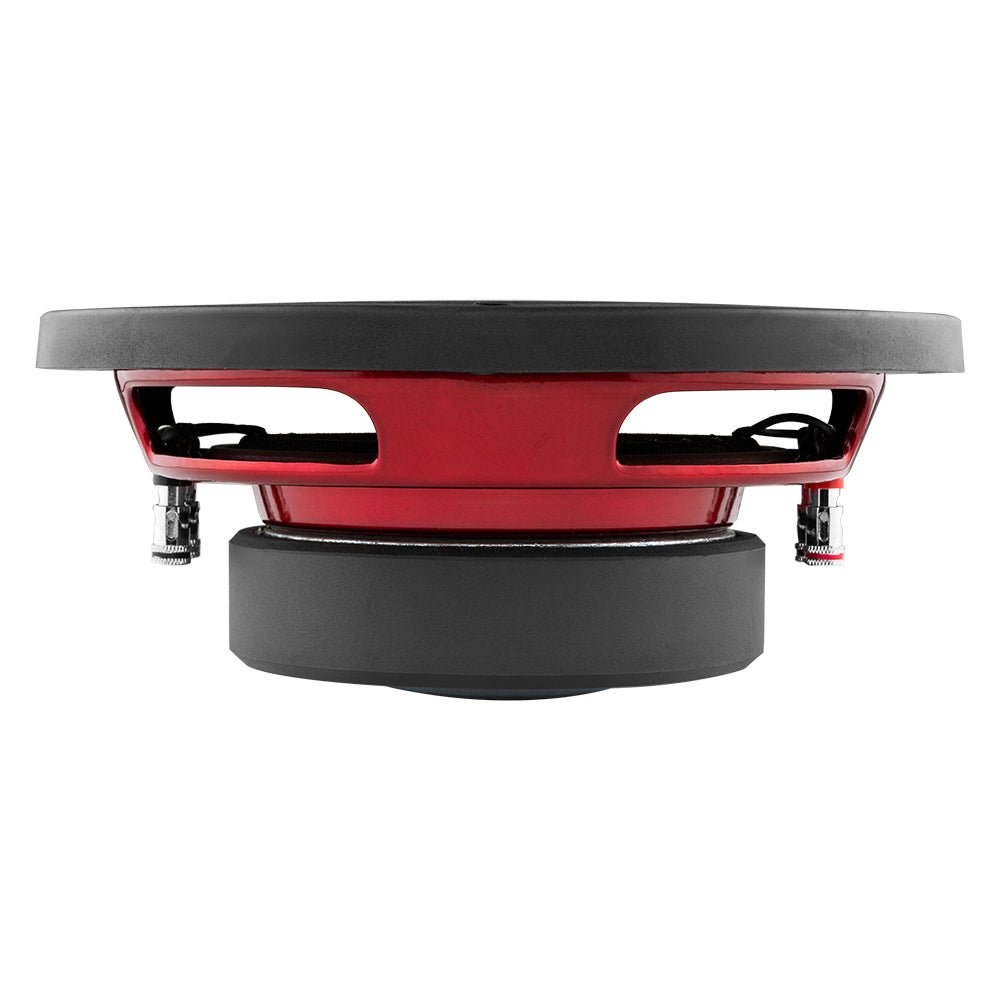

DS18 SRW8.4D SRW Shallow-Mount 8″ Subwoofer 150 Watts Rms DVC 4-Ohm
$111.95
It’s easy to get great bass when there’s very little room with our new line of shallow mount subwoofers.
- Nominal Diameter: 8"
- RMS Power Handling: 150 Watts
- Maximum Power Handling: 300 Watts
- Nominal Impedance: 4 + 4 Ohms
- Frequency Response: 25-250Hz
- Sensitivity (1w/1m): 86dB
Out of stock
The details
Product Overview
It’s easy to get great bass when there’s very little room with our new line of shallow mount subwoofers. The SRW8.4D (DVC) and SRW8.4 (SVC) mounts in little as 3.07 inches mounting depth and can be utilized in both ported and sealed boxes for great bass in a tight area. This sub handles 150 watts RMS and 300 watts Peak power with a 87dB sensitivity which is very high for a shallow mount sub raising this model high above the bar. This sub comes in both dual voice coil 4 ohms (SRW8.4D) and single voice coil 4 ohms (SRW8.4) so you can wire appropriately to your amp for maximum power to bring all your music to life!
By the numbers
- Nominal Impedance
- 4 + 4 Ohms
- RMS Power Handling
- 150 Watts
- Maximum Power Handling
- 300 Watts
- Recommended Lo Pass Crossover
- 120Hz
- Sensitivity (1w/1m)
- 86dB
- Frequency Response
- 25-250Hz
- Voice Coil Diameter
- 38.6mm / 1.5"
- Voice Coil Former Material
- Aluminum
- Winding Material
- SV
- Basket Material
- Steel
- Magnet Material
- Ferrite
- Magnet Weight
- 32oz
- Cone Material
- Paper
- Nominal Diameter
- 8"
- Overall Diameter
- 215mm / 8.46"
- Front Mount Baffle Cutout
- 181mm / 7.12"
- Overall Depth
- 86mm / 3.46"
- Mounting Depth
- 75mm / 2.95"
