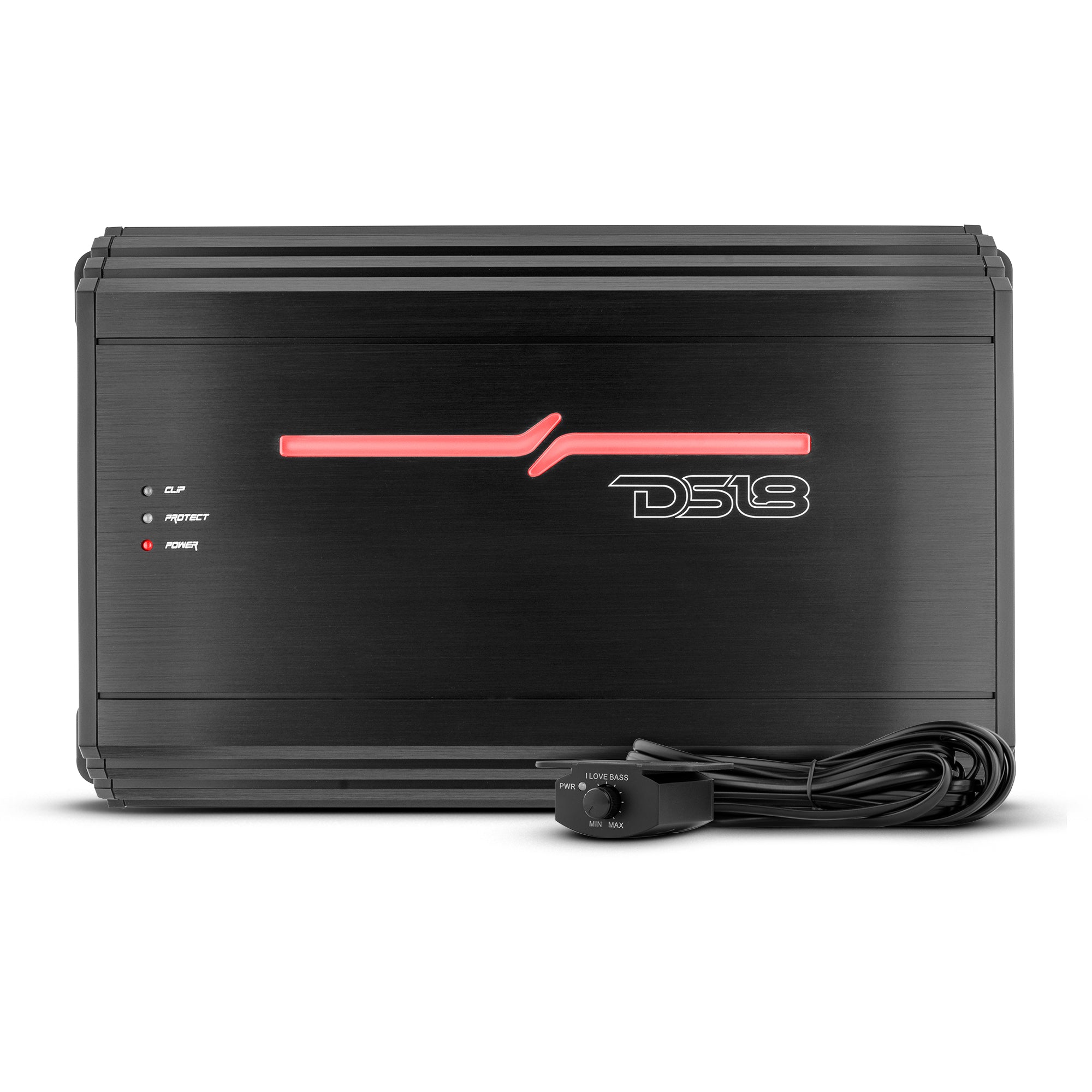

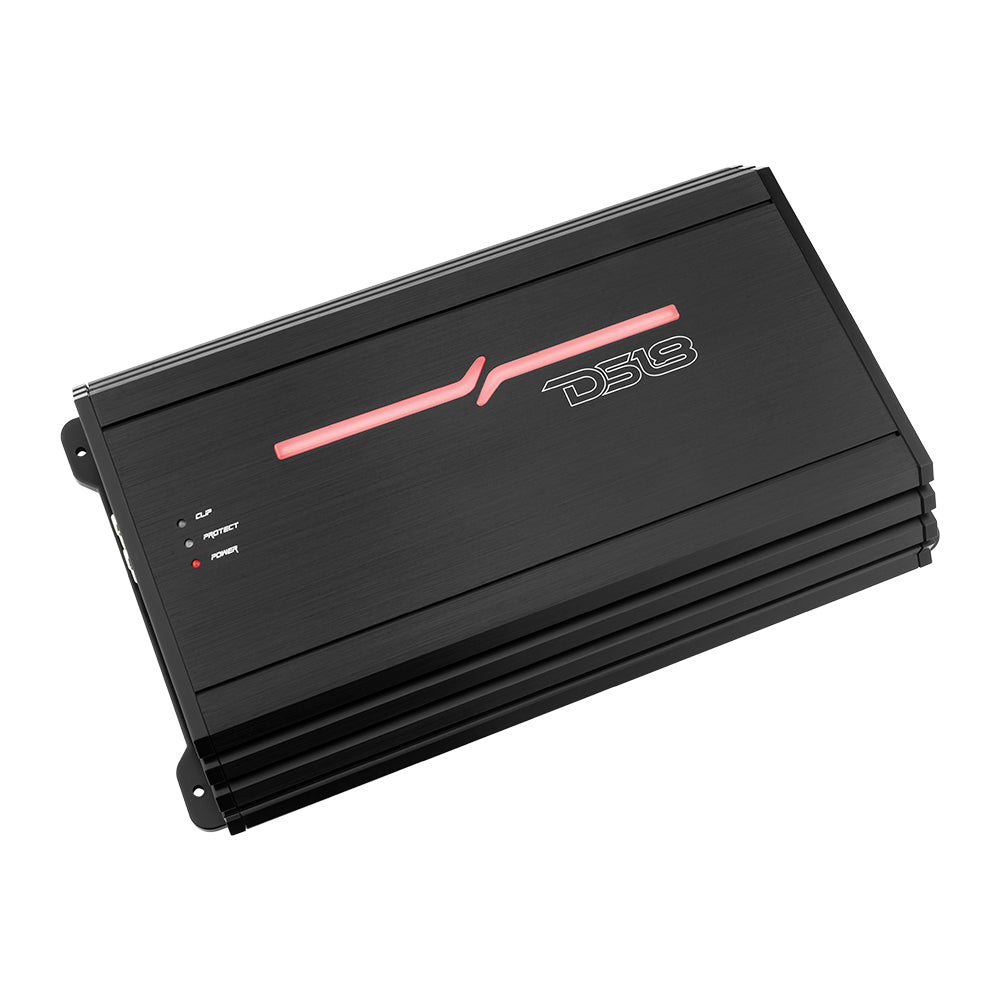

DS18 ZR1000.1D ZR 1-Channel Class D Amplifier 1000 Watts RMS-1 Ohm
$229.95
Out of stock
The details
Product Overview
The ZR Series amps are sure to power all your subwoofers with great sound acuity and massive bass frequency responses.
They have been designed to efficiently pump out hard hitting bass and put your subwoofers at their maximum potential. Easily tuned, The ZR1000.1D comes with Lowpass and Subsonic filters to help you set to the perfect frequency for your music preference.
The included bass knob will help you attenuate your bass with a quick turn of the dial to tune in your bass volume with every song you play. The ZR1000.1D is made to deliver 1000 watts RMS @ 1-Ohm, 650 watts RMS @ 2-Ohms, and 380 watts RMS @ 4 ohms giving you the perfect power for your bass.
Key Features
Good For:
Technical Details
ZR1000.1D Product Manual
By the numbers
- Channels
- 1 Channel
- Amplifier Class
- Digital
- RMS Power
- 1000 Watts RMS
- Impedance
- 1 Ohms
- Total Watts (Peak)
- 3000W
- RMS Power @ 4 ohm
- 380W
- RMS Power @ 2 ohm
- 650W
- RMS Power @ 1 ohm
- 1000W
- Damping Factor
- 220
- Input Impedance
- 20K ohm
- Channel Separation
- N/A
- Low Level Input Range
- 0.2-6V
- High Level Input
- No
- X-Over Filter Range
- 40-180Hz
- Bass Boost Range
- 0-12db
- Infrasonic Filter
- 10-50hz
- Number of Channels
- 1
- Minimum Impedance
- 1 ohm
- Power Input Terminal Size
- 4ga
- Fuse Size
- 100A
- DC Output Protection
- Yes
- Short Circuit Output Protection
- Yes
- Voltage Input Protection
- Yes 16 Volts
- Frequency Response
- 10-220Hz
- Efficiency @ 4ohm
- 80%
- Total Harmonic Distortion (THD)
- 0.01%
- Bass Boost Frequency
- 30-80hz
- Body Color / Finish
- Black Aluminum Brush
- Overall Length
- 11.8″ / 301mm
- Overall Height
- 2″ / 53mm
- Heatsink Length
- 10.47″ / 266mm
- Gross Single Unit Weight
- 5.8Lb
- Signal to Noise Ratio
- >95dB
- Selectable X-Over
- LPF Fixed
- Phase Selector
- No
- Amplifier Type
- Monoblock Subwoofer
- Led Indicator
- clipping/protect/power
- Remote Level Control
- Yes / Dash Mount
- Cooling Fan
- No
- Voltmeter
- No
- Thermal Protection
- Yes
- Over-Load Protection
- Yes
- Clipping Protection
- Yes
- Overall Wide
- 7.24″ / 184mm
