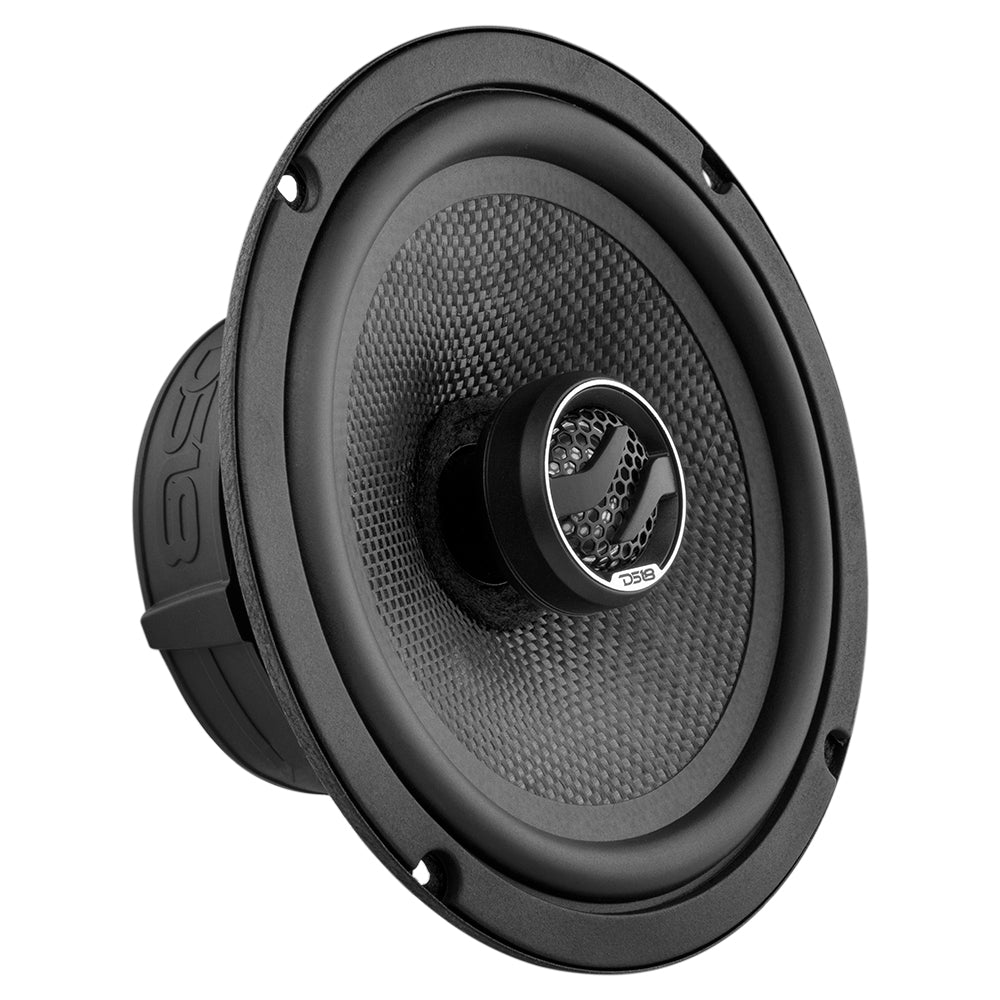

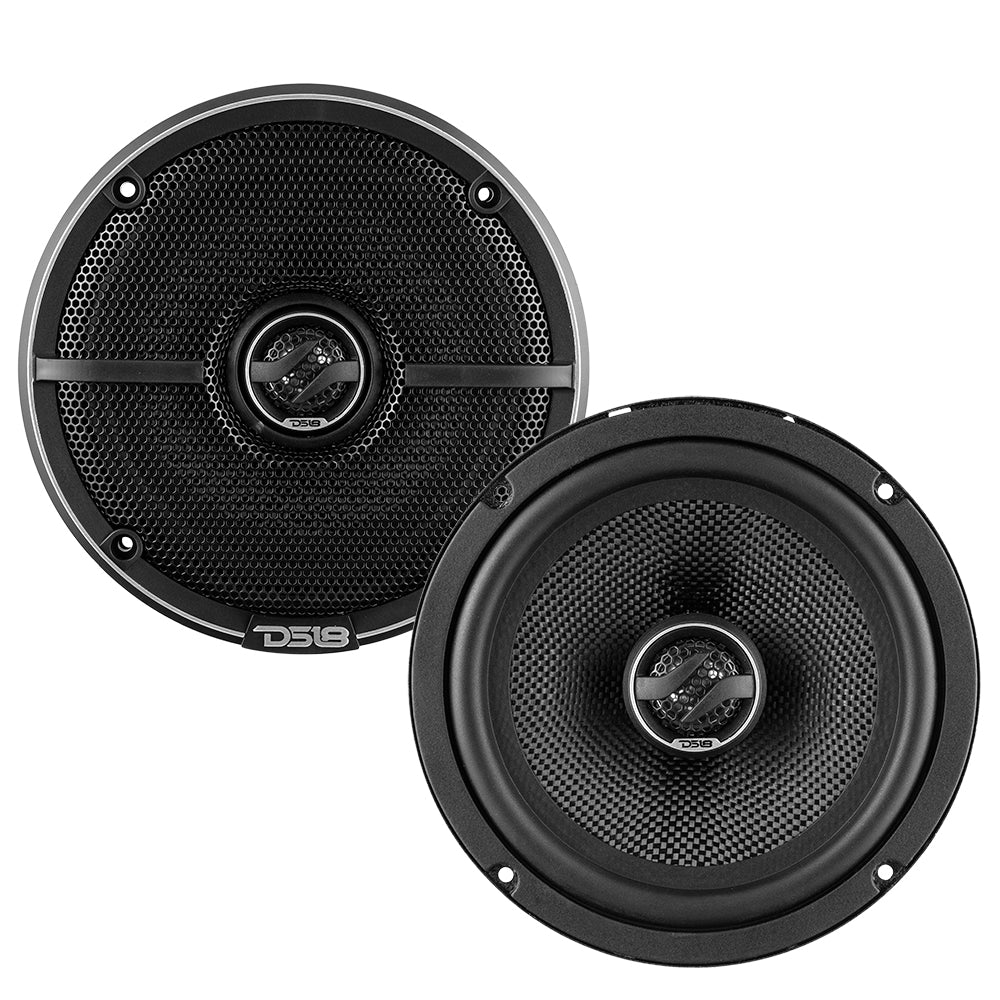

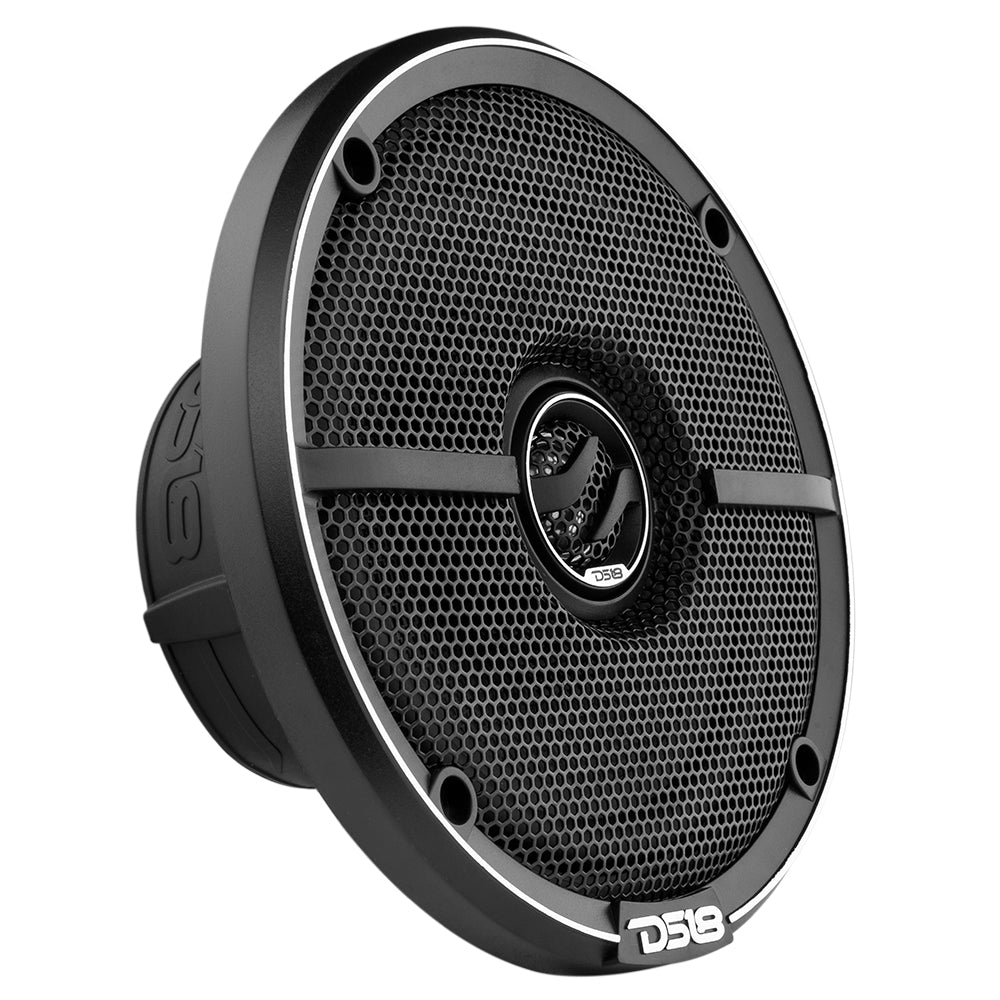

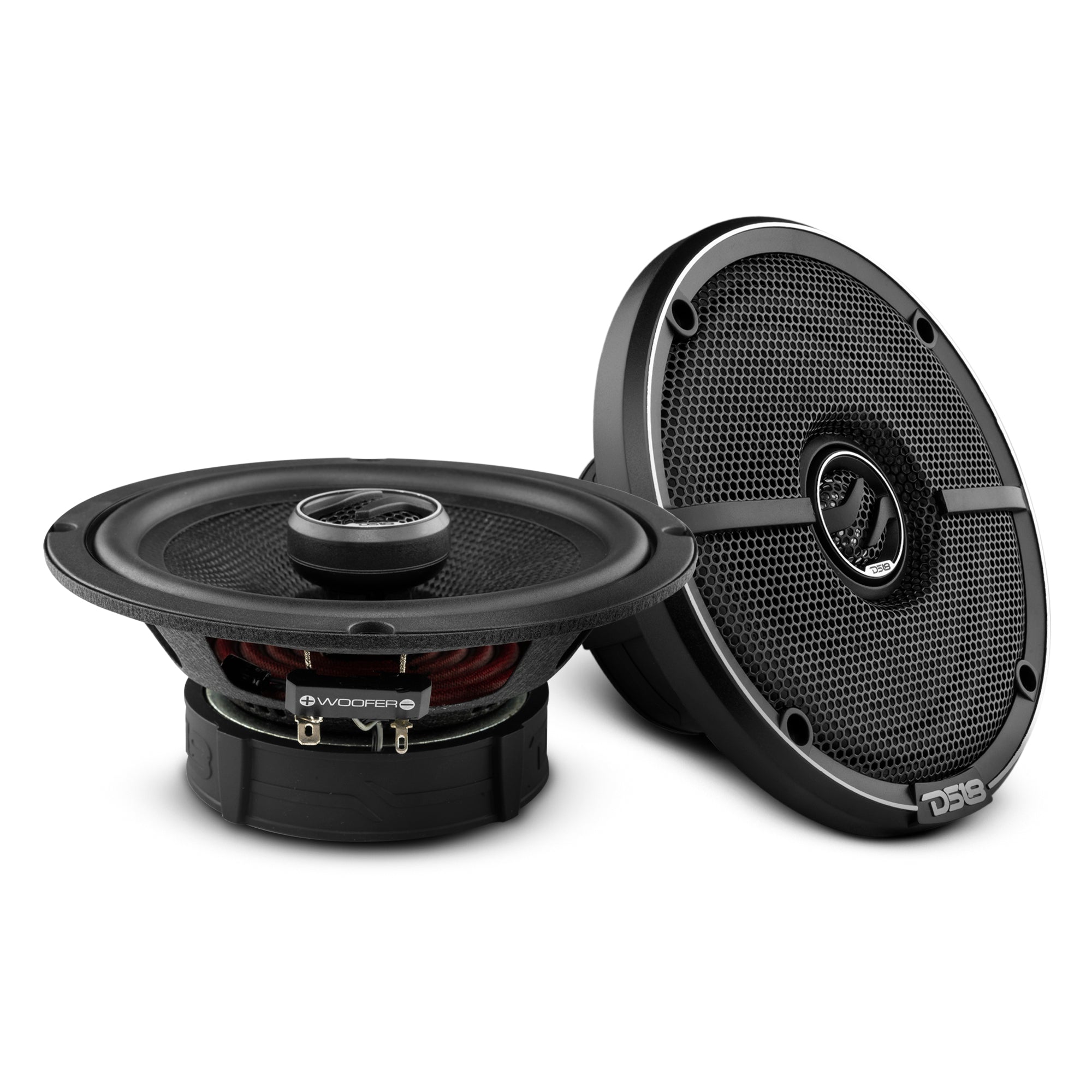

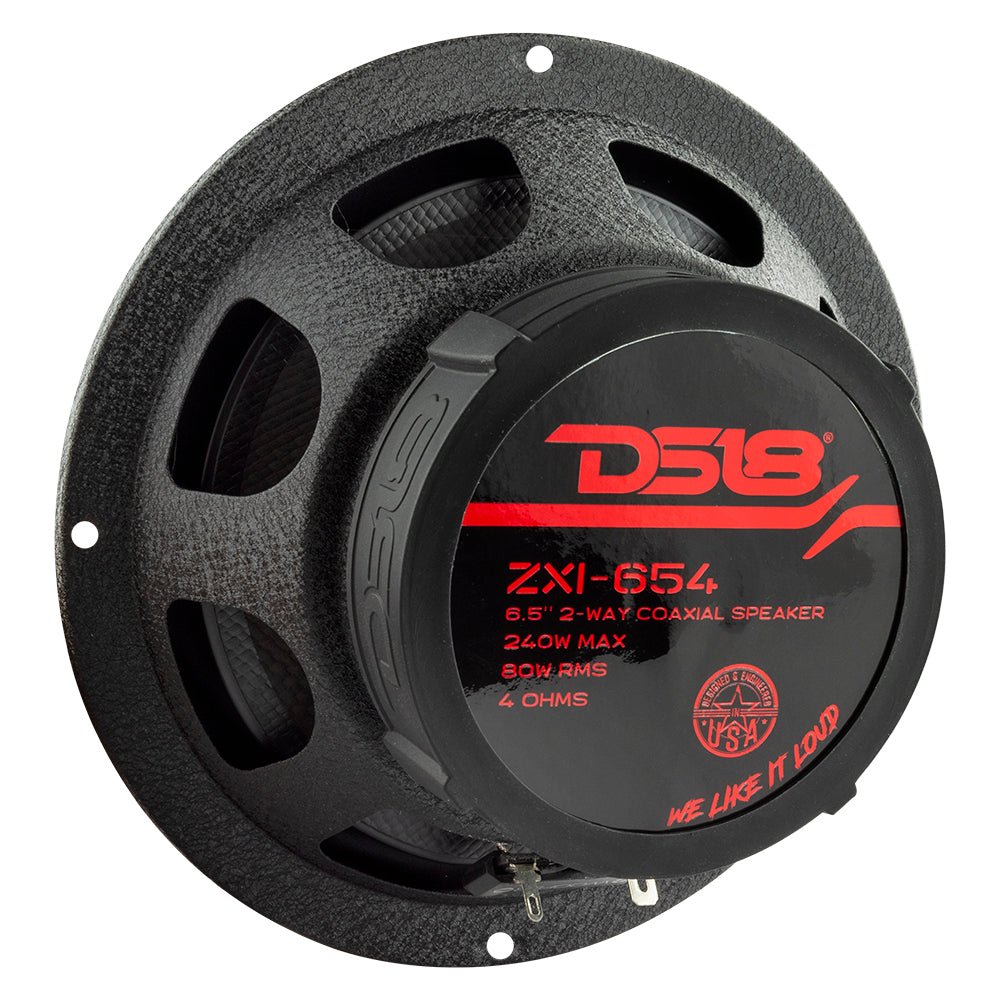

DS18 ZXI-654 ZXI 6.5″ 2-Way Coaxial Speakers with Kevlar Cone | 80W RMS 4-Ohm

$94.95

RMS Power80W
Peak Power240W
Sensitivity89dB
01 Overview

The details

Product Overview

Why we stock the DS18 ZXI-654

The DS18 ZXI-654 is a 6.5″ 2-way coaxial with a Kevlar cone, made for people who want a clear step up from factory speakers without adding an amp right away. At 89 dB sensitivity it gets loud on head unit power, and it handles 80 watts RMS (240 max) when you do add an amp later.

It plays from 40Hz to 20kHz and needs just 2.36″ of mounting depth, so it fits many factory 6.5″ locations. Add a 4 channel amp like the SoundQubed S4-100 to get the most out of them.

DS18’s ZXI line is both highly innovative and intuitive making it a very versatile audio line that will bring you loud and clear music on demand. This 2-way 6.5″ takes 80w RMS and 240w Max and with a 89 dB sensitivity rating, you don’t need a lot of power to bring these very loud speakers to extremely high volumes. These speakers are an amazing choice for your average every day to extreme audiophile!

Highlights

Technical Details Download ZXI-654 Product Manual

02 Tech specs

By the numbers

ZXI-654 · Manufacturer rated
RMS Power 01
80W
Continuous rating
Peak Power 02
240W
Short-burst rating
Sensitivity 03
89dB
Efficiency
Size 04
6.5in
Nominal

RMS Power
80 Watts RMS
Peak Power
240 Watts Max
Impedance
4 Ohms
Nominal Impedance
4 ohms
RMS Power Handling
80 Watts
MAX Power Handling
240 Watts
Recommended HI Pass Crossover
60Hz
Speaker Type
2-Way

Sensitivity
89 dB
Frequency Response
40Hz – 20KHz
Sensitivity (1w/1m)
89dB
Excursion (one way)
2.7mm
Free Air Resonance
64Hz
BL Factor
5.1

Voice Coil Diameter
0.8″ / o20.4mm
Voice Coil Former Material
KSV
Winding Material
EISVM
Cone Material
Glass fiber
Surround Material
Rubber
Basket Material
Steel
Magnet Material
Neodymium
Magnet Weight
0.3 oz / 8.5g
Diaphragm Material
PEI
Voice Coil Inductance
228mH
Cone Area
131cm2
Motor Diameter
3.70” / 94mm

Size
6.5 inch
Mounting Depth
2.36” / 60mm
Nominal Diameter
1″ / 25.4mm
Equivalent Volume
10.84L
Overall Diameter
6.50” / 165mm
Overall Depth
2.83” / 72mm
Front Mount Baffle Cutout
5.55” / 141mm

Mechanical Factor
9.44
Electrical Factor
0.79
Total Factor
0.73
Mechanical Mass
13.72g
Mechanical Compliance
444mm/N
DC Resistance
3.5 ohm
Mechanical Mass w/o air
12g
