Description
Product Overview

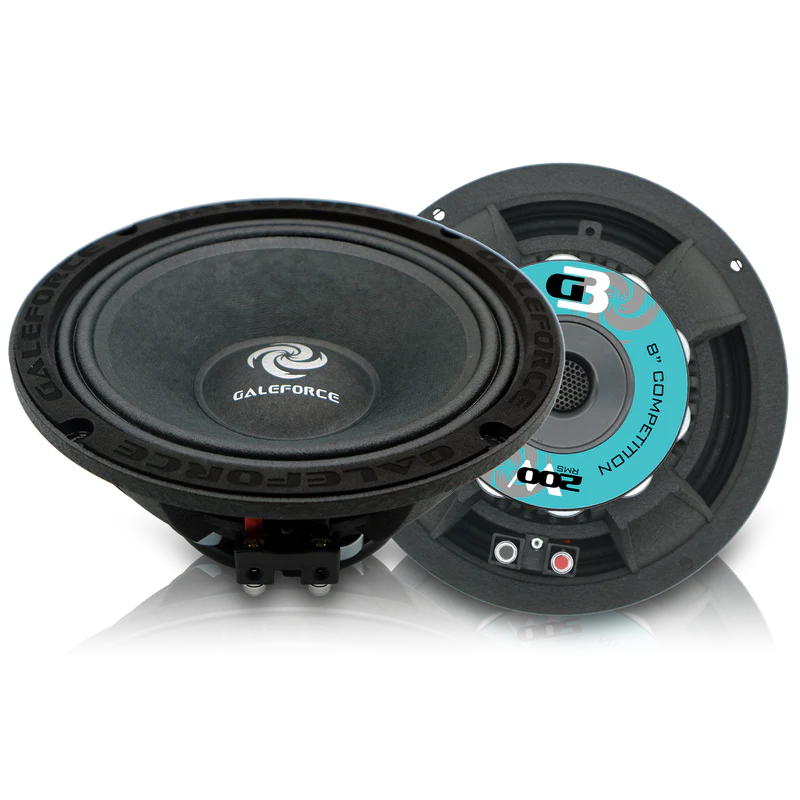

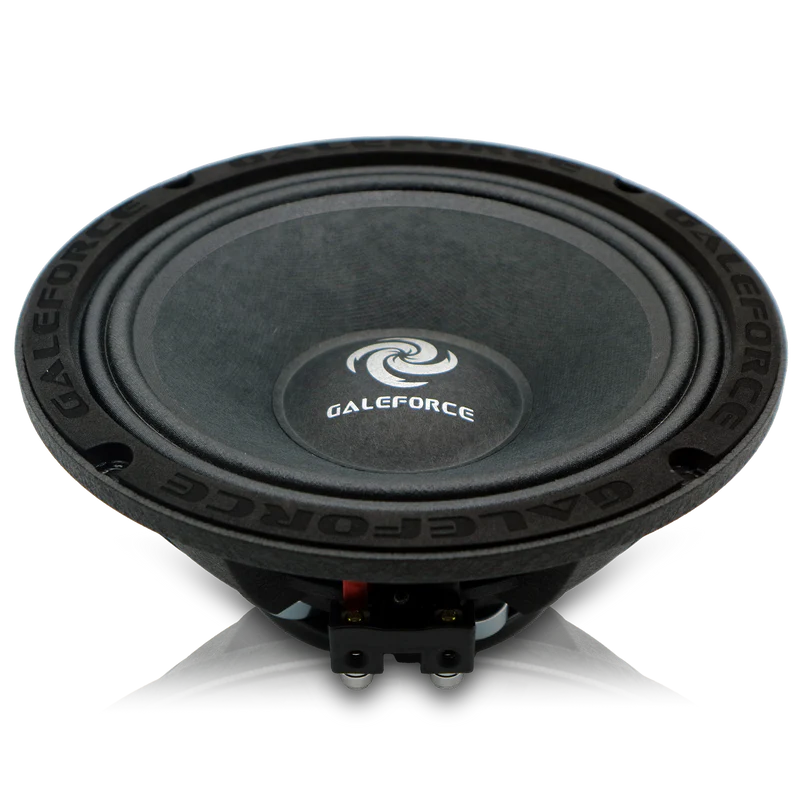

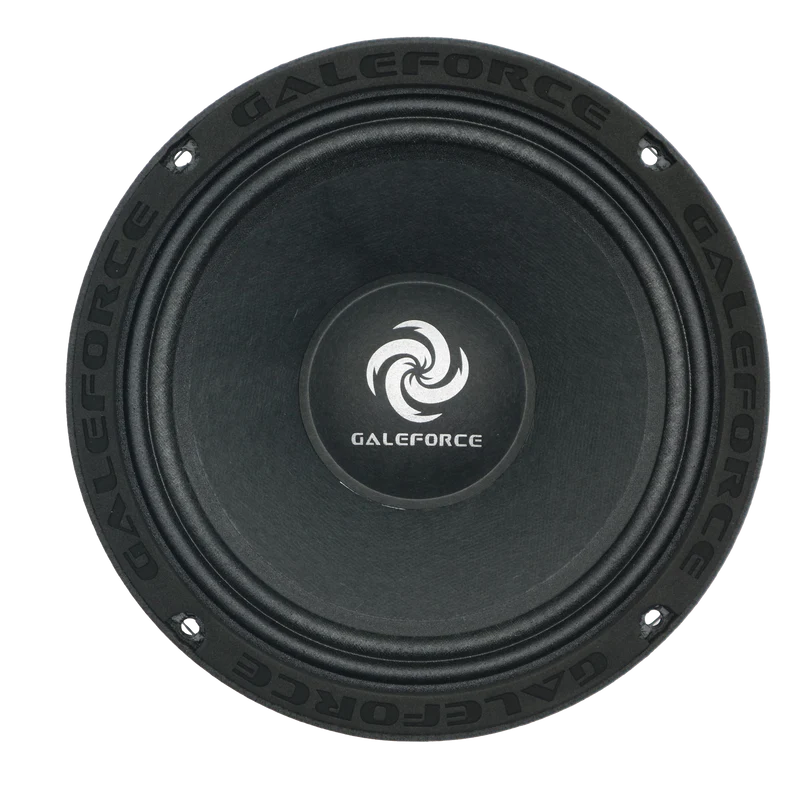

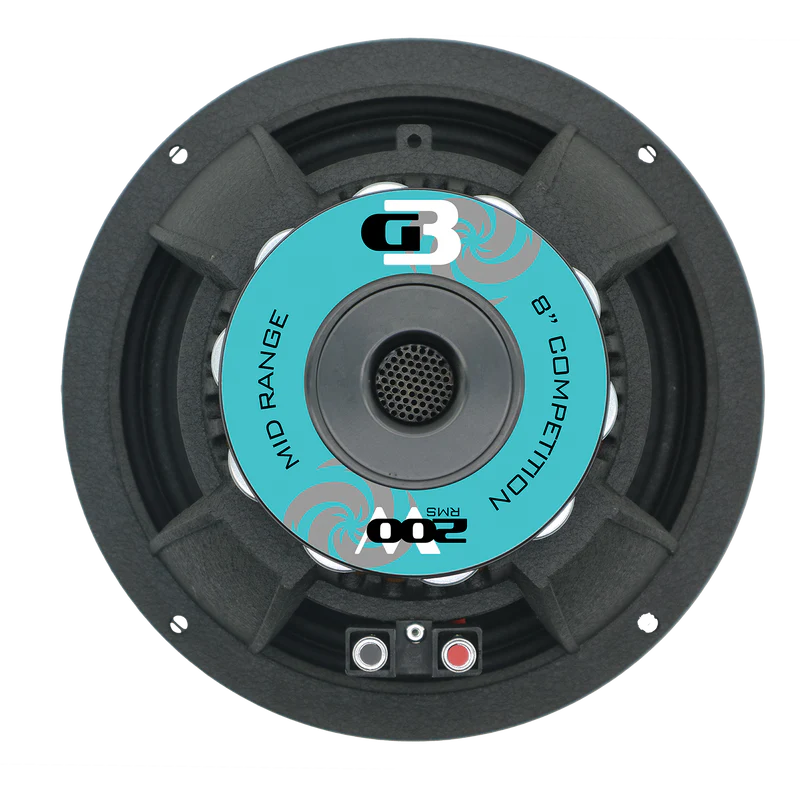

Engineered for maximum volume, vocal projection, and extreme front-stage presence, the GaleForce Audio G3 8″ is a competition-grade pro-audio midrange driver built to dominate demo vehicles, custom door setups, and high-SPL builds.
Featuring a ultra-lightweight, high-flux neodymium motor assembly, the G3 8″ delivers incredible motor strength and instantaneous transient response without adding unnecessary weight. Its dedicated midrange tuning, heavy-duty 2-inch voice coil, and field-serviceable, recone-friendly design make it an essential tool for serious builders who demand extreme output and reliability.
Key Features
- High-Flux Neodymium MotorDelivers exceptional sensitivity and magnetic strength in a lightweight 3.93 lb package, ideal for multi-driver door panels and saddlebags.
- Dedicated Vocal MidrangePrecision-engineered for the 100 Hz to 10,000 Hz frequency range, cutting through heavy sub-bass with sharp, forward vocal presence.
- 2″ CCAW Voice CoilBuilt on a Kapton bobbin with 200 Watts RMS power handling for continuous high-thermal stability under intense playback.
- Die-Cast Aluminum BasketRigid structural frame minimizes resonance and flexing during maximum cone displacement.
- Recone-Friendly DesignServiceable architecture allows for quick field recones, making it a practical, long-term driver for demo and competition setups.
Technical Data
| Specification | Details |
|---|---|
| Size | 8 inch |
| RMS Power | 200 Watts RMS |
| Mounting Depth | 3.30 Inches (84 mm) |
| Speaker Size | 8 Inches (200 mm) |
| Power Handling (RMS) | 200 Watts RMS |
| Sensitivity (1W / 1m) | 95 dB |
| Recommended Frequency Range | 100 Hz – 10,000 Hz |
| Voice Coil Diameter | 2.0 Inches (49.5 mm) |
| Voice Coil Material | CCAW |
| Magnet Type | High-Grade Neodymium |
| Basket Material | Die-Cast Aluminum |
| Cone & Surround | Treated Paper Cone with Cloth Surround |
| Available Impedance | 4-Ohm or 8-Ohm |
| Overall Diameter | 8.26 Inches (210 mm) |
| Baffle Cutout Diameter | 7.24 Inches (184 mm) |
| Unit Weight | 3.93 lbs (1.78 kg) |
| Sold As | Individually |
Fitment & Applications
- Custom Door Panels & Mids/Highs ArraysExcellent for high-density multi-speaker front stages where keeping door weight down is crucial.
- Chuchero Boxes & Demo VehiclesBuilt to project crisp vocals over long distances in open-air environments.
- Pro-Audio Motorcycle PodsHigh-efficiency, lightweight neodymium motor fits protected motorcycle bags and inner pods.
Tuning TipInstallation Note: The G3 8″ uses a non-weather-resistant paper cone. Ensure proper interior baffle protection from direct water ingress. Set your high-pass filter (HPF) around 100 Hz – 120 Hz with a 12 dB or 24 dB slope for optimal power handling and driver protection.
