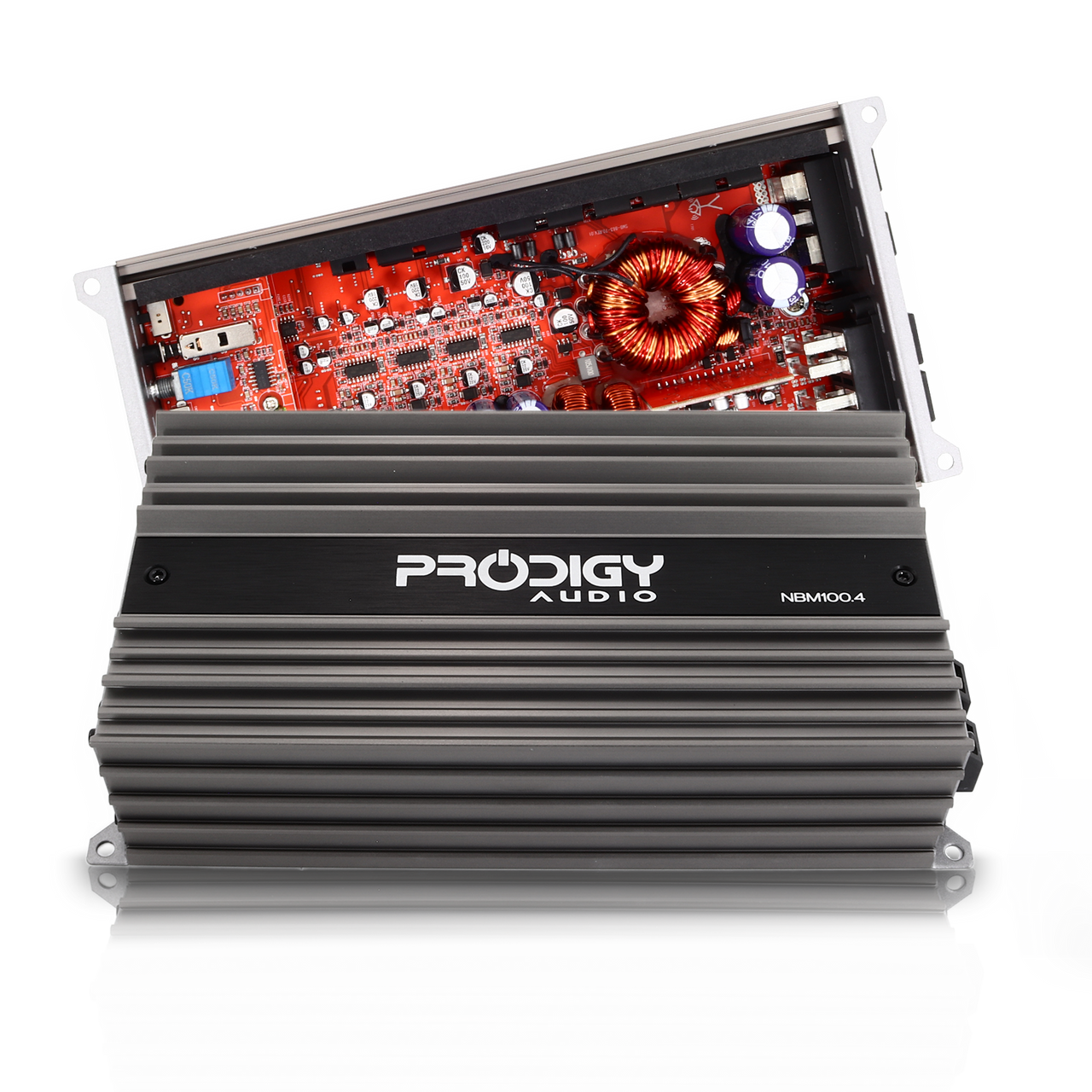

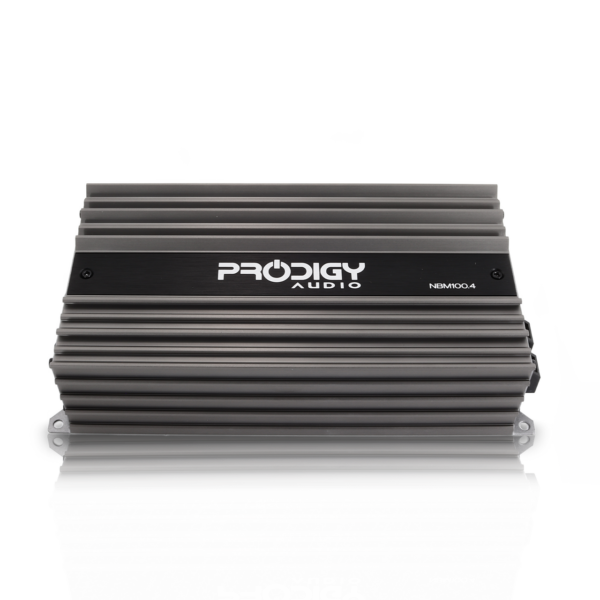

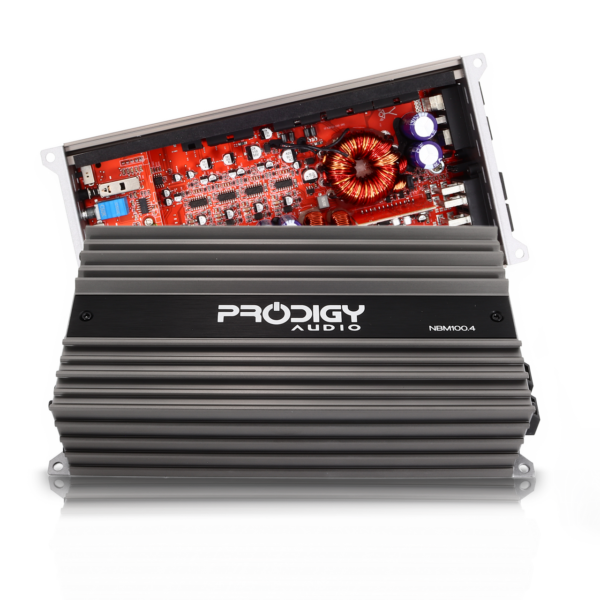

Prodigy Audio NBM100.4 600 Watt 4 Channel Amplifier PA-NBM100.4

Product Manual

The South Korea built NBM100.4 is a mini 4 channel amplifier that brings big sound in a small size. Boasting a 600 watt rms overall power, it’s the perfect choice for enhancing your system.

The NBM100.4 is engineered with band-passable crossovers X1 and X10, allowing you to run mids and highs on one channel and bass on another. You can also bi-amplifiy the four channels for a custom listening experience.

Specifications:

Dimensions:

• 4ohm RMS Power: 100W x 4ch
• 2ohm RMS Power: 150W x 4ch
• 4ohm RMS Bridged Power: 300W – 350W x 2ch (Tested at 14.4V & 1% THD – RANGE)
• Frequency Response: 10Hz – 23.8KHz
• Signal to Noise Ratio: >93dB
• Damping Factor: 100
• Input Sensitivity: 6V – 0.2V
• CH1/2 High Pass Filter: 20Hz – 800Hz
• High Pass Multiply: x1, x10 (200Hz – 8KHz)
• Low Pass Filter: 50Hz – 800Hz
• Low Pass Multiply: x1, x10 (500Hz – 8KHz)
• Bandpass Capable
• CH3/4 High Pass Filter: 20Hz – 800Hz
• High Pass Multiply: x1, x10 (200Hz – 8KHz)
• Low Pass Filter: 50Hz – 800Hz
• Low Pass Multiply: x1, x10 (500Hz – 8KHz)
• Bandpass Capable
• Clipping Indicator
• Operating Voltage: 9 to 15.5 Volts
• 4 GA Power & Ground Terminal
• 14GA Speaker Wire Terminal
• Fuse Rating: 50A
