Description

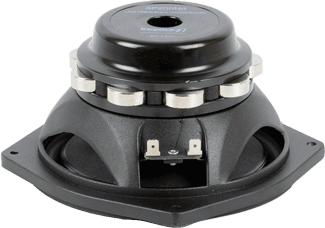

- THE BEYMA PRO6Q200ND 6.5″ SPEAKER HANDLES 200 WATTS AES & 400 WATTS PROGRAM POWER HANDLING
- FEATURES A WATERPROOF CONE, CONEX SPIDER & LIGHTWEIGHT NEODYMIUM MAGNET WEIGHS 4.2LBS.
- VERY LOW DISTORTION IN ENTIRE FREQUENCY RANGE FROM 60HZ TO 6.0KHZ
- HIGH 5.5MM XMAX AND A 20MM PEAK TO PEAK XMAX BEFORE DAMAGE
- EXCLUSIVE BEYMA MMS TECHNOLOGY
- WORKS GREAT FOR 2 OR 3-WAY SPEAKER SYSTEMS ON MOTORCYCLES, PA SYSTEMS, ETC.
| WOOFER MODELÂ – PRO6Q200Nd | |
| Specifications | |
| Nominal Basket Diameter | 6.5” / 165mm |
| Impedance | 4Â ohms |
| AESÂ Power Rating | 200 Watts |
| Program Power | 400 Watts  |
| Frequency Response | 60Hz – 6.0KHz |
| Sensitivity (1W/1m) | 92 dB |
| Recom. Enclosure Volume | .35-1.4 ft3Â /Â 10-40 Liters |
| Voice Coil Diameter | 2” / 50.8mm |
| Voice Coil Length | 14mm |
| Air Gap Height | 7mm |
| X Damage (peak to peak) | 20mm |
| Bl Factor (BL) | 9.3N/A |
| Magnetic Assembly Weight | 3.52 lb. / 1.6 kg. |
| Mounting Information | |
| Overall Diameter | 7.38″ / 187.5mm |
| Bolt Circle Diameter | 6.77” / 172mm |
| Baffle Cutout Diameter- | 5.7″ / 146mm |
| No. Of Mounting Holes | 4 |
| Volume Displaced By Driver | 0.02 ft3Â /Â .6 Liters |
| Overall Depth | 3.1” / 78mm |
| Net Weight | 4.2lb. / 1.9 kg. |
| Materials | |
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Spider | Conex |
| Surround | Rubber |
| Voice Coil | Aluminum Wire |
| Former | Fiberglass |
| Metal Parts | Anti-Corrosion |
| Magnet | Neodymium |
| Thiele-Small Parameters | |
| Resonant Frequency (fs) | 56 Hz |
| Impedance (Re) | 3 ohms |
| Coil Inductance (Le) | .2 mH |
| Mechanical Q (Qms) | 5.1 |
| Electrical Factor (Qes) | .23 |
| Total Q (Qts) | .22 |
| Comp. Equivelant Vol. (Vas) | .39Â ft3 / 11.1 Liters |
| Voice Coil Overhang (Xmax) | 5.5Â mm |
| Moving Mass (Mms) | 19 Grams |
| Surface Area of Cone (Sd)m2 | .014 |
| Reference Efficiency | .8% |
| FREQUENCY RESPONSE & DISTORTION CURVES | |
| IMPEDANCE GRAPH | |
| DIMENSIONAL DRAWINGS | |
- 4 OHMS
