PRV
PRV 1 inch 4 Ohm Neodymium Bullet Super Tweeter PRV-TW450Ti-Nd-4
$64.91
4 Ohm neodymium titanium bullet super tweeter, 60 W AES / 120 W program power and 107 dB.
RMS Power60W
Sensitivity107dB
Size1in
01 Overview
The details
Product Overview

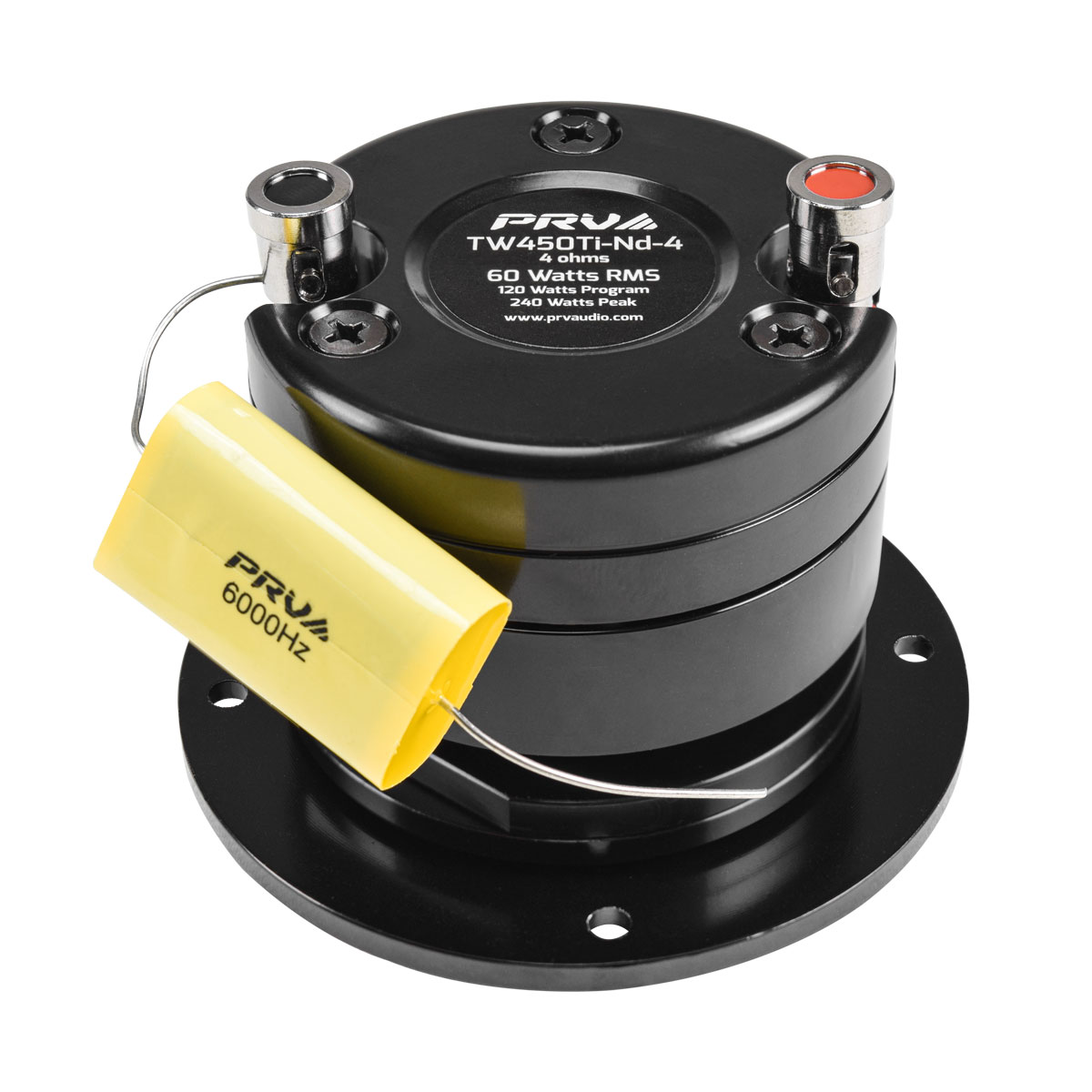

The PRV TW450Ti-Nd-4 delivers up to 107 dB from 4.5 kHz to 20 kHz with a titanium diaphragm on a light Kapton former. A screw-fitting rear mount offers two mounting options with three rings included, and a capacitor protects against damaging low frequencies at high power.
Key Features
- 60 W AES RMS, 120 W program power
- 107 dB sensitivity (2.00V/1m)
- Titanium diaphragm, neodymium motor

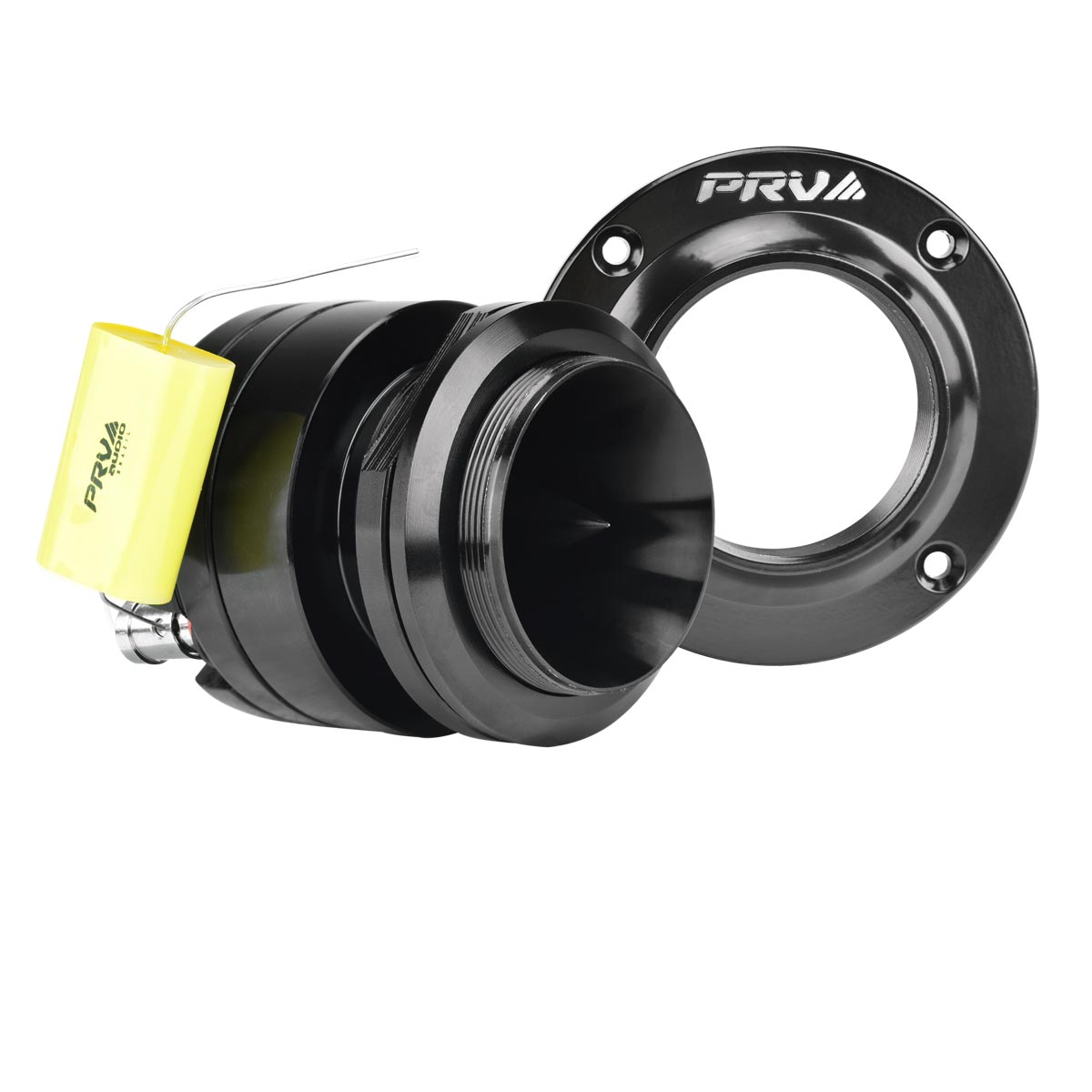

- Rear screw mount, three rings included
- Capacitor included
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
60W
Continuous rating
Sensitivity 02
107dB
Efficiency
Size 03
1in
Nominal
Weight 04
1.25lb
Per unit
- Impedance
- 4 Ohm
- Power Handling (AES, RMS)
- 60 W
- Program Power
- 120 W
- Recommended Hi Pass Crossover
- 6,000 Hz, 12 dB/octave
- Sensitivity (2.00V at 1m)
- 107 dB
- Frequency Response
- 4,500 – 20,000 Hz
- Voice Coil Diameter
- 1" (25.4 mm)
- Magnet
- Neodymium
- Mounting Depth
- 1.57" (40 mm)
- Cutout
- 1.69" (43 mm)
- Overall Dimensions
- 3.03" (77 mm) dia., 2.68" (68 mm) deep
- Net Weight
- 1.25 lbs (0.57 kg)
- Weight
- 1.3 lbs
- Dimensions
- 3.25 × 3.25 × 3.5 in
- Diaphragm
- Titanium
