PRV
PRV 1 inch 4 Ohm Neodymium Bullet Super Tweeter v2 PAIR PRV-TW400Ti-Nd-4v2
$99.91
Pair of 4 Ohm neodymium titanium bullet super tweeters (v2), 120 W RMS each and 106 dB.
RMS Power120W
Peak Power240W
Sensitivity106dB
01 Overview
The details
Product Overview

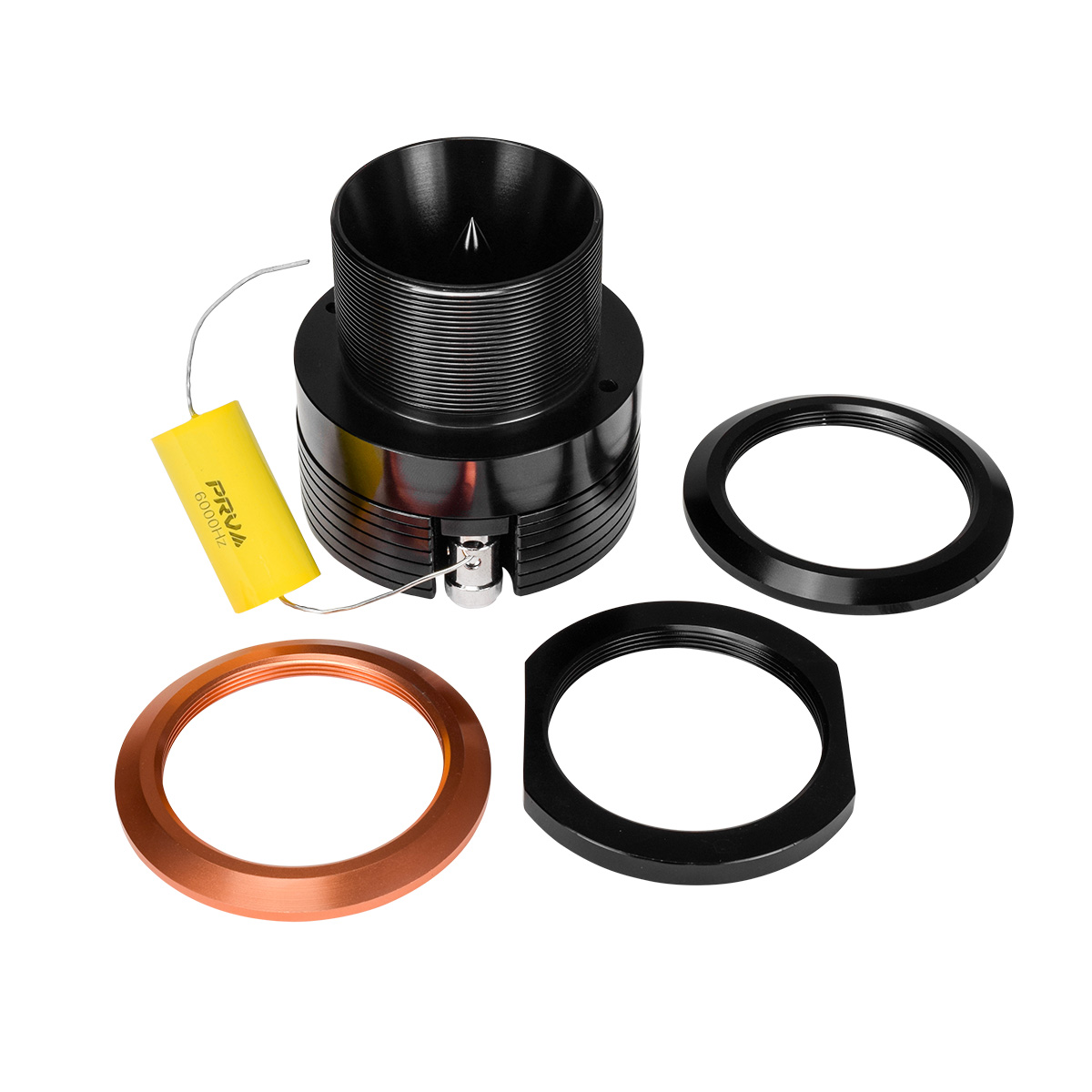

The PRV TW400Ti-Nd-4 v2 pair has a redesigned, more compact neodymium motor with a shallower mounting depth than the original. Its titanium diaphragm on a Kapton former gives detailed highs, the solderless diaphragm is easy to replace, and screw fittings make rear mounting simple. A protection capacitor and mounting hardware are included.
Key Features
- 60 W nominal, 120 W RMS program, 240 W peak (each)
- 106 dB sensitivity (2.00V/1m)
- Titanium diaphragm, neodymium motor
- Solderless replaceable diaphragm

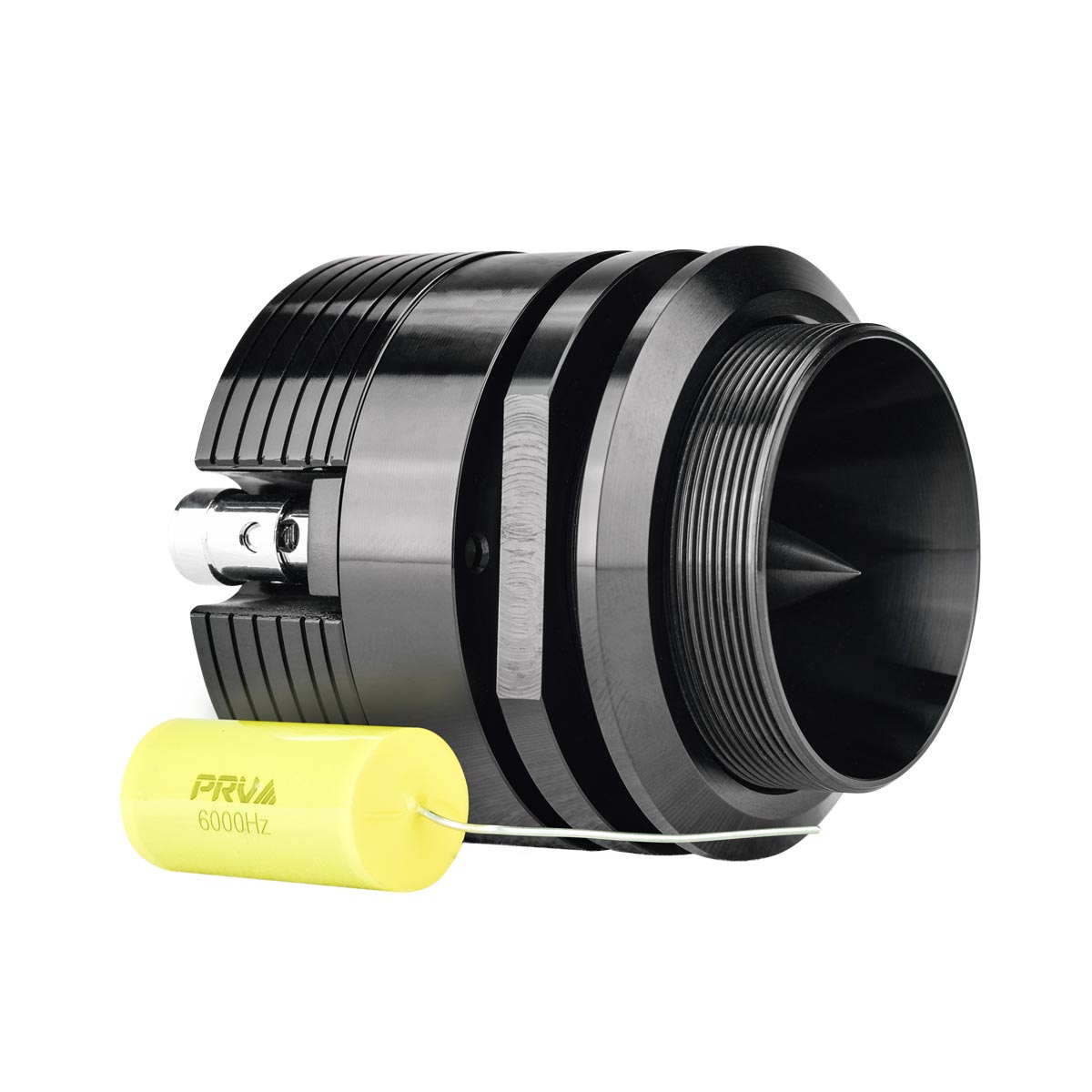

- Capacitor included
- Sold as a pair
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
120W
Continuous rating
Peak Power 02
240W
Short-burst rating
Sensitivity 03
106dB
Efficiency
Size 04
1in
Nominal
- Impedance
- 4 Ohm
- Nominal Power Handling
- 60 W
- Continuous Program Power (RMS)
- 120 W
- Max Peak Power
- 240 W
- Recommended Hi Pass Crossover
- 6,000 Hz, 12 dB/octave
- Sensitivity (2.00V at 1m)
- 106 dB
- Frequency Response
- 4,500 – 20,000 Hz
- Voice Coil Diameter
- 1" (25 mm)
- Magnet
- Neodymium

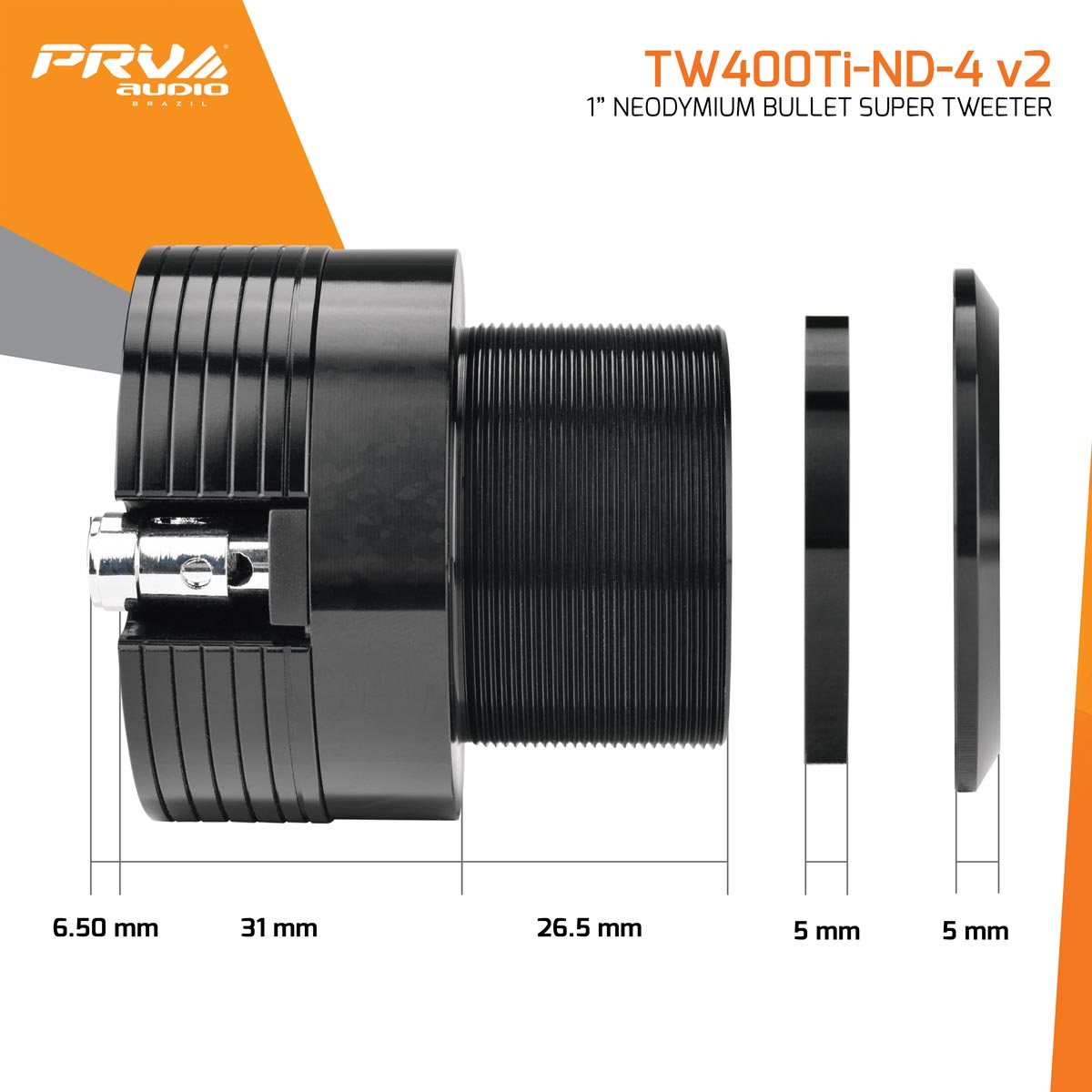

- Mounting Depth
- 1.51" (38.5 mm)
- Cutout
- 1.69" (43 mm)
- Overall Dimensions
- 2.19" (55.7 mm) dia., 2.58" (65.5 mm) deep
- Net Weight
- 0.72 lbs (0.33 kg)
- Weight
- 1.65 lbs
- Dimensions
- 3.25 × 6.25 × 3.5 in
- Diaphragm
- Titanium
- Sold As
- Pair
