PRV
PRV 1 inch Exit Bi-Radial Wave Guide Horn 60 x 40 PRV-WG17-25
$9.91
1″ screw-on bi-radial waveguide, 60° x 40° coverage, ABS body.
01 Overview
The details
Product Overview

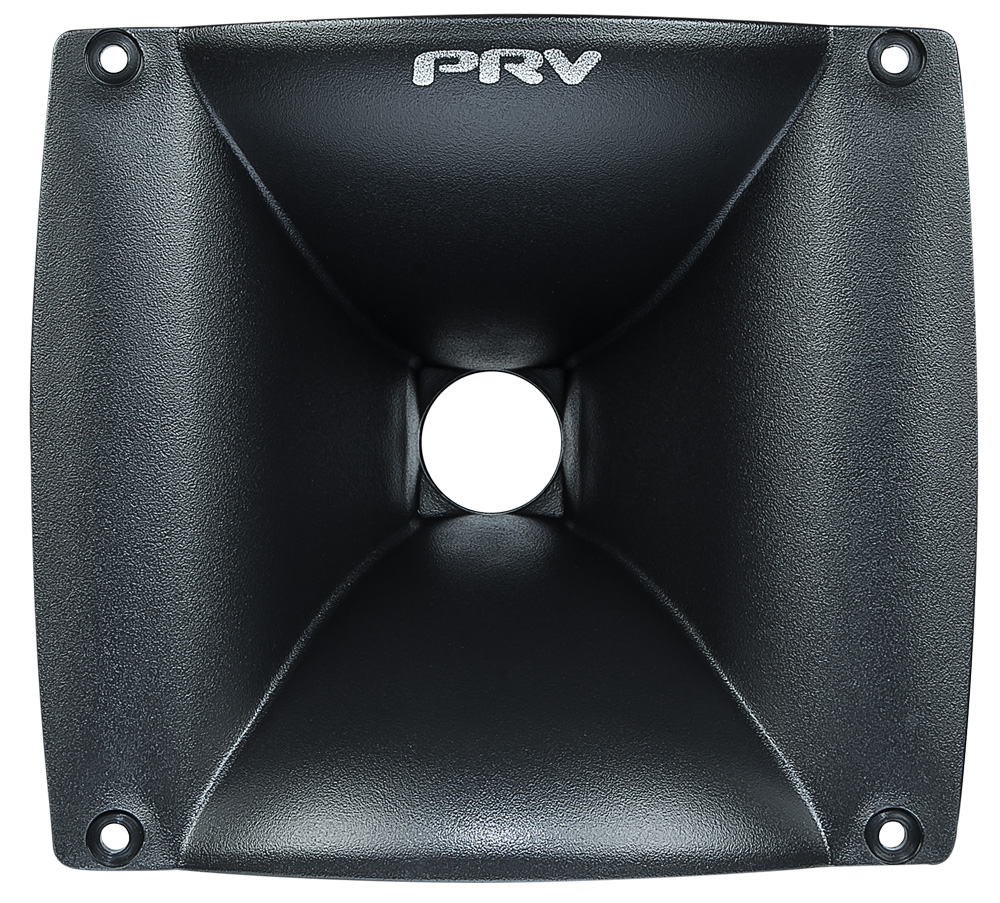

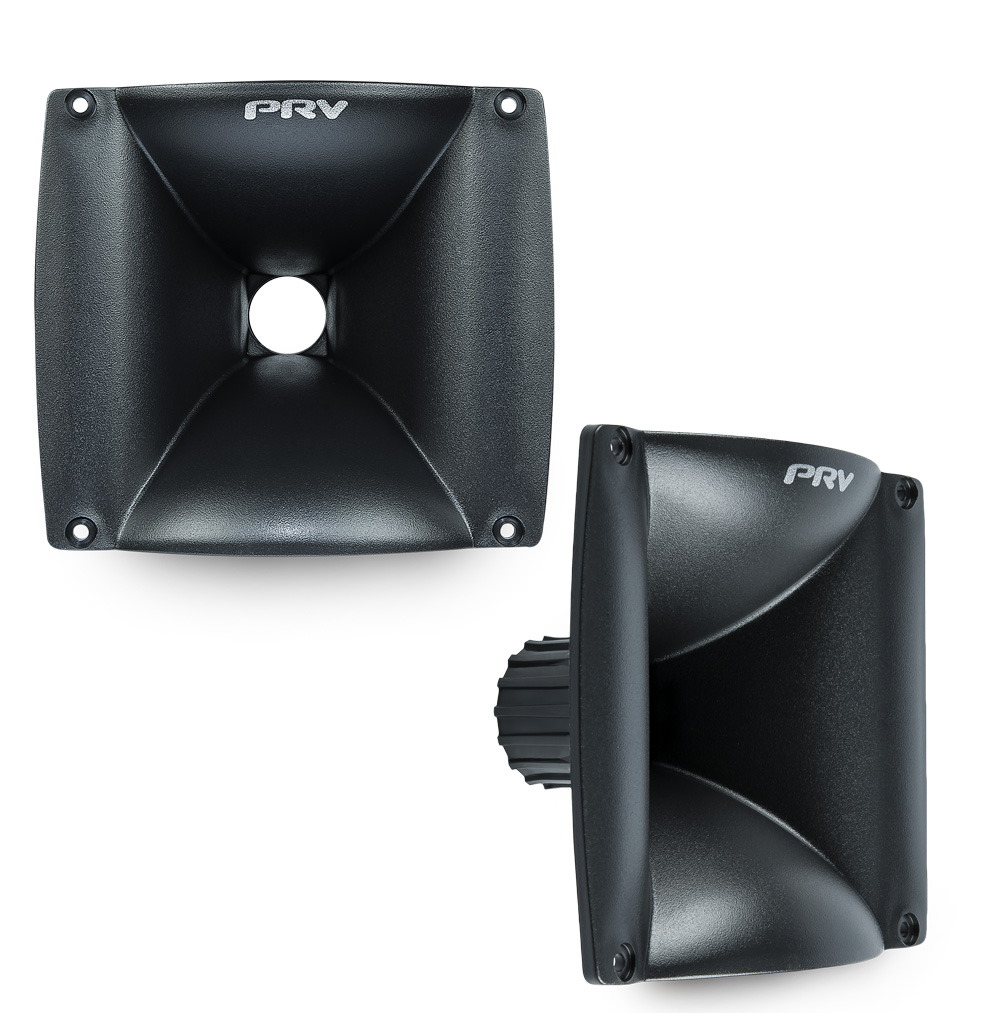

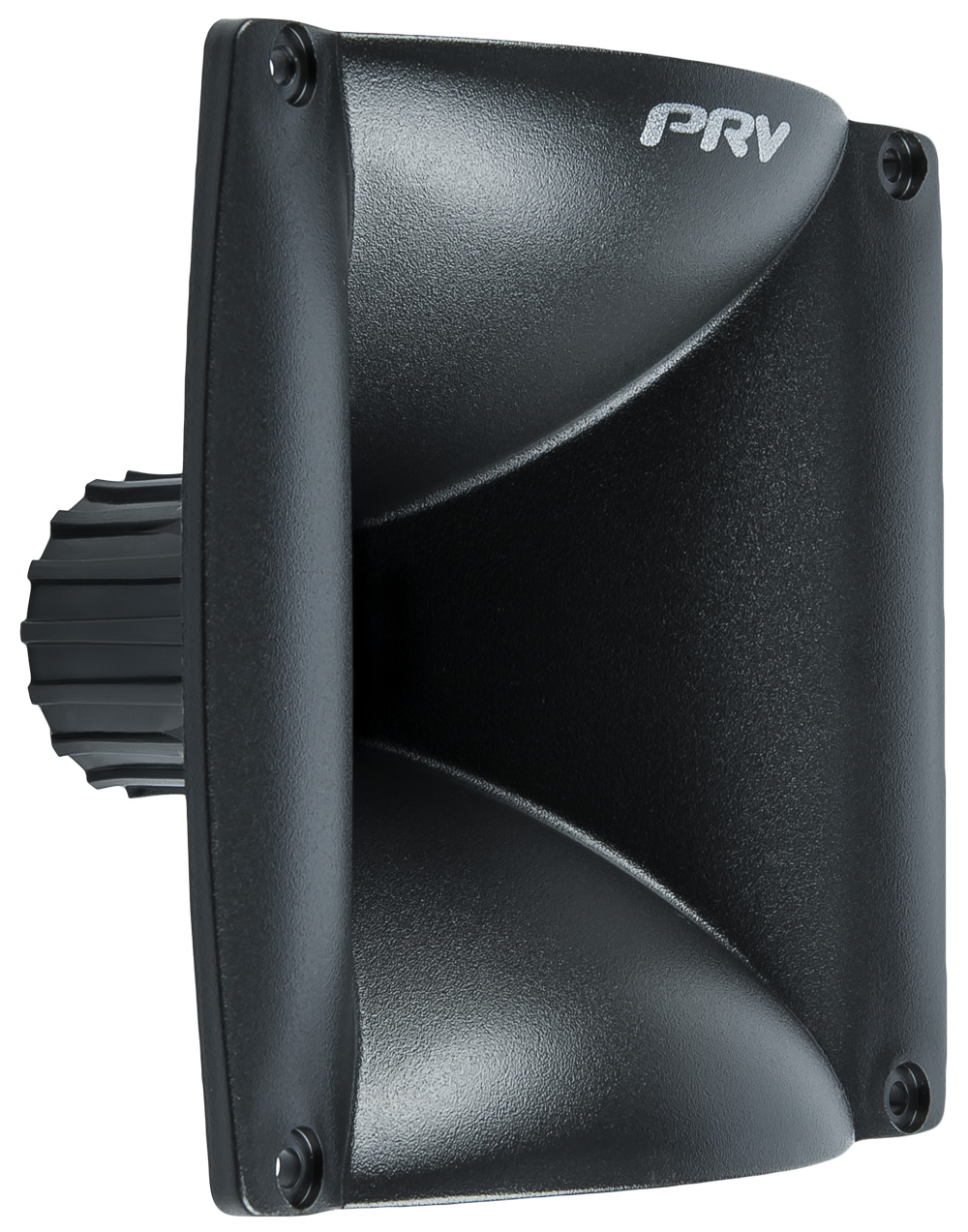

The PRV WG17-25 is a 1" exit bi-radial waveguide with nominal 60° horizontal by 40° vertical coverage. The ABS body screws onto standard 1" compression drivers and mounts at 3.18" deep.
Key Features
- 1" screw-on throat (1-3/8")
- 60° x 40° bi-radial dispersion
- 3.18" mounting depth
- ABS construction
- Black finish
Specifications are manufacturer rated. Sold individually.
02 Tech specs
By the numbers
- Material
- ABS
- Finish
- Black
- Mounting
- Screw-on, 1-3/8" thread
- Overall Dimensions
- 6.32" W x 5.57" H (160 x 141 mm), 4.05" (103 mm) deep
- Mounting Depth
- 3.18" (81 mm)
- Baffle Cutout
- 4.57" x 5.11" (116 x 130 mm)
- Weight
- 0.24 lbs
- Dimensions
- 6.3 × 6.3 × 4.05 in
- Throat
- 1" (25.4 mm)
- Dispersion (H x V)
- 60° x 40°
