PRV
PRV 1 inch Exit Mini Wave Guide Horn 90 x 90 PRV-WG08-25
$9.91
Mini 1″ screw-on waveguide, 90° x 90°, only 1.72″ deep, for tight spaces.
01 Overview
The details
Product Overview

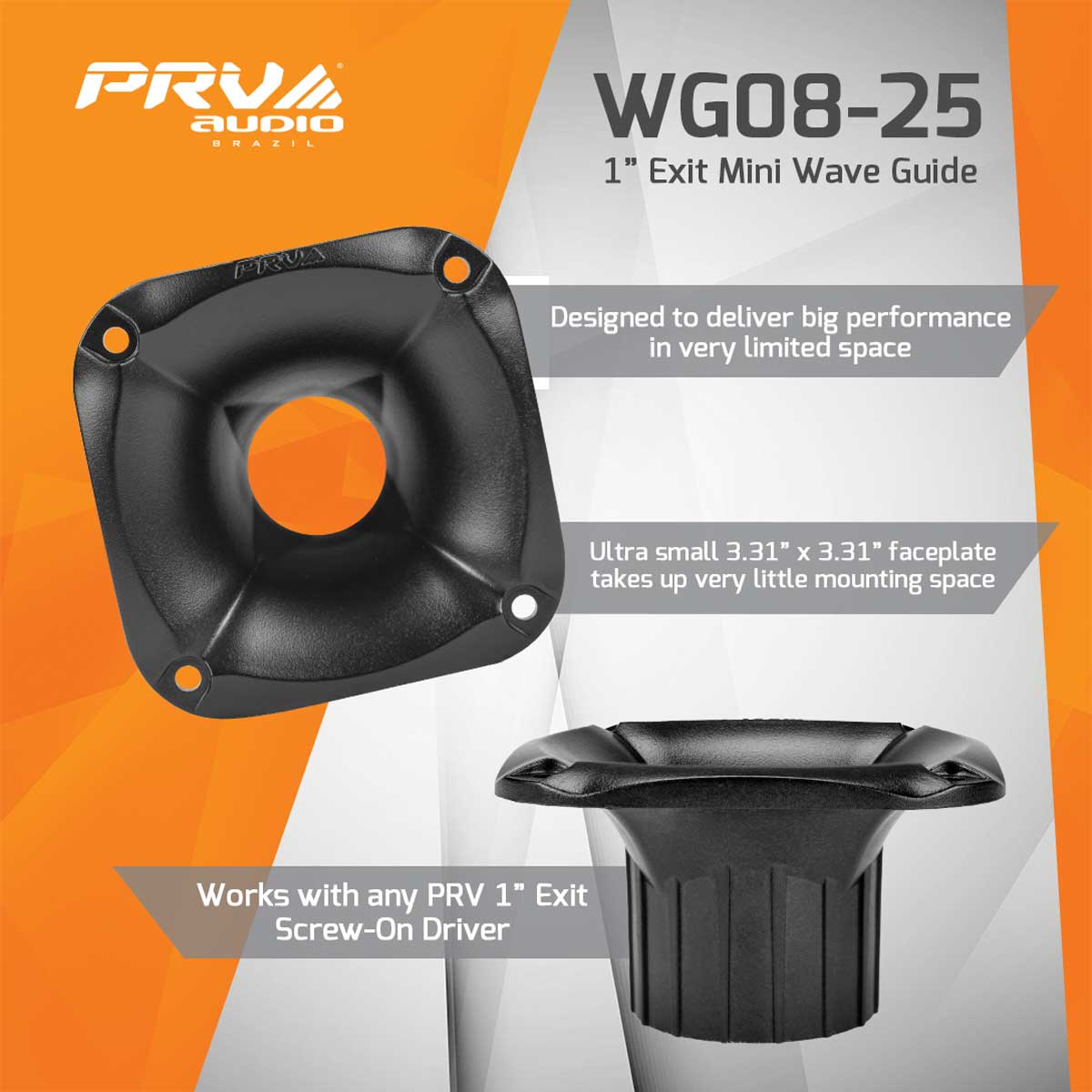

The PRV WG08-25 is a mini 1" exit waveguide with just 1.72" of mounting depth, small enough to fit between speakers in tight installs. Its 90° x 90° pattern suits short-throw applications, acoustic loading holds down to 1,600 Hz, and the non-resonant reinforced ABS body is built for outdoor and automotive use.
Key Features
- 1" screw-on throat (1-3/8"-18 TPI)
- 90° x 90° dispersion
- Minimum crossover 1,600 Hz
- Only 1.72" mounting depth

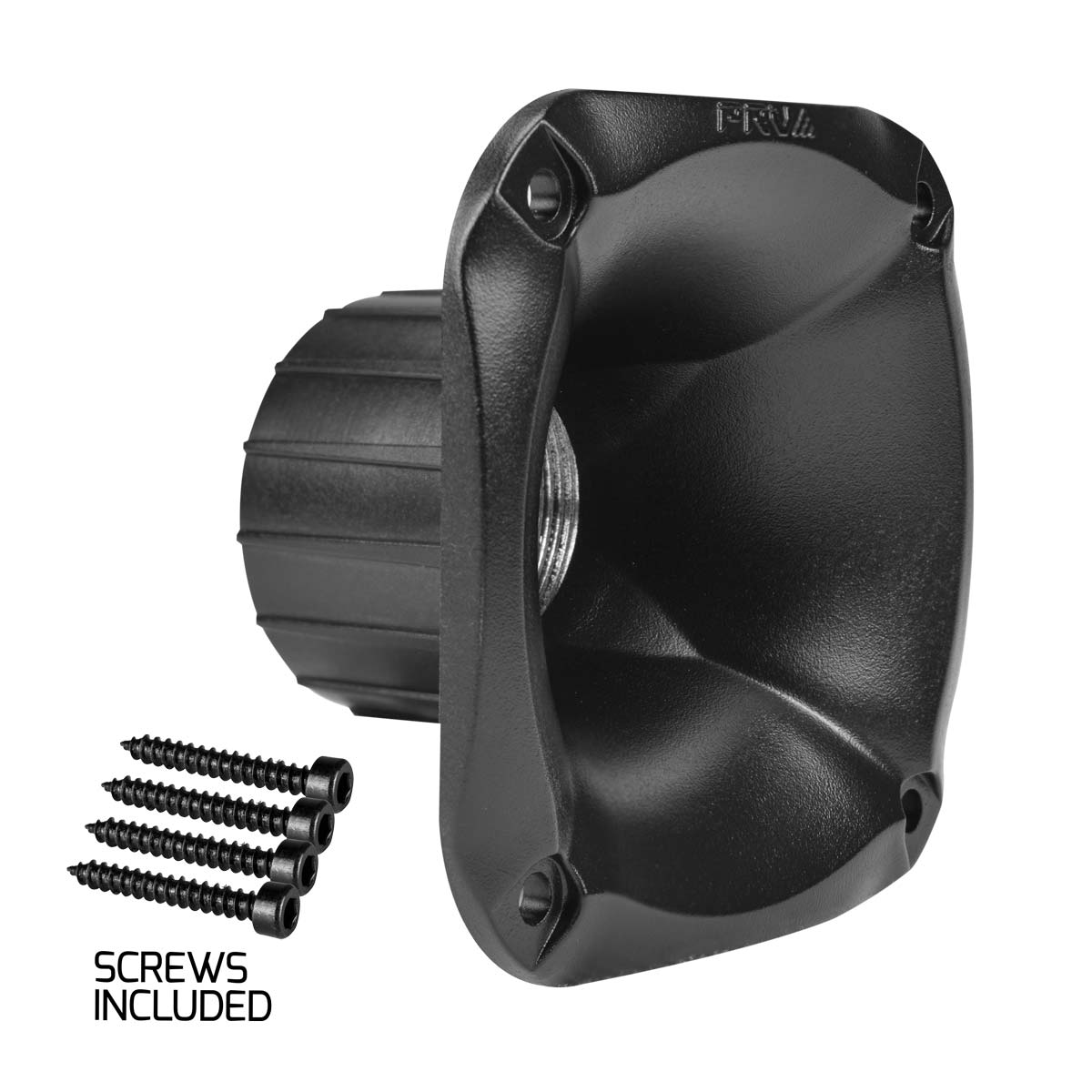

- Fits any PRV 1" screw-on driver, 4 screws included
Specifications are manufacturer rated. Sold individually.
02 Tech specs
By the numbers
- Minimum Recommended Crossover
- 1,600 Hz
- Material
- Reinforced ABS
- Finish
- Black
- Mounting
- Screw-on, 1-3/8"-18 TPI thread

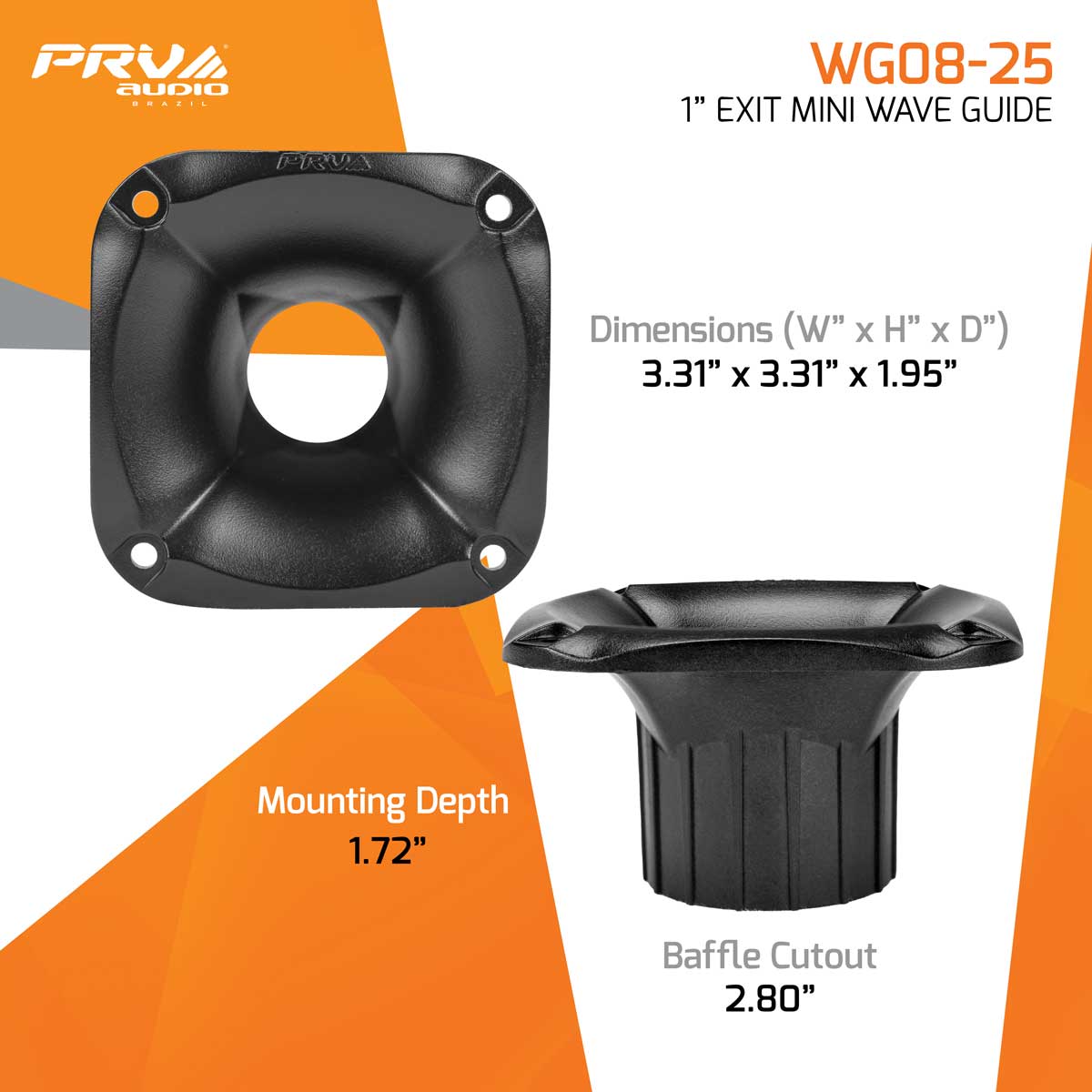

- Overall Dimensions
- 3.31" x 3.31" (84 mm), 1.95" (49.5 mm) deep
- Mounting Depth
- 1.72" (43.5 mm)
- Baffle Cutout
- 2.80" x 3.31" (71 x 84 mm)
- Net Weight
- 0.13 lbs (0.06 kg)
- Weight
- 0.3 lbs
- Dimensions
- 6.5 × 4.5 × 2 in
- Throat
- 1" (25.4 mm)
- Dispersion (H x V)
- 90° x 90°
- Included Hardware
- 4 screws
- Fits
- PRV 1" exit screw-on compression drivers
