PRV
PRV 1 inch Exit Neodymium Mini Horn Driver 4 Ohm PRV-WG175PY-Nd-4
$79.91
Compact 1″ exit neodymium mini horn driver, 4 Ohm, 150 W RMS and 107 dB, response to 20 kHz.
RMS Power150W
Peak Power300W
Sensitivity107dB
01 Overview
The details
Product Overview

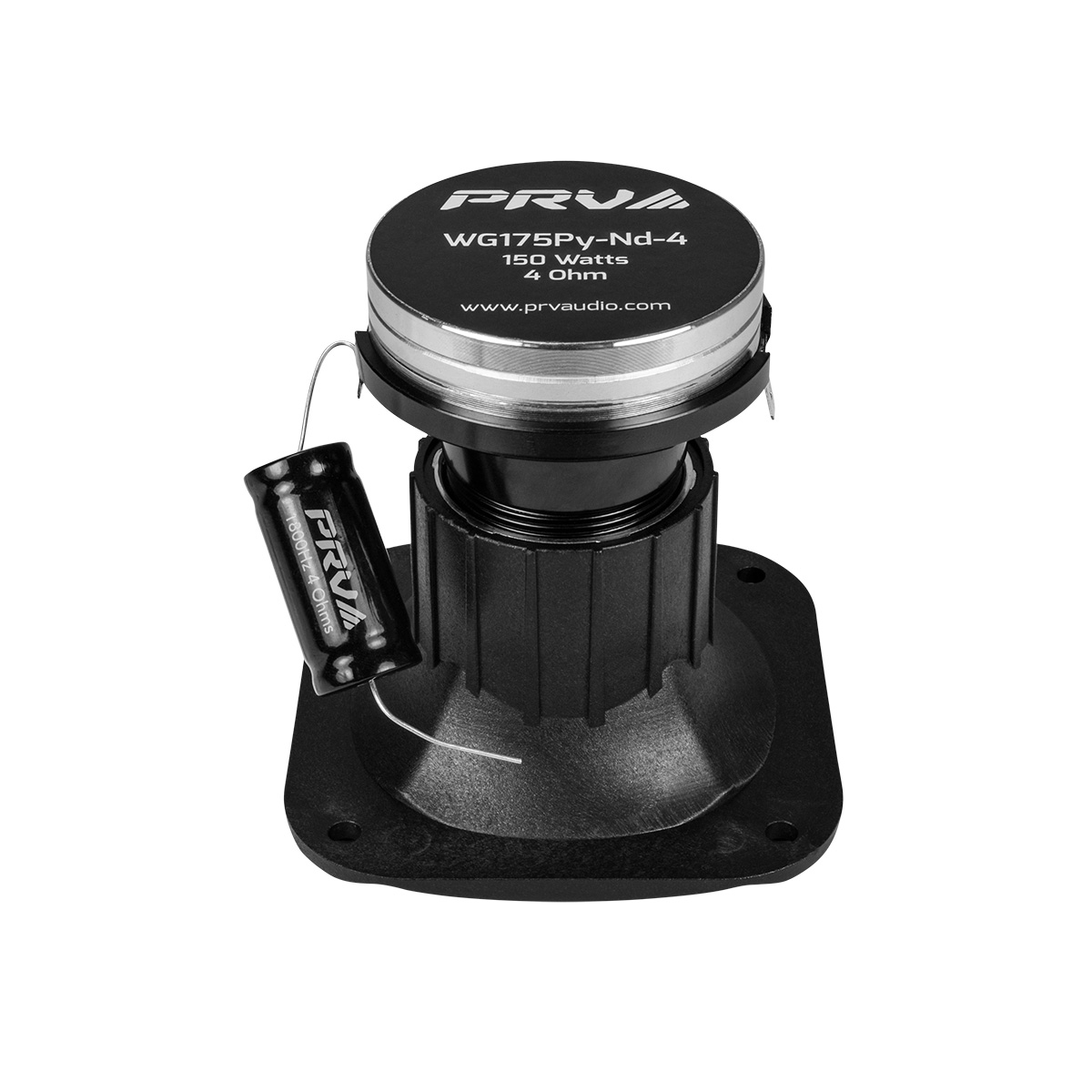

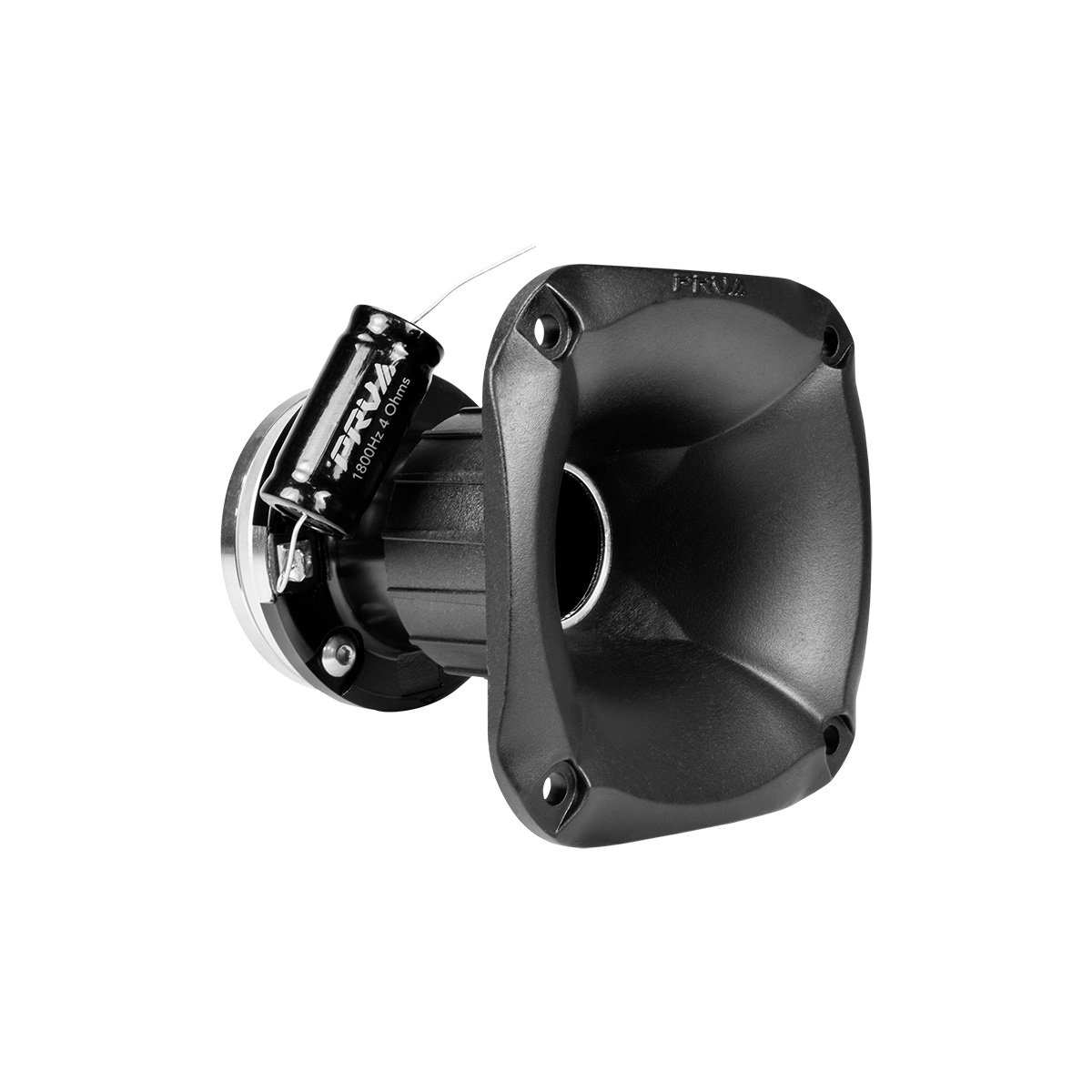

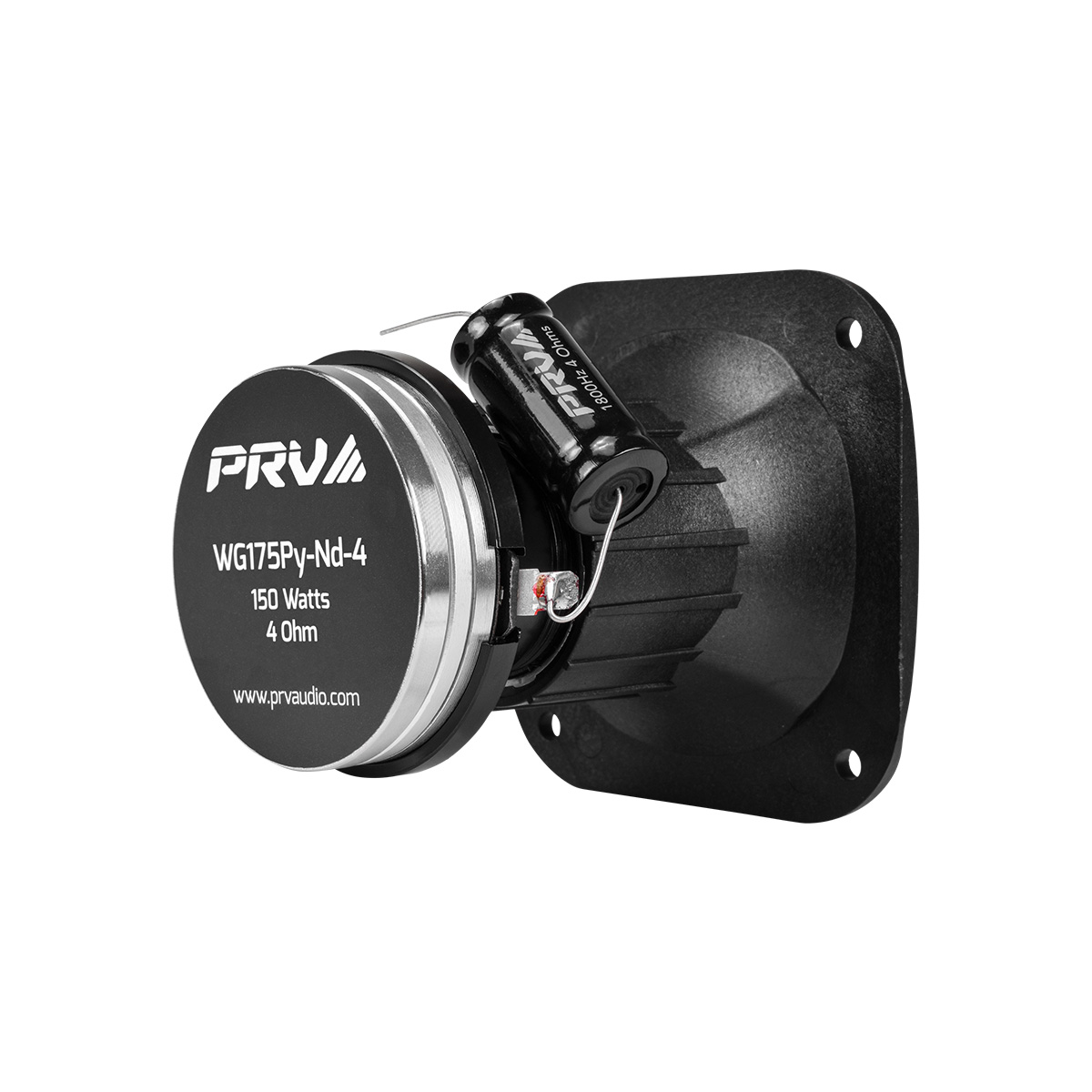

The PRV WG175Py-Nd-4 is a compact neodymium compression driver built for tight spaces like custom door panels. Its polyimide diaphragm is more durable than titanium with better damping, and response runs from about 1.6 kHz to 20 kHz. A small 3.31" faceplate and front mounting make installation easy, and the build is water resistant.
Key Features
- 75 W nominal, 150 W RMS program, 300 W peak
- 107 dB sensitivity (2.00V/1m)
- Polyimide diaphragm, neodymium motor
- Small 3.31" faceplate, front mounting

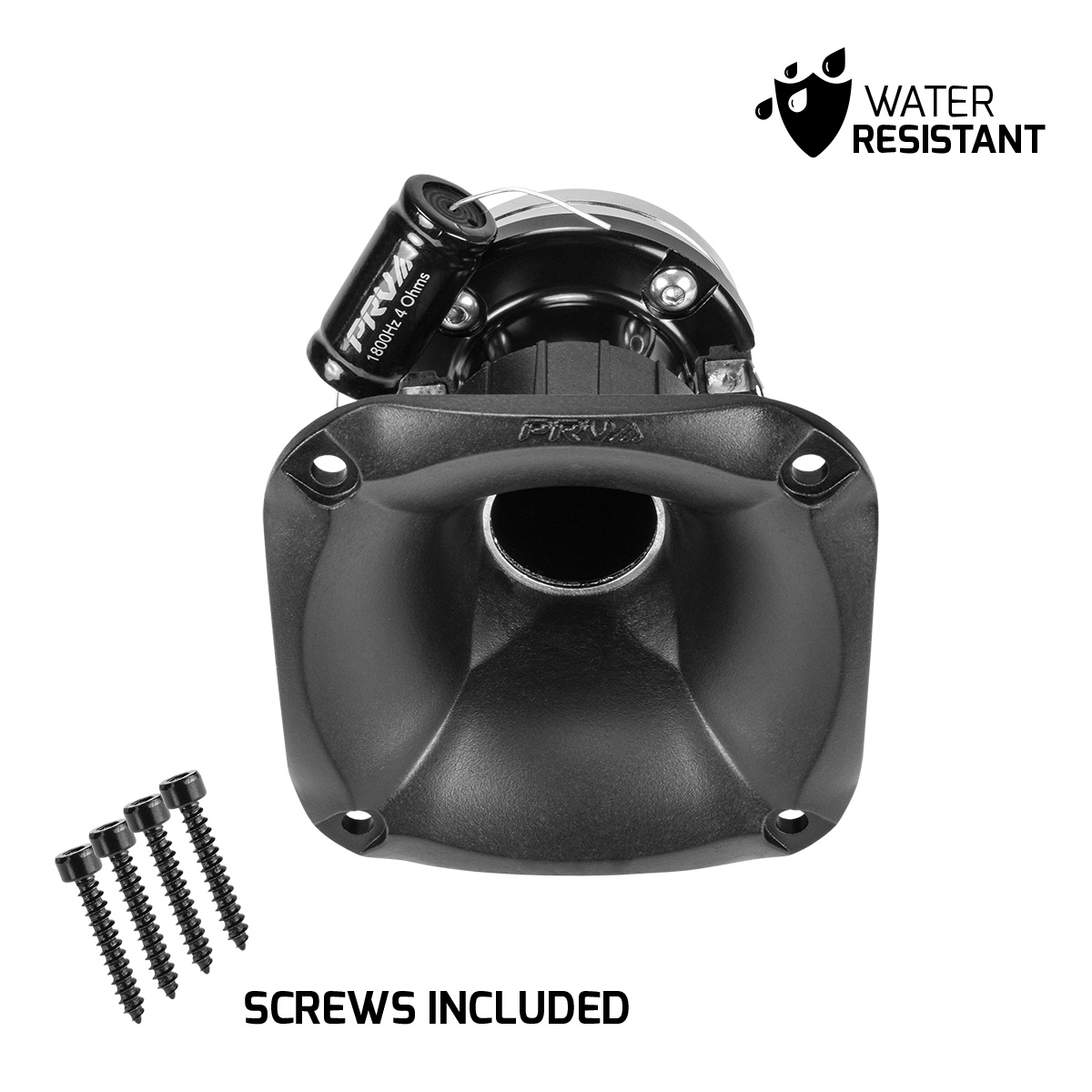

- Water-resistant construction
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers

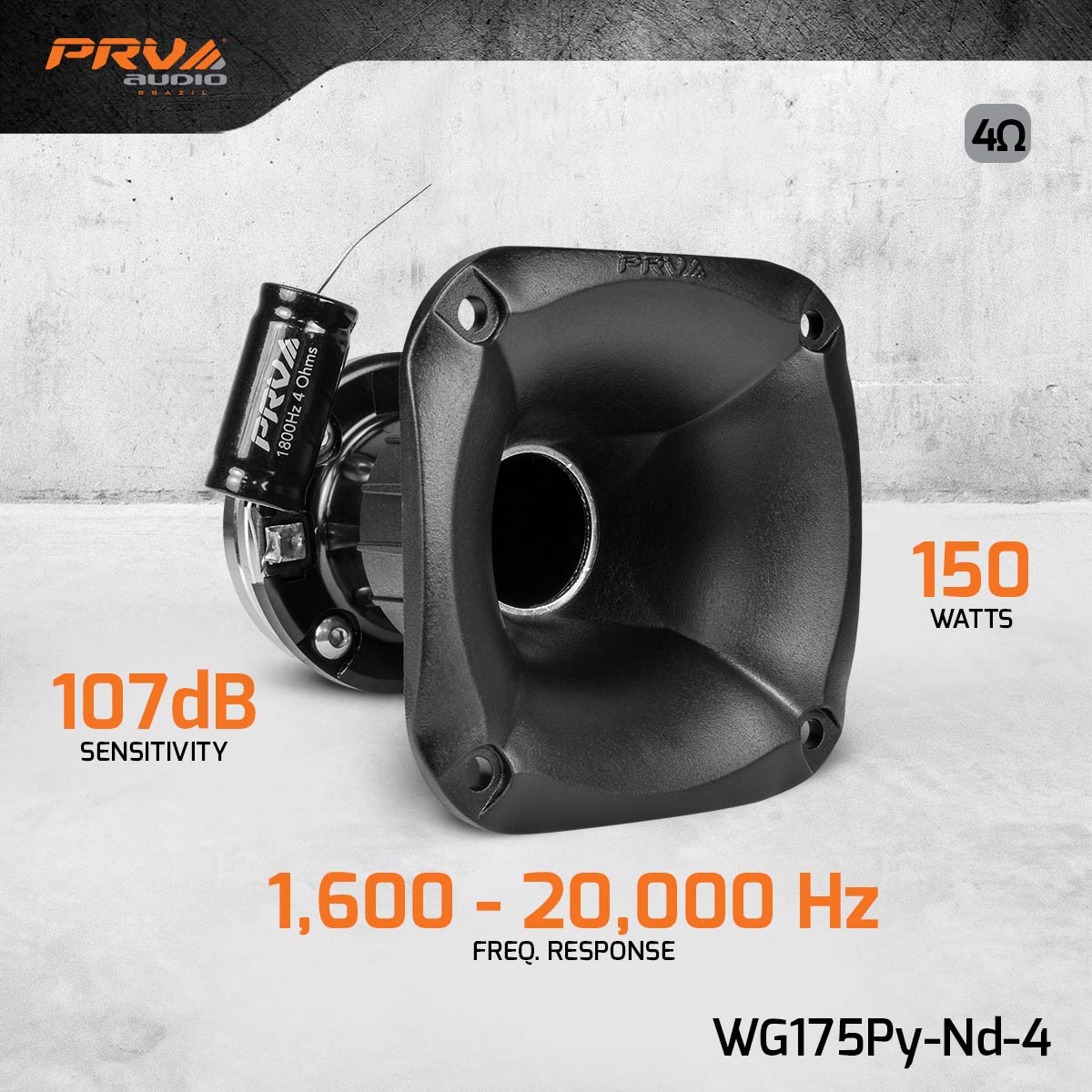

RMS Power 01
150W
Continuous rating
Peak Power 02
300W
Short-burst rating
Sensitivity 03
107dB
Efficiency
Size 04
1in
Nominal
- Impedance
- 4 Ohm
- Nominal Power Handling
- 75 W
- Continuous Program Power (RMS)
- 150 W
- Max Peak Power
- 300 W
- Recommended Hi Pass Crossover
- 1,800 Hz, 12 dB/octave
- Sensitivity (2.00V at 1m)
- 107 dB
- Frequency Response
- 1,600 – 20,000 Hz
- Voice Coil Diameter
- 1" (25.4 mm)
- Magnet
- Neodymium

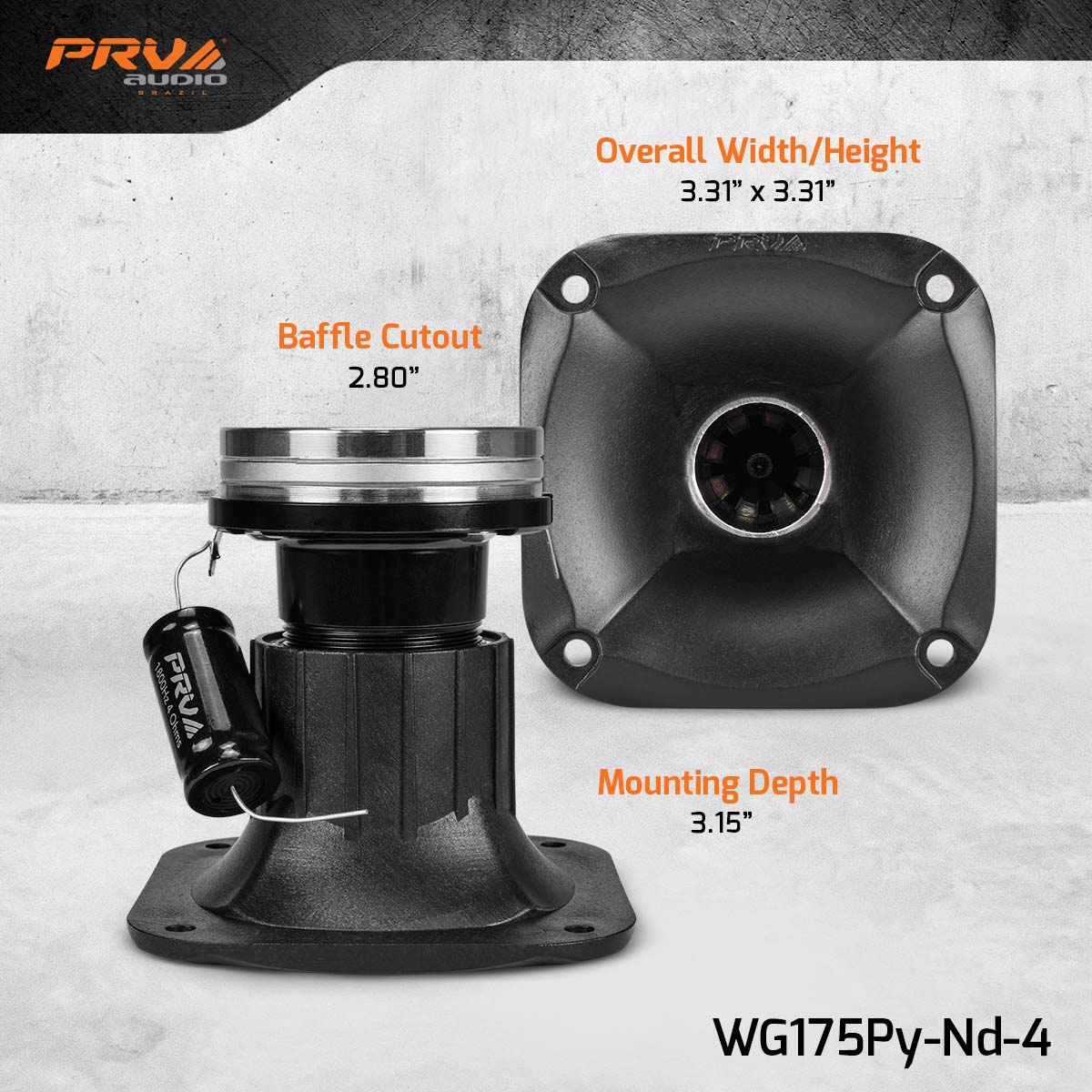

- Mounting Depth
- 3.15" (80 mm)
- Cutout
- 2.80" (71 mm)
- Overall Dimensions
- 3.31" x 3.31" (84 x 84 mm), 3.39" (86 mm) deep
- Net Weight
- 1.9 lbs (0.86 kg)
- Weight
- 1 lbs
- Dimensions
- 3.5 × 3.75 × 3.75 in
- Exit Throat
- 1" (25.4 mm)
- Diaphragm
- Polyimide
