PRV
PRV 1 inch Exit Phenolic Compression Driver 8 Ohm PRV-DT175Ph-S
$24.91
PRV’s most compact 1″ exit driver: phenolic diaphragm, 150 W RMS and 108 dB.
RMS Power150W
Peak Power300W
Sensitivity108dB
01 Overview
The details
Product Overview
The PRV DT175Ph-S is PRV's most affordable and compact 1" exit compression driver. Its phenolic diaphragm gives a smoother, less harsh top end that suits smaller rooms while still having the output for larger spaces, and the standard 1" screw-on throat makes it an easy swap for worn or damaged drivers.
Key Features
- 75 W nominal, 150 W RMS program, 300 W peak
- 108 dB sensitivity (2.83V/1m)
- Phenolic diaphragm, 1" voice coil
- Screw-on, 1-3/8"-18 TPI thread

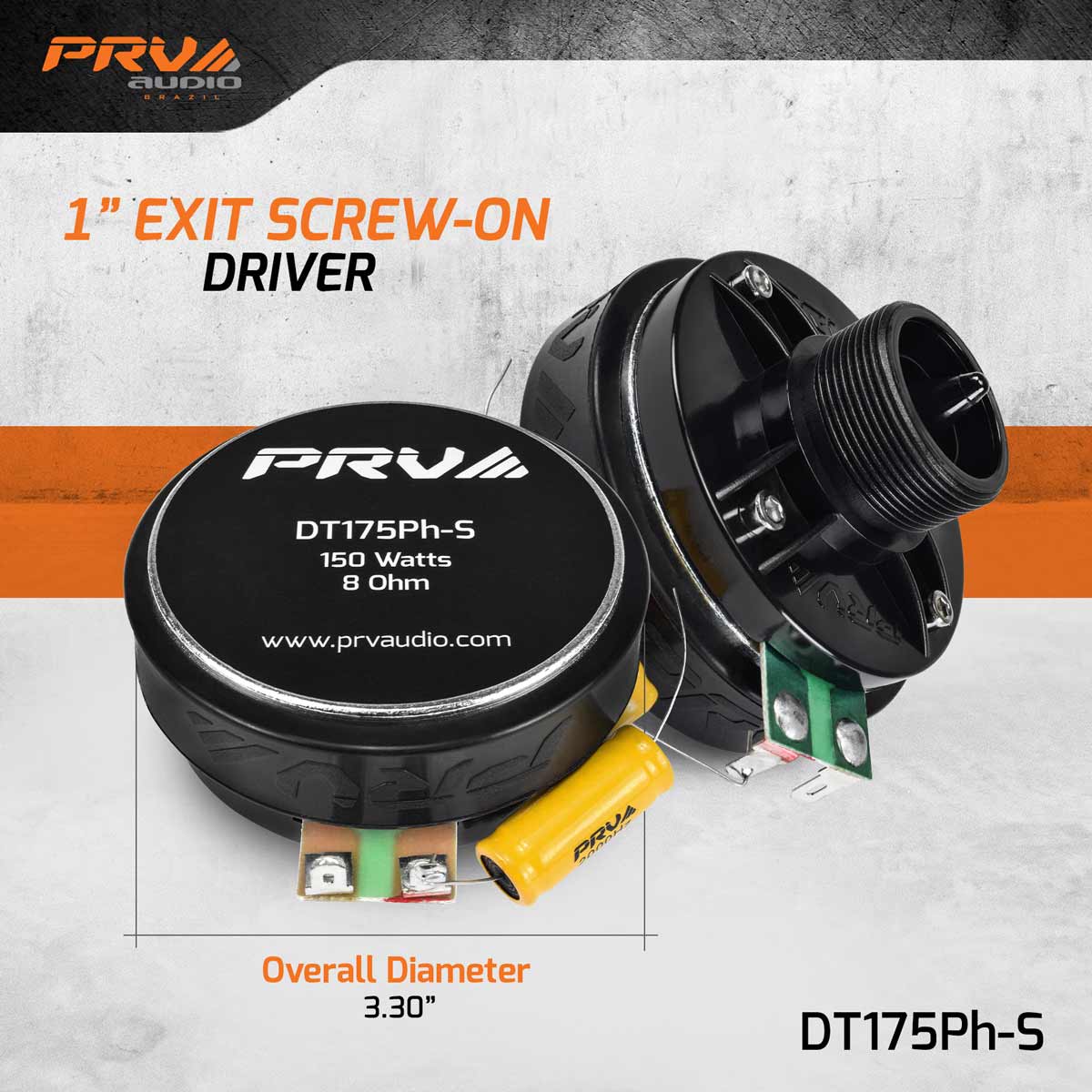

- Compact 3.30" diameter
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
150W
Continuous rating
Peak Power 02
300W
Short-burst rating
Sensitivity 03
108dB
Efficiency
Size 04
1in
Nominal
- Impedance
- 8 Ohm
- Nominal Power Handling
- 75 W
- Continuous Program Power (RMS)
- 150 W
- Max Peak Power
- 300 W
- Recommended Hi Pass Crossover
- 3,000 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 108 dB
- Frequency Response
- 1,100 – 18,000 Hz
- Voice Coil Diameter
- 1" (25.4 mm)
- Magnet
- Ferrite
- Mounting
- Screw-on, 1-3/8"-18 TPI thread
- Overall Dimensions
- 3.30" (83.8 mm) dia., 2.44" (62 mm) deep
- Net Weight
- 1.67 lbs (0.76 kg)
- Weight
- 1.8 lbs
- Dimensions
- 3.5 × 4.25 × 3 in
- Exit Throat
- 1" (25.4 mm)
- Diaphragm
- Phenolic
