PRV 1 inch Exit Phenolic Compression Driver + Horn 8 Ohm PRV-WG175Ph
$26.91
1″ exit phenolic driver and horn combo, 150 W RMS and 108 dB, lightweight for doors and trunk lids.
RMS Power150W
Peak Power300W
Sensitivity108dB
01 Overview
The details
Product Overview
The PRV WG175Ph pairs a 1" exit phenolic compression driver with a 45° x 45° horn in one compact, lightweight unit. With 108 dB sensitivity it gets loud on modest power, and the phenolic diaphragm gives smooth, non-fatiguing highs up to about 16 kHz. Its water-resistant build suits doors, stunt walls and trunk lids. A capacitor is included.
Key Features
- 75 W nominal, 150 W RMS program, 300 W peak
- 108 dB sensitivity (2.83V/1m)
- Phenolic diaphragm, 1" voice coil
- 45° x 45° horn dispersion
- Capacitor included
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
150W
Continuous rating
Peak Power 02
300W
Short-burst rating
Sensitivity 03
108dB
Efficiency
Size 04
1in
Nominal
- Impedance
- 8 Ohm
- Nominal Power Handling
- 75 W
- Continuous Program Power (RMS)
- 150 W
- Max Peak Power
- 300 W
- Recommended Hi Pass Crossover
- 3,000 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 108 dB
- Frequency Response
- 1,300 – 16,000 Hz
- Voice Coil Diameter
- 1" (25.4 mm)
- Magnet
- Ferrite

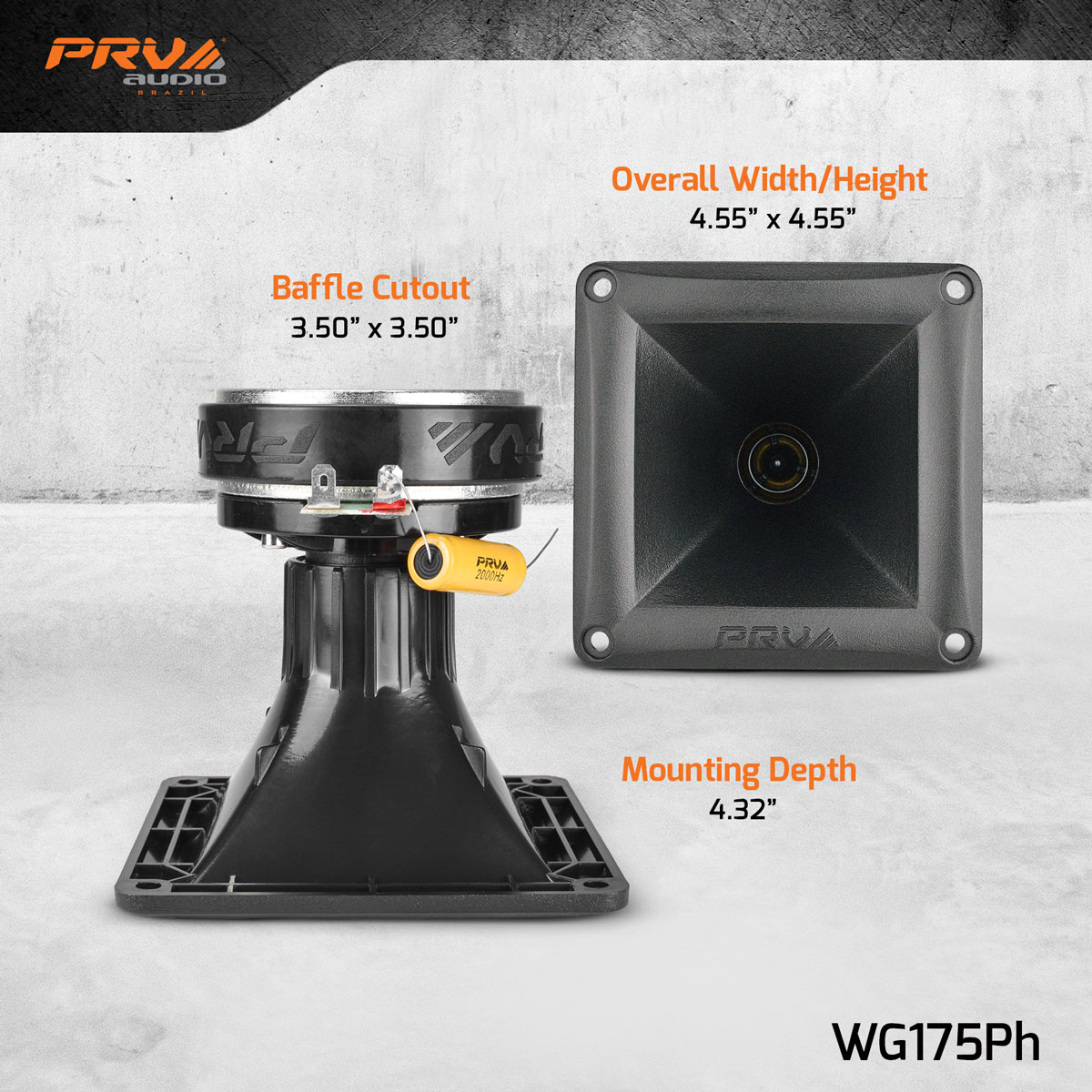

- Mounting Depth
- 4.32"
- Cutout
- 3.50" x 3.50"
- Overall Dimensions
- 4.55" x 4.55", 4.61" deep
- Net Weight
- 1.9 lbs (0.86 kg)
- Weight
- 2 lbs
- Dimensions
- 4.75 × 4.75 × 5 in
- Exit Throat
- 1" (25.4 mm)
- Diaphragm
- Phenolic
