PRV 1 inch Exit Polyimide Compression Driver Bolt-On 8 Ohm PRV-D290Py-B
$74.91
1″ exit bolt-on polyimide mids/highs driver, 180 W RMS and 109 dB, 650 Hz to 19 kHz.
RMS Power180W
Peak Power360W
Sensitivity109dB
01 Overview
The details
Product Overview
The PRV D290Py-B is a 1" exit bolt-on compression driver with a durable polyimide diaphragm that handles lower frequencies without shattering. A 1.75" voice coil gives 109 dB sensitivity and a wide usable range from 650 Hz to 19 kHz, making it a drop-in upgrade for standard 1" horns.
Key Features
- 90 W nominal, 180 W RMS program, 360 W peak
- 109 dB sensitivity (2.83V/1m)
- Polyimide diaphragm, 1.75" voice coil
- Wide 650 – 19,000 Hz range

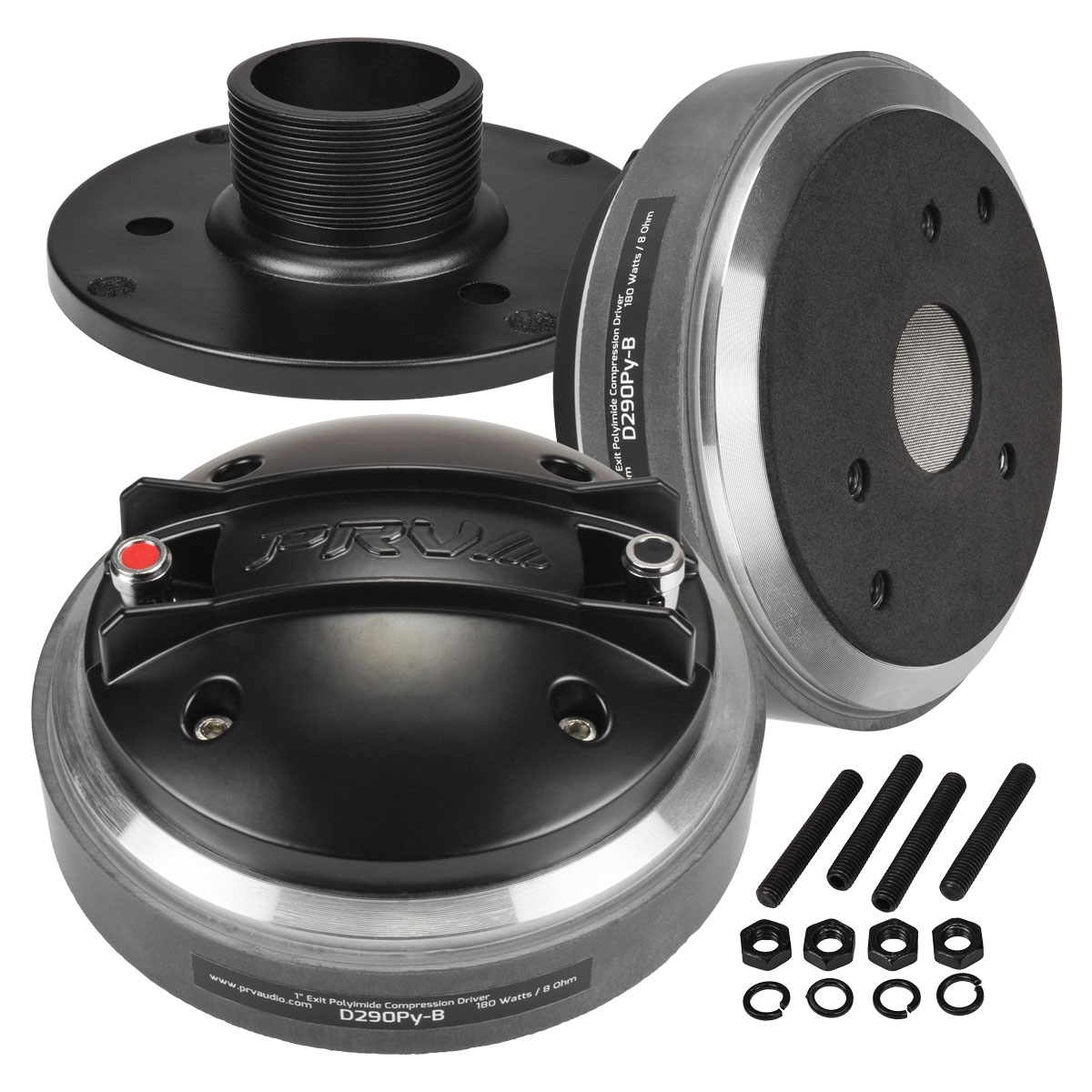

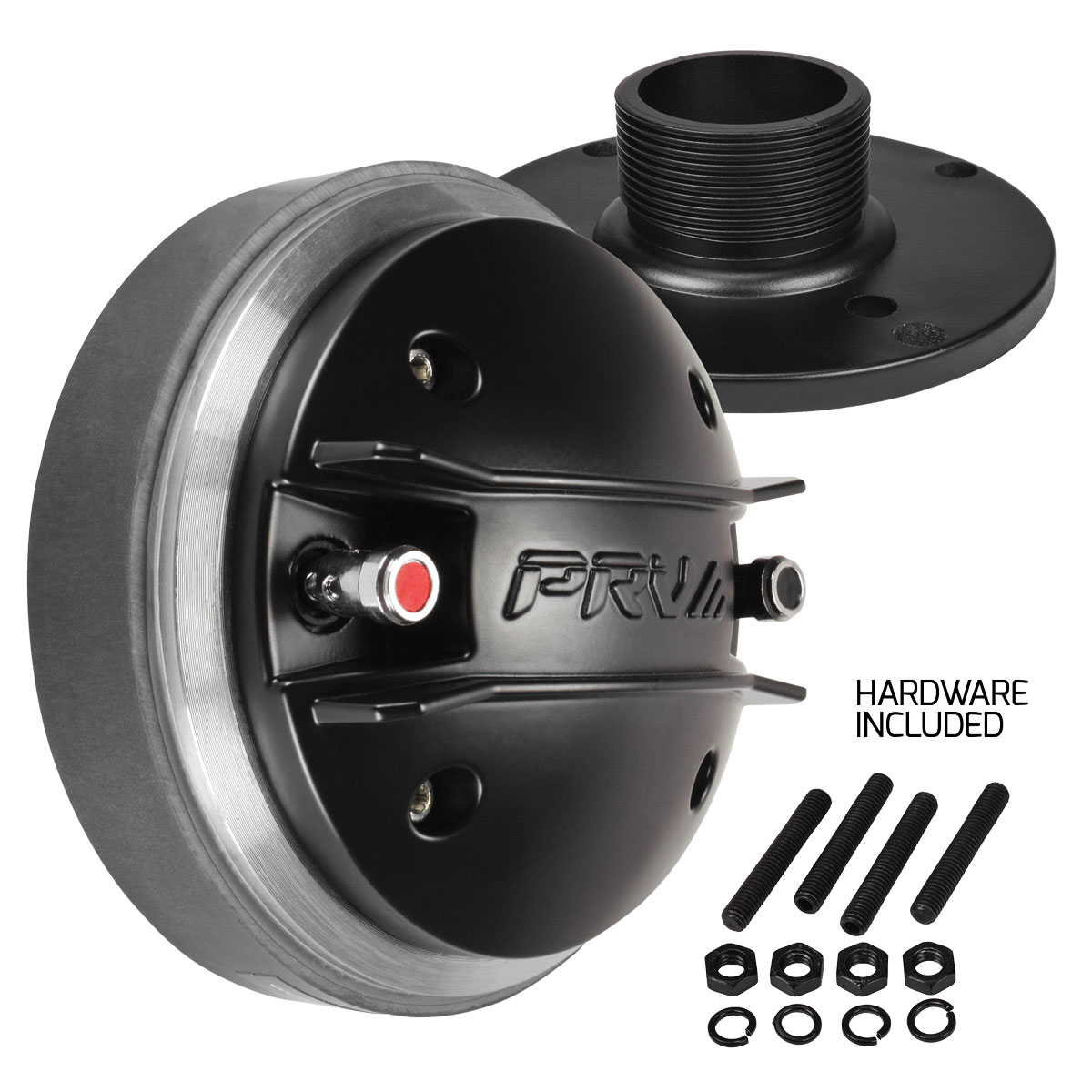

- Bolt-on (2 and 3 bolt patterns), bolt-on to screw-on adapter included
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
180W
Continuous rating
Peak Power 02
360W
Short-burst rating
Sensitivity 03
109dB
Efficiency
Size 04
1.75in
Nominal
- Impedance
- 8 Ohm
- Nominal Power Handling
- 90 W
- Continuous Program Power (RMS)
- 180 W
- Max Peak Power
- 360 W
- Recommended Hi Pass Crossover
- 1,000 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 109 dB
- Frequency Response
- 650 – 19,000 Hz
- Voice Coil Diameter
- 1.75" (44.4 mm)
- Magnet
- Ferrite
- Mounting
- Bolt-on (2 and 3 bolt patterns), bolt-on to screw-on adapter included

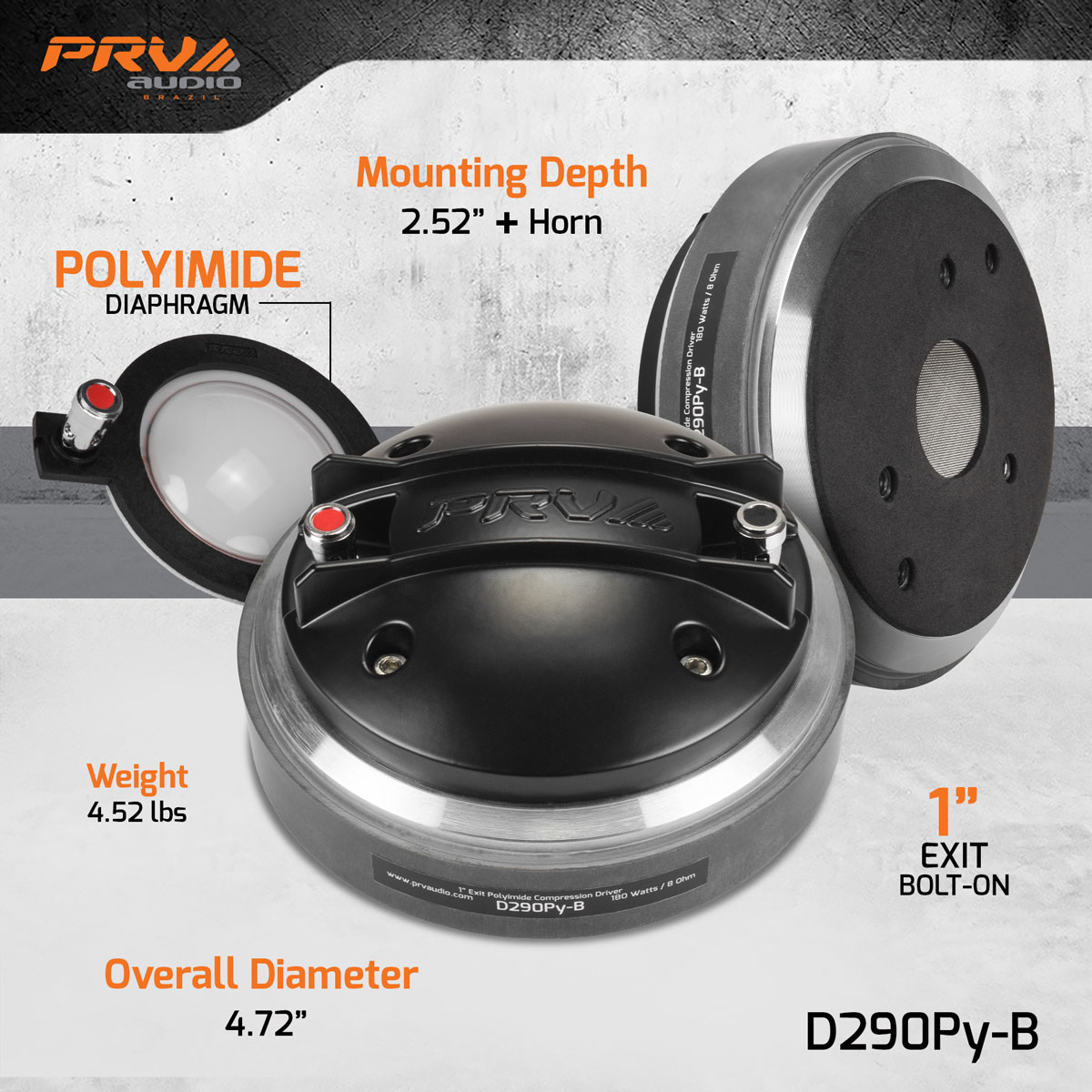

- Overall Dimensions
- 4.72" (120 mm) dia., 2.52" (64 mm) deep
- Net Weight
- 4.52 lbs (2.05 kg)
- Weight
- 4.9 lbs
- Dimensions
- 5.5 × 5.25 × 4.25 in
- Exit Throat
- 1" (25.4 mm)
- Diaphragm
- Polyimide
