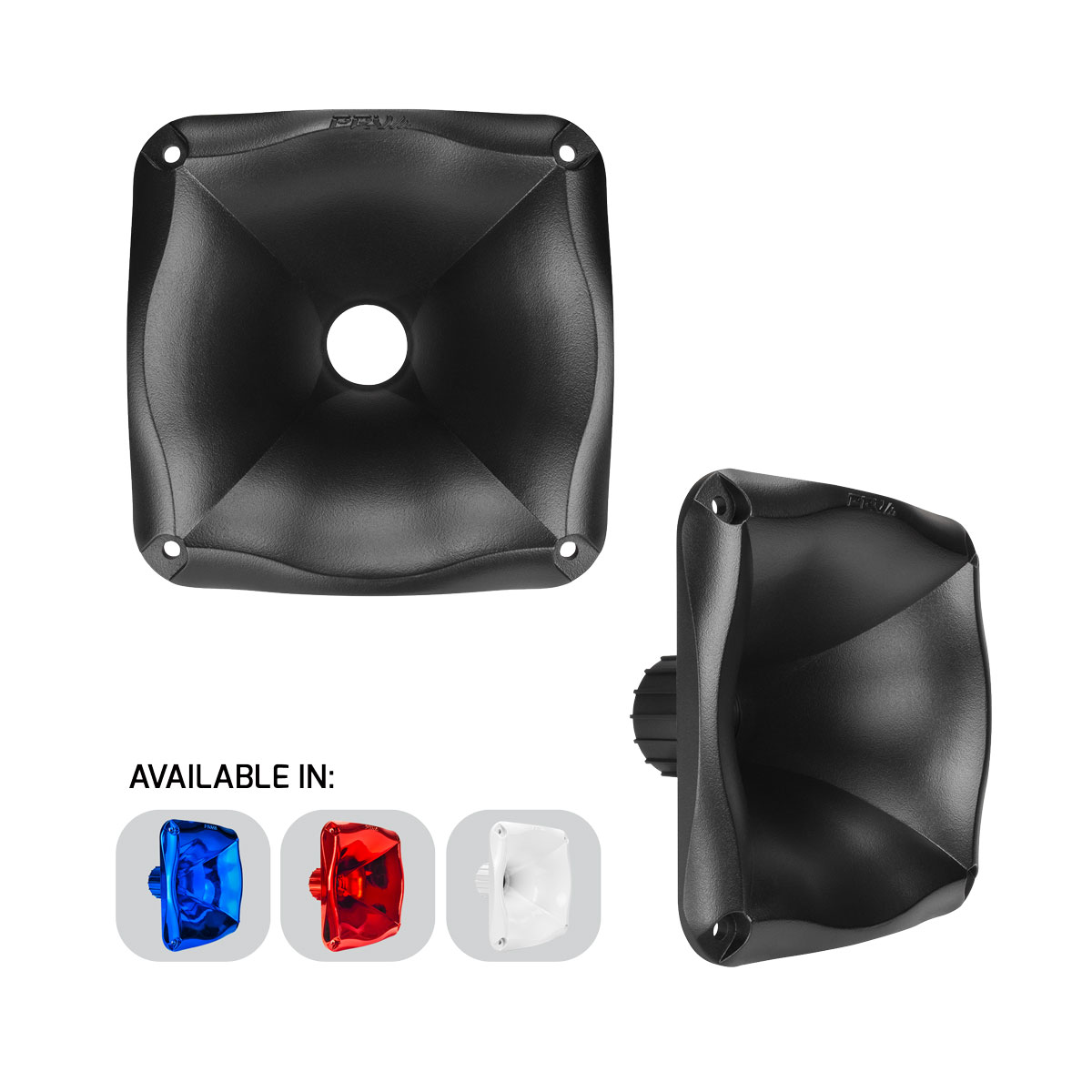

PRV 1 inch Exit SLIM Wave Guide Horn 60 x 60 BLACK PRV-WGP12-25SLIMBLACK
$19.91
Slim 1″ screw-on waveguide in black, 60° x 60°, loads down to 800 Hz.
01 Overview
The details
Product Overview

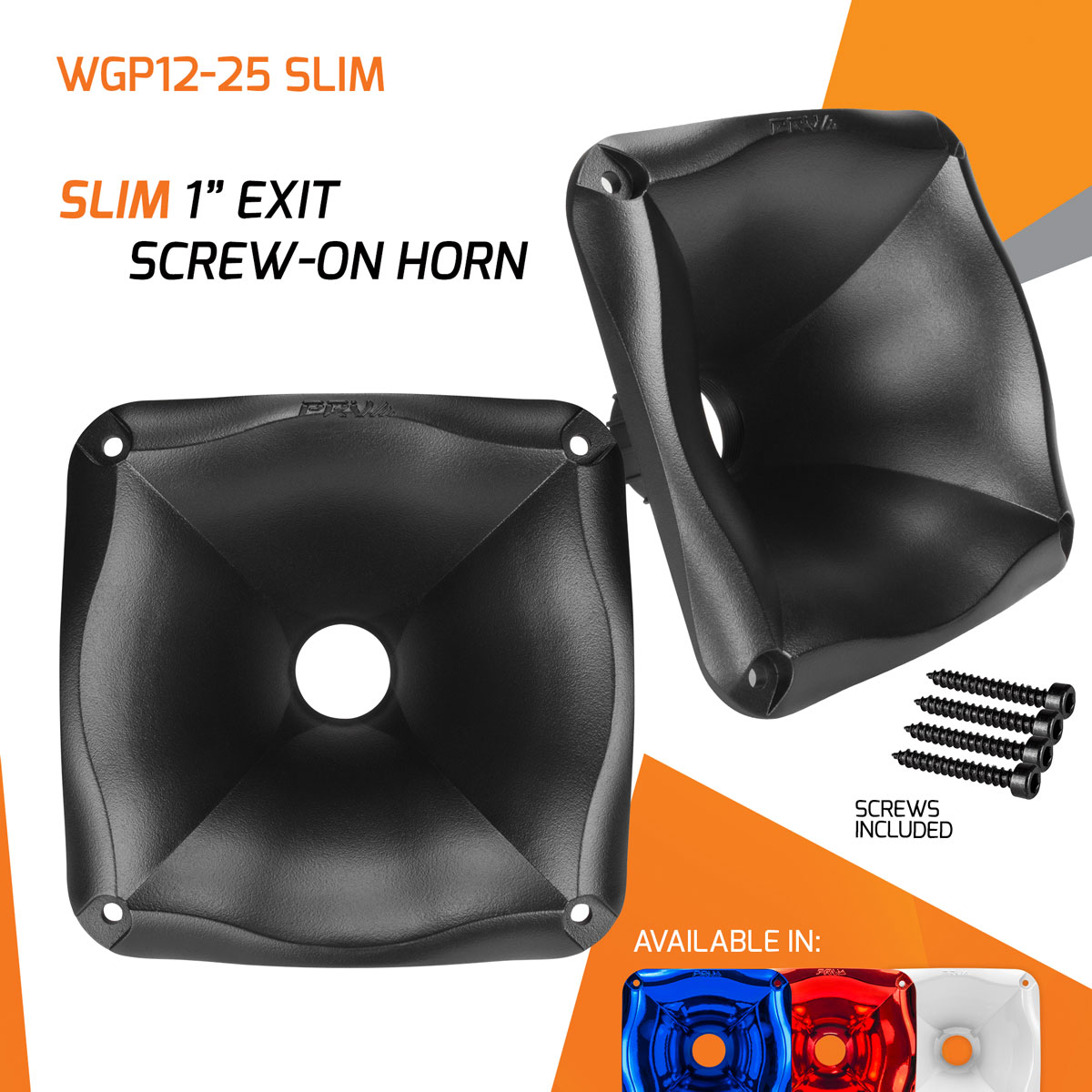

The PRV WGP12-25 SLIM gets high output from a 1" driver in limited space. With a 2.95" mounting depth it fits between speakers and in tight doors, its 60° x 60° pattern suits long-throw applications, and it loads down to an 800 Hz minimum crossover. Pairs well with the D290Py-S and D280Ti-S for front mounting.
Key Features
- 1" screw-on throat (1-3/8"-18 TPI)
- 60° x 60° dispersion
- Minimum crossover 800 Hz
- 2.95" mounting depth
- Fits PRV 1" screw-on drivers, 4 screws included
Specifications are manufacturer rated. Sold individually.
02 Tech specs
By the numbers
- Minimum Recommended Crossover
- 800 Hz
- Material
- Reinforced ABS
- Finish
- Black
- Mounting
- Screw-on, 1-3/8"-18 TPI thread

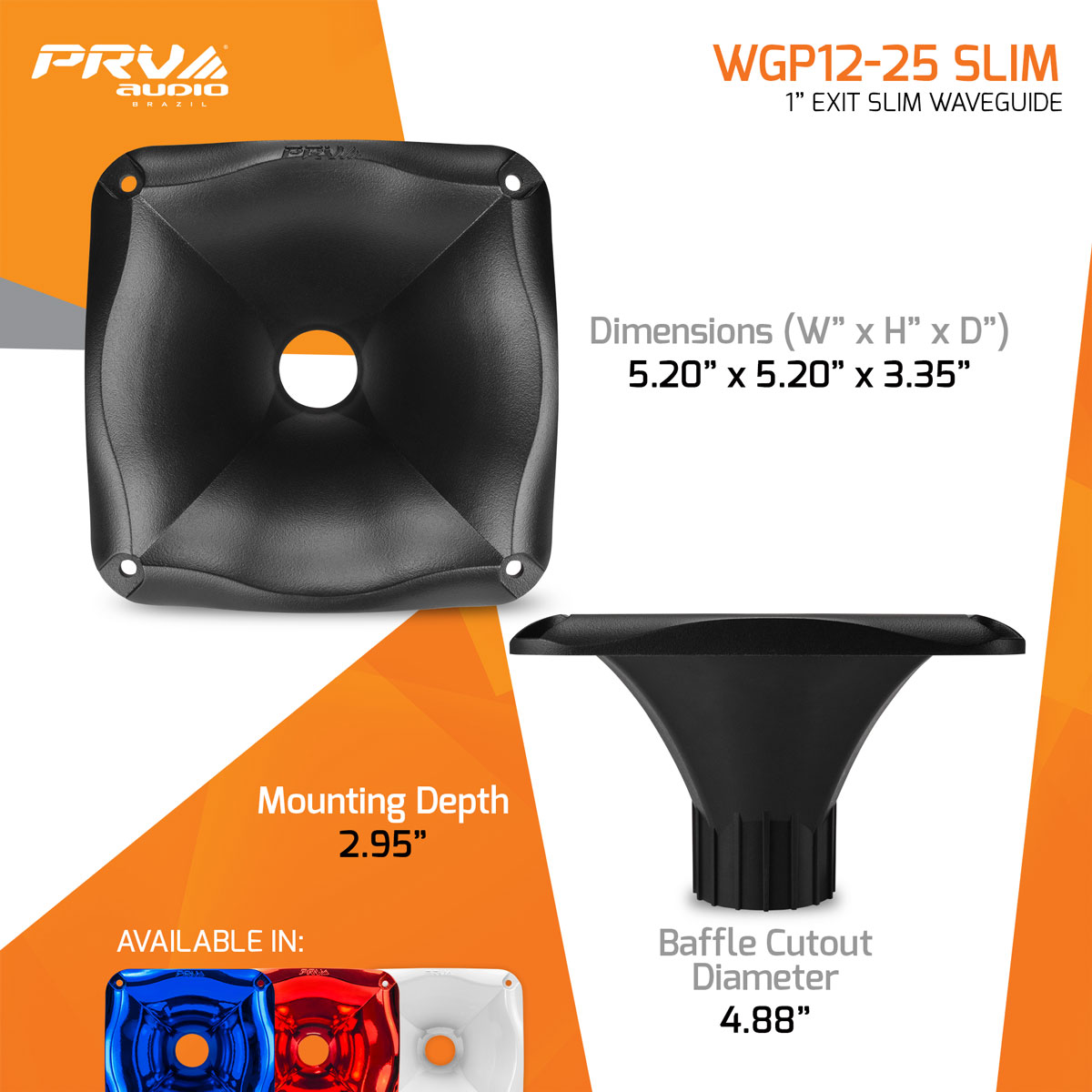

- Overall Dimensions
- 5.20" x 5.20" (132 mm), 3.35" (85 mm) deep
- Mounting Depth
- 2.95" (75 mm)
- Baffle Cutout
- 4.85" (123.2 mm)
- Net Weight
- 0.25 lbs (0.115 kg)
- Weight
- 0.35 lbs
- Dimensions
- 8.5 × 6.5 × 3.5 in
- Throat
- 1" (25.4 mm)
- Dispersion (H x V)
- 60° x 60°
- Included Hardware
- 4 screws
- Fits
- PRV 1" exit screw-on compression drivers
