PRV
PRV 1 inch Exit SLIM Wave Guide Horn 75 x 75 PRV-WGP10-25SLIM
$14.91
Slim 1″ screw-on waveguide, 75° x 75°, only 1.75″ deep, front-mountable.
01 Overview
The details
Product Overview

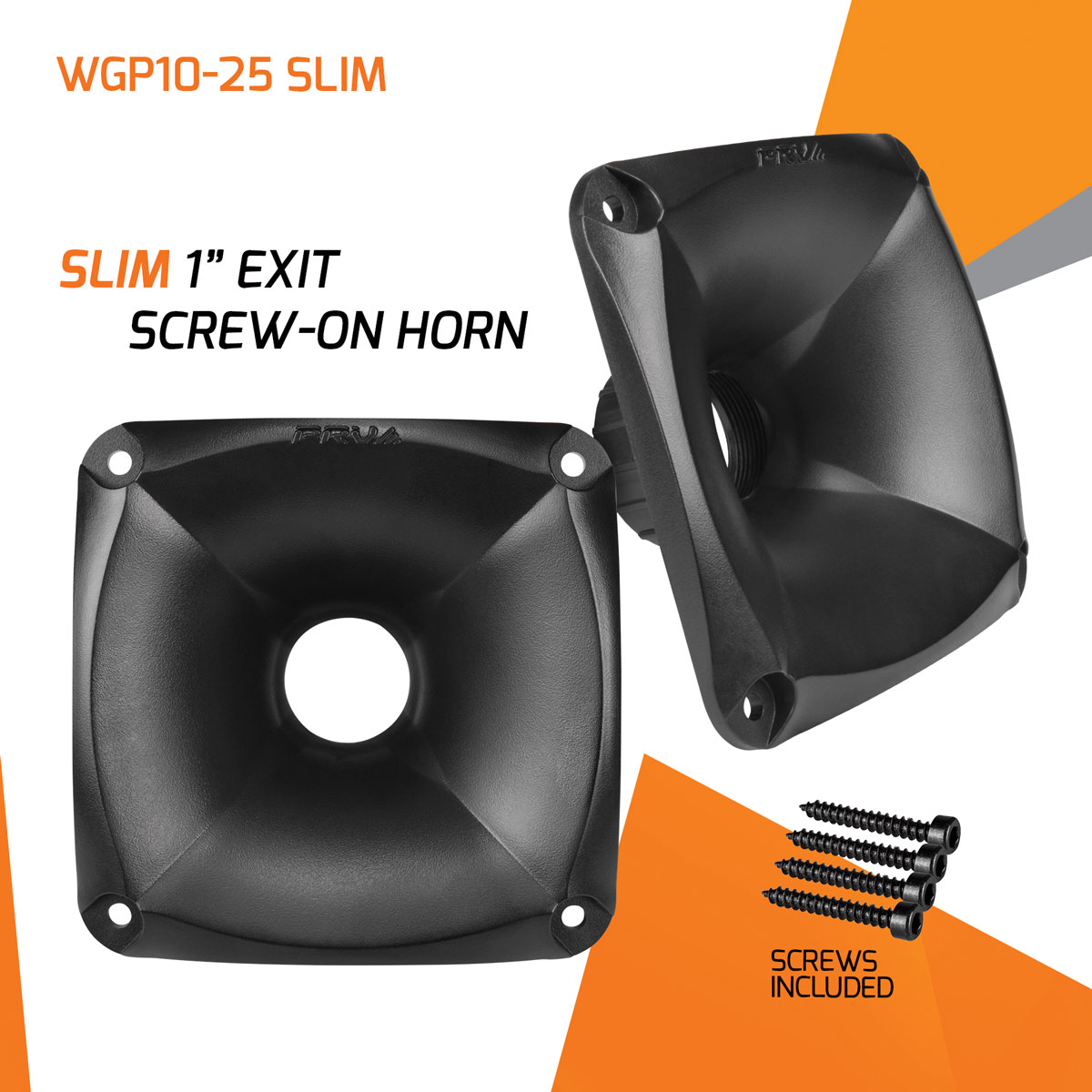

The PRV WGP10-25 SLIM is a shallow 1" exit waveguide with a 1.75" mounting depth and a compact faceplate that supports front mounting in a 3.50"–3.75" cutout. Its 75° x 75° pattern suits short-throw applications, and the non-resonant ABS body is rated for outdoor and automotive use.
Key Features
- 1" screw-on throat (1-3/8"-18 TPI)
- 75° x 75° dispersion
- Minimum crossover 1,400 Hz
- Only 1.75" mounting depth

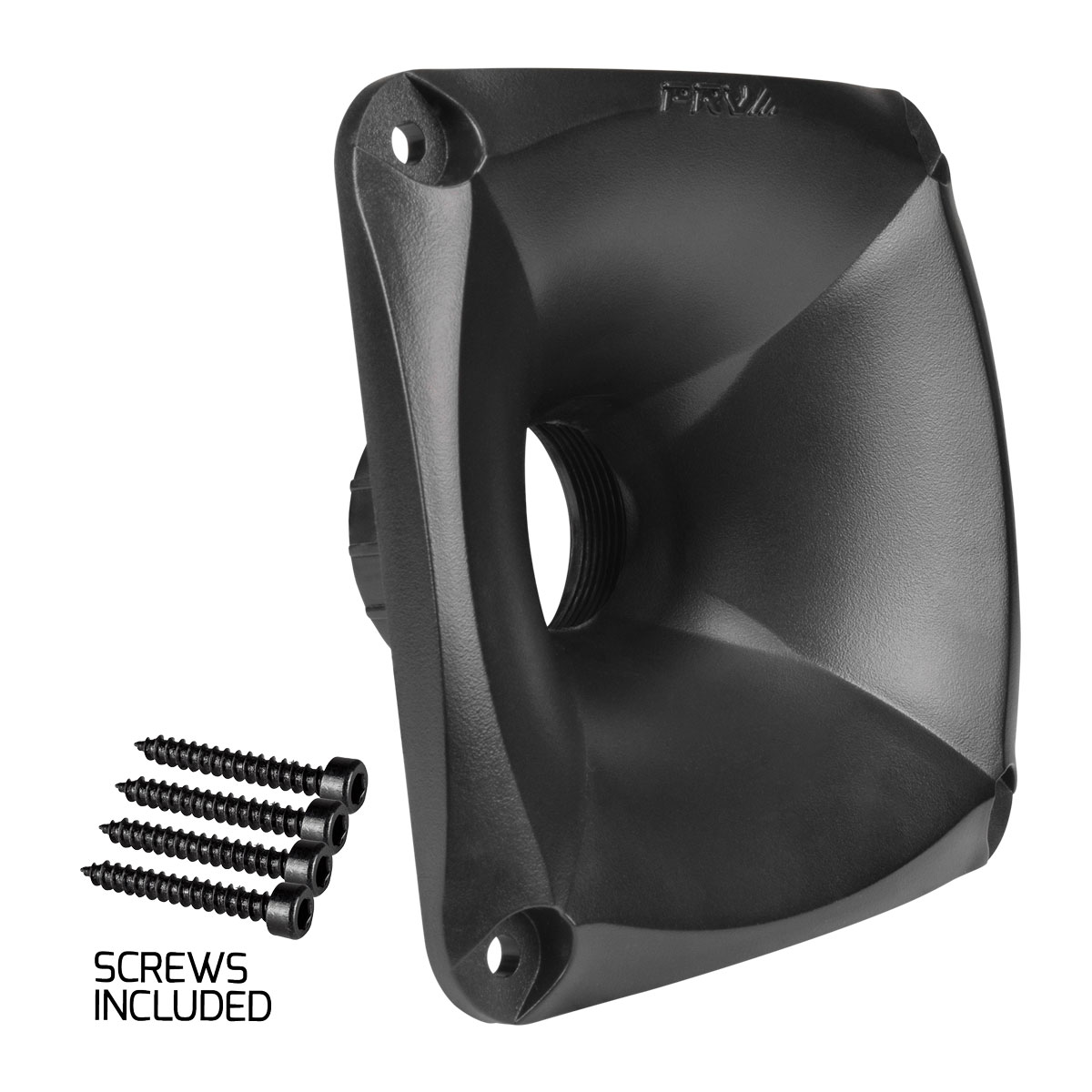

- Fits PRV 1" screw-on drivers such as the D250Ti-S and DT175Ph-S, 4 screws included
Specifications are manufacturer rated. Sold individually.
02 Tech specs
By the numbers
- Minimum Recommended Crossover
- 1,400 Hz
- Material
- Reinforced ABS
- Finish
- Black
- Mounting
- Screw-on, 1-3/8"-18 TPI thread

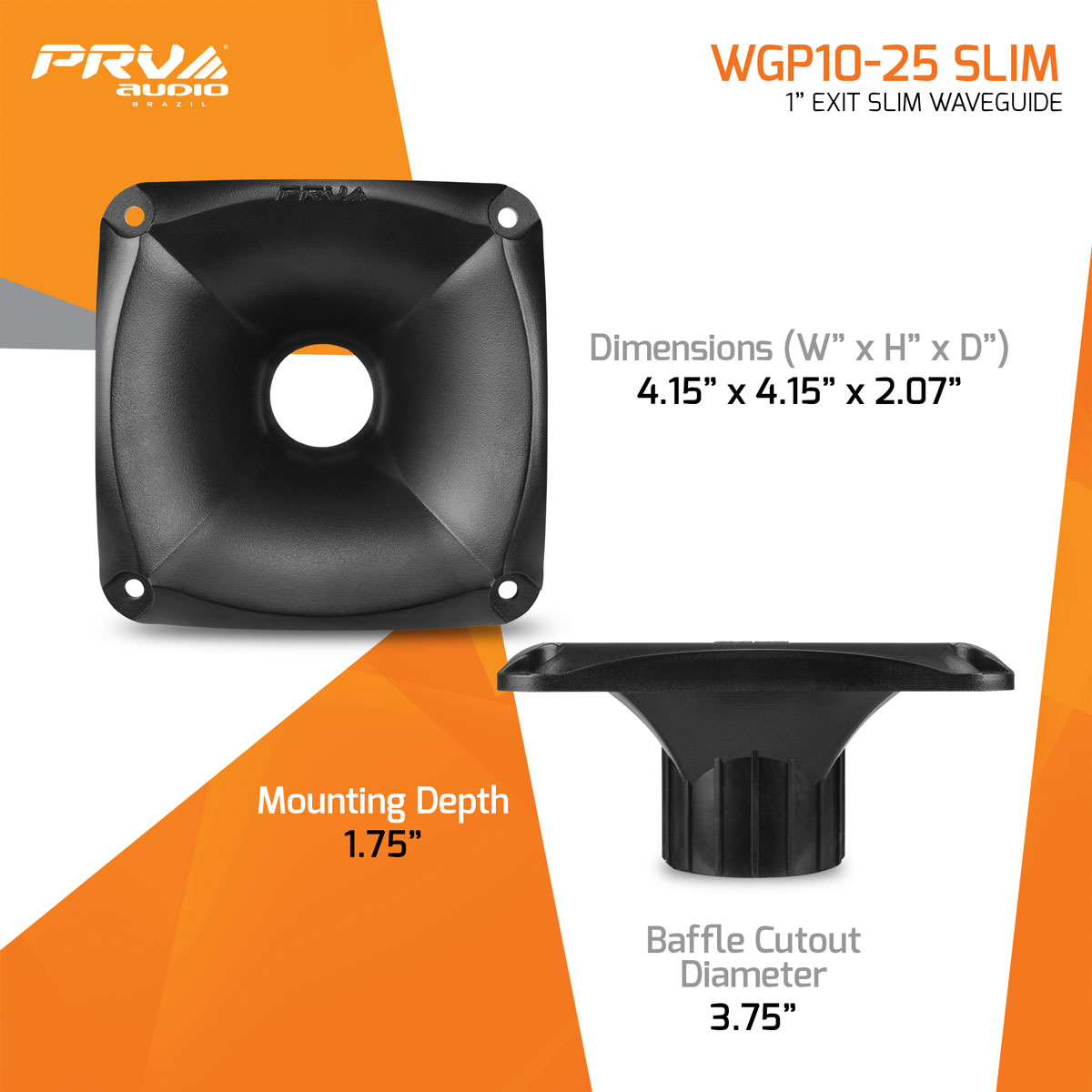

- Overall Dimensions
- 4.15" x 4.15" (105.5 mm), 2.07" (52.5 mm) deep
- Mounting Depth
- 1.75" (44.5 mm)
- Baffle Cutout
- 3.75" (95.5 mm)
- Net Weight
- 0.15 lbs (0.07 kg)
- Weight
- 0.24 lbs
- Dimensions
- 7.75 × 5.5 × 2.25 in
- Throat
- 1" (25.4 mm)
- Dispersion (H x V)
- 75° x 75°
- Included Hardware
- 4 screws
- Fits
- PRV 1" exit screw-on compression drivers
