PRV 1 inch Exit Titanium Compression Driver Bolt-On 8 Ohm PRV-D250Ti-B
$29.91
Lightweight 1″ exit bolt-on titanium HF driver, 100 W RMS and 106 dB.
RMS Power100W
Peak Power200W
Sensitivity106dB
01 Overview
The details
Product Overview

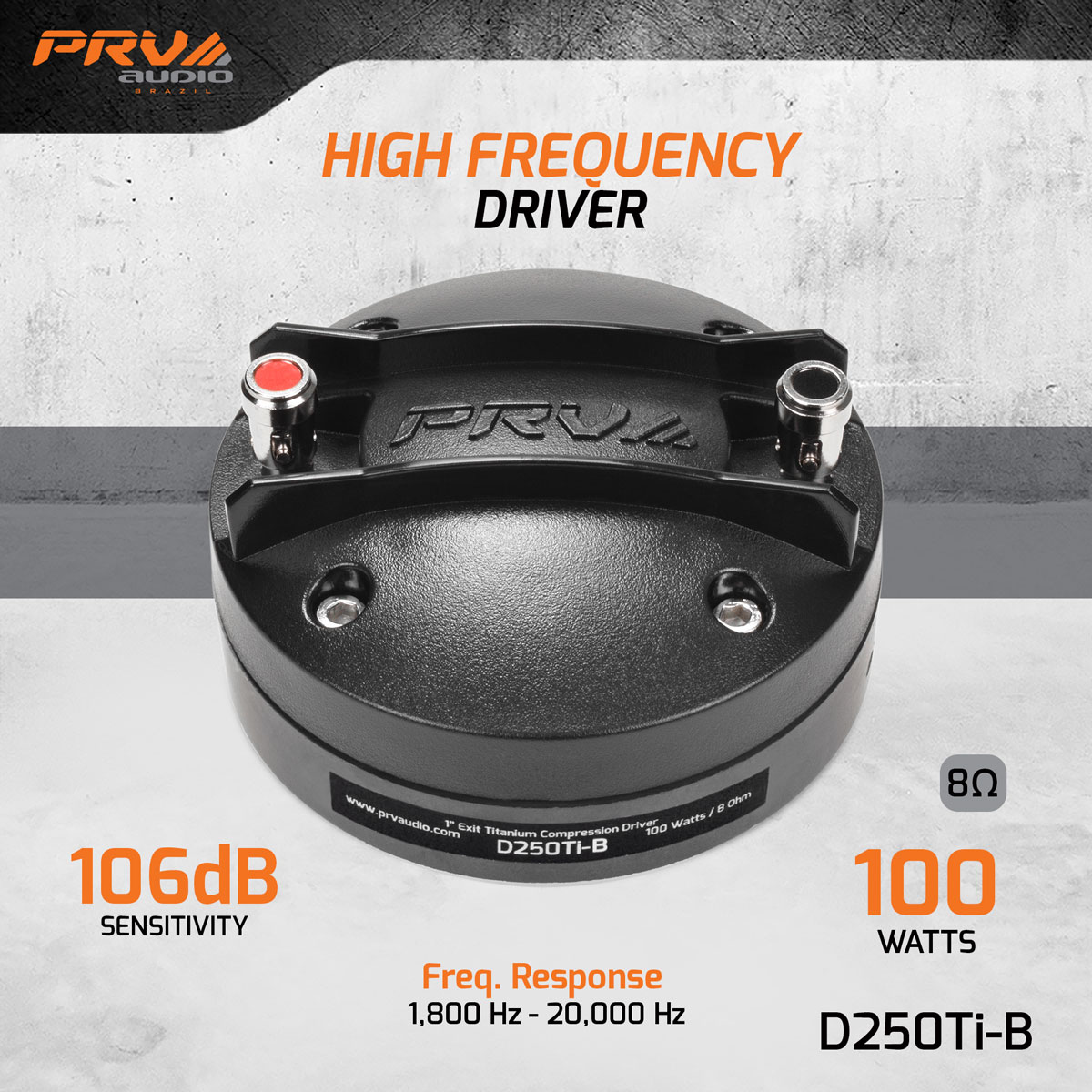

The PRV D250Ti-B is a lightweight 1" exit titanium compression driver for DJ and touring cabinets. A one-piece titanium diaphragm on a 1.4" voice coil keeps moving mass low for clear highs from about 1.8 kHz to 20 kHz, and it works as a drop-in replacement for 1" exit bolt-on horns.
Key Features
- 50 W nominal, 100 W RMS program, 200 W peak
- 106 dB sensitivity (2.00V/1m)
- One-piece titanium diaphragm, 1.4" voice coil
- 1,800 – 20,000 Hz

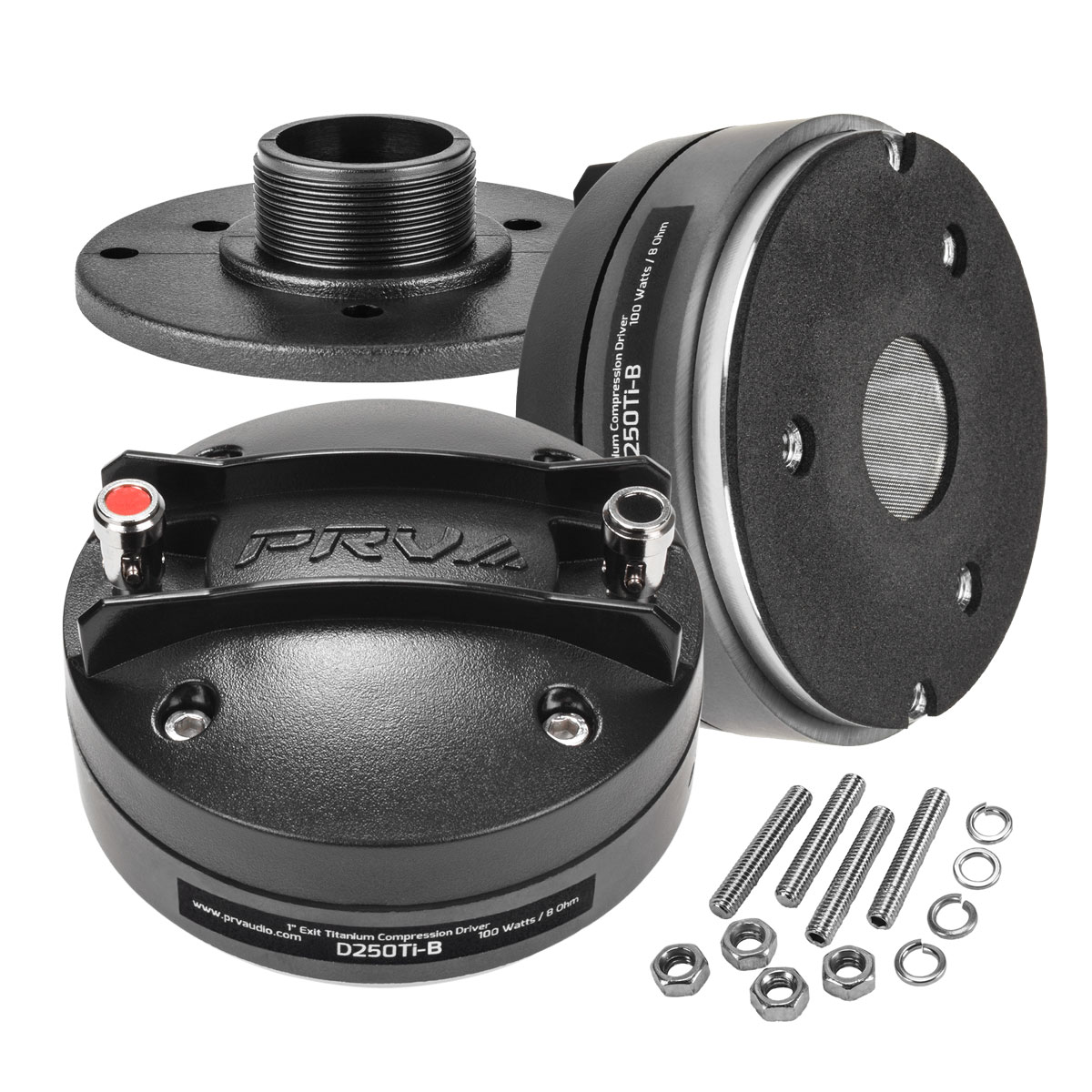

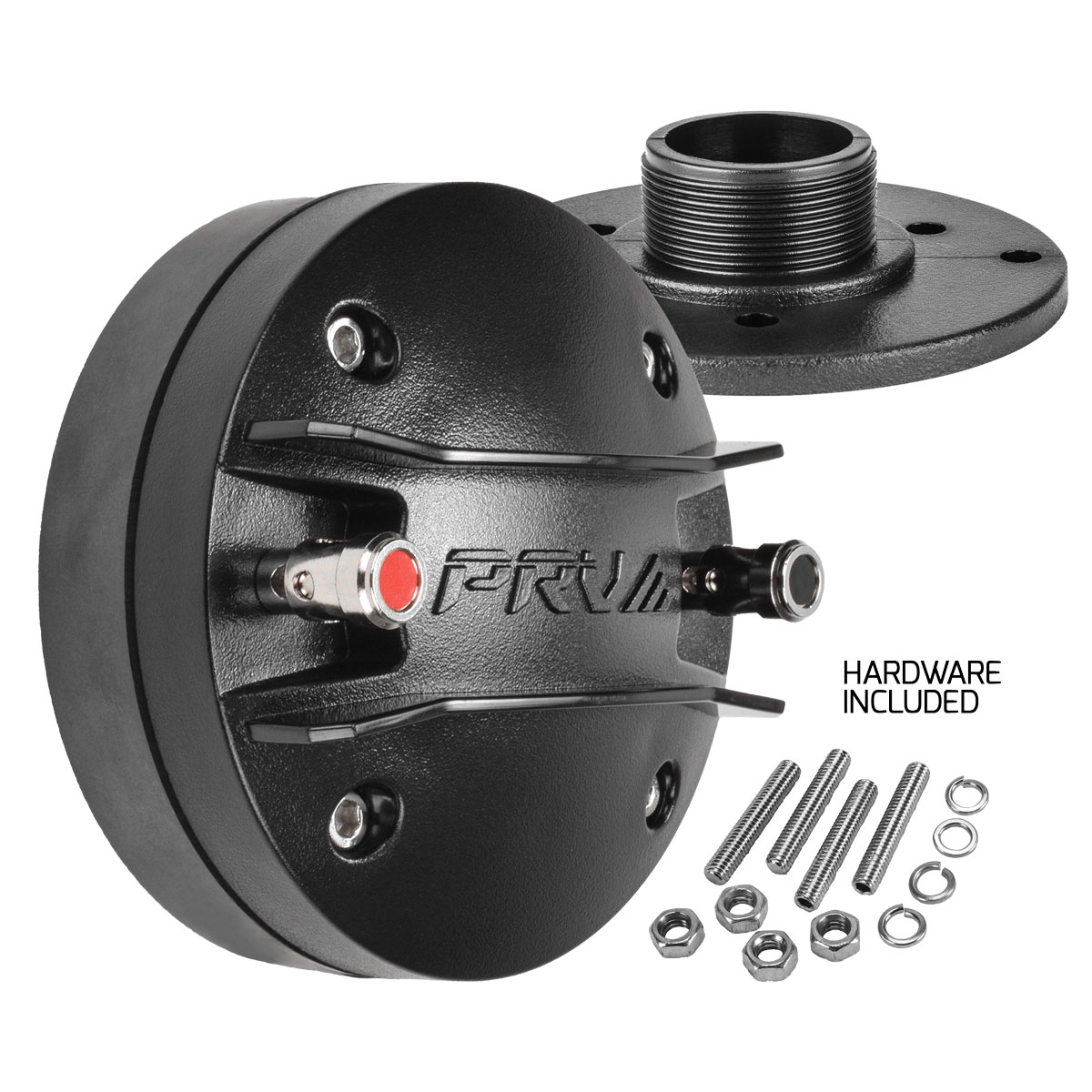

- Bolt-on (2 and 3 bolt patterns), bolt-on to screw-on adapter included
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
100W
Continuous rating
Peak Power 02
200W
Short-burst rating
Sensitivity 03
106dB
Efficiency
Size 04
1.4in
Nominal
- Impedance
- 8 Ohm
- Nominal Power Handling
- 50 W
- Continuous Program Power (RMS)
- 100 W
- Max Peak Power
- 200 W
- Recommended Hi Pass Crossover
- 2,000 Hz, 12 dB/octave
- Sensitivity (2.00V at 1m)
- 106 dB
- Frequency Response
- 1,800 – 20,000 Hz
- Voice Coil Diameter
- 1.4" (35.5 mm)
- Magnet
- Ferrite
- Mounting
- Bolt-on (2 and 3 bolt patterns), bolt-on to screw-on adapter included

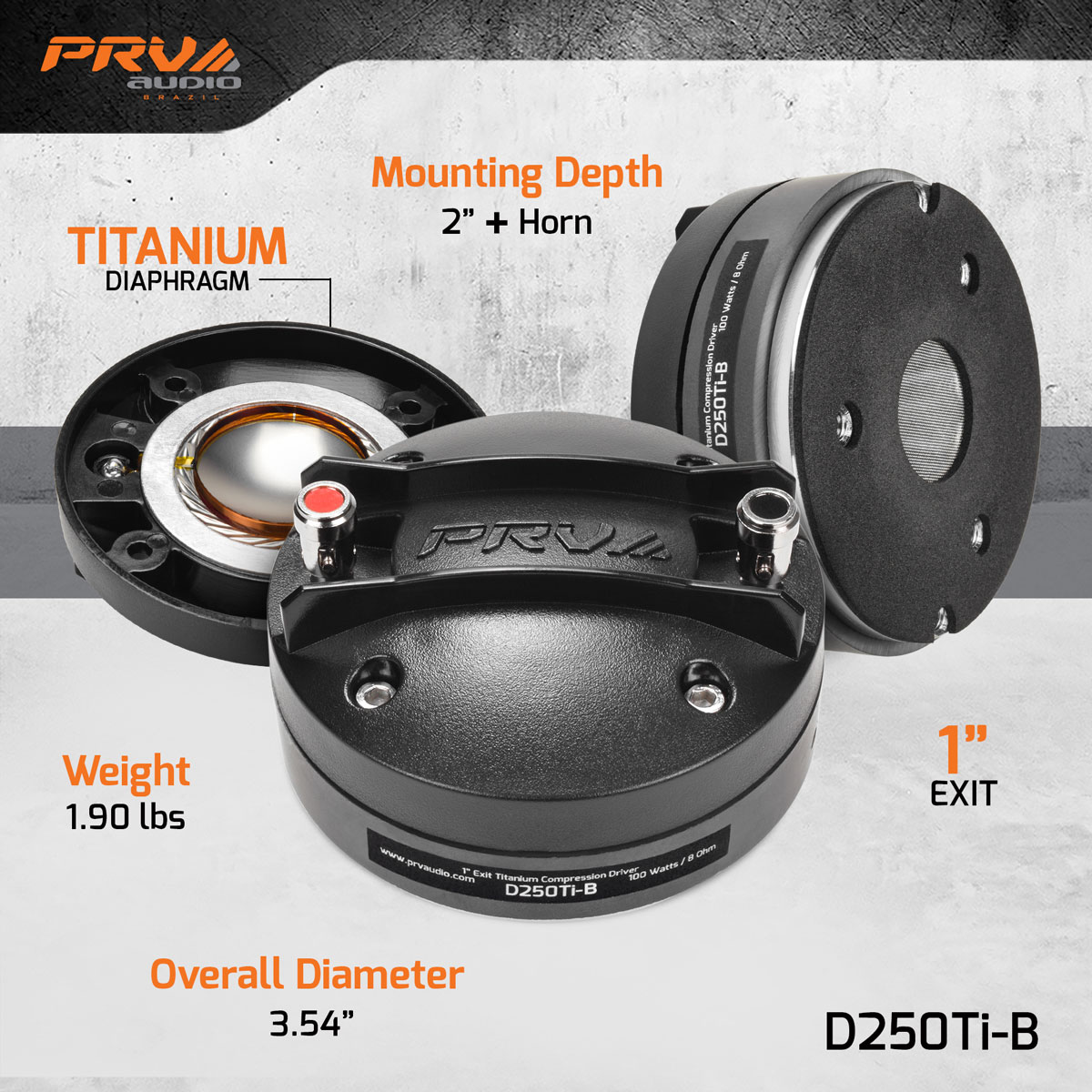

- Mounting Depth
- 2.08" (53 mm)
- Overall Dimensions
- 3.54" (90 mm) deep
- Net Weight
- 1.90 lbs (0.86 kg)
- Weight
- 2.25 lbs
- Dimensions
- 4 × 4.25 × 3.75 in
- Exit Throat
- 1" (25.4 mm)
- Diaphragm
- Titanium
