PRV 1 inch Exit Titanium Compression Driver Screw-On 8 Ohm PRV-D280Ti-S
$39.91

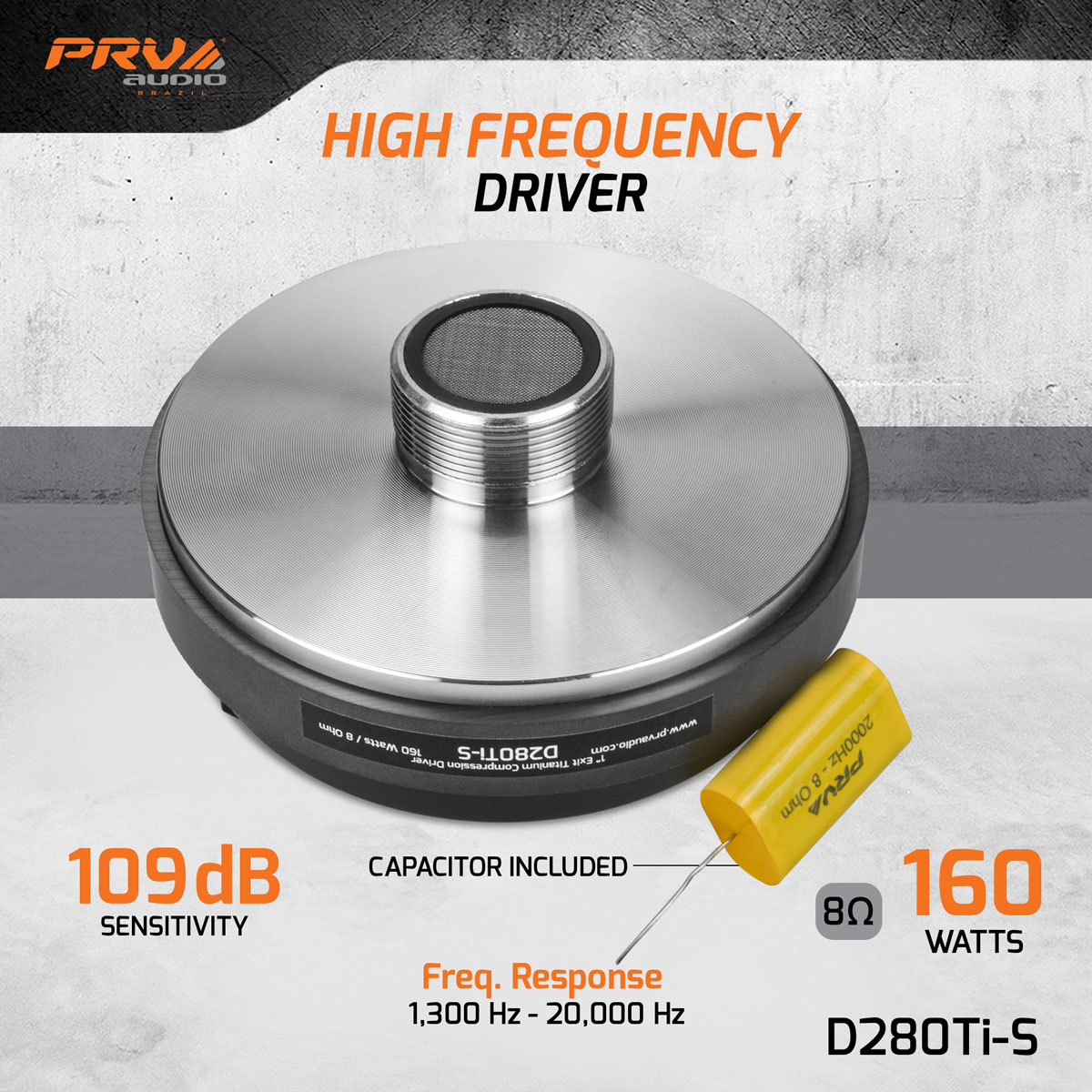

1″ exit screw-on titanium HF driver, 160 W RMS and 109 dB, response to 20 kHz.
RMS Power160W
Peak Power320W
Sensitivity109dB
01 Overview
The details
Product Overview

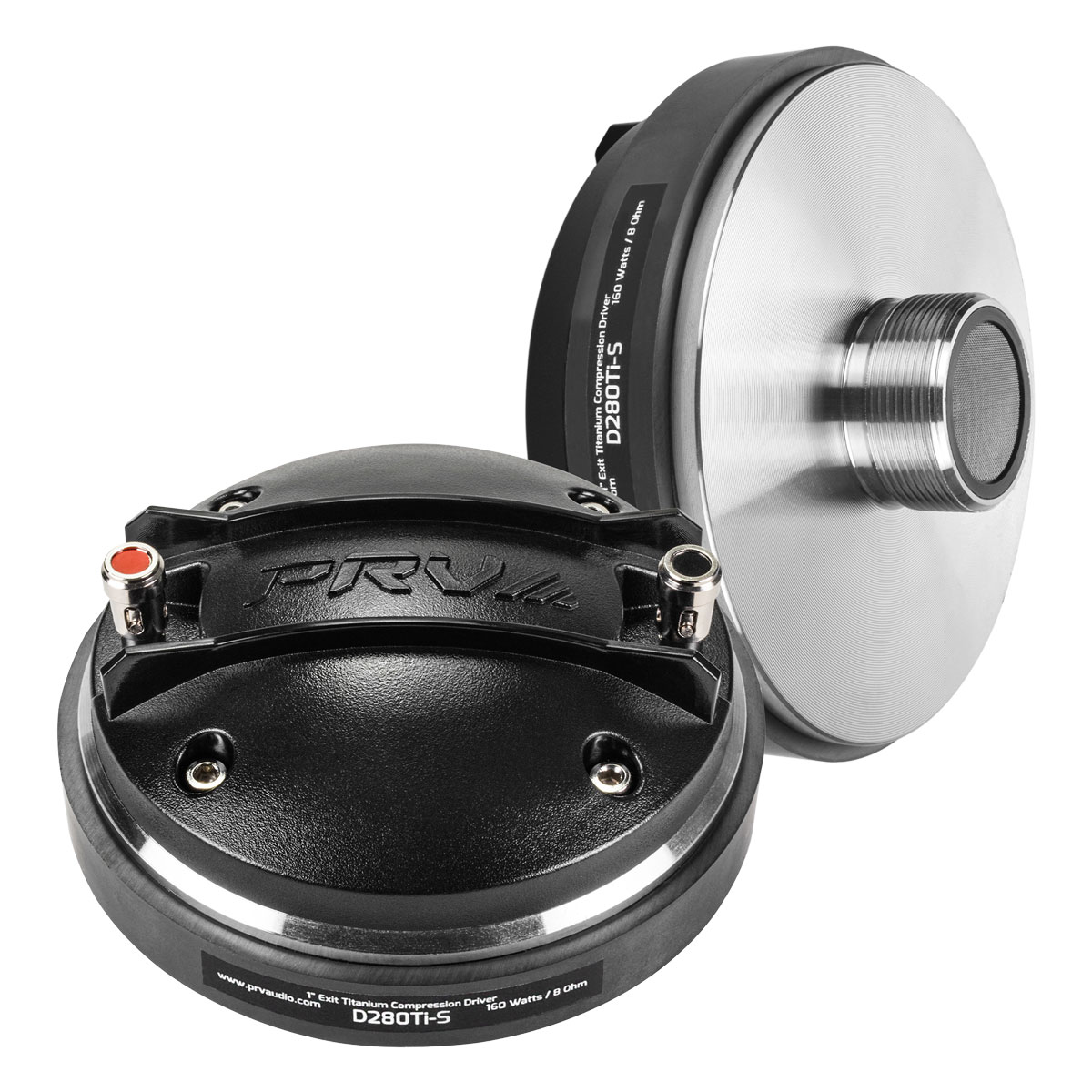

The PRV D280Ti-S uses a one-piece titanium diaphragm on a large 1.75" voice coil for high power handling and 109 dB sensitivity. Its compact 4.5" body allows front mounting, popular in car audio builds, and it drops into most 1" exit screw-on horns. A phase plug reduces phase cancellation.
Key Features
- 80 W nominal, 160 W RMS program, 320 W peak
- 109 dB sensitivity (2.83V/1m)
- One-piece titanium diaphragm, 1.75" voice coil
- 1,300 – 20,000 Hz
- Screw-on, 1-3/8"-18 TPI thread
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
160W
Continuous rating
Peak Power 02
320W
Short-burst rating
Sensitivity 03
109dB
Efficiency
Size 04
1.75in
Nominal
- Impedance
- 8 Ohm
- Nominal Power Handling
- 80 W
- Continuous Program Power (RMS)
- 160 W
- Max Peak Power
- 320 W
- Recommended Hi Pass Crossover
- 1,800 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 109 dB
- Frequency Response
- 1,300 – 20,000 Hz
- Voice Coil Diameter
- 1.75" (44.4 mm)
- Magnet
- Ferrite
- Mounting
- Screw-on, 1-3/8"-18 TPI thread

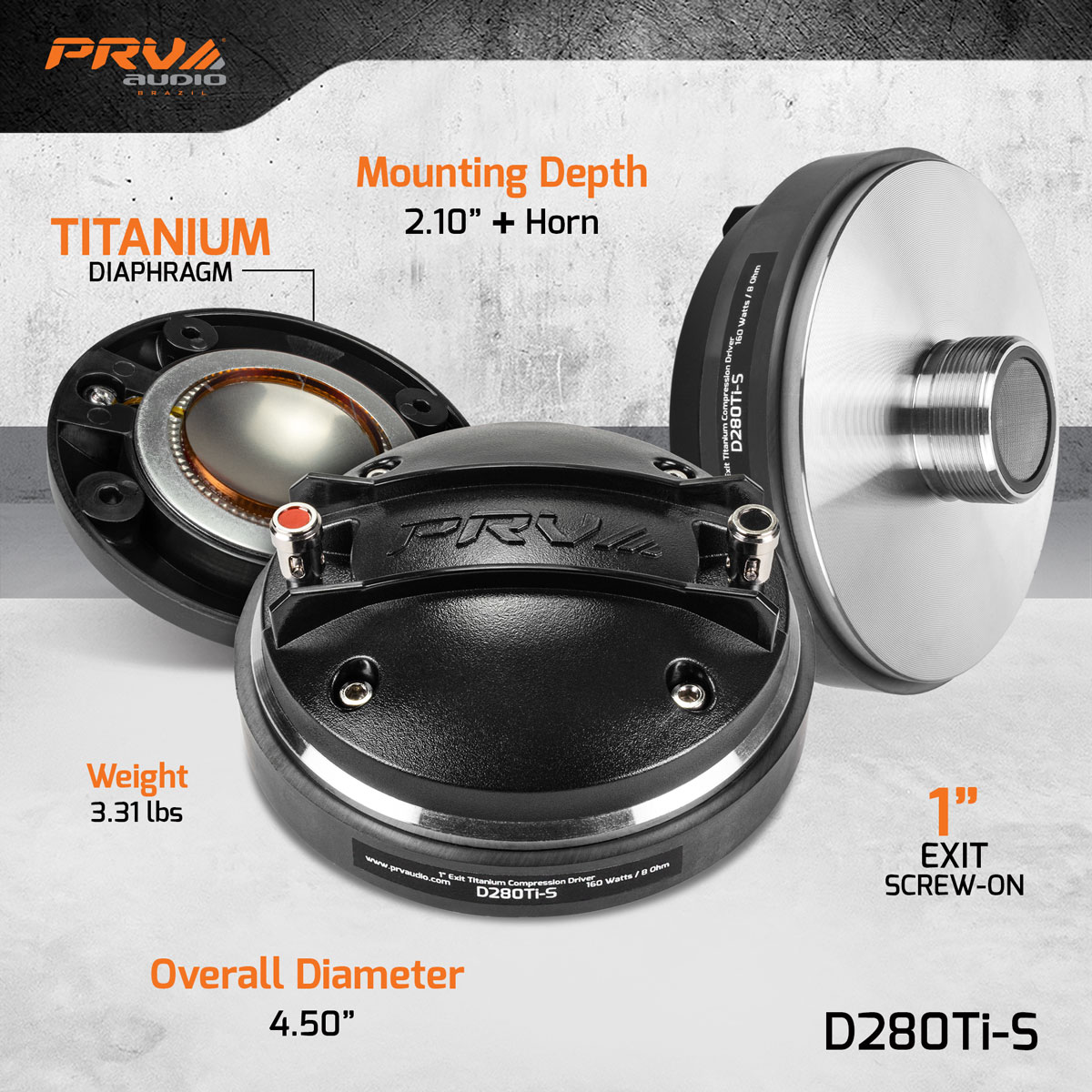

- Overall Dimensions
- 4.53" (115 mm) dia., 2.75" (69.7 mm) deep
- Net Weight
- 3.31 lbs (1.50 kg)
- Weight
- 3.55 lbs
- Dimensions
- 4.75 × 5.25 × 3.25 in
- Exit Throat
- 1" (25.4 mm)
- Diaphragm
- Titanium
