PRV
PRV 1 inch Exit Wide Dispersion Wave Guide Horn 100 x 40 PRV-WG23-25
$9.91
1″ screw-on waveguide with wide 100° x 40° coverage.
01 Overview
The details
Product Overview

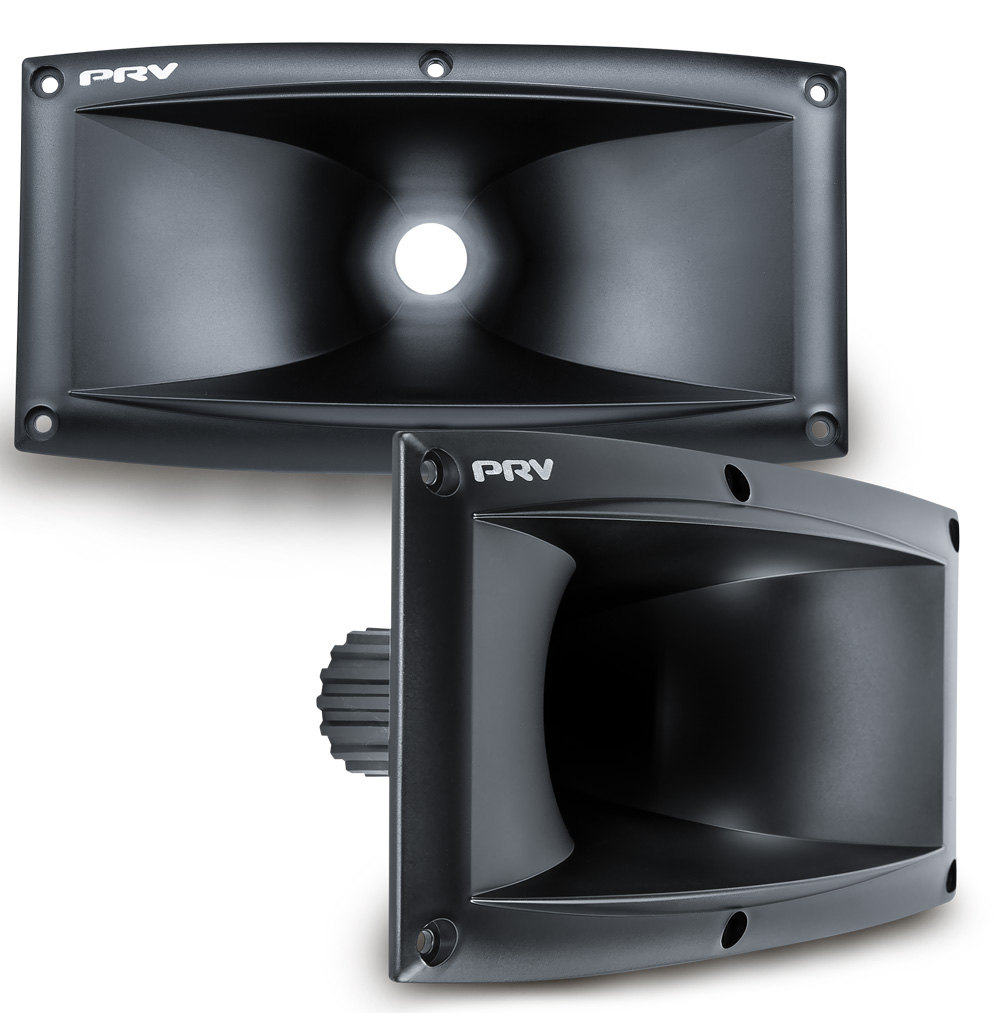

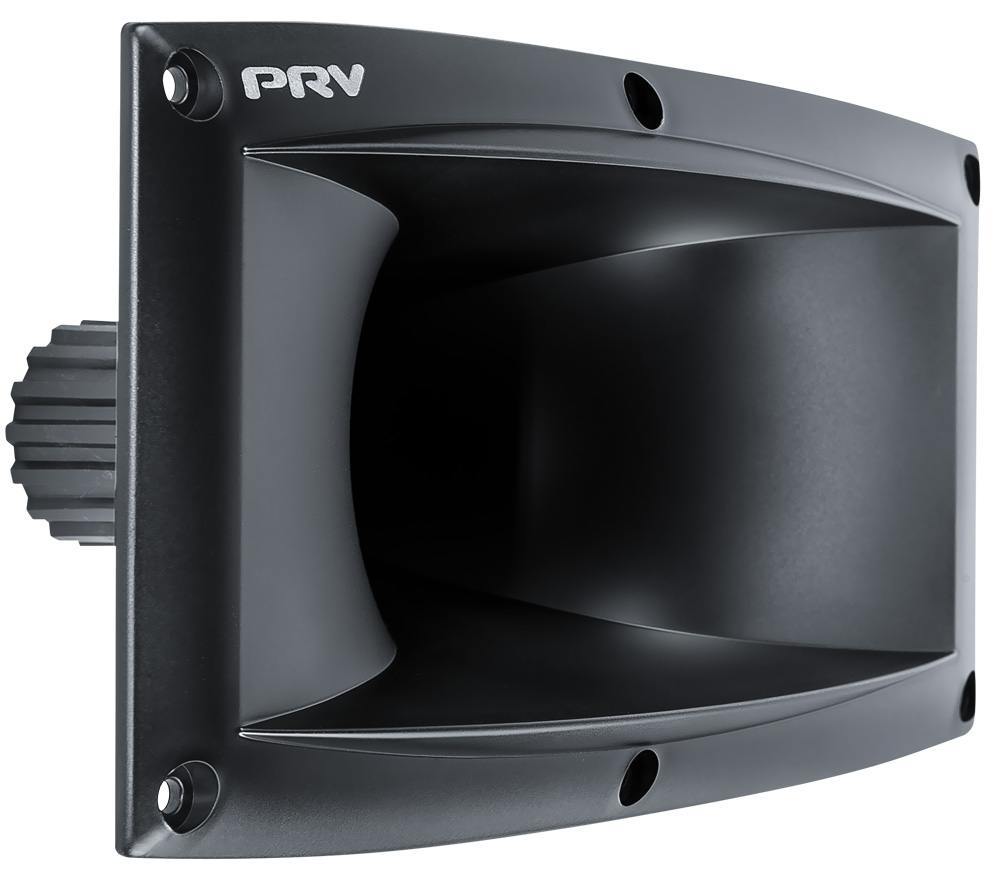

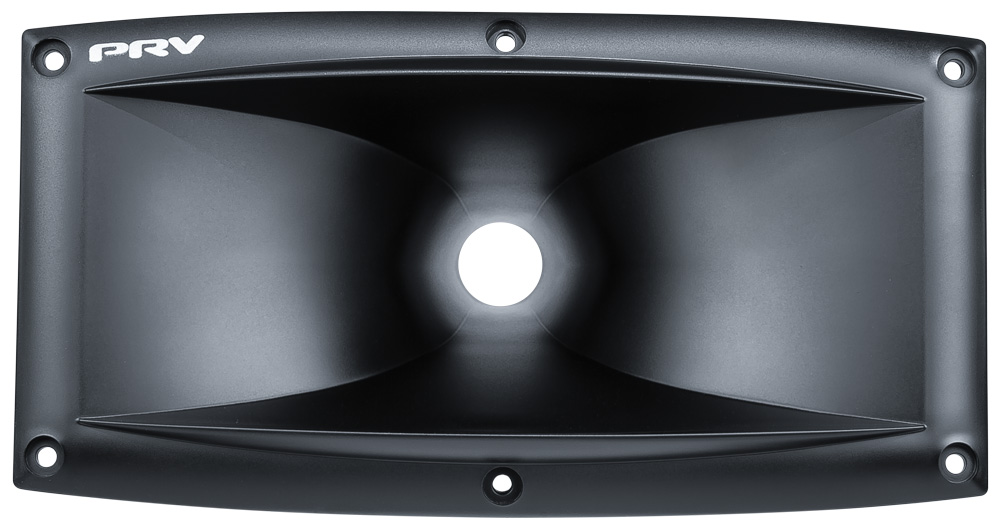

The PRV WG23-25 is a 1" exit ABS waveguide with wide 100° horizontal by 40° vertical coverage, good for spreading highs across a wide area. It screws onto standard 1" compression drivers and mounts at 4.84" deep.
Key Features
- 1" screw-on throat (1-3/8")
- Wide 100° x 40° dispersion
- 4.84" mounting depth
- ABS construction
- Black finish
Specifications are manufacturer rated. Sold individually.
02 Tech specs
By the numbers
- Material
- ABS
- Finish
- Black
- Mounting
- Screw-on, 1-3/8" thread
- Overall Dimensions
- 5.30" W x 10.0" H (134 x 254 mm), 5.67" (144 mm) deep
- Mounting Depth
- 4.84" (123 mm)
- Baffle Cutout
- 7.50" x 3.50" (190 x 89 mm)
- Net Weight
- 0.37 lbs (0.17 kg)
- Weight
- 0.37 lbs
- Dimensions
- 5.3 × 10 × 5.67 in
- Throat
- 1" (25.4 mm)
- Dispersion (H x V)
- 100° x 40°
