PRV 10 inch 4 Ohm ALTO Series Pro Audio Woofer PRV-10W650A-4
$77.91
10″ 4 Ohm ALTO Series woofer, 325 W AES / 650 W program power and 97 dB.
RMS Power325W
Sensitivity97dB
Size2.5in
01 Overview
The details
Product Overview

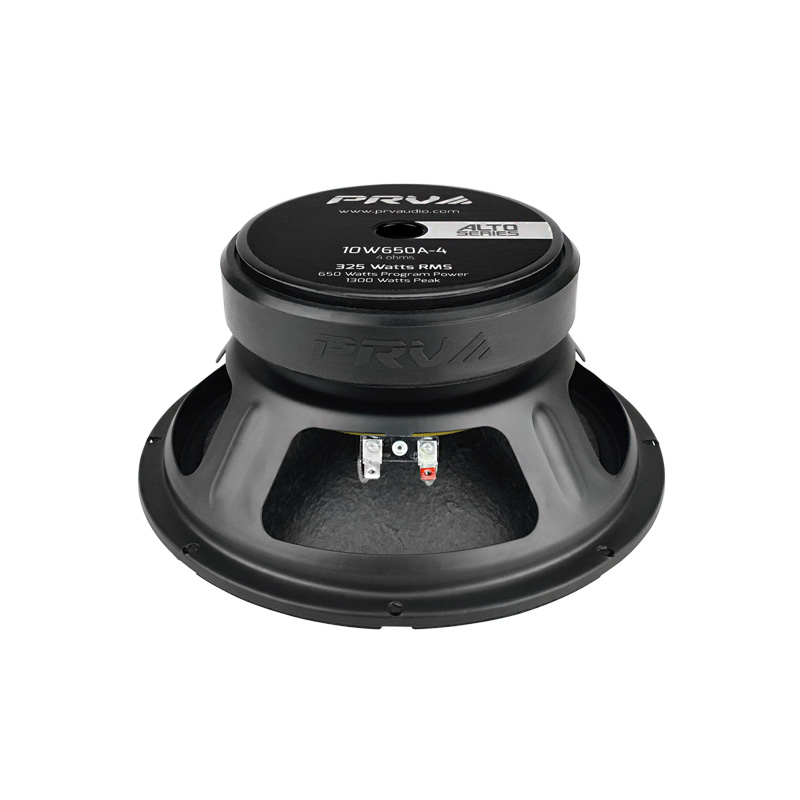

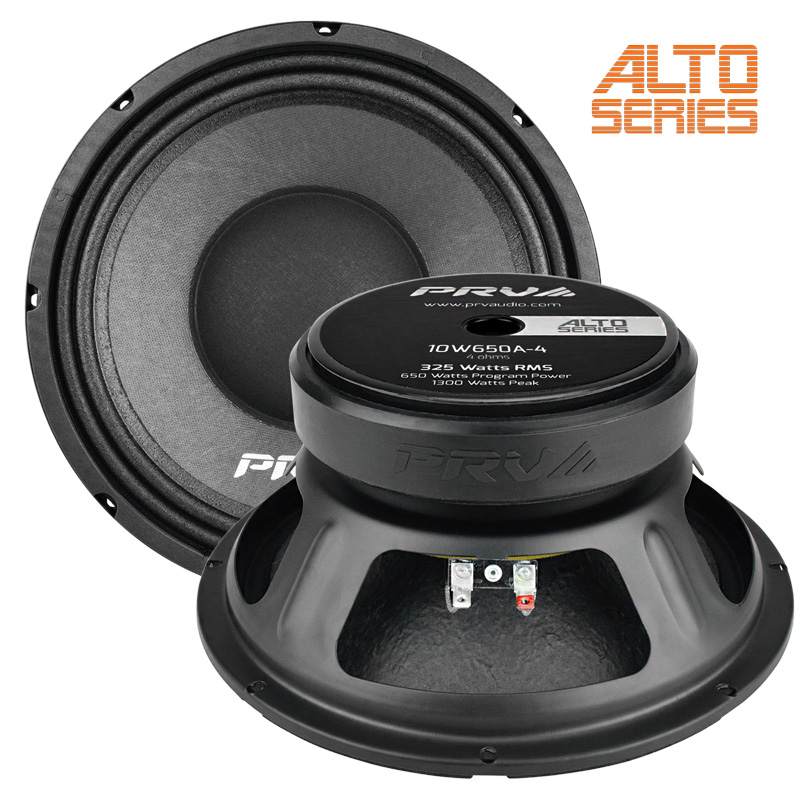

The PRV 10W650A-4 is an ALTO Series 10" woofer voiced for a natural, smooth tone that stays dynamic. A composite non-pressed paper cone reduces breakup, and a woven-cloth dust cap lowers moving mass and helps cool the 2.5" voice coil. It works in sealed or vented boxes as a 2-way woofer or 3-way midrange.
Key Features
- 325 W AES RMS power handling, 650 W program power
- 97 dB sensitivity (2.00V/1m)
- Composite non-pressed paper cone
- 2.5" CCAW voice coil on a Kapton former
- Ferrite motor in a stamped steel frame
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
325W
Continuous rating
Sensitivity 02
97dB
Efficiency
Size 03
2.5in
Nominal
Weight 04
10.49lb
Per unit
- Impedance
- 4 Ohm
- Power Handling (AES, RMS)
- 325 W
- Program Power
- 650 W
- Recommended Hi Pass Crossover
- 150 Hz, 12 dB/octave
- Sensitivity (2.00V at 1m)
- 97 dB
- Frequency Response
- 75 – 5,500 Hz
- Voice Coil Diameter
- 2.5"
- Voice Coil Wire
- CCAW
- Former Material
- Kapton
- Cone
- Composite, non-pressed paper
- Magnet
- Ferrite
- Frame Material
- Stamped steel
- Mounting Depth
- 4.3" (110 mm)
- Cutout
- 9.25" (235 mm)
- Overall Dimensions
- 10.10" (257 mm) dia., 4.72" (120 mm) deep
- Net Weight
- 10.49 lbs (4.75 kg)
- Weight
- 11.55 lbs
- Dimensions
- 11.75 × 11.75 × 6 in
