Product Overview

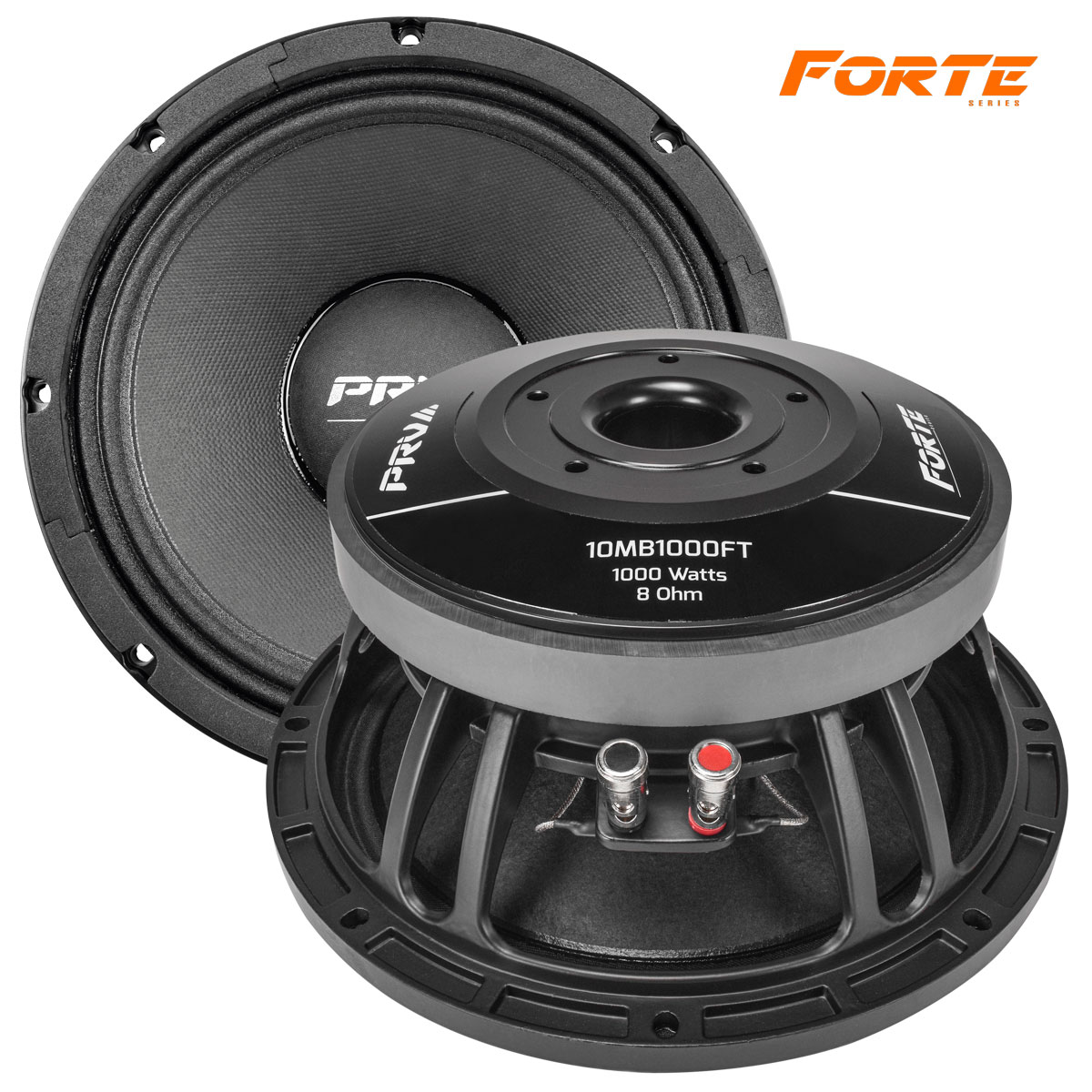

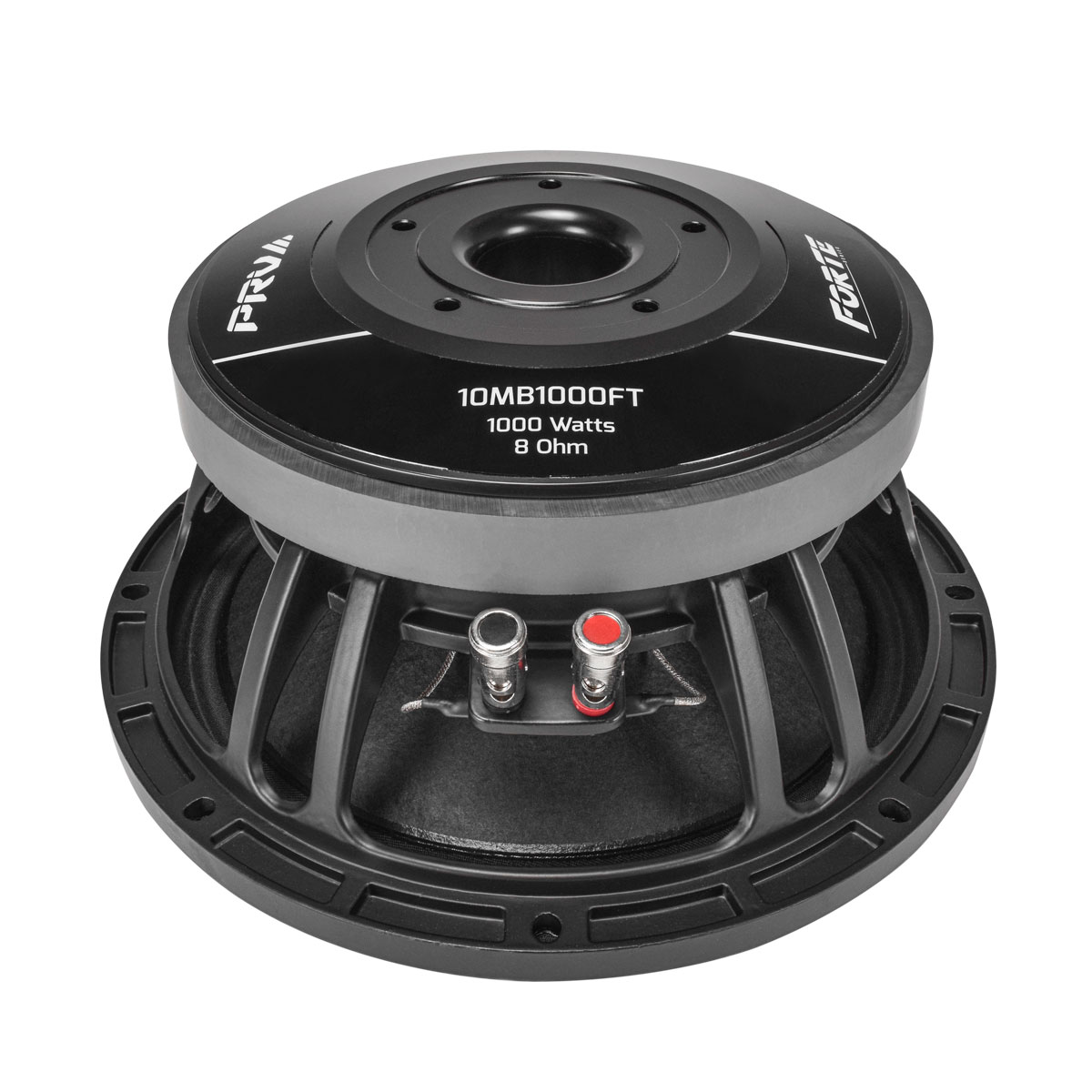

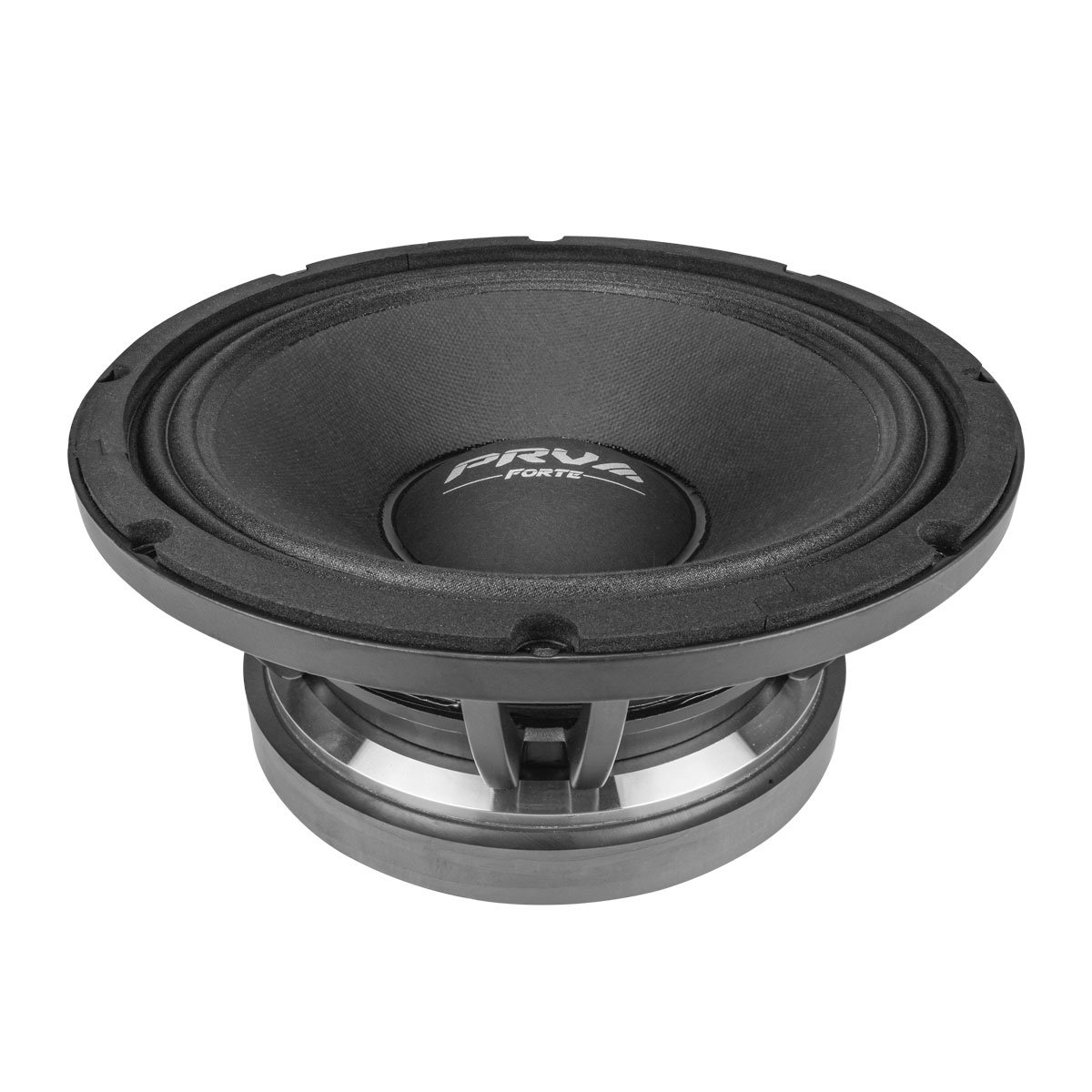

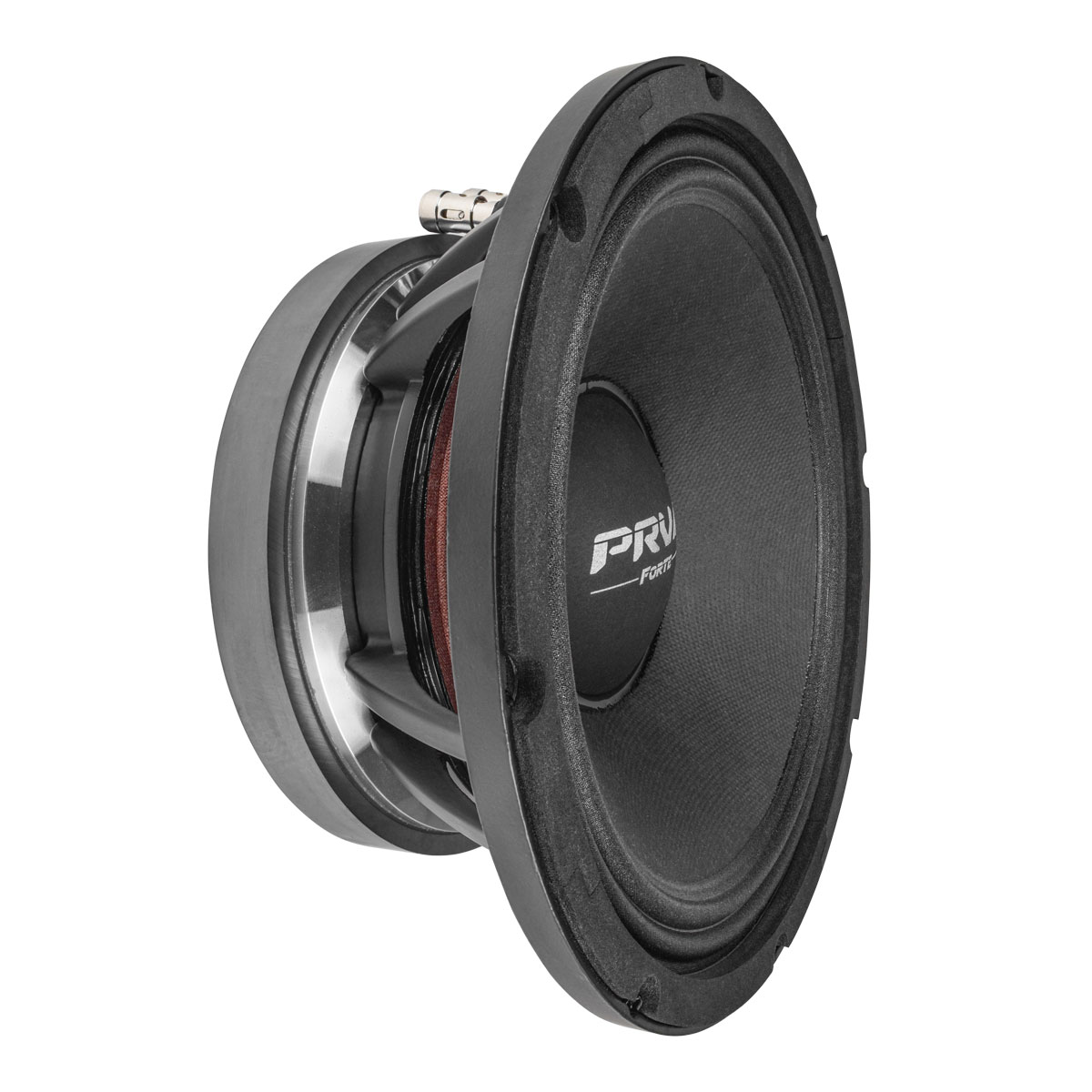

The PRV 10MB1000FT is a Forte Series 10" midbass built for high power and low distortion with extended midbass output. A ventilated voice coil gap reduces power compression, the light 3" CCAW voice coil on a glass fiber former gives quick transients, and the response stays smooth up to about 7 kHz for clear vocals.
Key Features
- 1,000 W RMS continuous program power
- 97.5 dB sensitivity (2.83V/1m)
- 3" CCAW voice coil on a glass fiber former
- Ventilated voice coil gap
- Composite non-pressed paper cone
- Die-cast aluminum frame
Specifications are manufacturer rated.
02 Tech specs
By the numbers

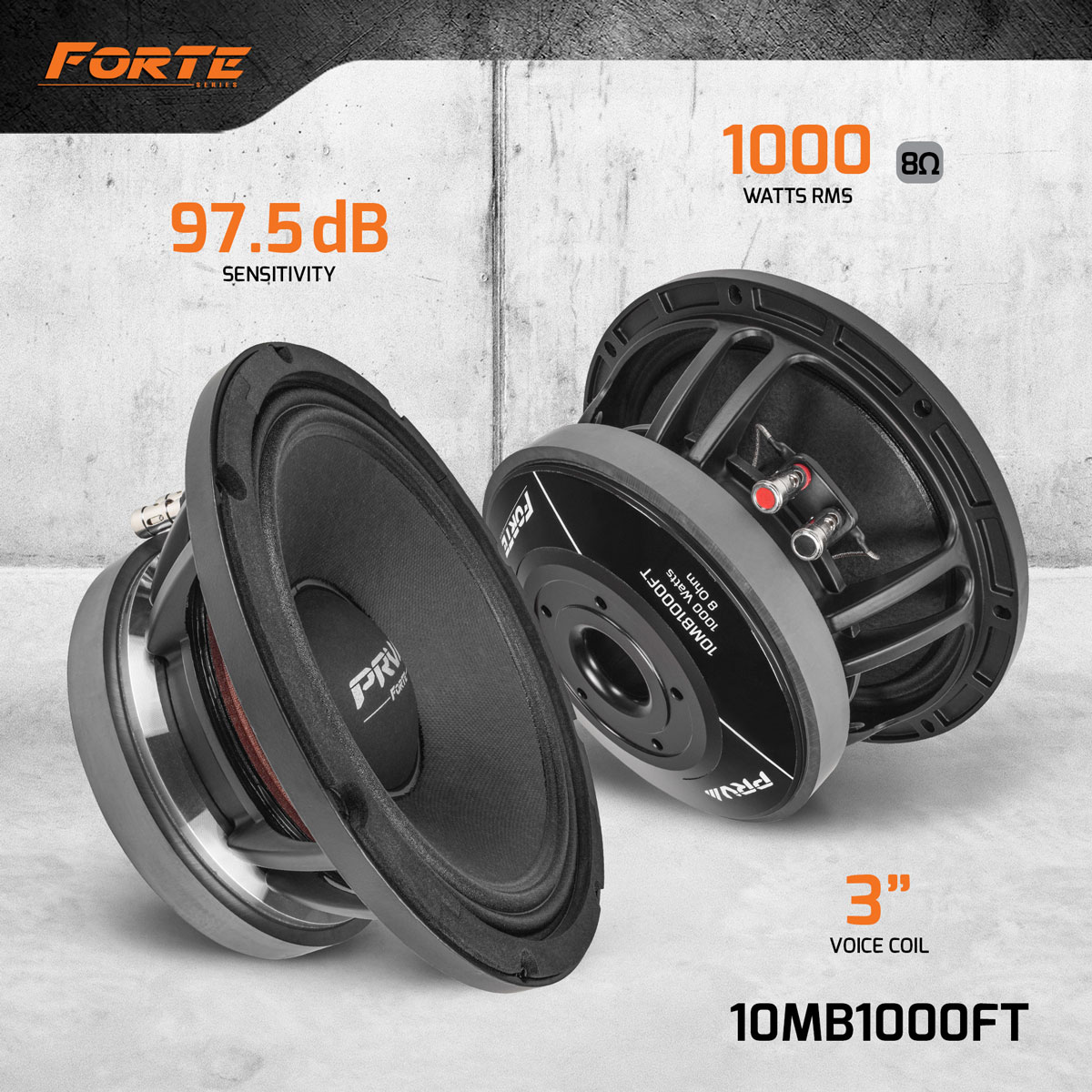

RMS Power 01
1,000W
Continuous rating
Sensitivity 02
97.5dB
Efficiency
Size 03
3in
Nominal
Weight 04
15.0lb
Per unit
- Impedance
- 8 Ohm
- Continuous Program Power (RMS)
- 1,000 W
- Recommended Hi Pass Crossover
- 120 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 97.5 dB
- Frequency Response
- 75 – 7,000 Hz
- Voice Coil Diameter
- 3" (75 mm)
- Voice Coil Wire
- CCAW
- Former Material
- Glass fiber
- Cone
- Composite, non-pressed paper
- Magnet
- Ferrite
- Frame Material
- Die-cast aluminum

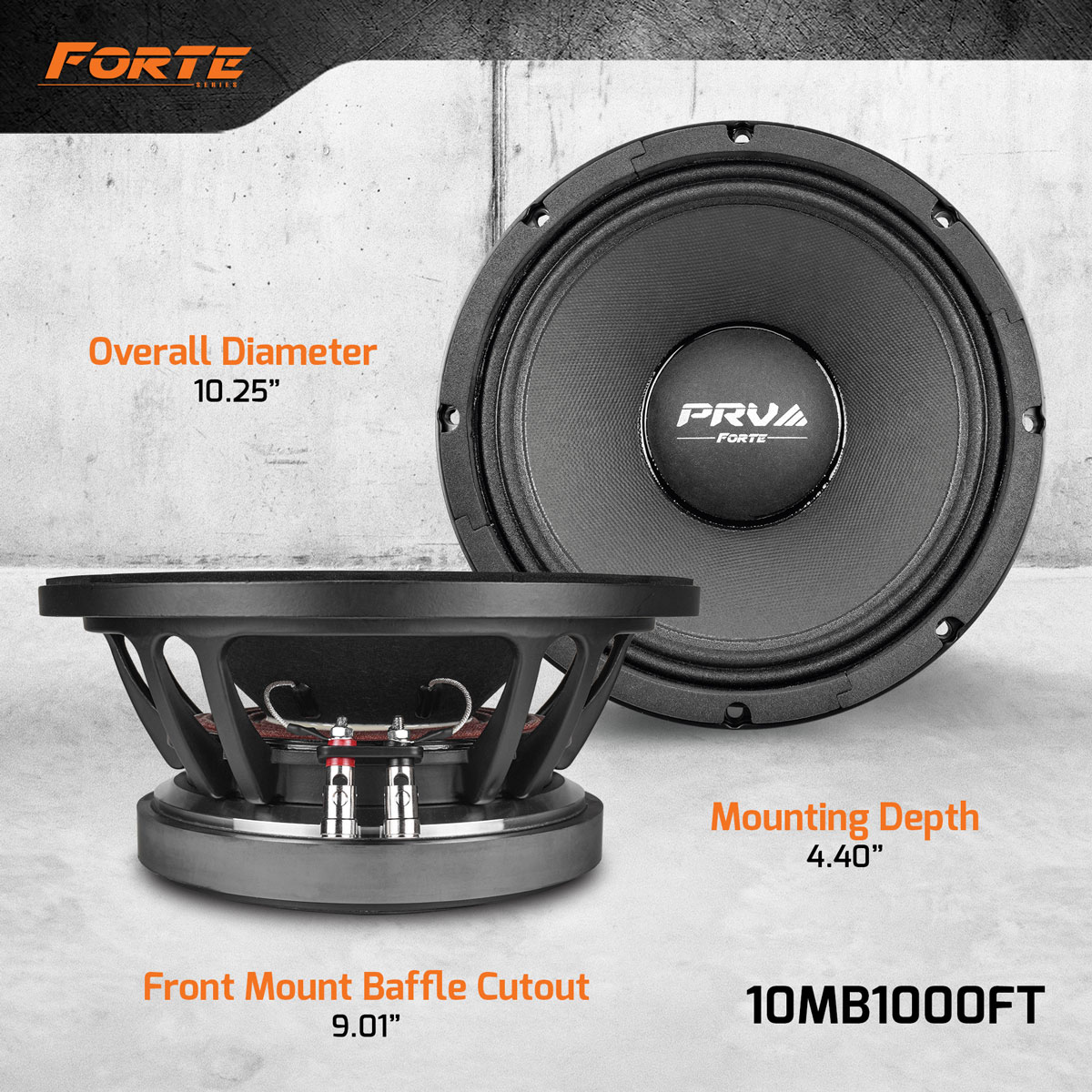

- Mounting Depth
- 4.40" (111.5 mm)
- Cutout
- 9.01" (229 mm)
- Overall Dimensions
- 10.25" (260.5 mm) dia., 4.96" (126 mm) deep
- Net Weight
- 15.0 lbs (6.8 kg)
- Weight
- 16.62 lbs
- Dimensions
- 11.4 × 11.4 × 6.7 in
03 Reviews (0)
Reviews (0)
You must be logged in to post a review.
04 Complete the build
Shop all Power it right
Related products
-
SoundQubed10 inch HDX Series Pro Audio Speaker (single) SQ-HDX-PA10M-8
$199.95Add to cart -
Trinity Audio SolutionsTrinity Audio Solutions 10 inch B Series 1500 watts TAS-B10
$279.99Select options This product has multiple variants. The options may be chosen on the product page -

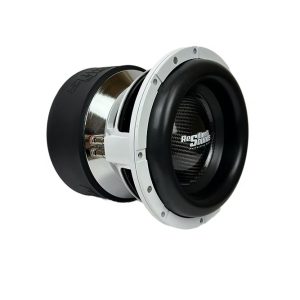

Resilient SoundsResilient Sounds Platinum 10 inch V2 2500RMS Subwoofer
