Product Overview

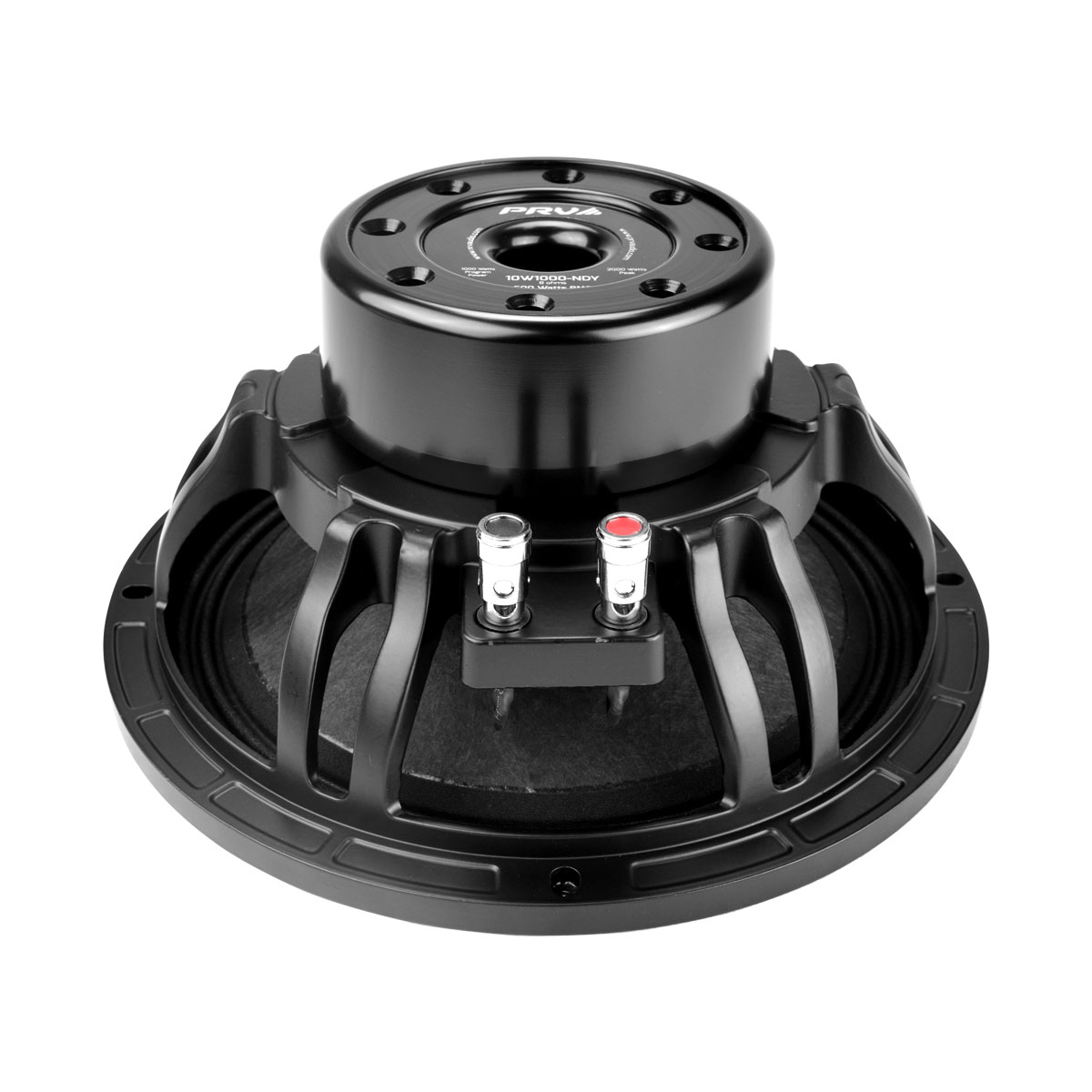

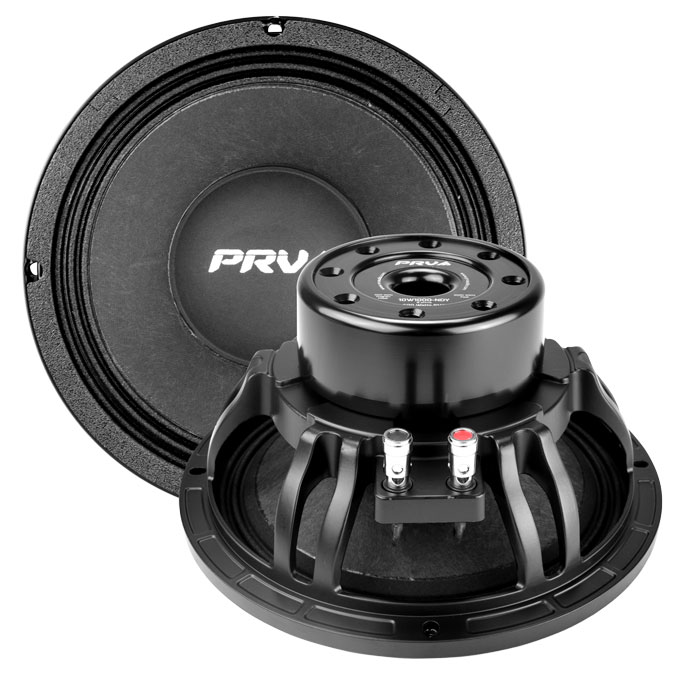

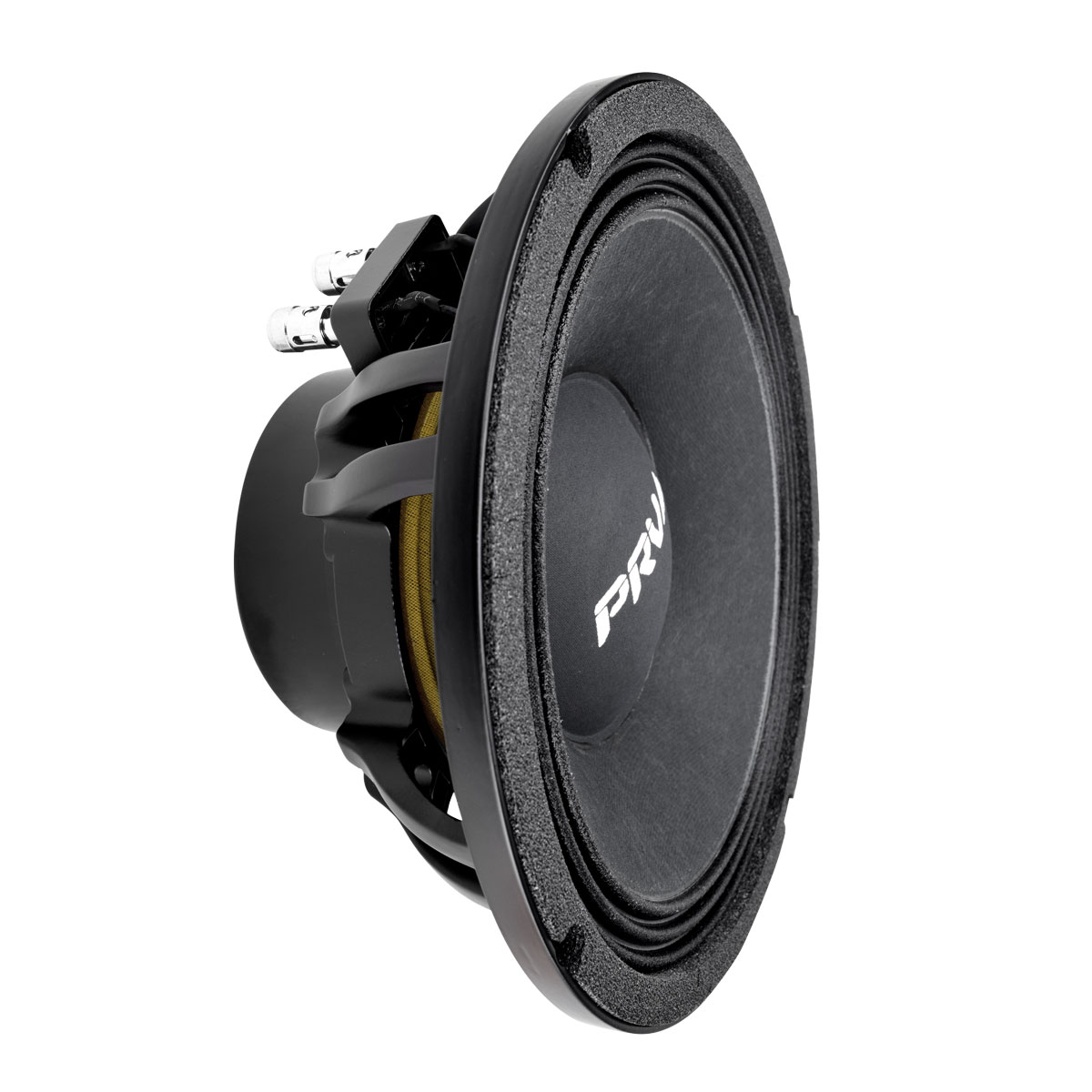

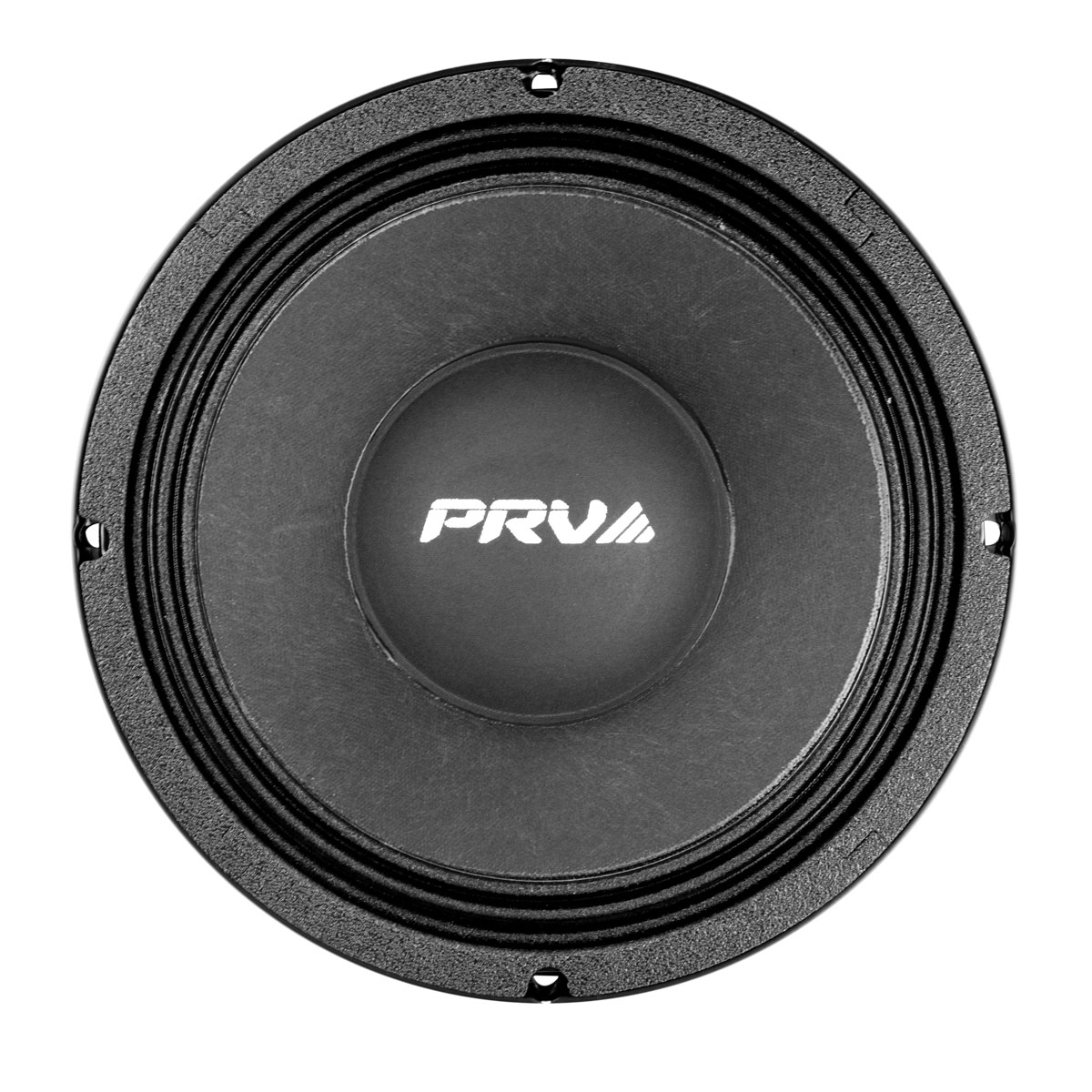

The PRV 10W1000-NDY delivers strong low midbass for high-SPL systems in a light 8.38 lb package. A vented neodymium motor improves cooling, the 3" voice coil on a fiberglass former is rated for high temperatures, and the composite cone keeps moving mass low while reducing breakup.
Key Features
- 500 W AES RMS power handling, 1,000 W program power
- 98 dB sensitivity (2.83V/1m)
- Vented neodymium motor
- 3" CCAW voice coil on a fiberglass former
- Composite non-pressed paper cone
- Die-cast aluminum frame
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
500W
Continuous rating
Sensitivity 02
98dB
Efficiency
Size 03
3in
Nominal
Weight 04
8.38lb
Per unit
- Impedance
- 8 Ohm
- Power Handling (AES, RMS)
- 500 W
- Program Power
- 1,000 W
- Recommended Hi Pass Crossover
- 80 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 98 dB
- Frequency Response
- 55 – 5,500 Hz
- Voice Coil Diameter
- 3" (76 mm)
- Voice Coil Wire
- CCAW
- Former Material
- Fiberglass
- Cone
- Composite, non-pressed paper
- Magnet
- Neodymium
- Frame Material
- Die-cast aluminum
- Mounting Depth
- 4.49" (114 mm)
- Cutout
- 9.05" (230 mm)
- Overall Dimensions
- 10.27" (261 mm) dia., 5.00" (127 mm) deep
- Net Weight
- 8.38 lbs (3.8 kg)
- Weight
- 10.05 lbs
- Dimensions
- 11.5 × 11.5 × 6.25 in
03 Reviews (0)
Reviews (0)
You must be logged in to post a review.
04 Complete the build
Shop all Power it right
Related products
-

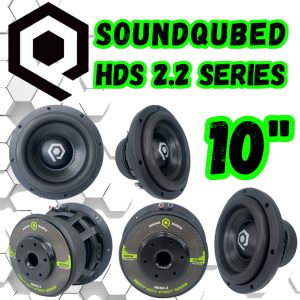

SoundQubedSoundQubed 10 inch HDS 2.2 Series Subwoofer SQ-HDS2.210
$219.95Select options This product has multiple variants. The options may be chosen on the product page -
Trinity Audio SolutionsTrinity Audio Solutions 15 inch H Series Subwoofer TAS-H15
$919.99Select options This product has multiple variants. The options may be chosen on the product page -

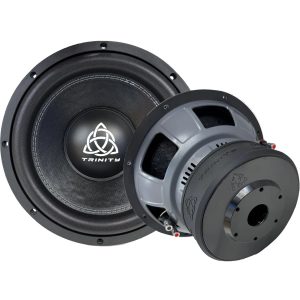

Trinity Audio SolutionsTrinity Audio Solutions 12 inch E Series 800w RMS D2/D4 TAS-E12
