PRV 10 inch 8 Ohm Mid Range Shallow Speaker PRV-10MR650A-NDY

The 10MR650A-NDY is a new solution for 10″ shallow midrange designed to deliver exceptional performance in an incredibly compact profile. Its small, yet powerful rare-earth neodymium motor ensures it can drive its voice coil with authority, being the most effective in its class in size-to-output ratio.

Meet the new improved version of 10MR650A a phenomenal addition to the ALTO Series loudspeakers.

There’s no doubt that the 10MR650A-NDY will make a mark as one of the best in this series.

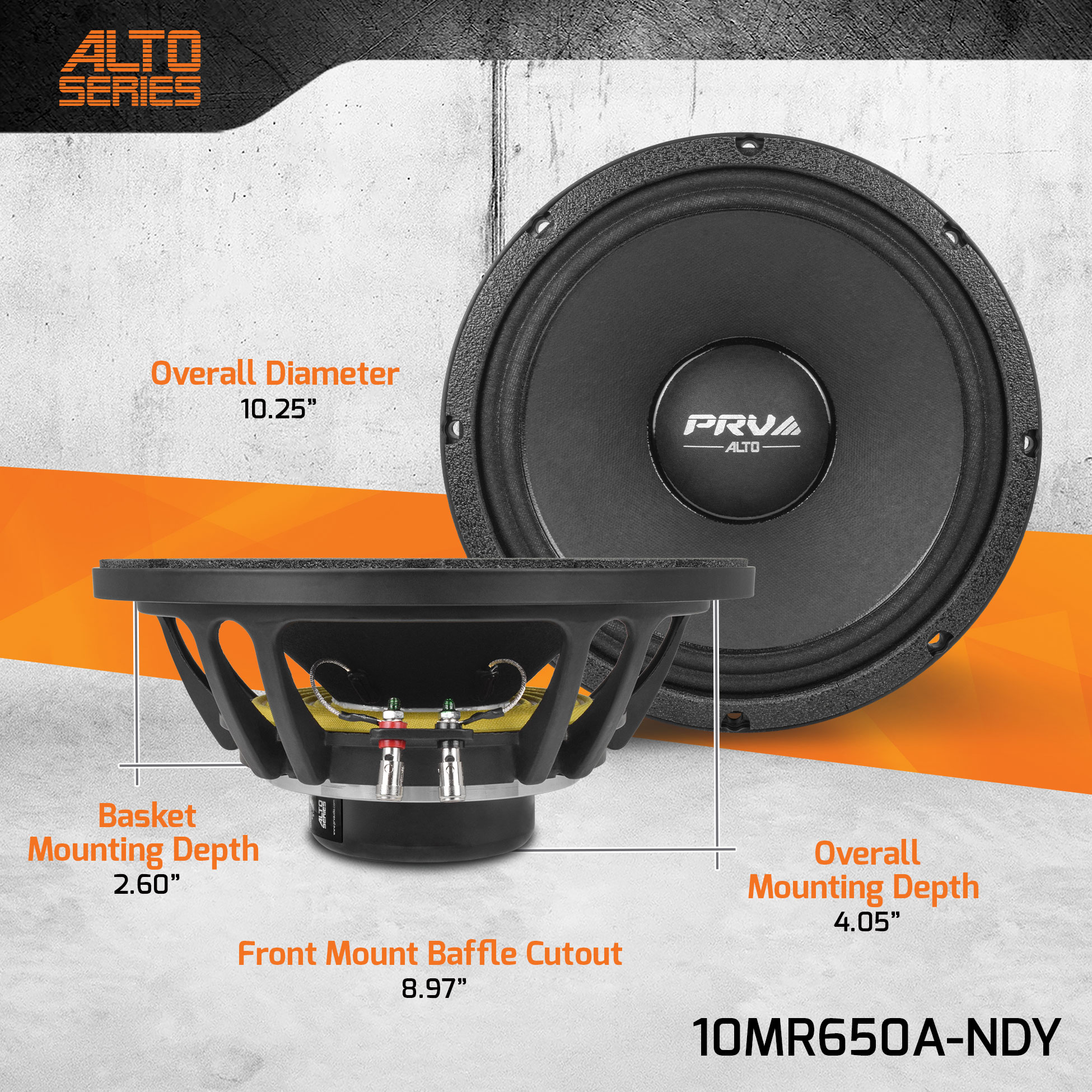

Everything you need in a pro audio loudspeaker for custom door panels, without sacrificing performance we have designed a compact and overall footprint of only 4” of mounting depth or only 2.60” of mounting depth when you measure only its basket since its motor is small and easy to tuck inside of the doors.

This loudspeaker opens up the possibility of having a slim custom door panel with a high performance speaker without having to cut up your whole door away!

It is an easy-to-fit 10″ shallow speaker for custom doors and requires minimal space, thanks to its premium neodymium motor with a slim profile.

With a weight of only 5.73 lbs, this lightweight design keeps your custom door light and prevents it from being damaged by a heavy custom door panel.

Supporting the cone is a heavy duty spider M roll treated cloth surround, designed for high excursion applications to handle short bursts of excessive power without damage.

In addition to its large silicone spider system, the silver tinsel lead wire ensures excellent current transfer during large excursions of 0.75′′ peak-to-peak before damage occurs.

Combined with its premium neodymium motor, all these characteristics make this speaker unique and deliver high-performance with the best high-quality components that achieve exceptional clarity, detail, and dynamics on sound.

PRV 10″ Shallow Midrange Speaker 10MR650A-NDY 650 Watts / 8 Ohm – Slim Profile Door Speaker / Neodymium High Output Loudspeaker

2 Speakers – 1x MDX2000.2 at 2 Ohm, 2 speakers in parallel on the bridged channel 4 Speakers – 1x QS3000 at 2 Ohm, 4 speakers in parallel 8 Speakers – 1x QS5000 at 1 Ohm, 8 speakers in parallel

Recommended HPF using PRV Digital Signal Processor DSP when using up to 650 Watts RMS musical power ( without clipping )

If you have compression drivers on your system the recommended LPF is 2,200Hz at 18 dB per octave filter Crossover / BT18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.

GENERAL SPECIFICATIONS

THIELE-SMALL PARAMETERS

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Magnetic Gap Depth/4

EXTRA INFO
