PRV

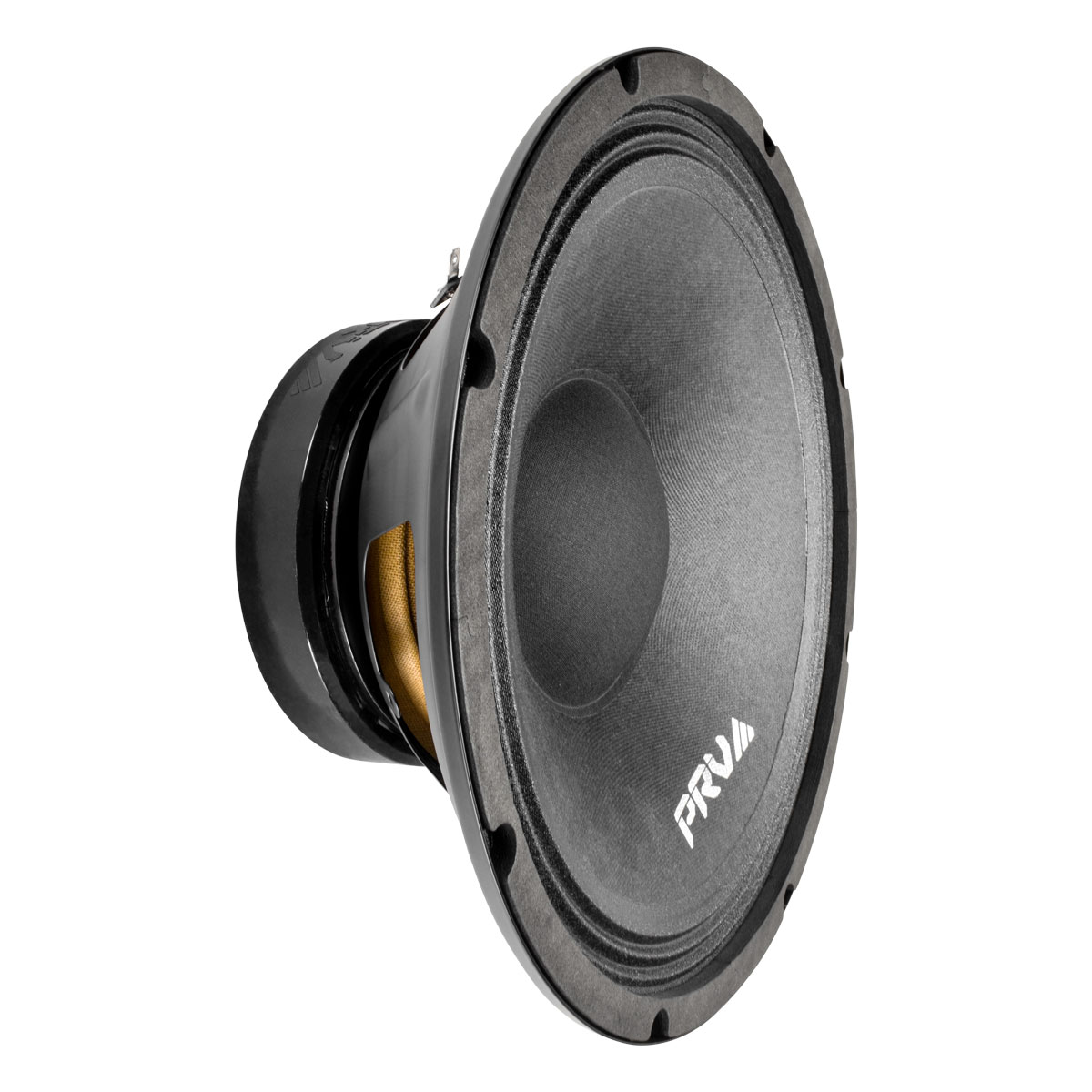

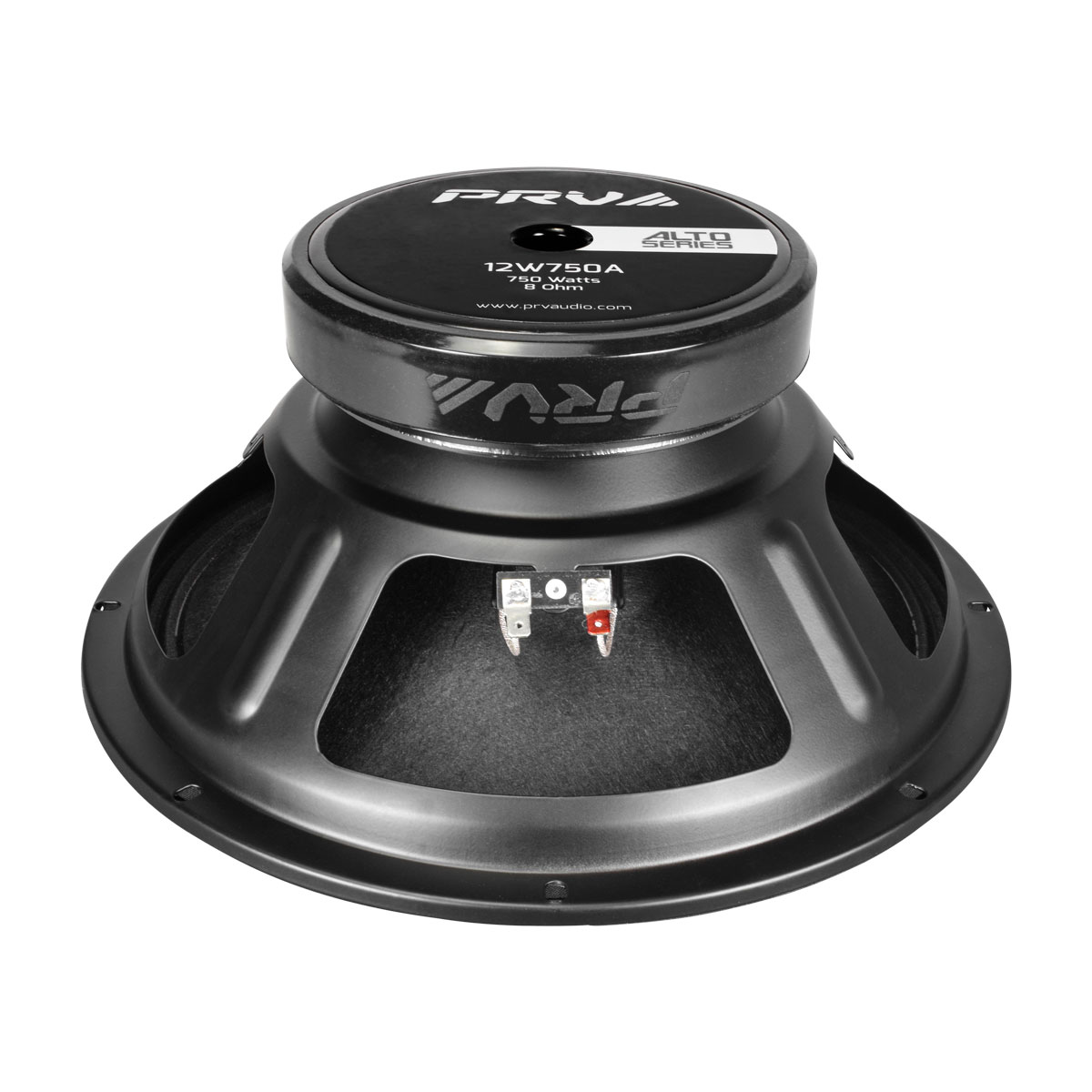

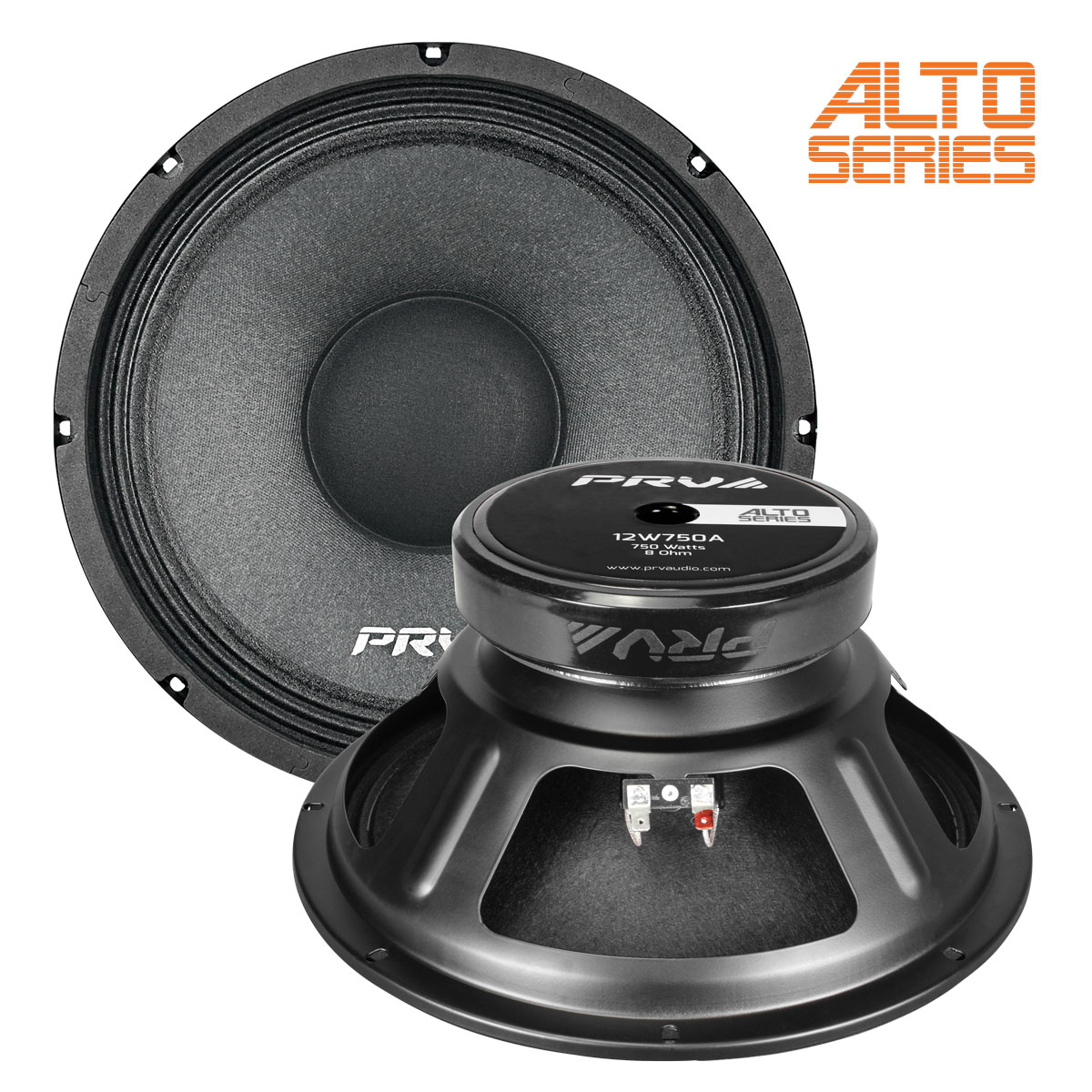

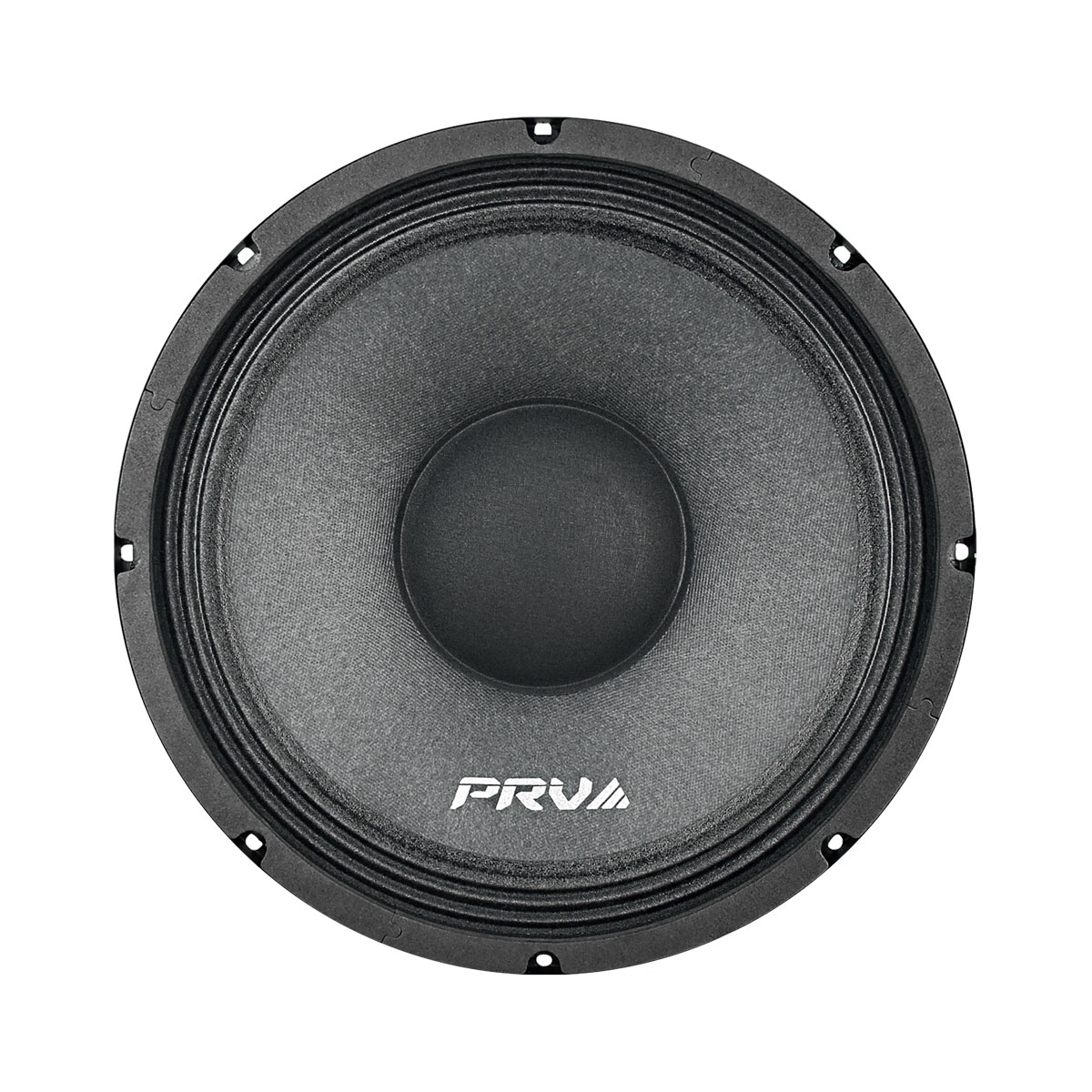

PRV 12 inch 8 Ohm ALTO Series Pro Audio Woofer PRV-12W750A
$84.91
12″ 8 Ohm ALTO Series woofer, 375 W rated / 750 W program power and 97 dB.
Sensitivity97dB
Size2.5in
Weight10.85lb
01 Overview
The details
Product Overview
The PRV 12W750A is an efficient ALTO Series 12" woofer for compact ported enclosures. A light 2.5" voice coil and large raised spider reduce moving mass for higher sensitivity and better voice coil cooling, and the multi-roll surround supports strong low-frequency impact in 2-way and 3-way designs.
Key Features

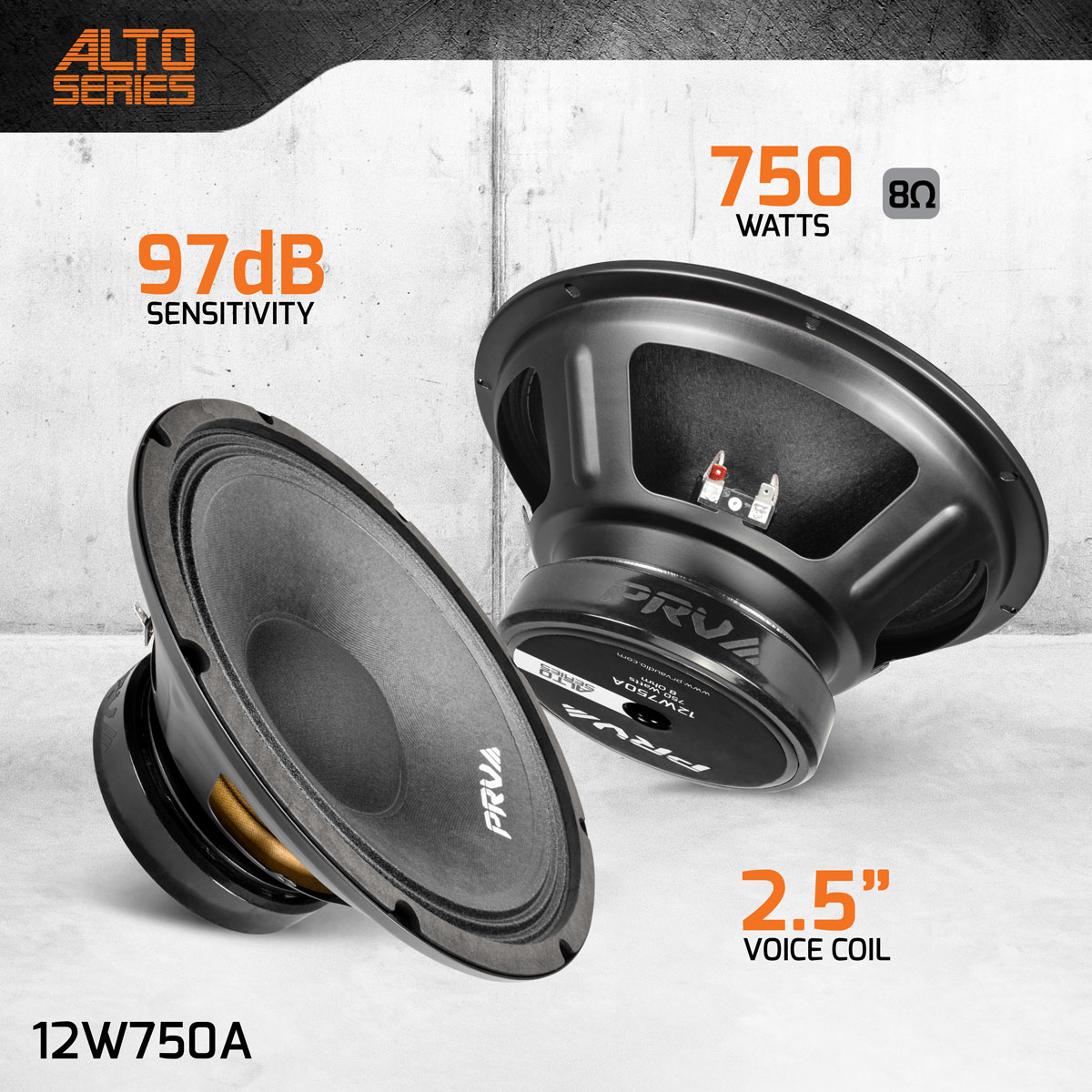

- 375 W rated power handling, 750 W program power
- 97 dB sensitivity (2.83V/1m)
- 2.5" CCAW voice coil on a Kapton former
- Multi-roll surround and large raised spider
- Ferrite motor in a stamped steel frame
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
Sensitivity 01
97dB
Efficiency
Size 02
2.5in
Nominal
Weight 03
10.85lb
Per unit
- Impedance
- 8 Ohm
- Nominal Power Handling
- 375 W
- Program Power
- 750 W
- Recommended Hi Pass Crossover
- 125 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 97 dB
- Frequency Response
- 60 – 5,500 Hz
- Voice Coil Diameter
- 2.5"
- Voice Coil Wire
- CCAW
- Former Material
- Kapton
- Surround
- Multi-roll
- Magnet
- Ferrite
- Frame Material
- Stamped steel

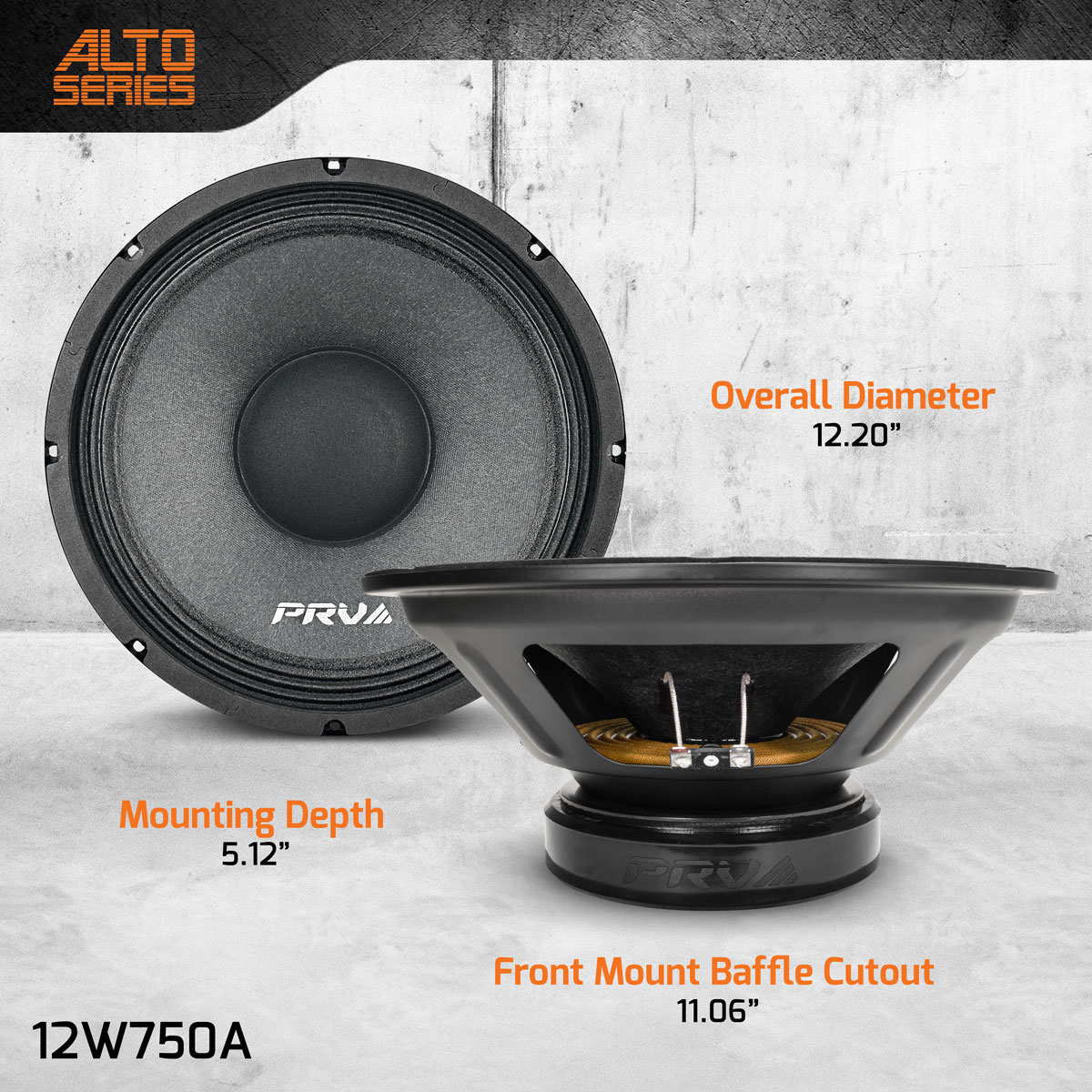

- Mounting Depth
- 5.12" (130 mm)
- Cutout
- 11.06" (281 mm)
- Overall Dimensions
- 12.20" (310 mm) dia., 5.47" (139 mm) deep
- Net Weight
- 10.85 lbs (4.92 kg)
- Weight
- 12.15 lbs
- Dimensions
- 13.25 × 13.25 × 7 in
