PRV 12 inch 8 Ohm ALTO Series Pro Audio Woofer PRV-12W800A
$89.91
12″ 8 Ohm ALTO Series woofer, 800 W RMS and 97 dB, for midbass and door builds.
RMS Power800W
Peak Power1,600W
Sensitivity97dB
01 Overview
The details
Product Overview
The PRV 12W800A is an ALTO Series 12" midbass/woofer for 2-way and 3-way systems. A multi-roll surround, large raised spider and lightweight 2.5" voice coil help control distortion, and it is a good match for compact ported boxes, including car midbass and door applications.
Key Features
- 400 W nominal, 800 W RMS program, 1,600 W peak
- 97 dB sensitivity (2.83V/1m)
- 2.5" CCAW voice coil on a polyimide former
- Multi-roll surround
- Ferrite motor in a stamped steel frame
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
800W
Continuous rating
Peak Power 02
1,600W
Short-burst rating
Sensitivity 03
97dB
Efficiency
Size 04
2.5in
Nominal
- Impedance
- 8 Ohm
- Nominal Power Handling
- 400 W
- Continuous Program Power (RMS)
- 800 W
- Max Peak Power
- 1,600 W
- Recommended Hi Pass Crossover
- 115 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 97 dB
- Frequency Response
- 55 – 5,800 Hz
- Voice Coil Diameter
- 2.5" (65 mm)
- Voice Coil Wire
- CCAW
- Former Material
- Polyimide
- Magnet
- Ferrite
- Frame Material
- Stamped steel

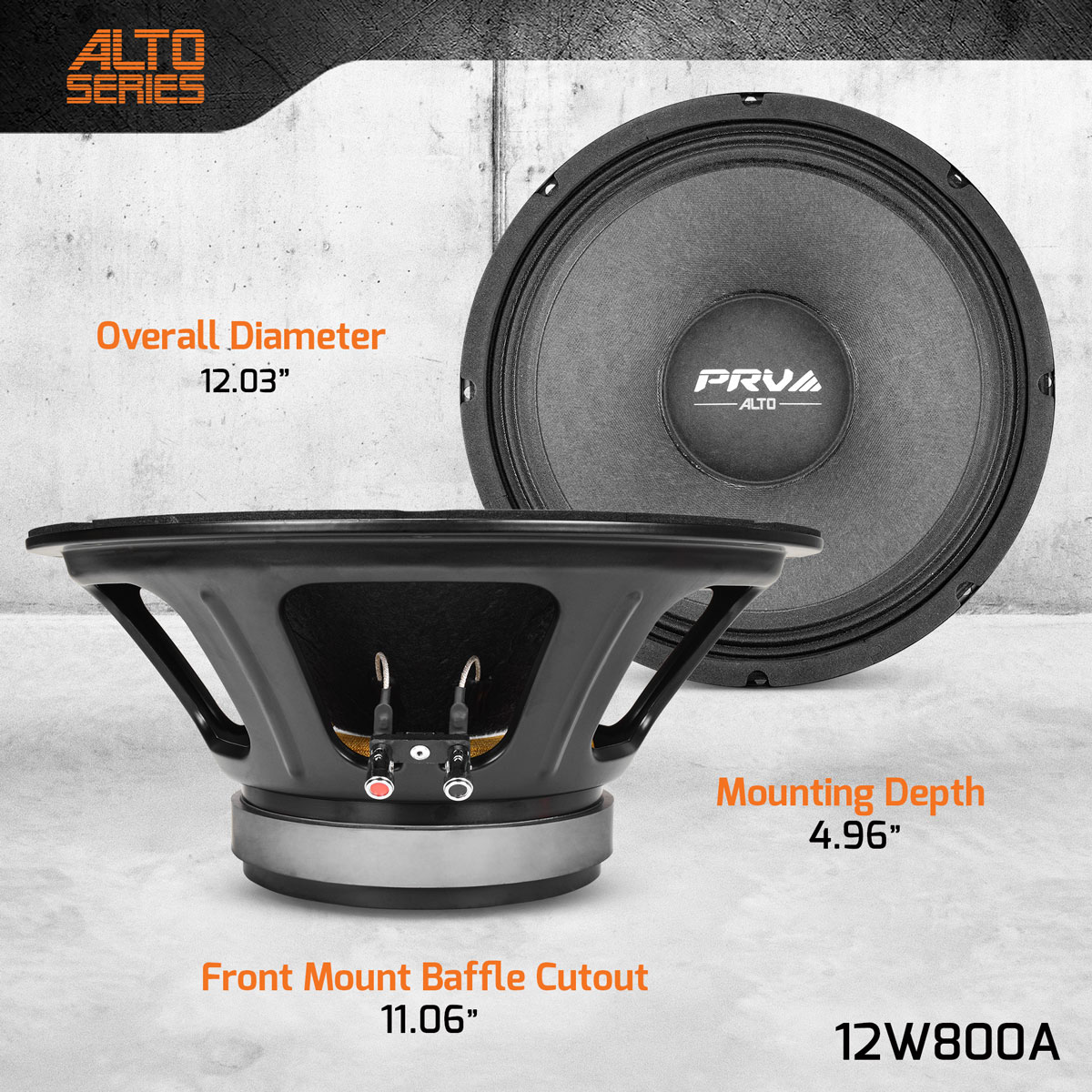

- Mounting Depth
- 4.96" (126 mm)
- Cutout
- 11.06" (281 mm)
- Overall Dimensions
- 12.03" (305.5 mm) dia., 5.22" (132.5 mm) deep
- Net Weight
- 10.8 lbs (4.9 kg)
- Weight
- 12.55 lbs
- Dimensions
- 13.5 × 13.5 × 6.75 in
