01 Overview
The details
Product Overview

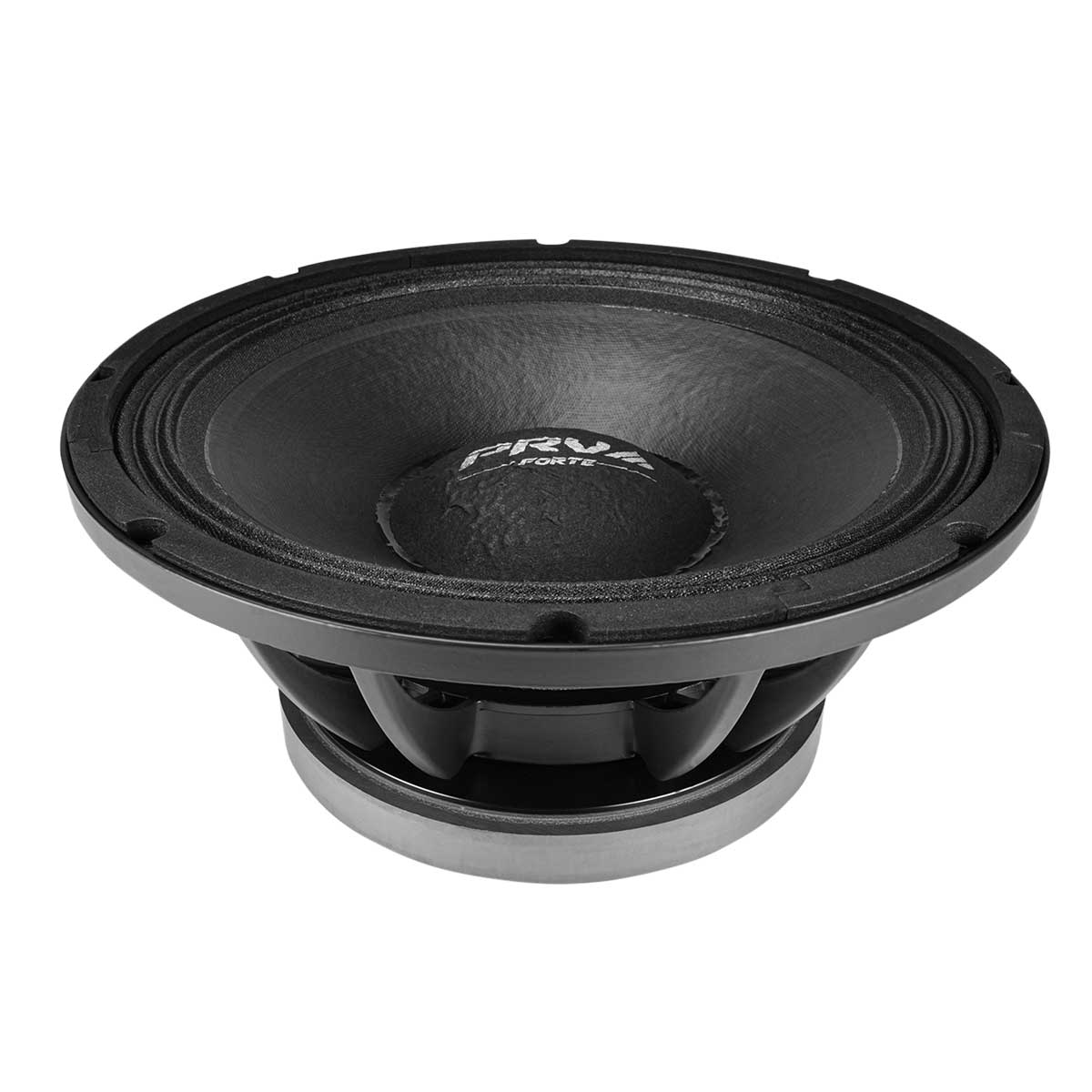

The PRV 12MB1000FT is a Forte Series 12" midbass for 2-way and 3-way systems. An inside/outside aluminum voice coil on a fiberglass former, a ventilated gap and dual-vented back plate support 1,000 W RMS, and the cast frame's narrow spokes reduce reflections and aid cooling. The treated pulp paper cone keeps midrange response smooth.

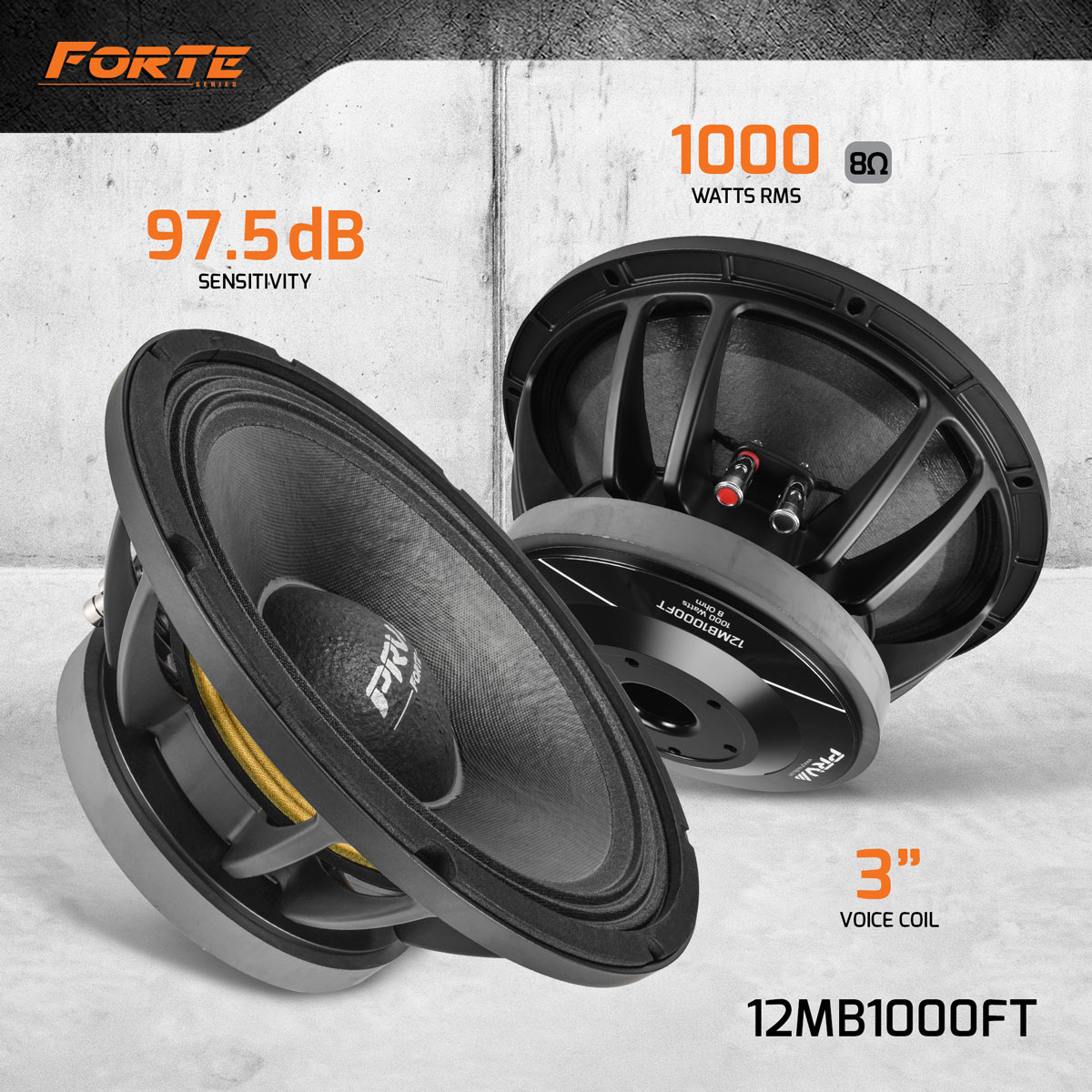

Key Features
- 1,000 W RMS continuous program power
- 97.5 dB sensitivity (2.83V/1m)
- 3" aluminum voice coil on a glass fiber former
- Ventilated gap and dual-vented back plate
- Weather-resistant pulp paper cone
- Die-cast aluminum frame
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
1,000W
Continuous rating
Sensitivity 02
97.5dB
Efficiency
Size 03
3in
Nominal
Weight 04
16.8lb
Per unit
- Impedance
- 8 Ohm
- Continuous Program Power (RMS)
- 1,000 W
- Recommended Hi Pass Crossover
- 110 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 97.5 dB
- Frequency Response
- 70 – 3,200 Hz
- Voice Coil Diameter
- 3" (76 mm)
- Voice Coil Wire
- Aluminum
- Former Material
- Glass fiber
- Cone
- Pulp paper
- Magnet
- Ferrite
- Frame Material
- Die-cast aluminum

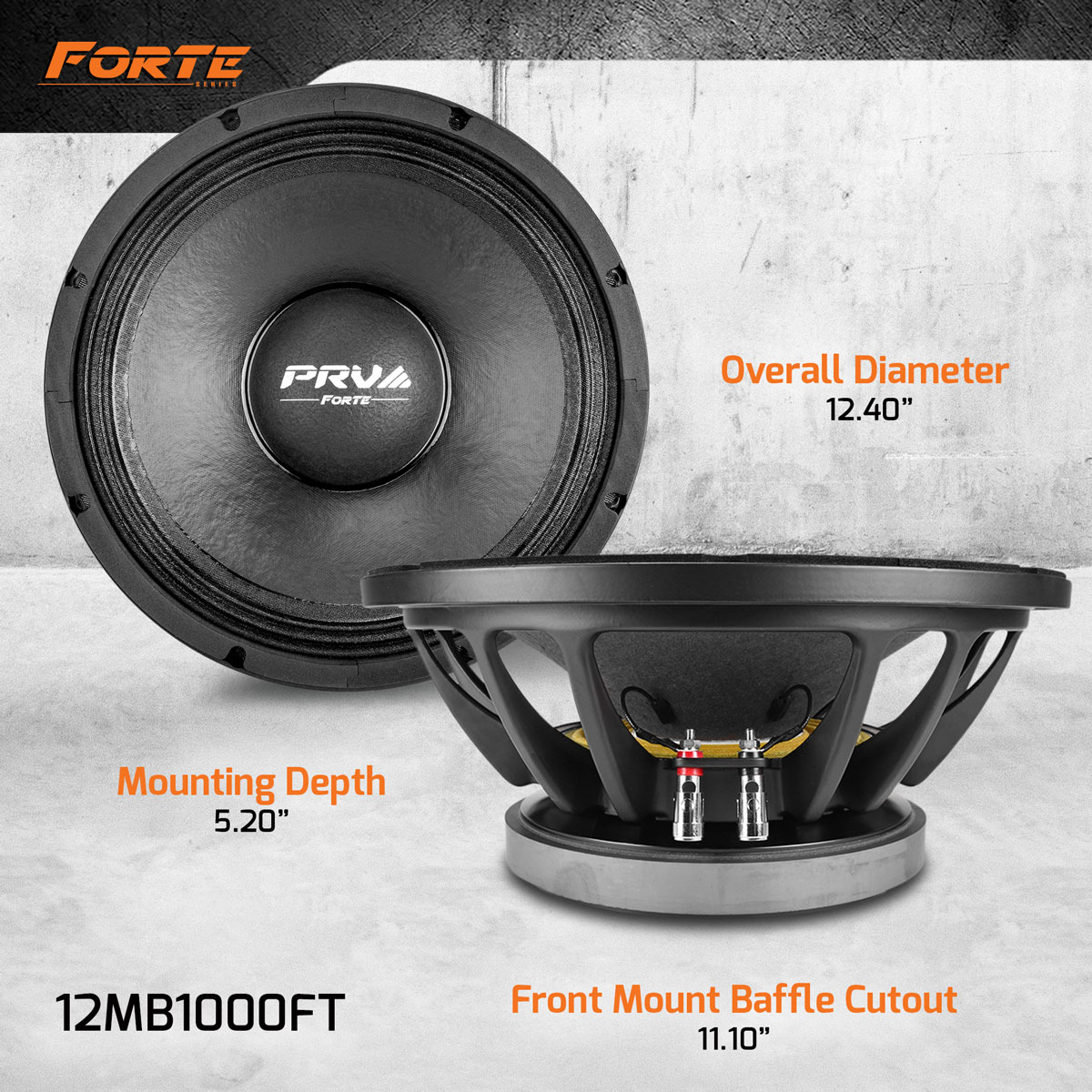

- Mounting Depth
- 5.20" (132 mm)
- Cutout
- 11.10" (282 mm)
- Overall Dimensions
- 12.40" (315 mm) dia., 5.76" (146.5 mm) deep
- Net Weight
- 16.8 lbs (7.62 kg)
- Weight
- 18.25 lbs
- Dimensions
- 13.5 × 13.5 × 6.75 in
