01 Overview
The details
Product Overview
The PRV 12MB2000FT-NDY is a compact, lightweight neodymium midbass made for custom door panels. A ventilated gap and THERMOBLADE heatsink limit power compression at 2,000 W RMS, a high BL factor gives strong low-end down to about 80 Hz, and the double-roll surround and silicone spider keep cone travel controlled.

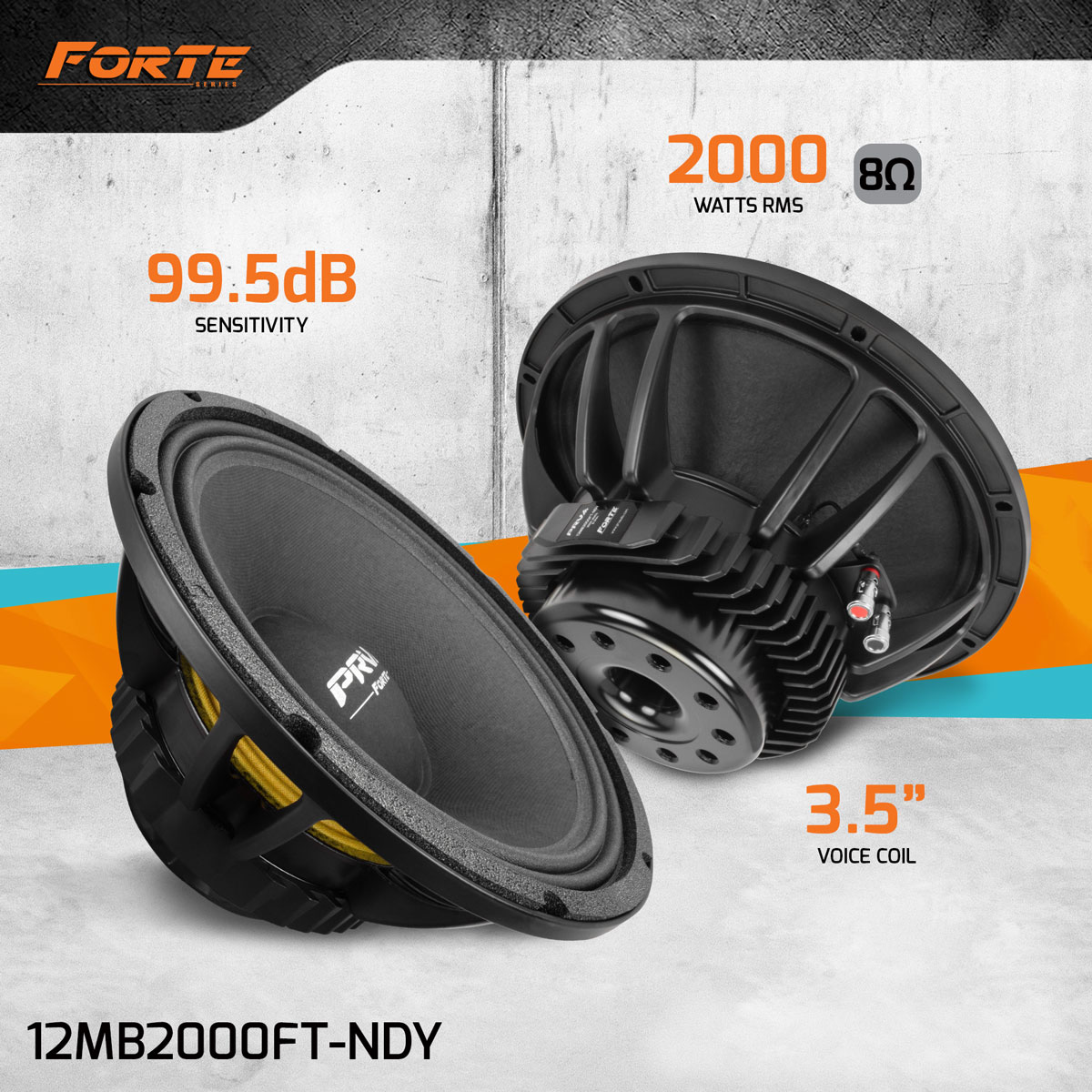

Key Features
- 2,000 W RMS continuous program power
- 99.5 dB sensitivity (2.83V/1m)
- Neodymium motor with THERMOBLADE heatsink
- 3.5" CCAW voice coil on a glass fiber former
- Treated paper cone, double-roll surround
- Die-cast aluminum frame
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
2,000W
Continuous rating
Sensitivity 02
99.5dB
Efficiency
Size 03
3.5in
Nominal
Weight 04
13.60lb
Per unit
- Impedance
- 8 Ohm
- Continuous Program Power (RMS)
- 2,000 W
- Recommended Hi Pass Crossover
- 85 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 99.5 dB
- Frequency Response
- 72 – 5,200 Hz
- Voice Coil Diameter
- 3.5" (86 mm)
- Voice Coil Wire
- CCAW
- Former Material
- Glass fiber
- Cone
- Paper
- Surround
- Double-roll
- Magnet
- Neodymium
- Frame Material
- Die-cast aluminum

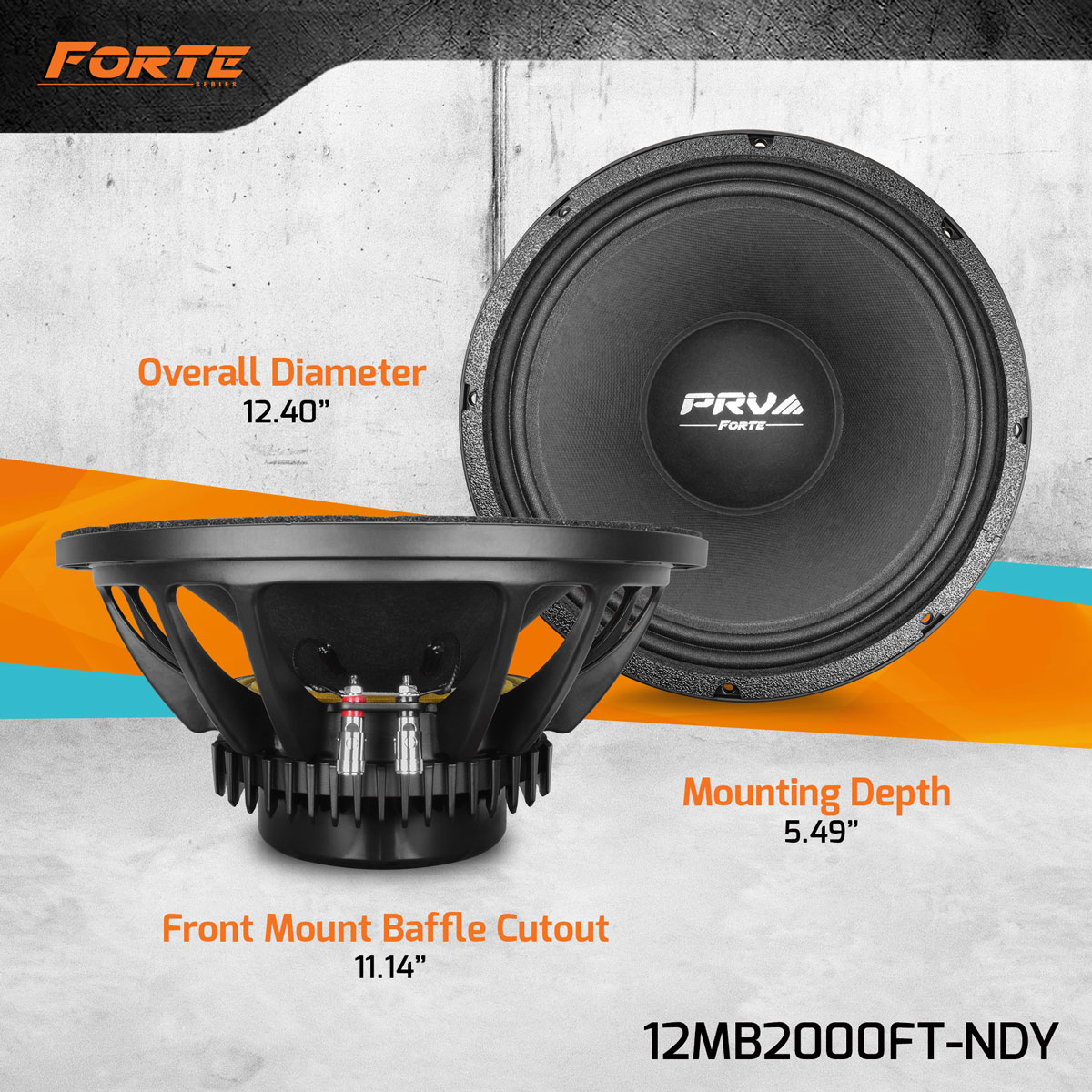

- Mounting Depth
- 5.49" (139.5 mm)
- Cutout
- 11.18" (284 mm)
- Overall Dimensions
- 12.40" (315 mm) dia., 6.04" (153.5 mm) deep
- Net Weight
- 13.60 lbs (6.15 kg)
- Weight
- 15.9 lbs
- Dimensions
- 16.25 × 16.25 × 9.5 in
