PRV 12 inch 8 Ohm Pro Audio Woofer PRV-12W1600
$199.91
12″ 8 Ohm pro audio woofer, 1,600 W RMS, 4″ copper voice coil, built for deep, hard-hitting bass.
RMS Power1,600W
Sensitivity94dB
Size4in
Out of stock
01 Overview
The details
Product Overview
The PRV 12W1600 is a high-excursion 12" woofer for deep, low-distortion bass in ported boxes. A 4" copper voice coil on a fiberglass former and a ventilated gap reduce power compression, side openings in the cast frame cool the coil, and a glass-fiber reinforced paper cone with triple-roll treated cloth surround handles big excursion.
Key Features

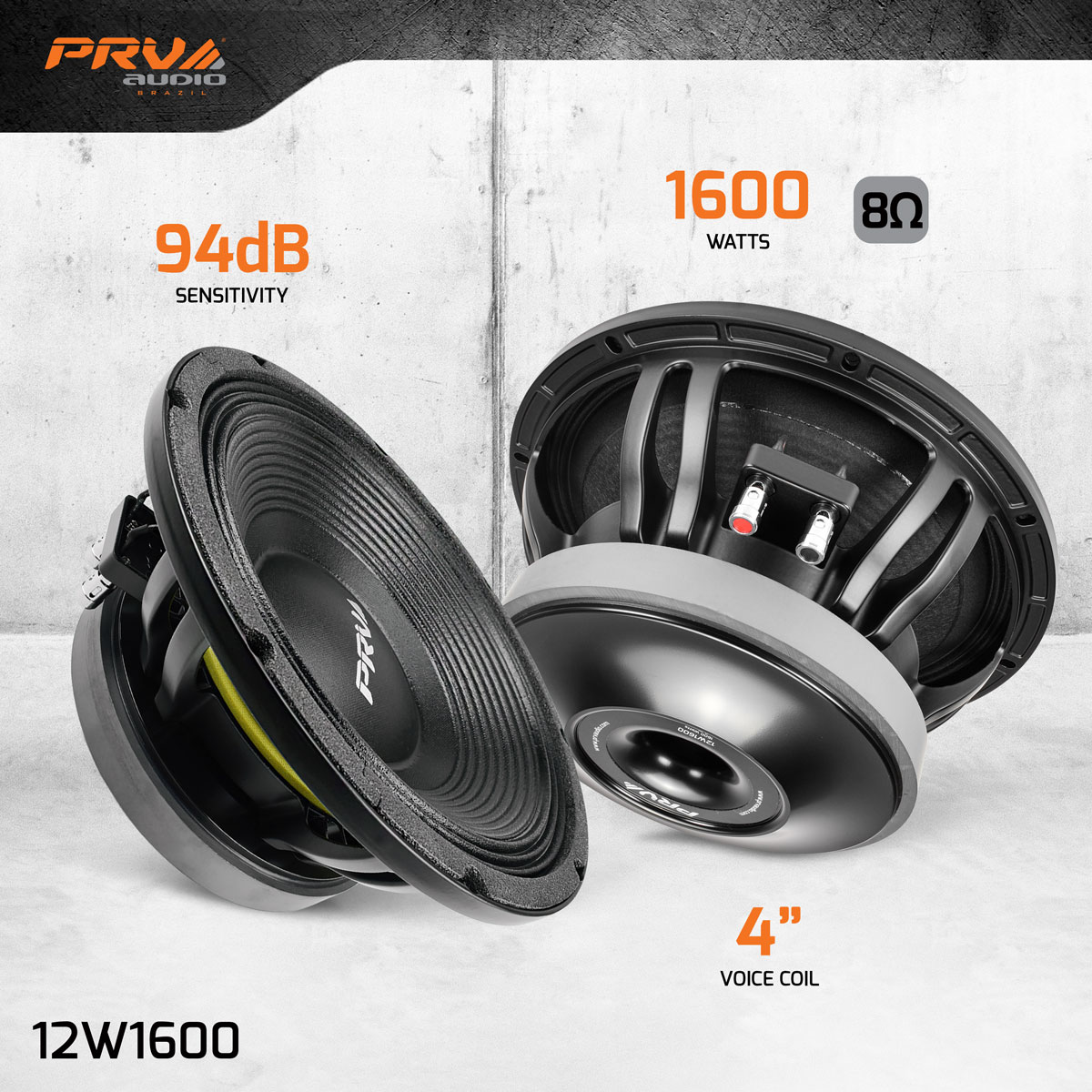

- 1,600 W RMS continuous program power
- 94 dB sensitivity (2.83V/1m)
- 4" copper voice coil on a glass fiber former
- Glass-fiber reinforced ribbed paper cone
- Triple-roll treated cloth surround, double heavy spider
- Die-cast aluminum frame
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
1,600W
Continuous rating
Sensitivity 02
94dB
Efficiency
Size 03
4in
Nominal
Weight 04
24.22lb
Per unit
- Impedance
- 8 Ohm
- Continuous Program Power (RMS)
- 1,600 W
- Recommended Hi Pass Crossover
- 60 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 94 dB
- Frequency Response
- 55 – 2,500 Hz
- Voice Coil Diameter
- 4" (100 mm)
- Voice Coil Wire
- Copper
- Former Material
- Glass fiber
- Cone
- Glass-fiber reinforced paper
- Surround
- Triple-roll treated cloth
- Magnet
- Ferrite
- Frame Material
- Die-cast aluminum

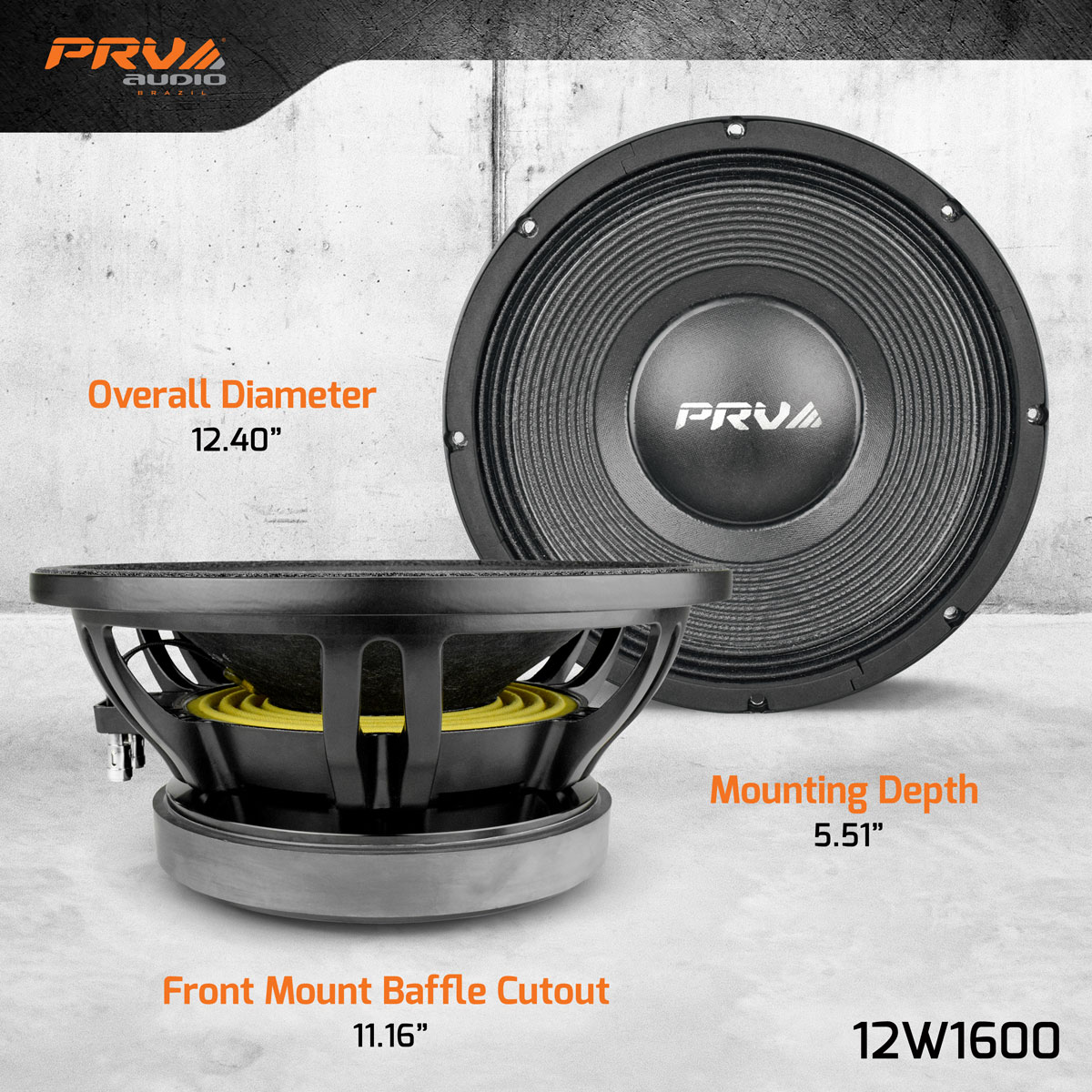

- Mounting Depth
- 5.51" (140 mm)
- Cutout
- 11.16" (283.4 mm)
- Overall Dimensions
- 12.40" (315 mm) dia., 6.04" (153.5 mm) deep
- Net Weight
- 24.22 lbs (11.0 kg)
- Weight
- 27.25 lbs
- Dimensions
- 14.5 × 14.5 × 7.25 in
