PRV
PRV 2 inch Exit SLIM Polyimide Compression Driver + Horn 8 Ohm PRV-WG2000PySLIM
$79.91
Shallow 2″ exit polyimide driver on the WGP14-50X slim horn, 150 W RMS and 107 dB.
RMS Power150W
Peak Power300W
Sensitivity107dB
01 Overview
The details
Product Overview

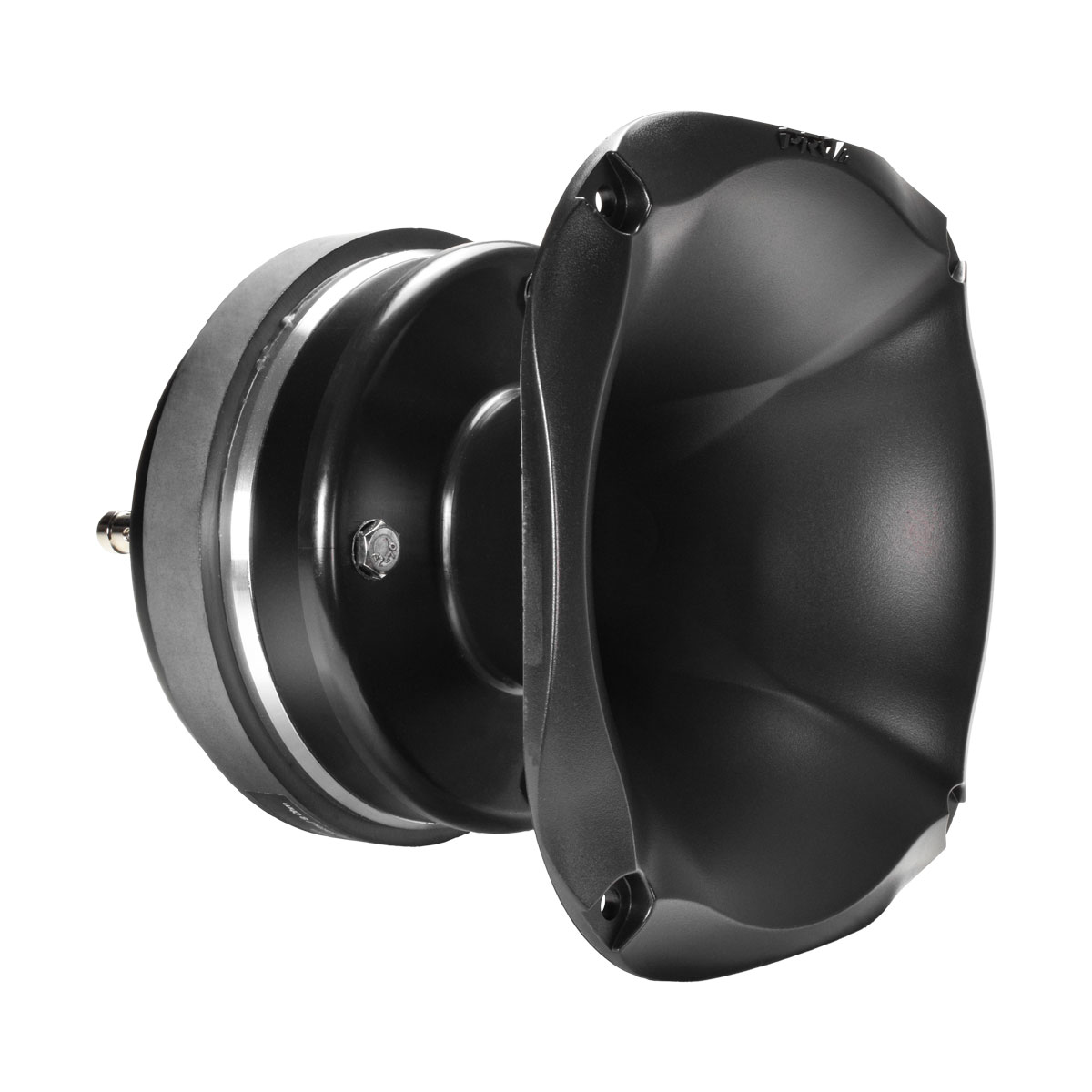

The PRV WG2000Py SLIM mounts a 2" exit polyimide compression driver on PRV's WGP14-50X slim waveguide for shallow installs like custom door panels. It front-mounts without separating the driver from the horn, and the polyimide diaphragm offers durability, damping and wider usable bandwidth than titanium, from about 1 kHz to 17 kHz.
Key Features
- 75 W nominal, 150 W RMS program, 300 W peak
- 107 dB sensitivity (2.83V/1m)
- Polyimide diaphragm, 2" voice coil
- WGP14-50X slim waveguide
- Front mounting, 5.55" mounting depth
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
150W
Continuous rating
Peak Power 02
300W
Short-burst rating
Sensitivity 03
107dB
Efficiency
Size 04
2in
Nominal
- Impedance
- 8 Ohm
- Nominal Power Handling
- 75 W
- Continuous Program Power (RMS)
- 150 W
- Max Peak Power
- 300 W
- Recommended Hi Pass Crossover
- 1,000 Hz, 12 dB/octave

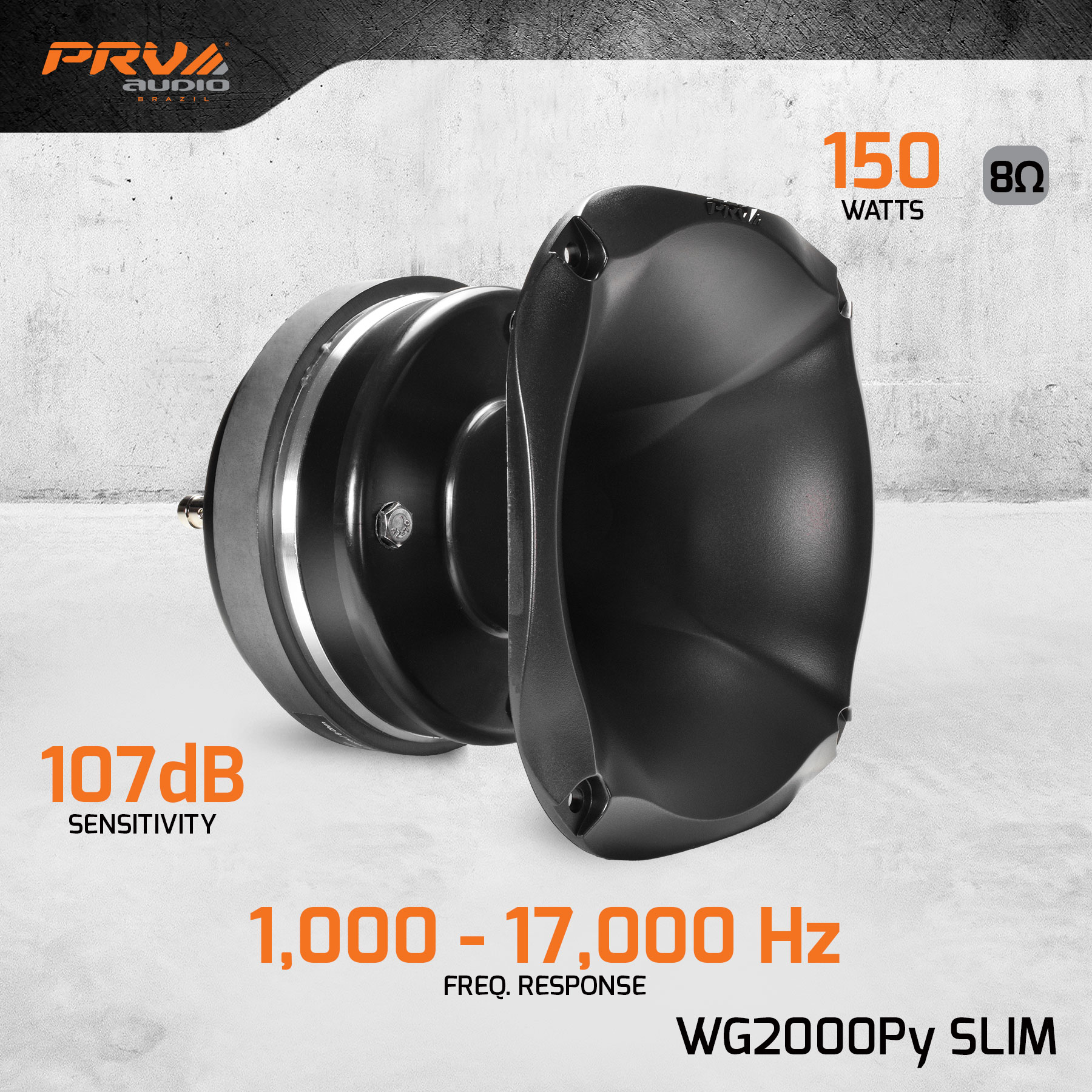

- Sensitivity (2.83V at 1m)
- 107 dB
- Frequency Response
- 1,000 – 17,000 Hz
- Voice Coil Diameter
- 2" (51 mm)
- Magnet
- Ferrite

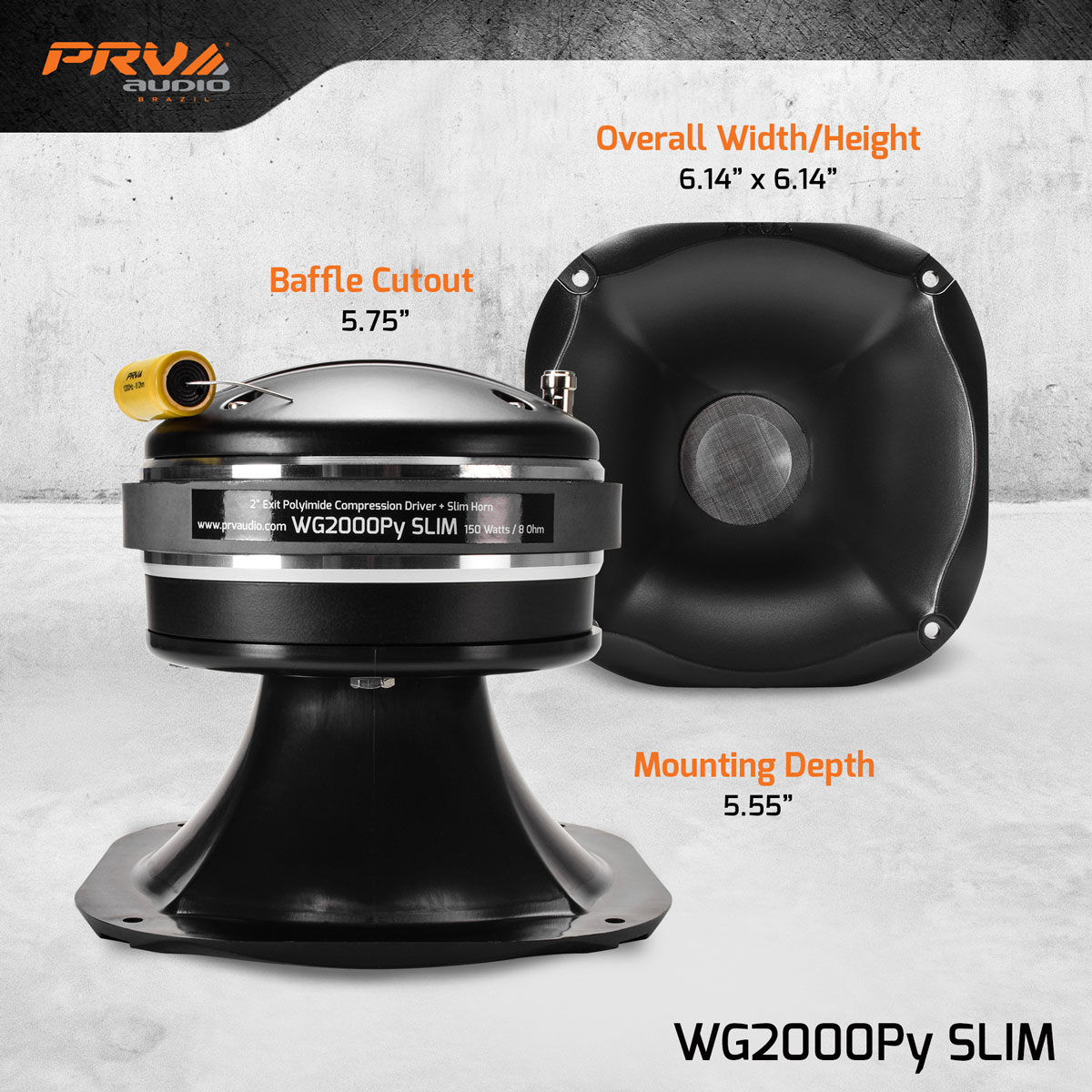

- Mounting Depth
- 5.55" (141 mm)
- Cutout
- 5.75" (146 mm)
- Overall Dimensions
- 6.14" x 6.14" (156 mm), 5.87" (149 mm) deep
- Net Weight
- 6.45 lbs (2.94 kg)
- Weight
- 7.05 lbs
- Dimensions
- 6.75 × 7 × 7.5 in
- Exit Throat
- 2" (50 mm)
- Diaphragm
- Polyimide
- Horn
- WGP14-50X slim
