PRV
PRV 2 inch Exit SLIM Polyimide Compression Driver + Horn 8 Ohm PRV-WG2500PySLIM
$99.91
Shallow 2″ exit polyimide driver on the WGP14-50X slim horn, 200 W RMS and 107 dB, 2.5″ voice coil.
RMS Power200W
Peak Power400W
Sensitivity107dB
01 Overview
The details
Product Overview

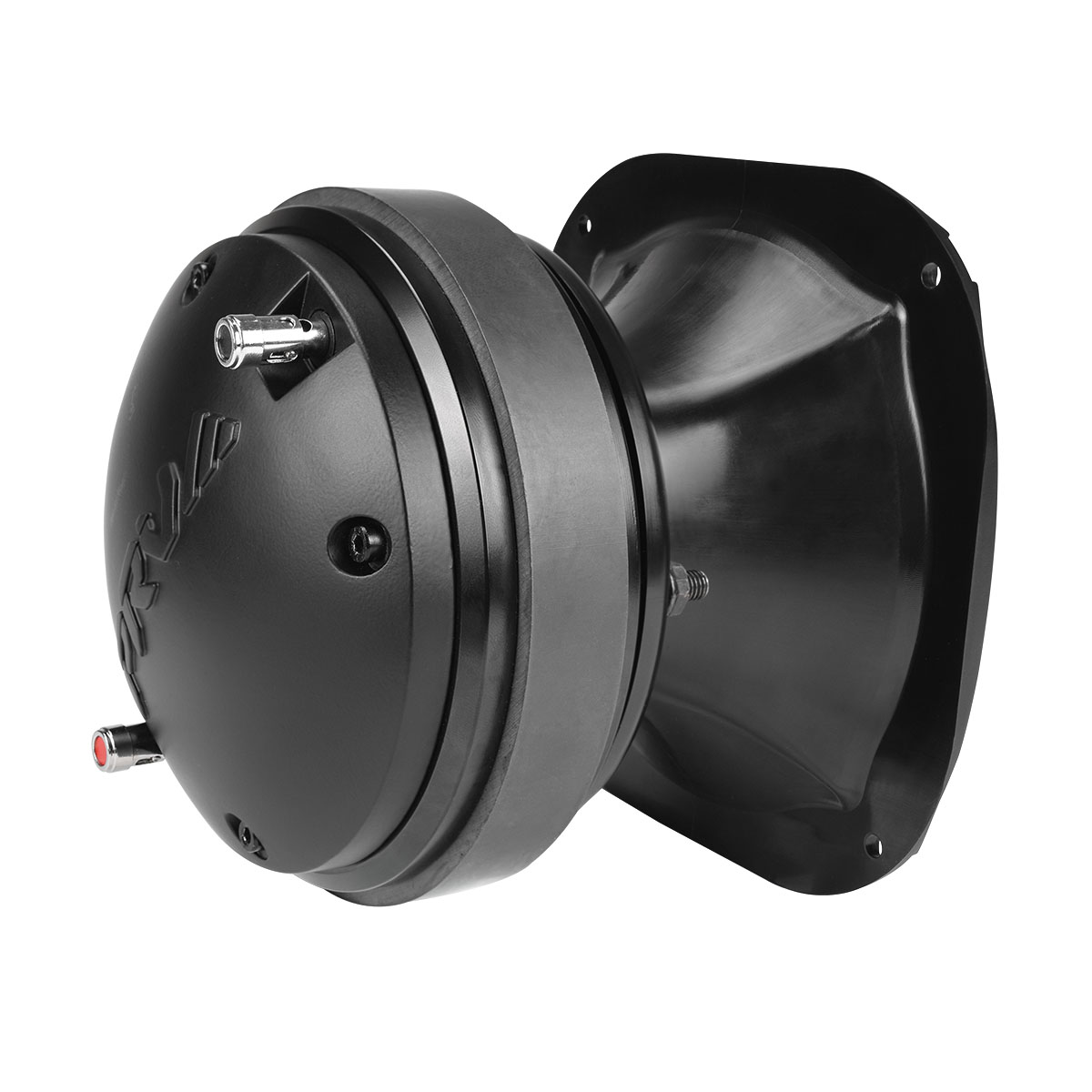

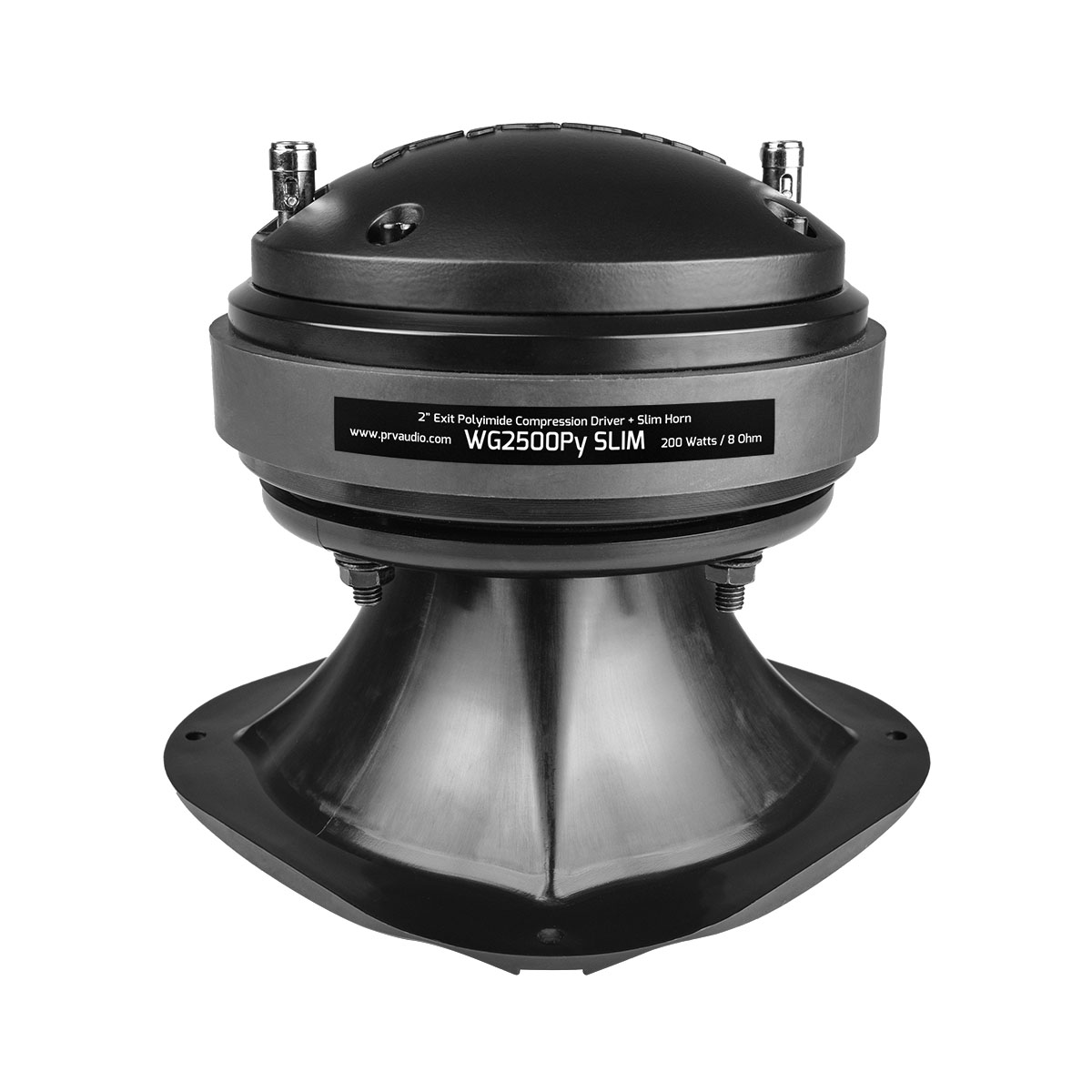

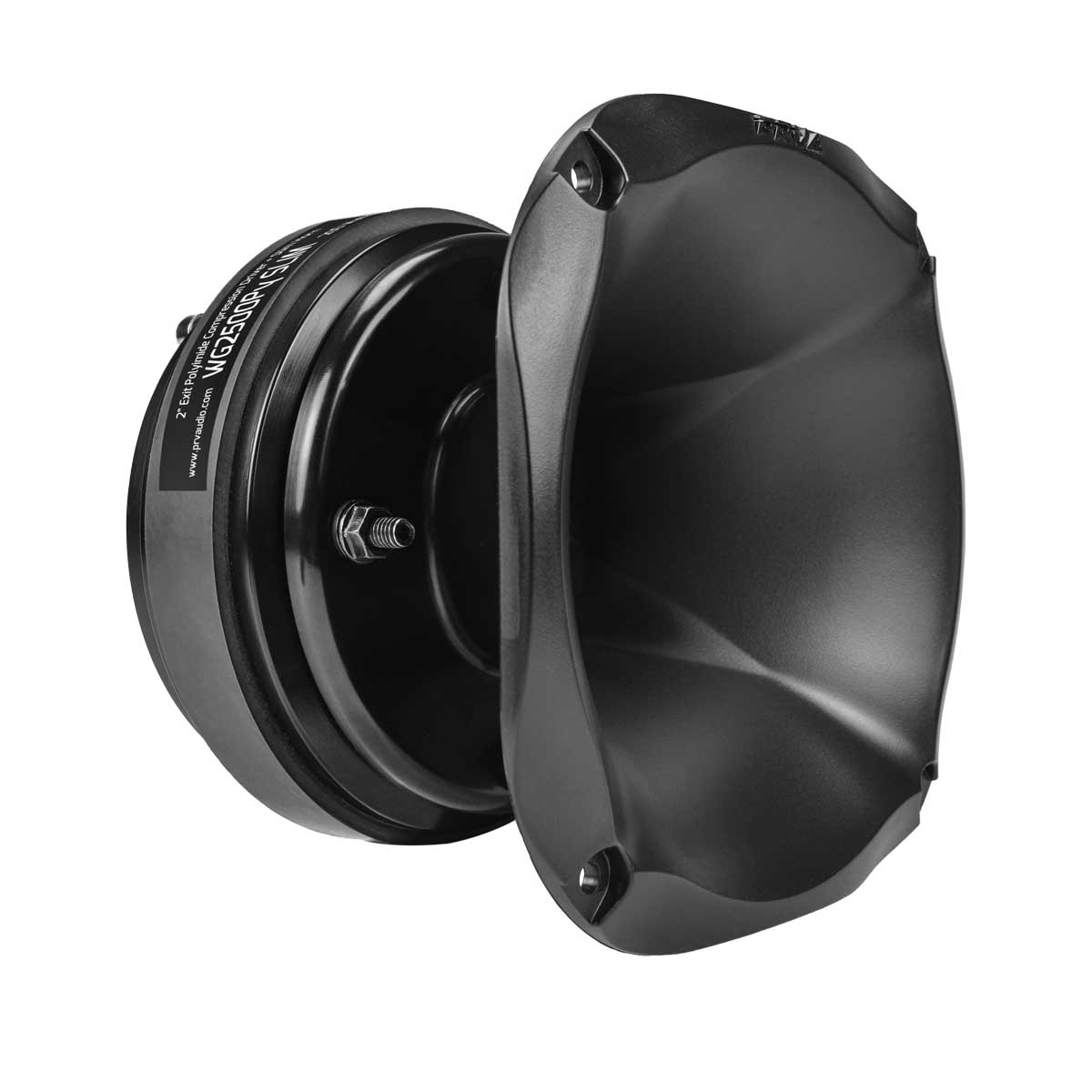

The PRV WG2500Py SLIM pairs a 2" exit polyimide compression driver and 2.5" voice coil with the WGP14-50X slim waveguide. It front-mounts for tight custom door panels and covers about 800 Hz to 17 kHz, with the polyimide diaphragm handling lower frequencies without shattering.
Key Features
- 100 W nominal, 200 W RMS program, 400 W peak
- 107 dB sensitivity (2.83V/1m)
- Polyimide diaphragm, 2.5" voice coil
- WGP14-50X slim waveguide
- Front mounting, 5.45" mounting depth
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
200W
Continuous rating
Peak Power 02
400W
Short-burst rating
Sensitivity 03
107dB
Efficiency
Size 04
2.5in
Nominal
- Impedance
- 8 Ohm
- Nominal Power Handling
- 100 W
- Continuous Program Power (RMS)
- 200 W
- Max Peak Power
- 400 W
- Recommended Hi Pass Crossover
- 900 Hz, 12 dB/octave

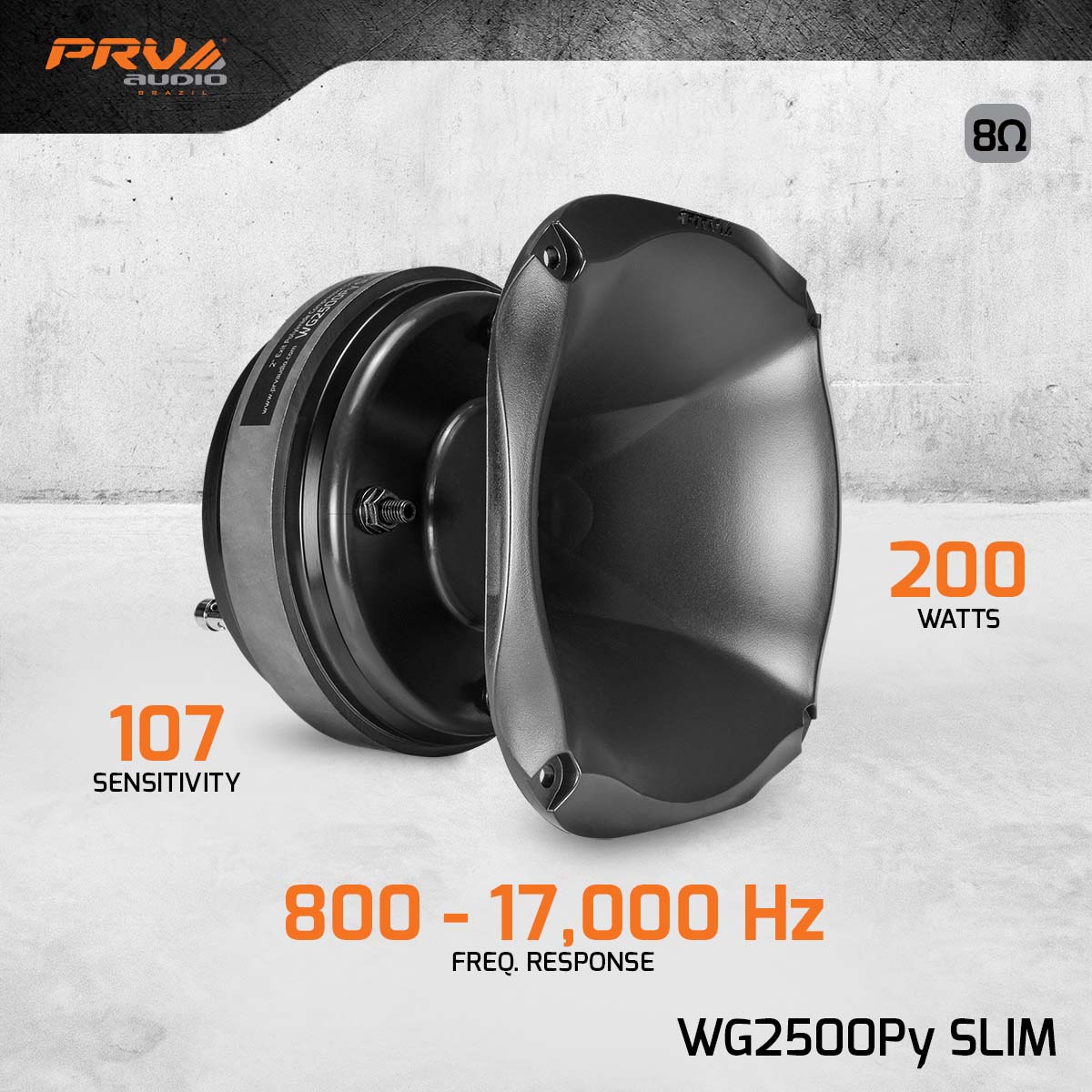

- Sensitivity (2.83V at 1m)
- 107 dB
- Frequency Response
- 800 – 17,000 Hz
- Voice Coil Diameter
- 2.5" (63.5 mm)
- Magnet
- Ferrite

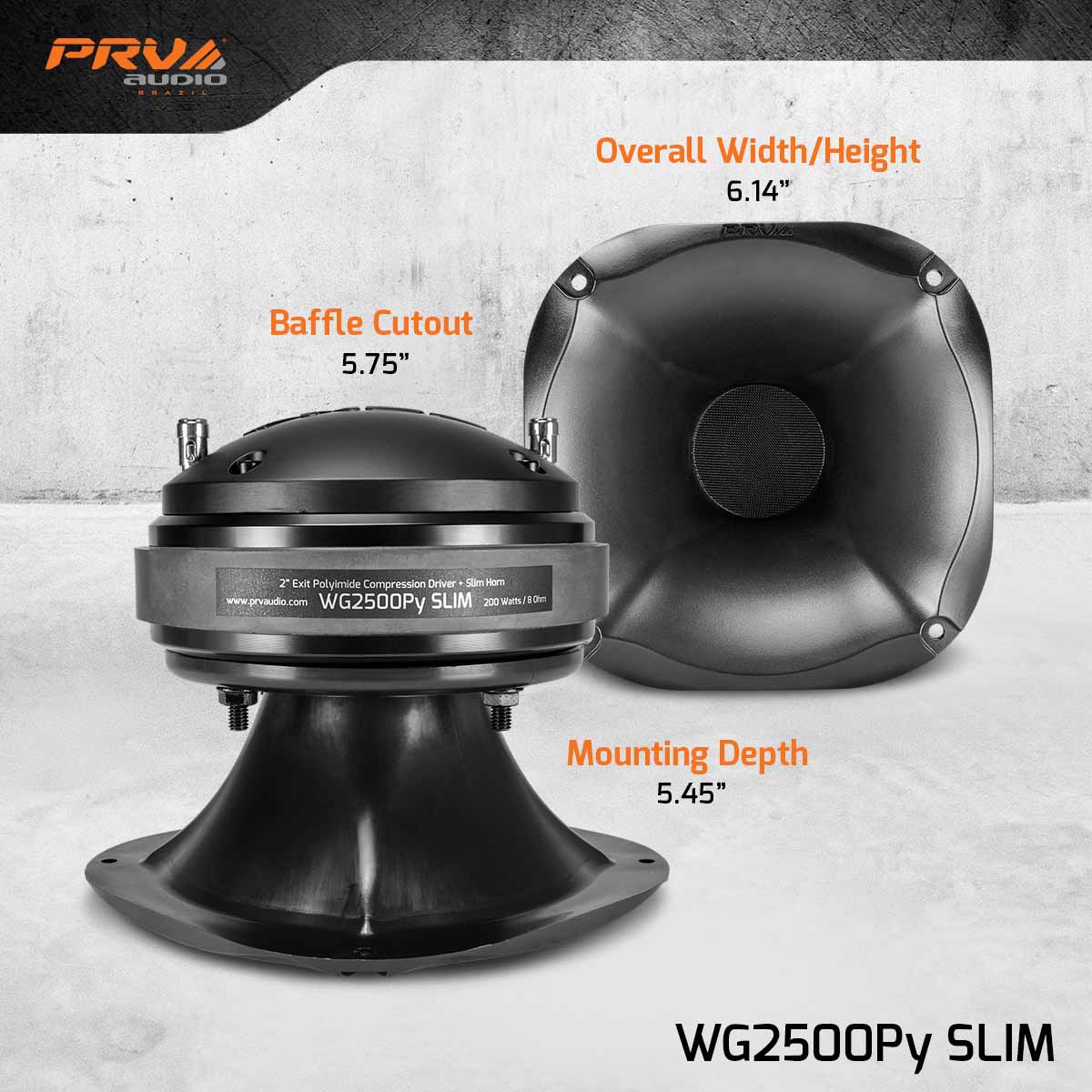

- Mounting Depth
- 5.45" (138.5 mm)
- Cutout
- 5.75" (146 mm)
- Overall Dimensions
- 6.14" x 6.14" (156 mm), 5.77" (146.5 mm) deep
- Net Weight
- 7.72 lbs (3.50 kg)
- Weight
- 8.5 lbs
- Dimensions
- 6.5 × 6.75 × 7 in
- Exit Throat
- 2" (50 mm)
- Diaphragm
- Polyimide
- Horn
- WGP14-50X slim
