PRV

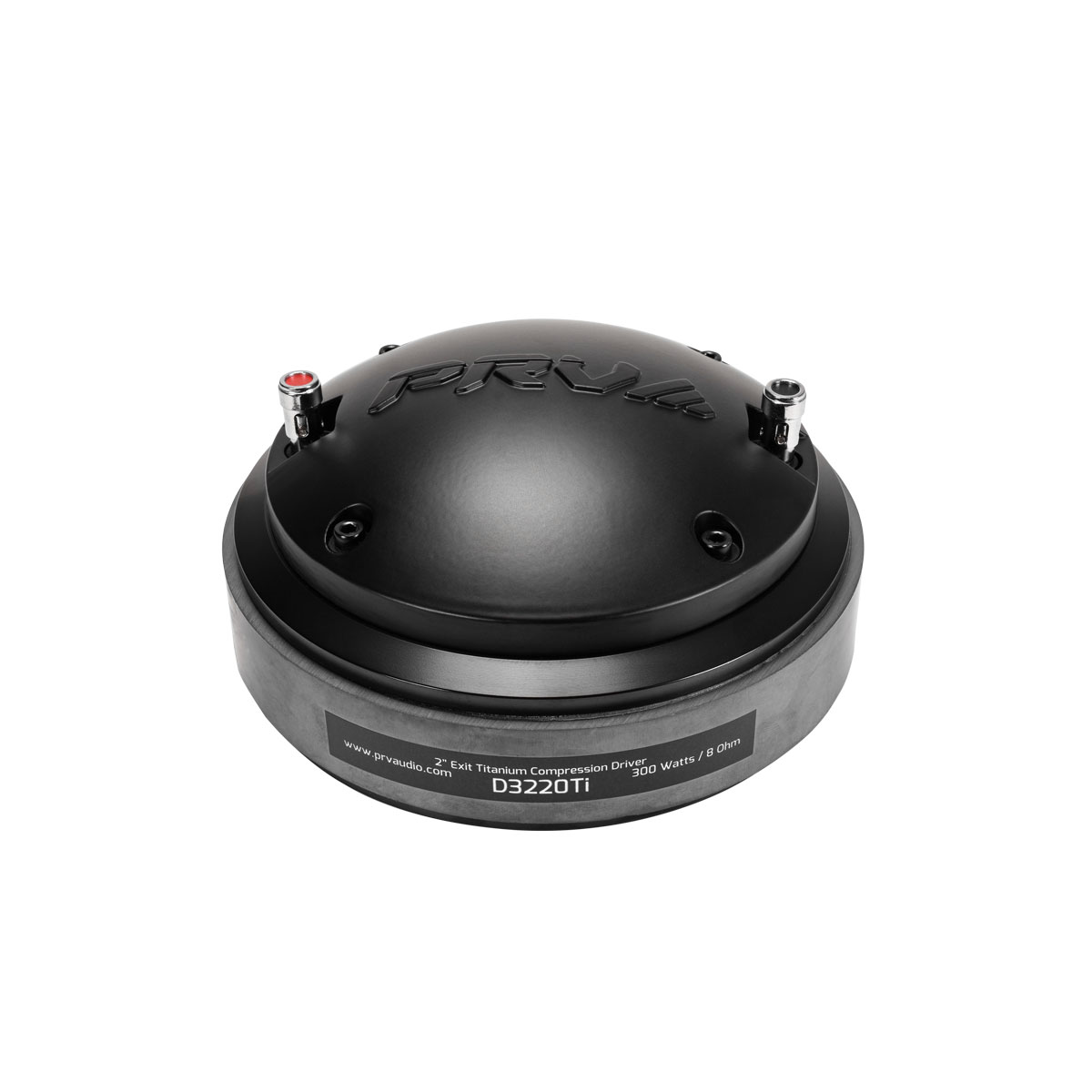

PRV 2 inch Exit Titanium Compression Driver 8 Ohm PRV-D3220Ti
$89.91

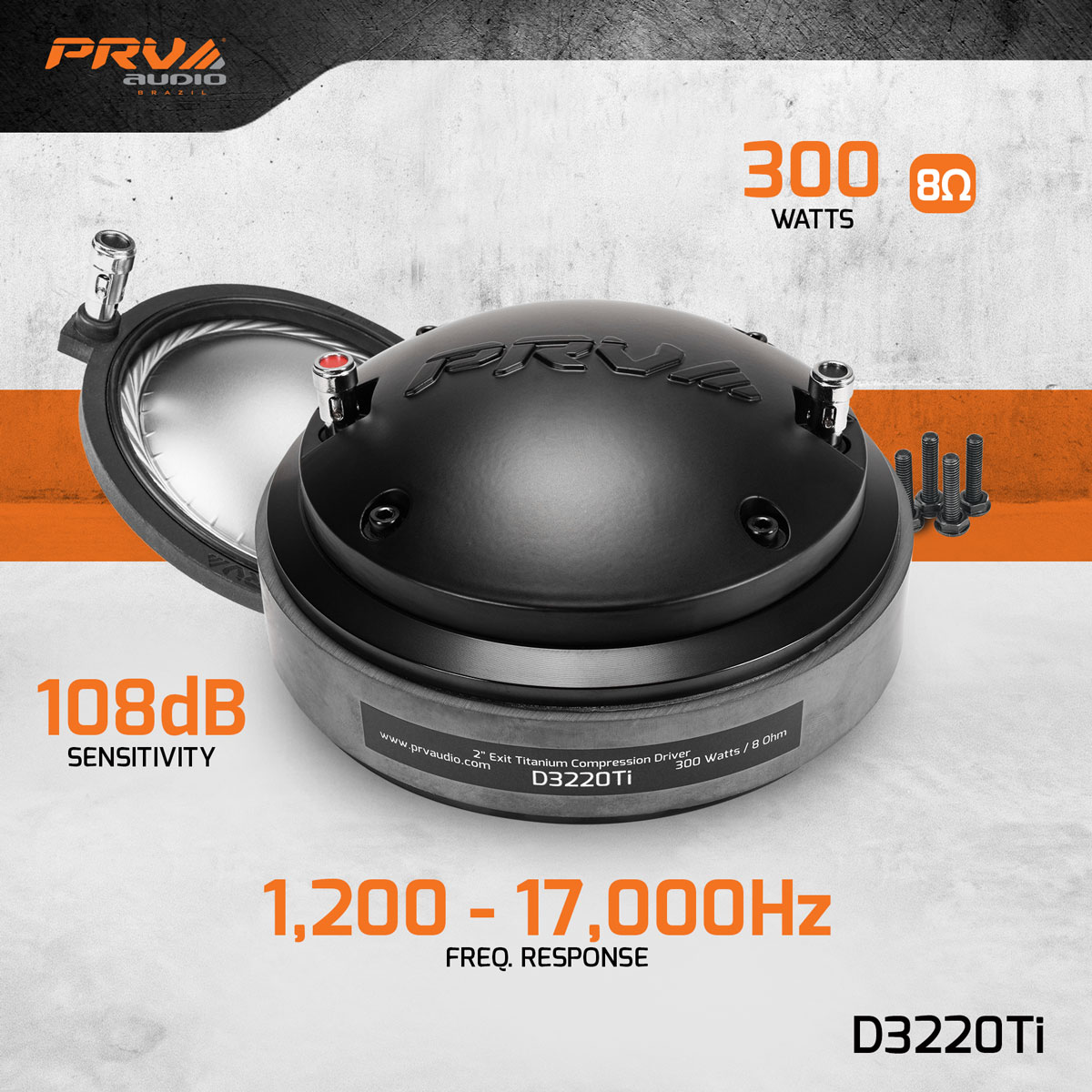

2″ exit titanium HF driver with a 3″ voice coil, 300 W RMS and 108 dB.
RMS Power300W
Peak Power600W
Sensitivity108dB
01 Overview
The details
Product Overview

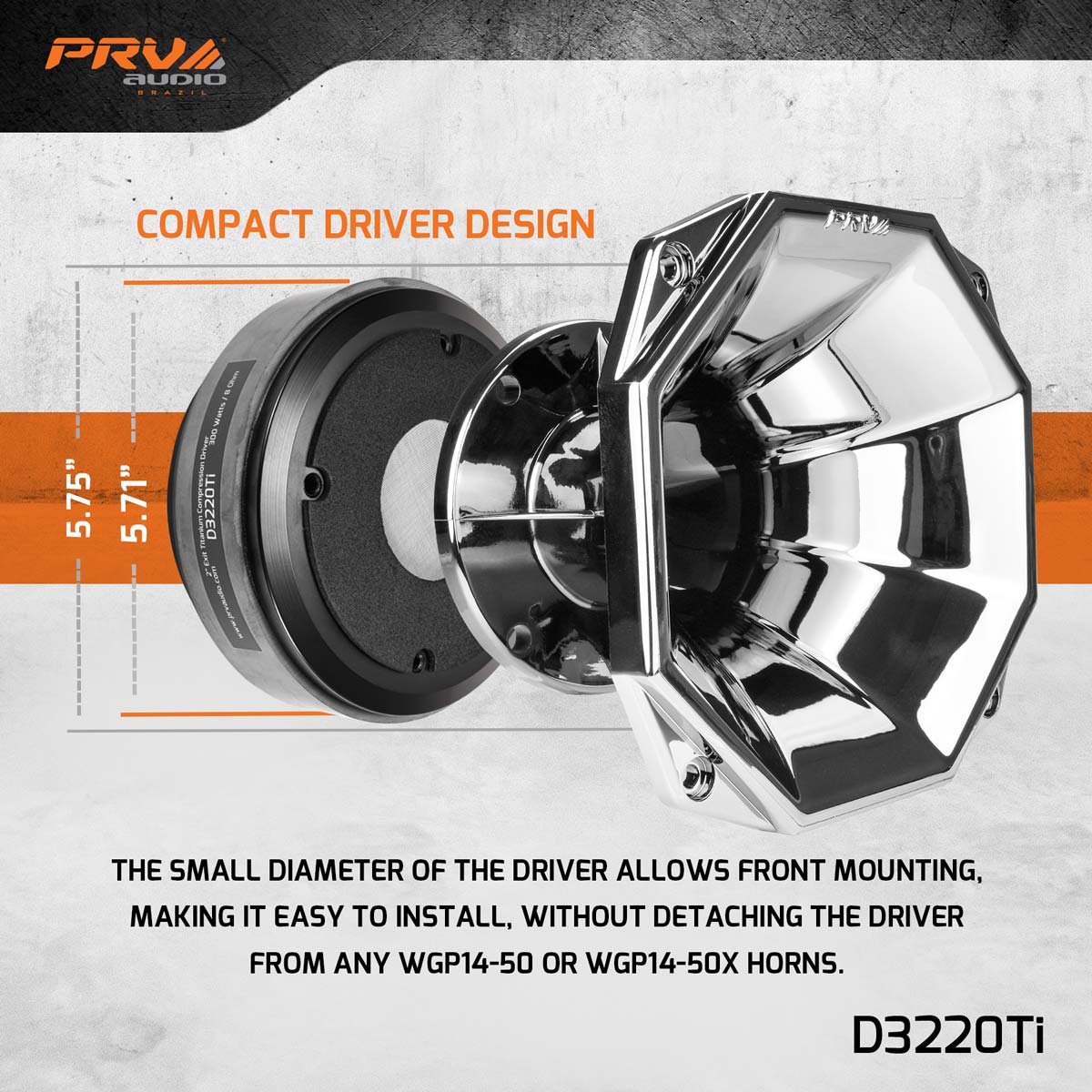

The PRV D3220Ti puts a titanium diaphragm on a large 3" voice coil for low moving mass and high efficiency, with clear, forward output from 1.2 kHz to 17 kHz. Its compact motor front-mounts through a 5.75" baffle cut for WGP14-50 horns.
Key Features
- 150 W nominal, 300 W RMS program, 600 W peak
- 108 dB sensitivity (2.83V/1m)
- Titanium diaphragm, 3" voice coil
- Ferrite motor
- Front mounts on WGP14-50 horns
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
300W
Continuous rating
Peak Power 02
600W
Short-burst rating
Sensitivity 03
108dB
Efficiency
Size 04
3in
Nominal
- Impedance
- 8 Ohm
- Nominal Power Handling
- 150 W
- Continuous Program Power (RMS)
- 300 W
- Max Peak Power
- 600 W
- Recommended Hi Pass Crossover
- 1,400 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 108 dB
- Frequency Response
- 1,200 – 17,000 Hz
- Voice Coil Diameter
- 3" (76 mm)

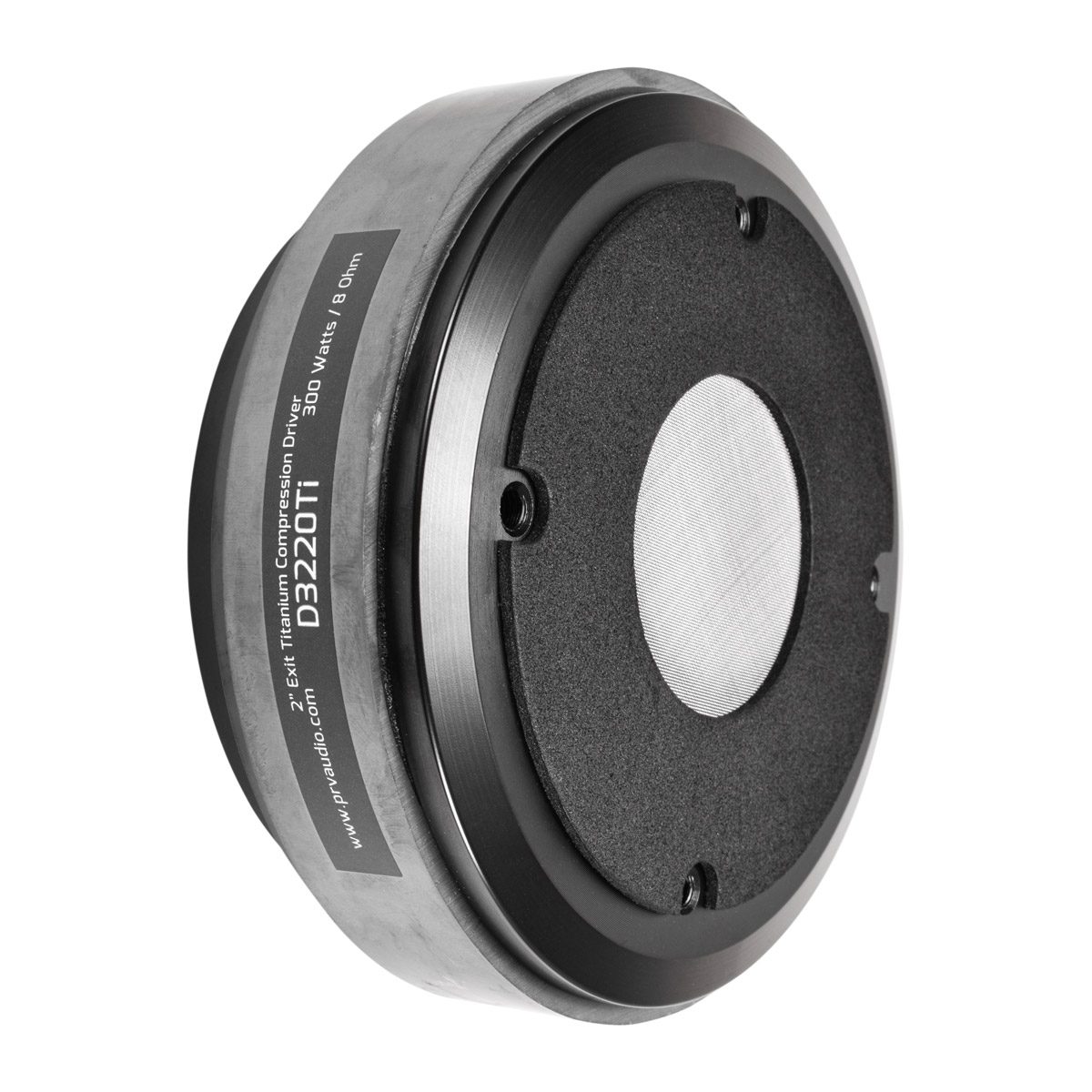

- Magnet
- Ferrite

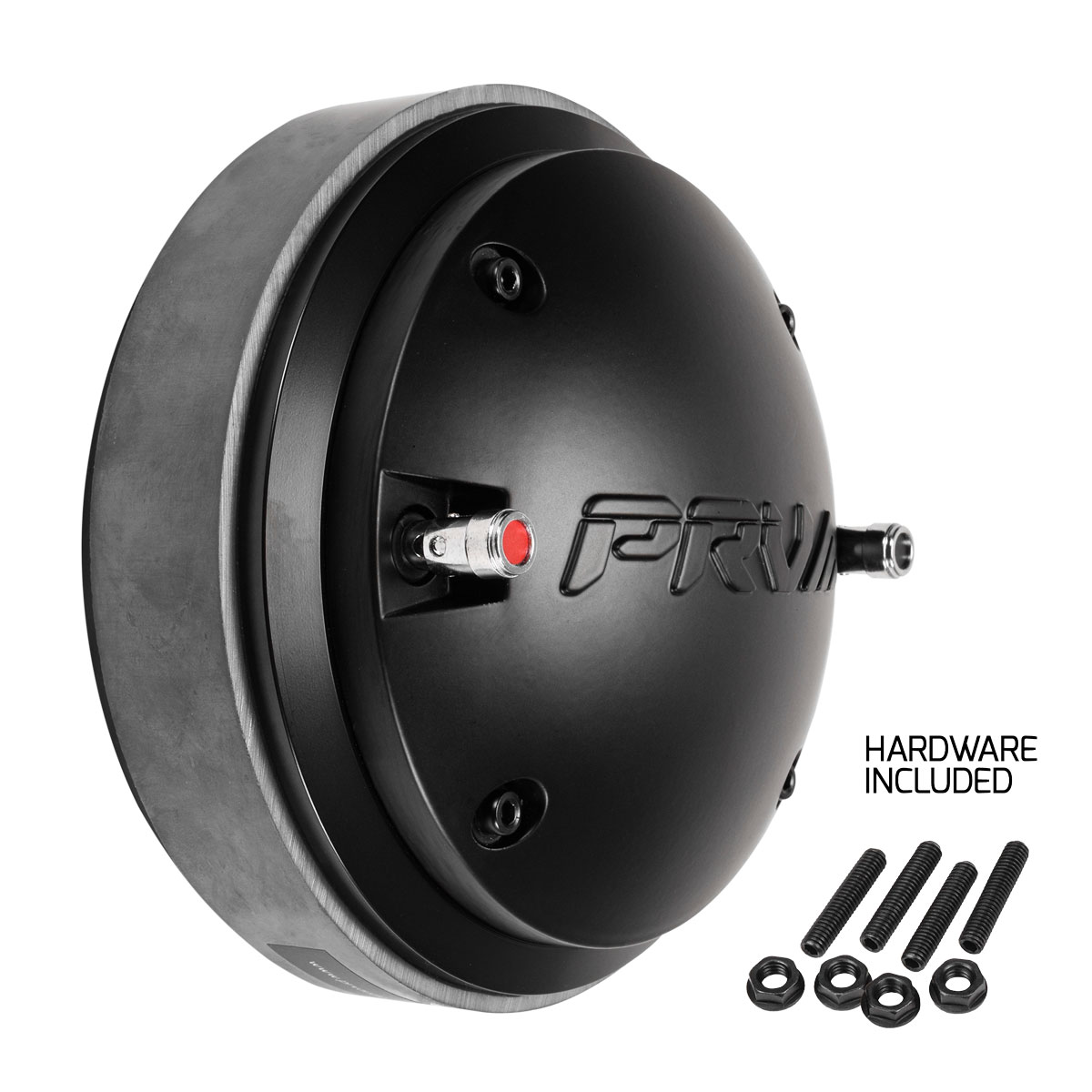

- Mounting
- Bolt-on, M6 x 4 on a 4" (102 mm) bolt circle
- Overall Dimensions
- 5.71" (145 mm) dia., 3.0" (76 mm) deep
- Net Weight
- 8.9 lbs (4.0 kg)
- Weight
- 9.35 lbs
- Dimensions
- 6.25 × 6.75 × 4 in
- Exit Throat
- 2" (50 mm)
- Diaphragm
- Titanium
