PRV
PRV 2 inch Exit Titanium Compression Driver 8 Ohm PRV-D4400Ti
$144.91
2″ exit titanium HF driver with a 4″ voice coil, 200 W AES / 400 W program power and 110 dB.
RMS Power200W
Sensitivity110dB
Size4in
01 Overview
The details
Product Overview

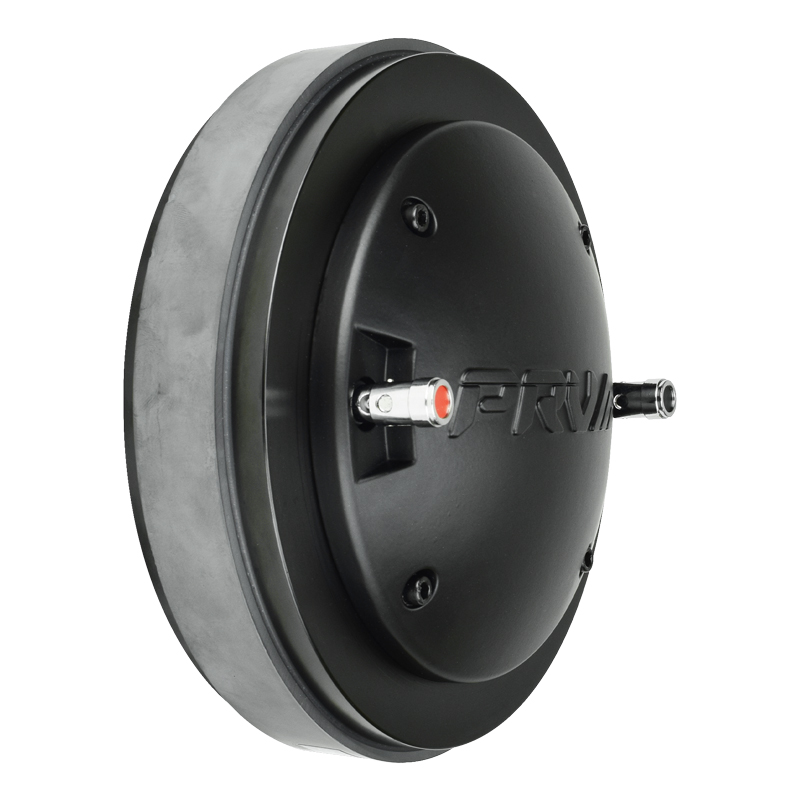

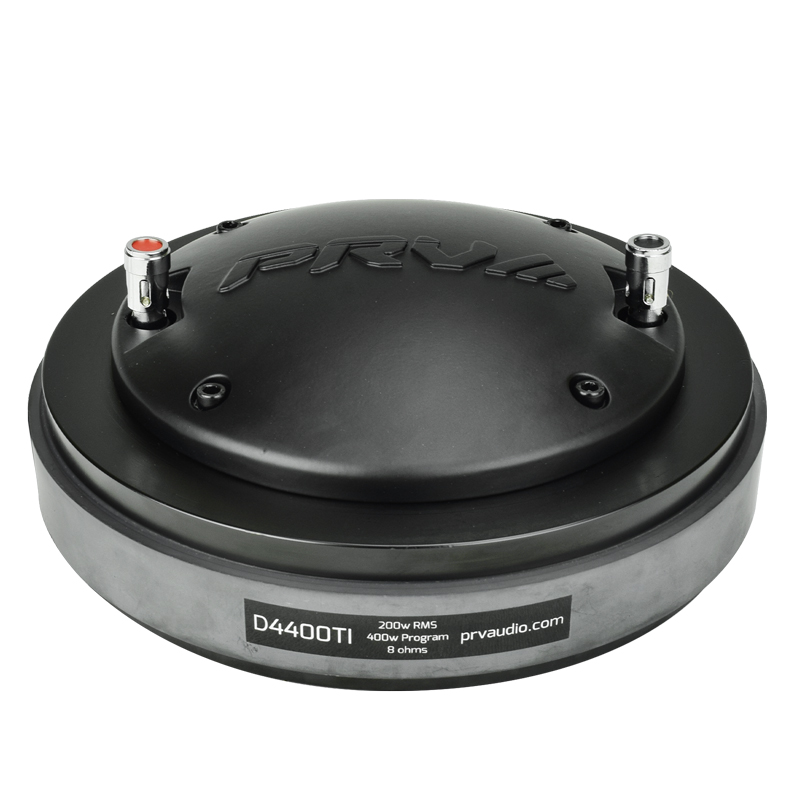

The PRV D4400Ti is the improved successor to the D4260Ti. A redesigned magnet and plate assembly puts more energy into the gap for higher sensitivity, lower distortion and better diaphragm control, and the titanium diaphragm on a 4" voice coil is built for long-lasting performance in large-venue systems.
Key Features
- 200 W AES RMS, 400 W program power
- 110 dB sensitivity (2.83V/1m)
- Titanium diaphragm, 4" CCAW voice coil
- Redesigned ferrite motor
- Bolt-on mounting
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
200W
Continuous rating
Sensitivity 02
110dB
Efficiency
Size 03
4in
Nominal
Weight 04
19.20lb
Per unit
- Impedance
- 8 Ohm
- Power Handling (AES, RMS)
- 200 W
- Program Power
- 400 W
- Recommended Hi Pass Crossover
- 1,600 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 110 dB
- Frequency Response
- 1,000 – 17,000 Hz
- Voice Coil Diameter
- 4" (101.6 mm)
- Magnet
- Ferrite
- Mounting
- Bolt-on, M6 x 4 on a 4" (102 mm) bolt circle
- Overall Dimensions
- 7.86" (199.75 mm) dia., 3.18" (81 mm) deep
- Net Weight
- 19.20 lbs (8.70 kg)
- Weight
- 19.7 lbs
- Dimensions
- 8.5 × 8.5 × 4.25 in
- Exit Throat
- 2" (50 mm)
- Diaphragm
- Titanium
