PRV 2 inch Exit Titanium Compression Driver + Horn 8 Ohm PRV-WG2500Ti
$99.91
2″ exit titanium driver and horn combo, 200 W RMS and 107 dB, with a 2.5″ voice coil.
RMS Power200W
Peak Power400W
Sensitivity107dB
01 Overview
The details
Product Overview

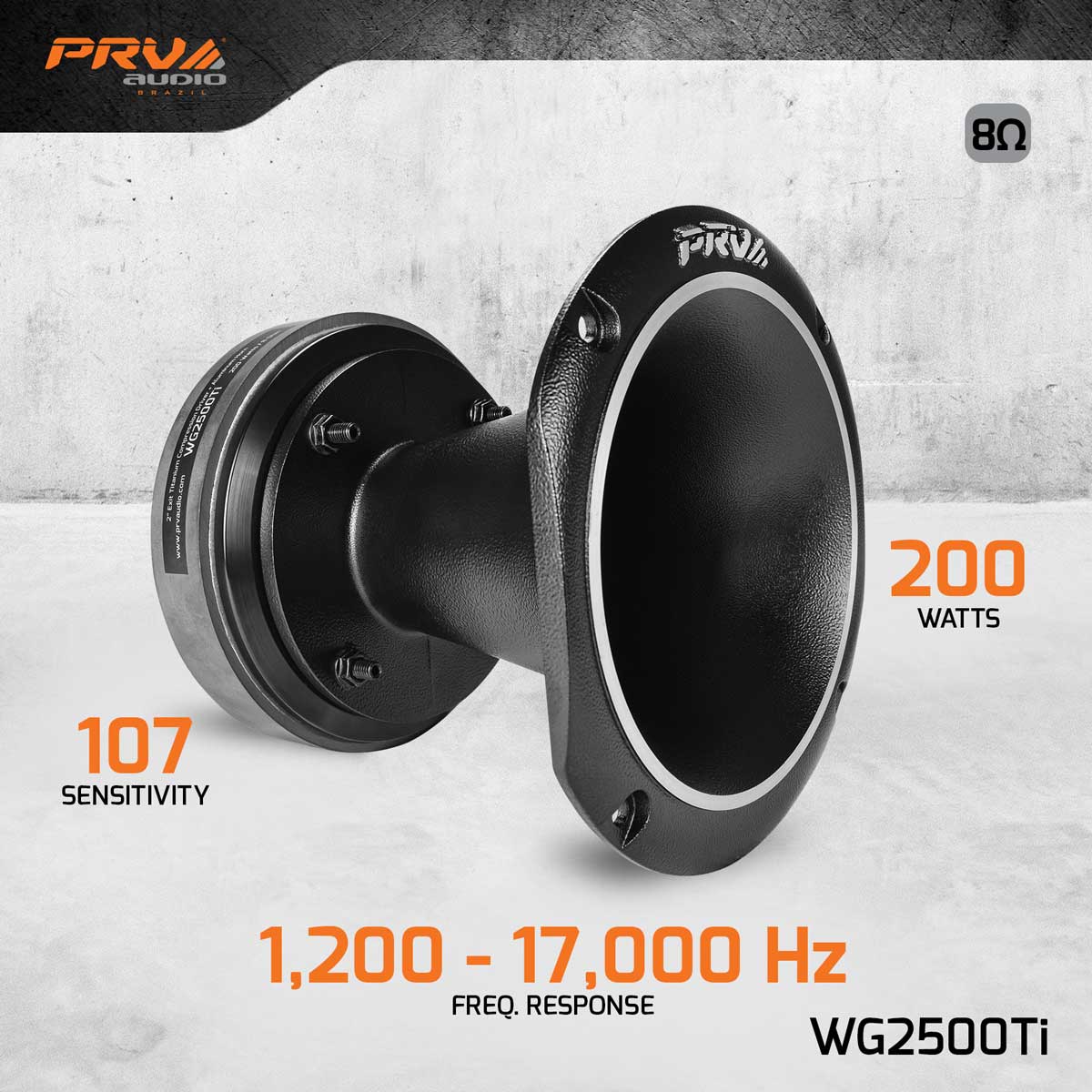

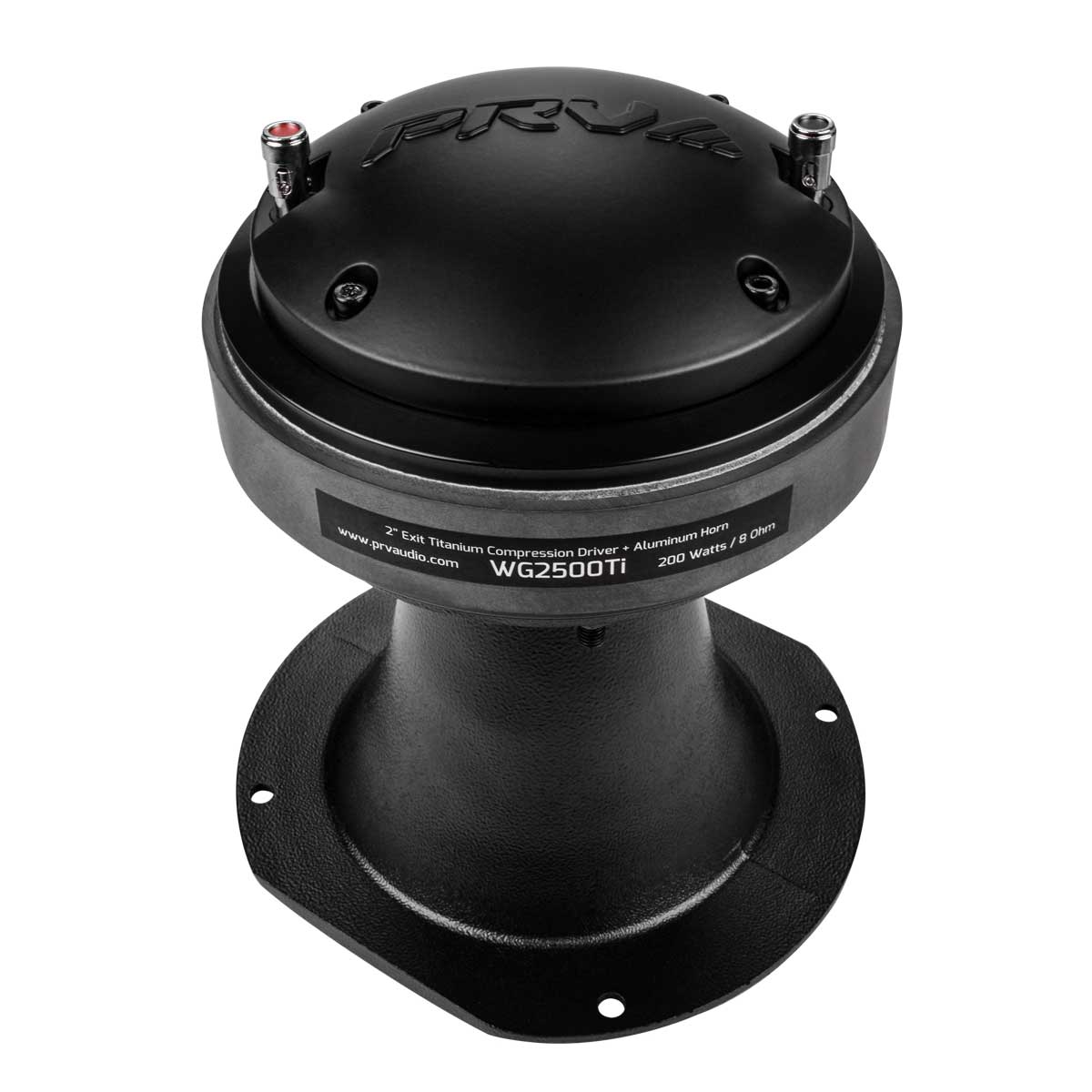

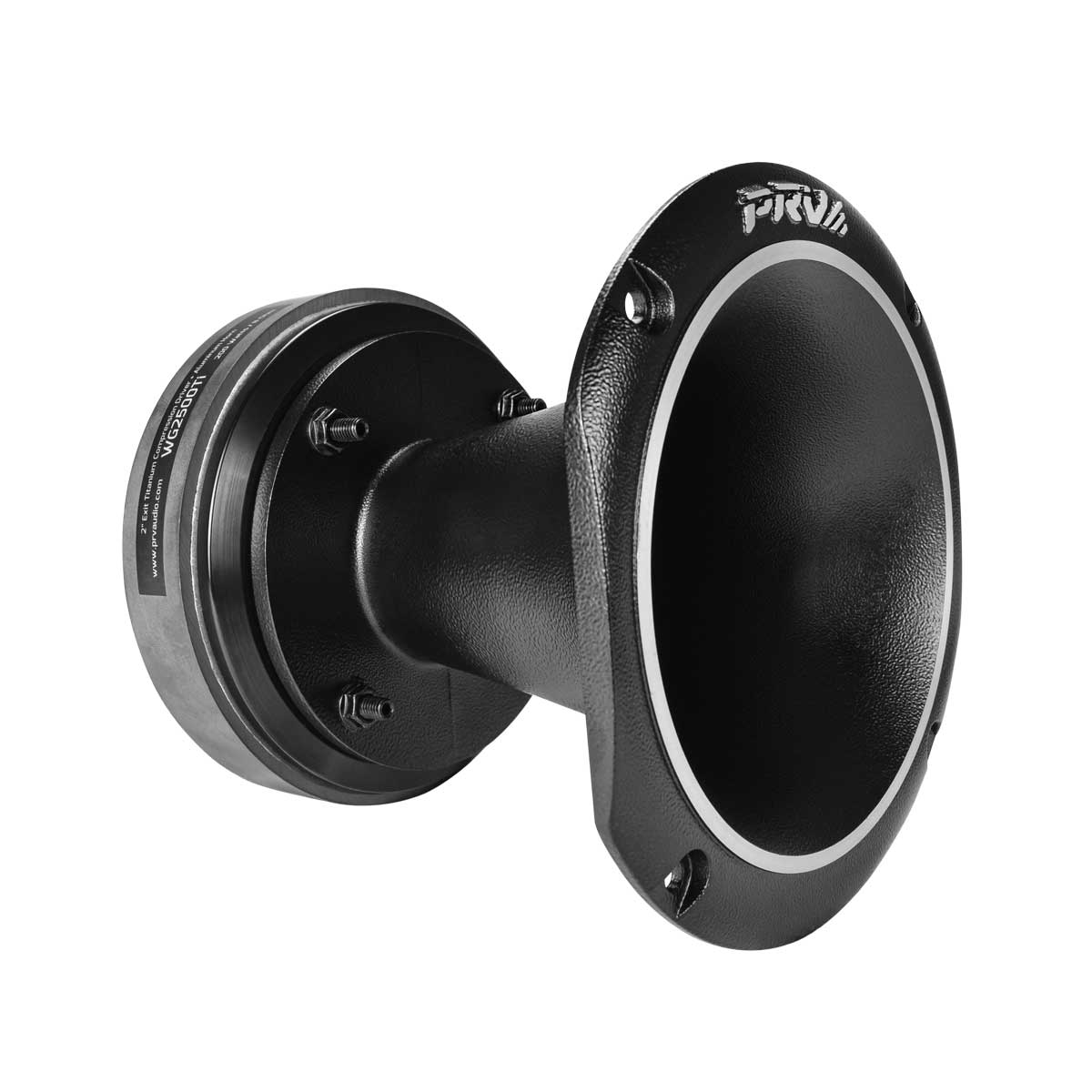

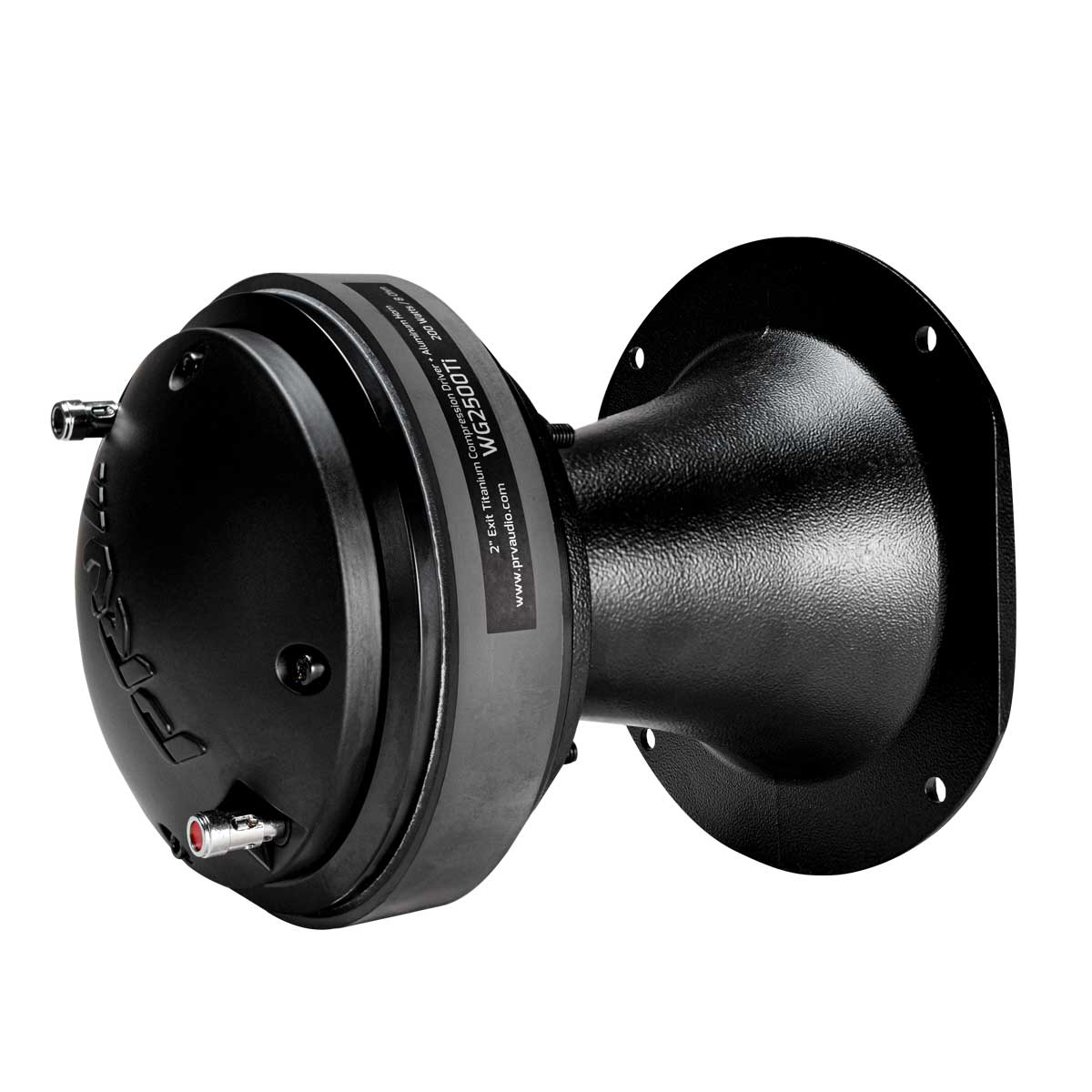

The PRV WG2500Ti is a 2" exit titanium compression driver paired with the WG14-50CR horn. A pure titanium diaphragm on a 2.5" voice coil keeps moving mass low for efficient, accurate highs up to about 17 kHz, and the compact driver allows front mounting without separating it from the horn.
Key Features
- 100 W nominal, 200 W RMS, 400 W peak
- 107 dB sensitivity (2.83V/1m)

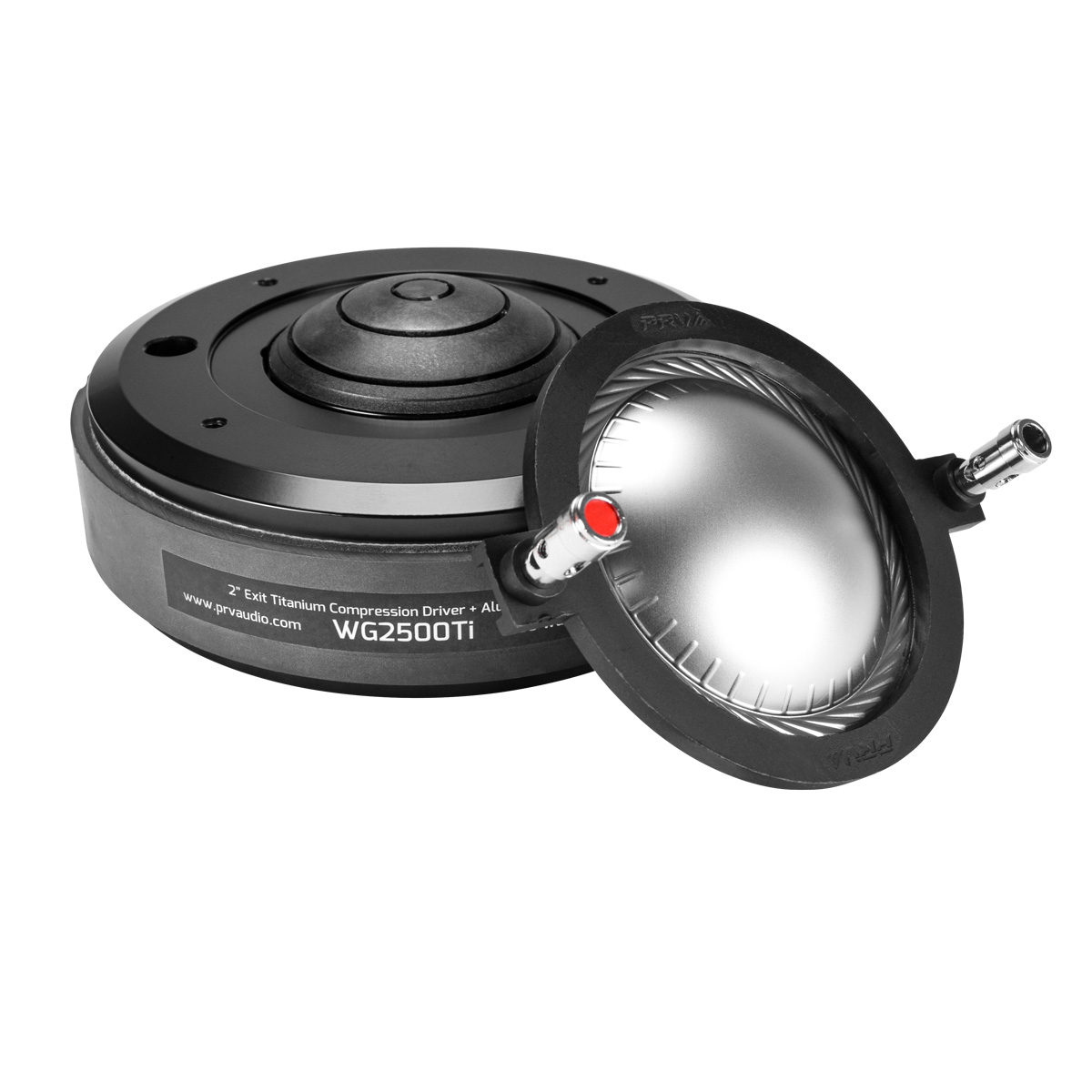

- Titanium diaphragm, 2.5" voice coil
- Includes WG14-50CR horn
- Front mountable
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
200W
Continuous rating
Peak Power 02
400W
Short-burst rating
Sensitivity 03
107dB
Efficiency
Size 04
2.5in
Nominal
- Impedance
- 8 Ohm
- Nominal Power Handling
- 100 W
- Continuous Program Power (RMS)
- 200 W
- Max Peak Power
- 400 W
- Recommended Hi Pass Crossover
- 1,700 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 107 dB
- Frequency Response
- 1,200 – 17,000 Hz
- Voice Coil Diameter
- 2.5" (65 mm)
- Magnet
- Ferrite

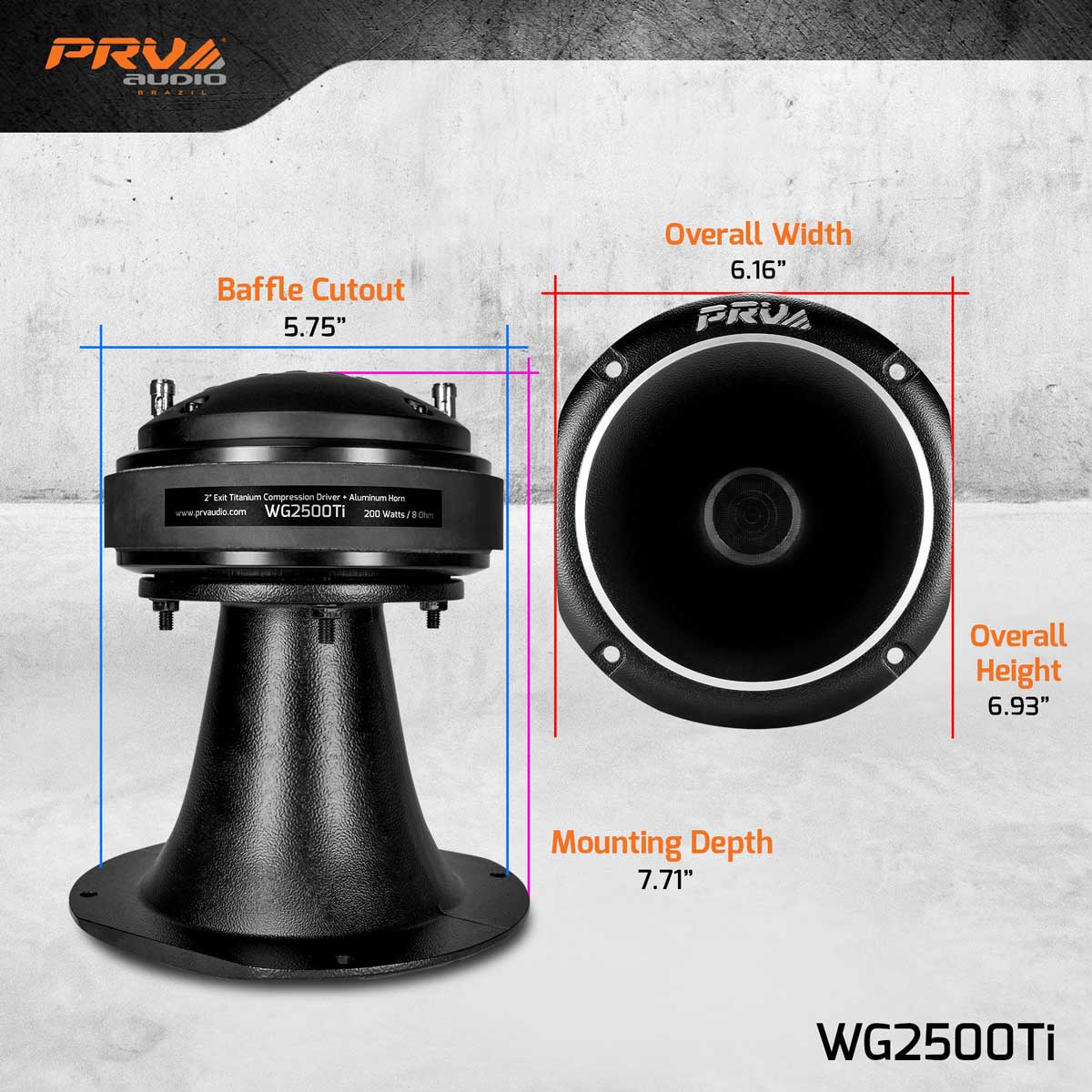

- Mounting Depth
- 7.71" (196 mm)
- Cutout
- 5.75" (146 mm)
- Overall Dimensions
- 6.16" x 6.93" (156.5 x 176 mm), 8.07" (205 mm) deep
- Net Weight
- 10.32 lbs (4.68 kg)
- Weight
- 11.1 lbs
- Dimensions
- 7.5 × 6.75 × 9.75 in
- Exit Throat
- 2" (50 mm)
- Diaphragm
- Titanium
- Horn
- WG14-50CR
