01 Overview
The details
Product Overview

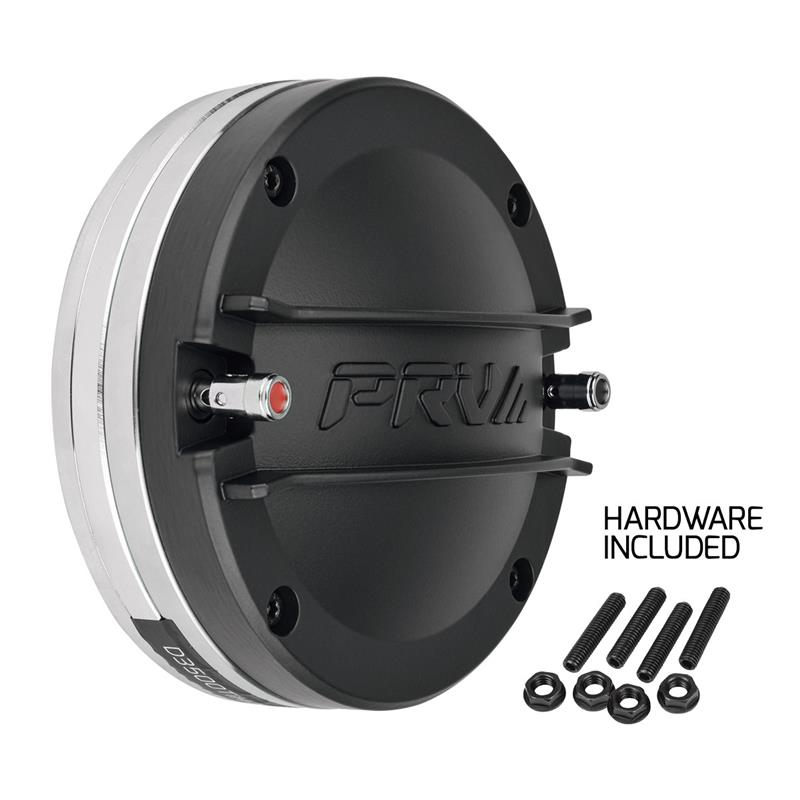

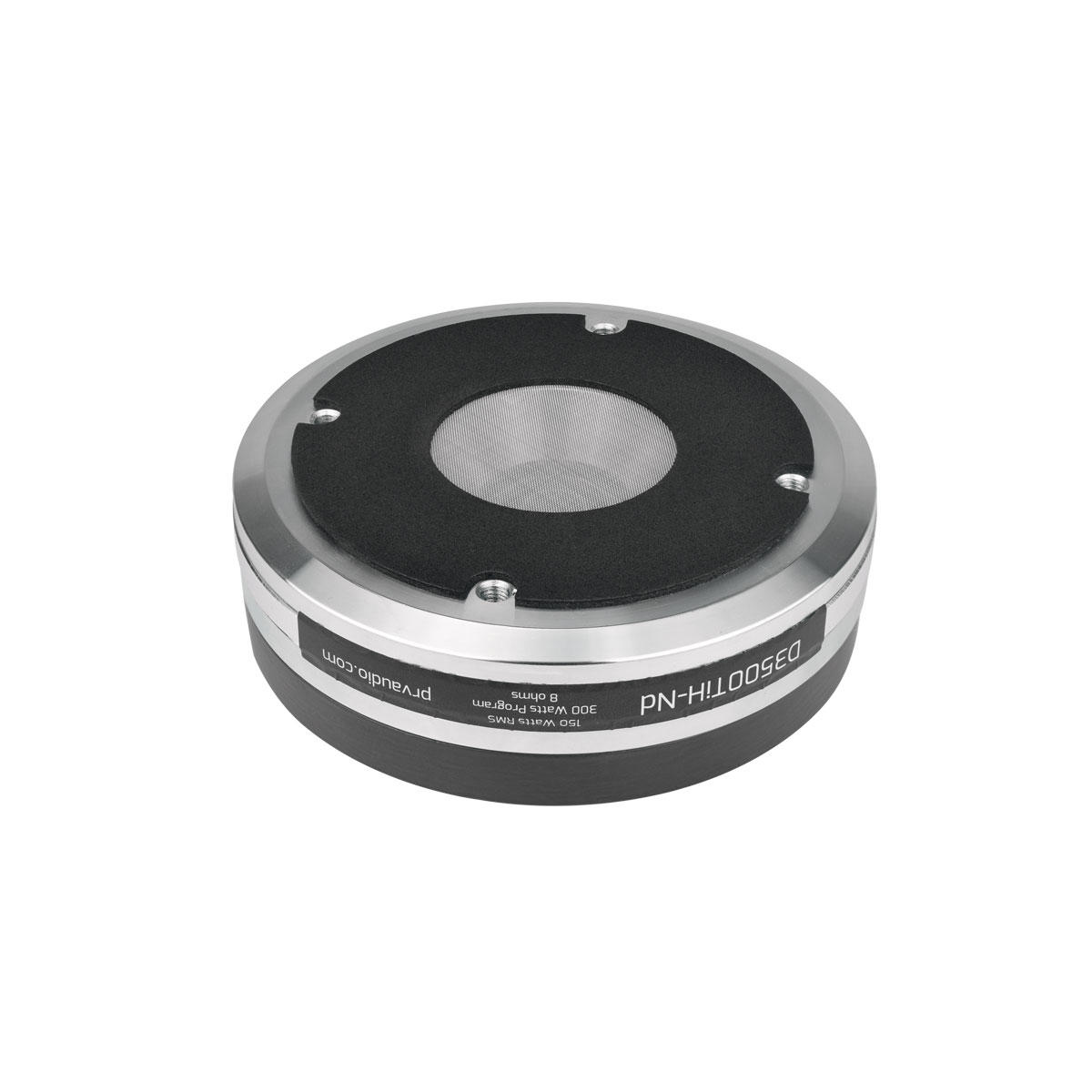

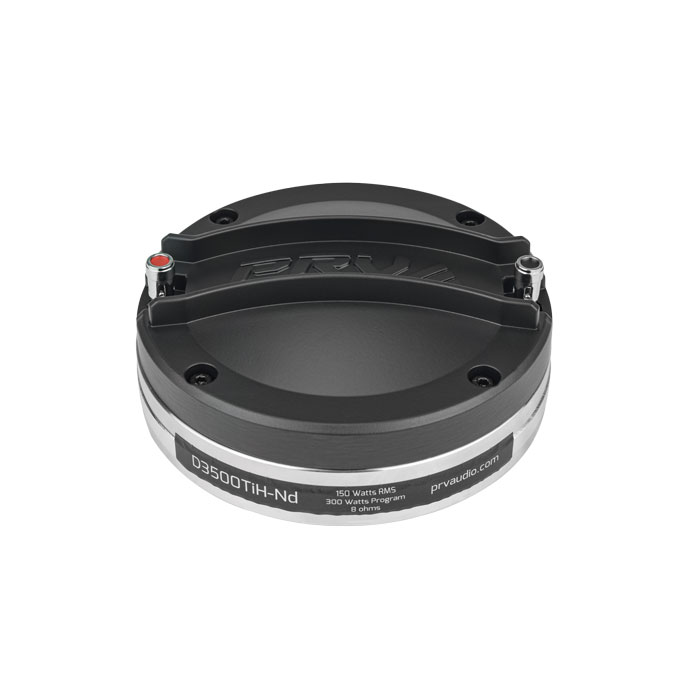

The PRV D3500TiH-Nd is tuned for vocal clarity and high-frequency detail from 800 Hz to 18 kHz. A large neodymium magnet keeps the driver small enough to front-mount with the WGP14-50 horn, and the titanium hybrid diaphragm on a 3.5" voice coil delivers high output with smooth midrange.
Key Features
- 150 W AES RMS, 300 W program power
- 110 dB sensitivity (2.83V/1m)
- Titanium hybrid diaphragm, 3.5" voice coil
- Neodymium motor
- Front mounts with WGP14-50 horns
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers

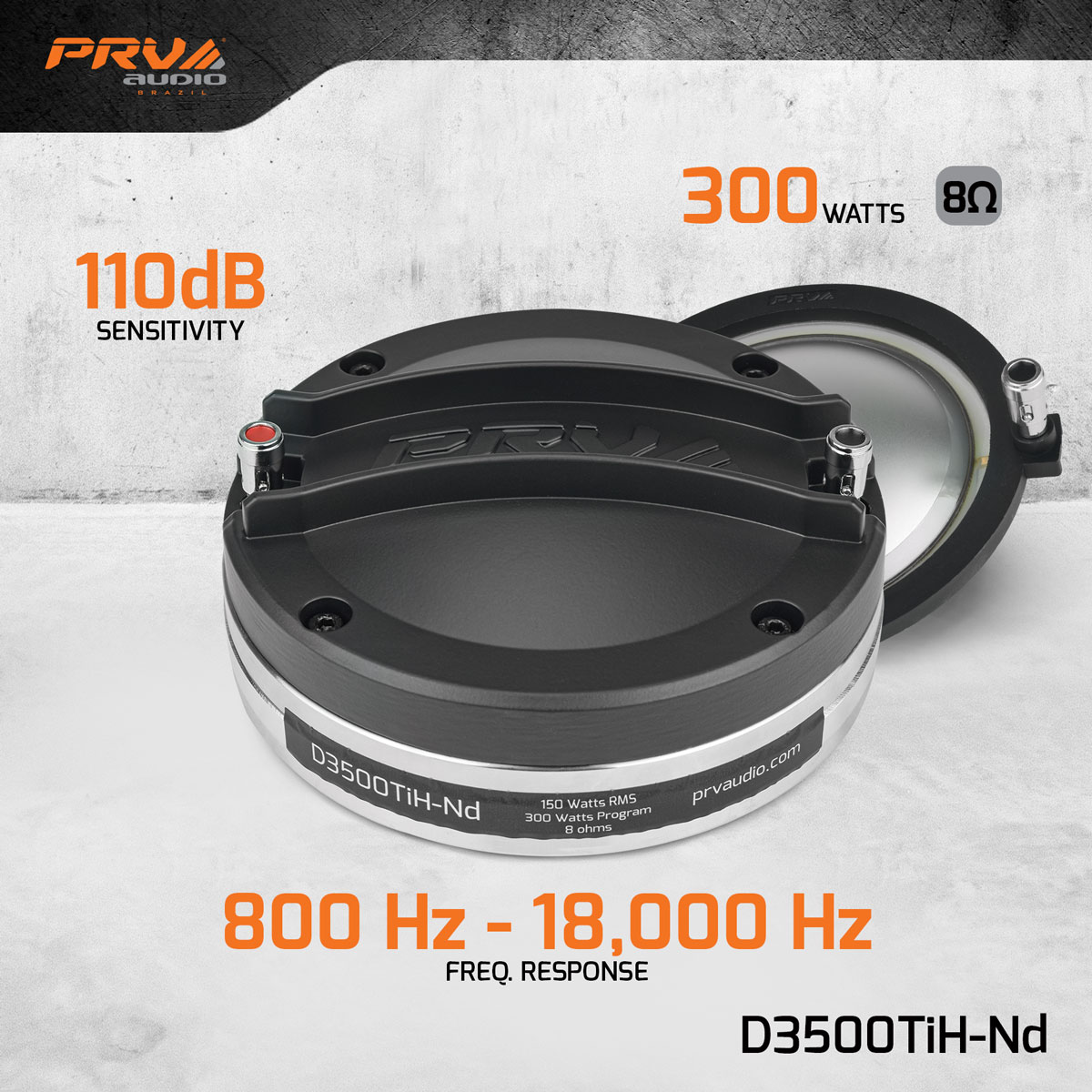

RMS Power 01
150W
Continuous rating
Sensitivity 02
110dB
Efficiency
Size 03
3.5in
Nominal
Weight 04
5.95lb
Per unit
- Impedance
- 8 Ohm
- Power Handling (AES, RMS)
- 150 W
- Program Power
- 300 W
- Recommended Hi Pass Crossover
- 900 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 110 dB
- Frequency Response
- 800 – 18,000 Hz
- Voice Coil Diameter
- 3.5" (89 mm)
- Magnet
- Neodymium
- Mounting
- Bolt-on, M6 x 4 on a 4" (102 mm) bolt circle

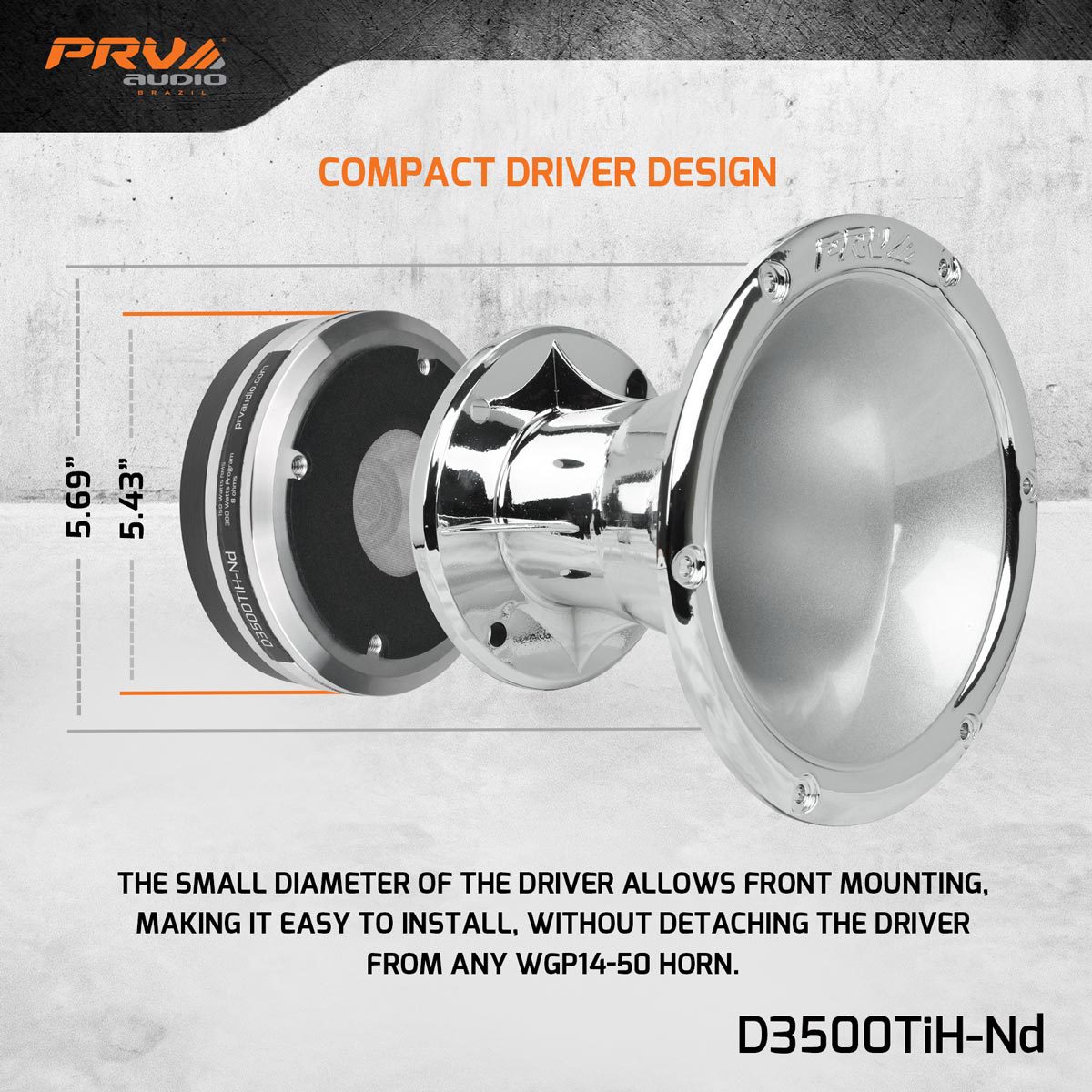

- Overall Dimensions
- 5.43" (138 mm) dia., 2.44" (62 mm) deep
- Net Weight
- 5.95 lbs (2.70 kg)
- Weight
- 6.95 lbs
- Dimensions
- 6 × 6 × 3.5 in
- Exit Throat
- 2" (50 mm)
- Diaphragm
- Titanium hybrid (Ti+Py)
