PRV

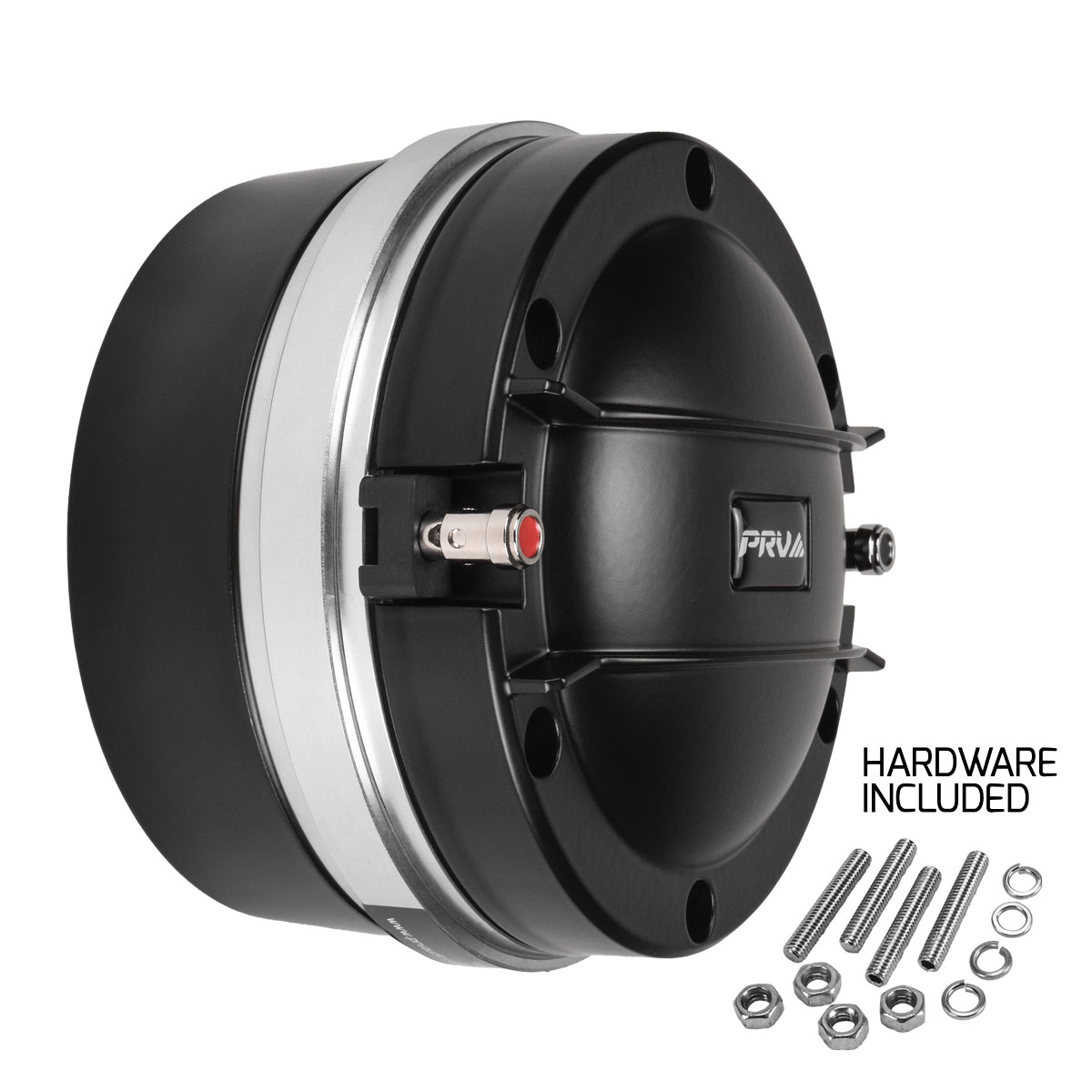

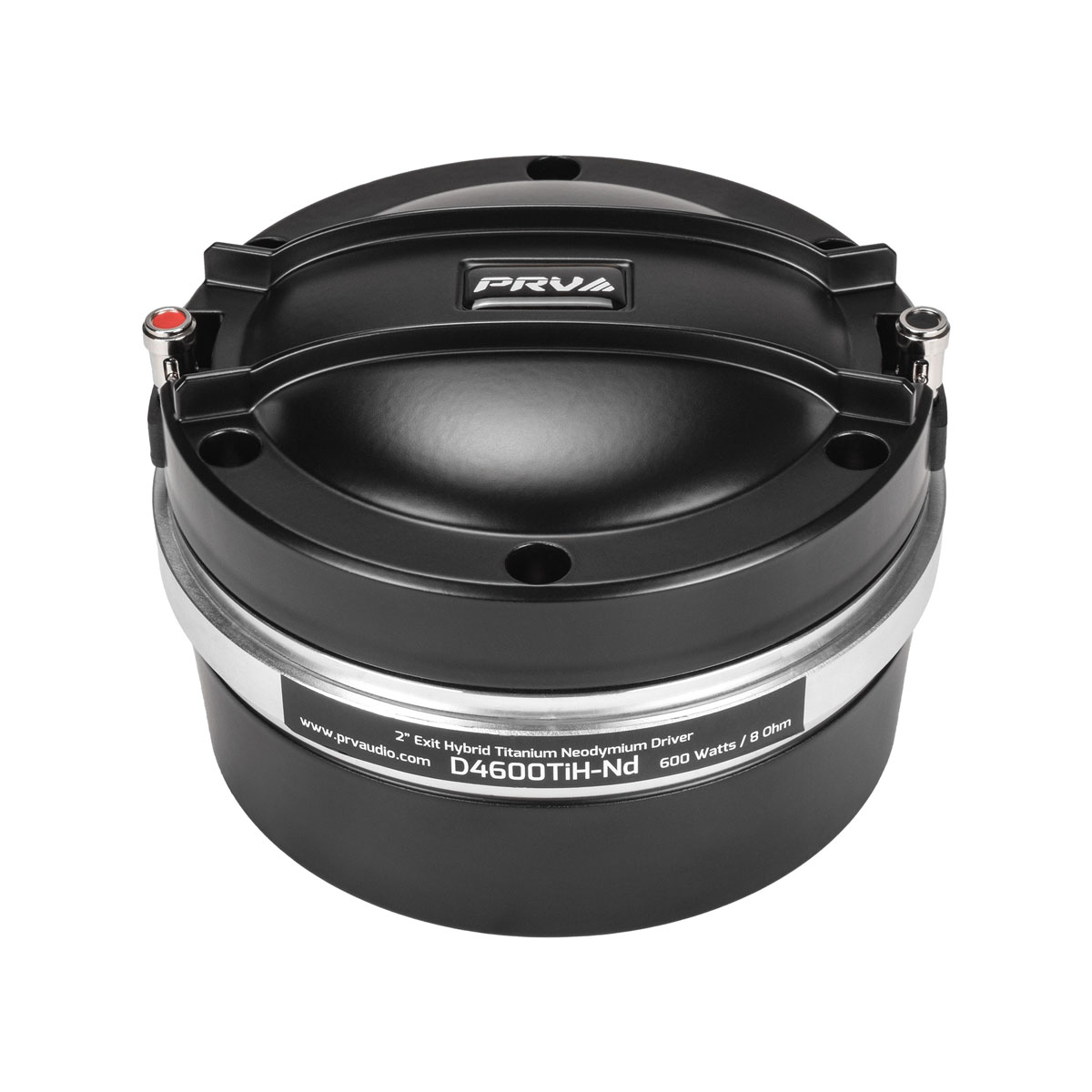

PRV 2 inch Exit Titanium Hybrid Neodymium Compression Driver 8 Ohm PRV-D4600TiH-Nd
$449.91

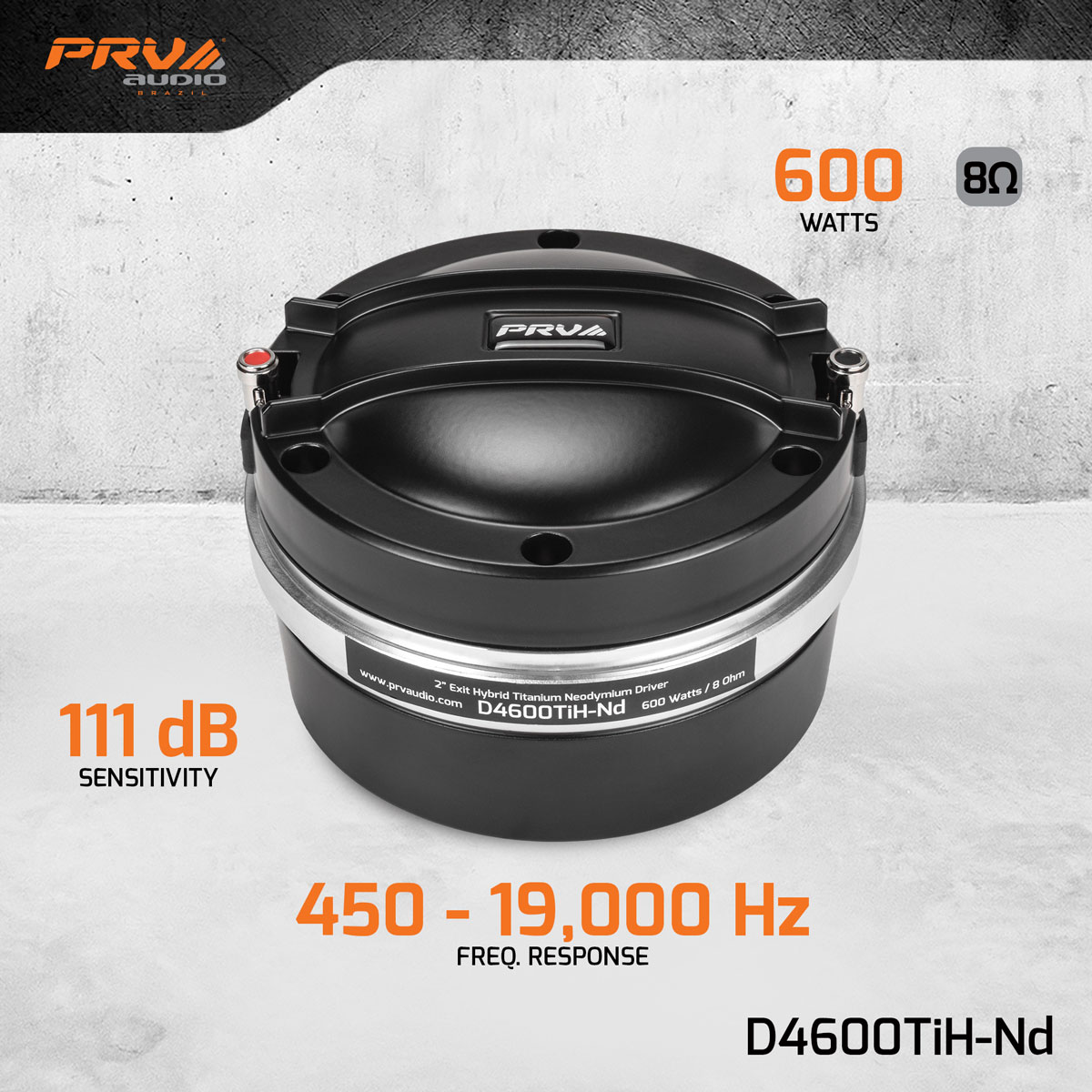

2″ exit titanium hybrid neodymium driver, 300 W rated / 600 W program power and 111 dB, 450 Hz to 19 kHz.
Peak Power1,200W
Sensitivity111dB
Size4in
Out of stock
01 Overview
The details
Product Overview
The PRV D4600TiH-Nd is built for high-output car audio competition, covering vocals and highs from about 450 Hz to 19 kHz. Its titanium hybrid diaphragm and large 4" high-temperature voice coil deliver high output with smooth midrange, and the compact neodymium motor front-mounts with WGP22-50 horns.
Key Features
- 300 W rated, 600 W program, 1,200 W peak
- 111 dB sensitivity (2.83V/1m)

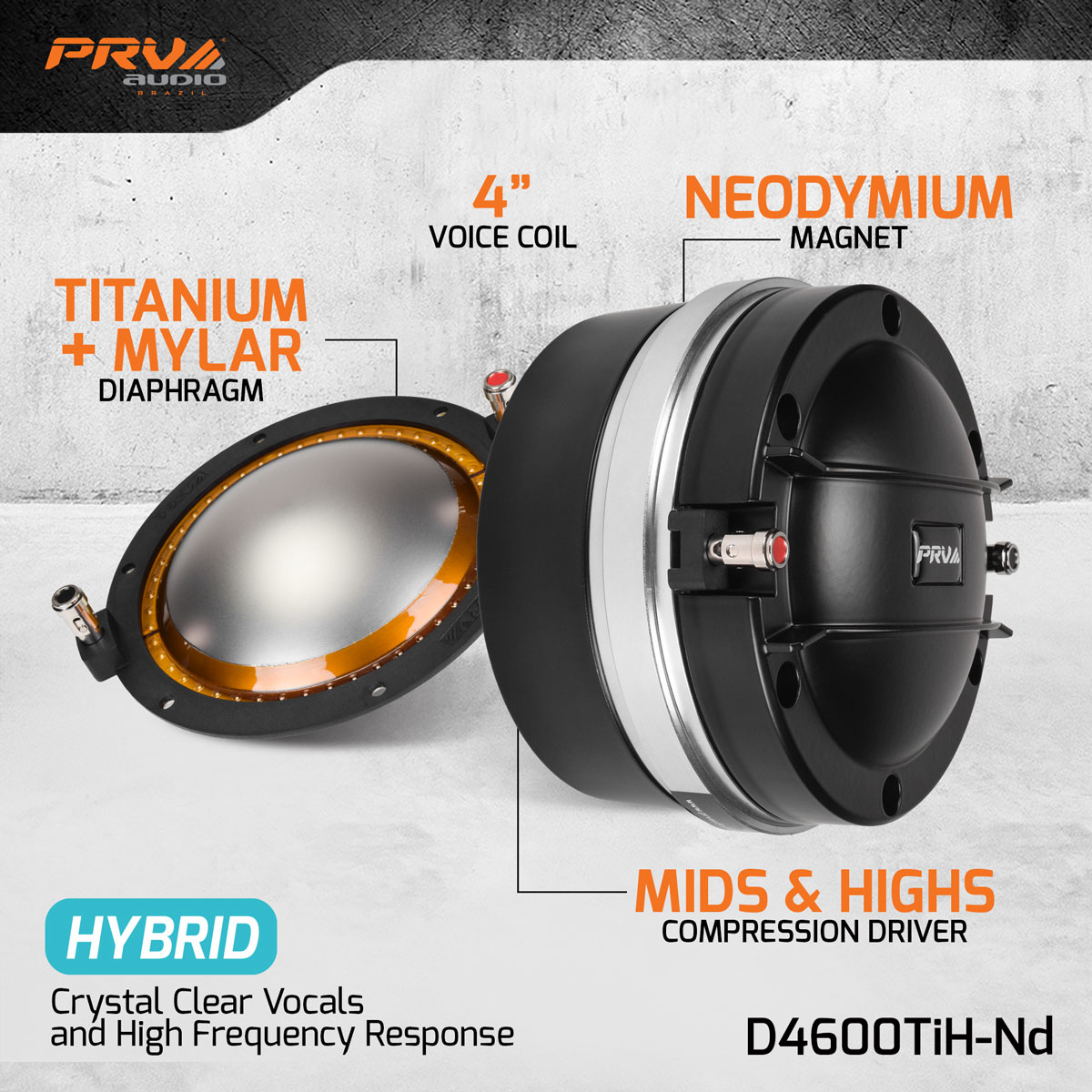

- Titanium-Mylar hybrid diaphragm, 4" voice coil
- Compact neodymium motor
- Front mounts with WGP22-50 horns
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
Peak Power 01
1,200W
Short-burst rating
Sensitivity 02
111dB
Efficiency
Size 03
4in
Nominal
Weight 04
8.60lb
Per unit
- Impedance
- 8 Ohm
- Nominal Power Handling
- 300 W
- Program Power
- 600 W
- Max Peak Power
- 1,200 W
- Recommended Hi Pass Crossover
- 650 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 111 dB
- Frequency Response
- 450 – 19,000 Hz
- Voice Coil Diameter
- 4" (101 mm)
- Magnet
- Neodymium

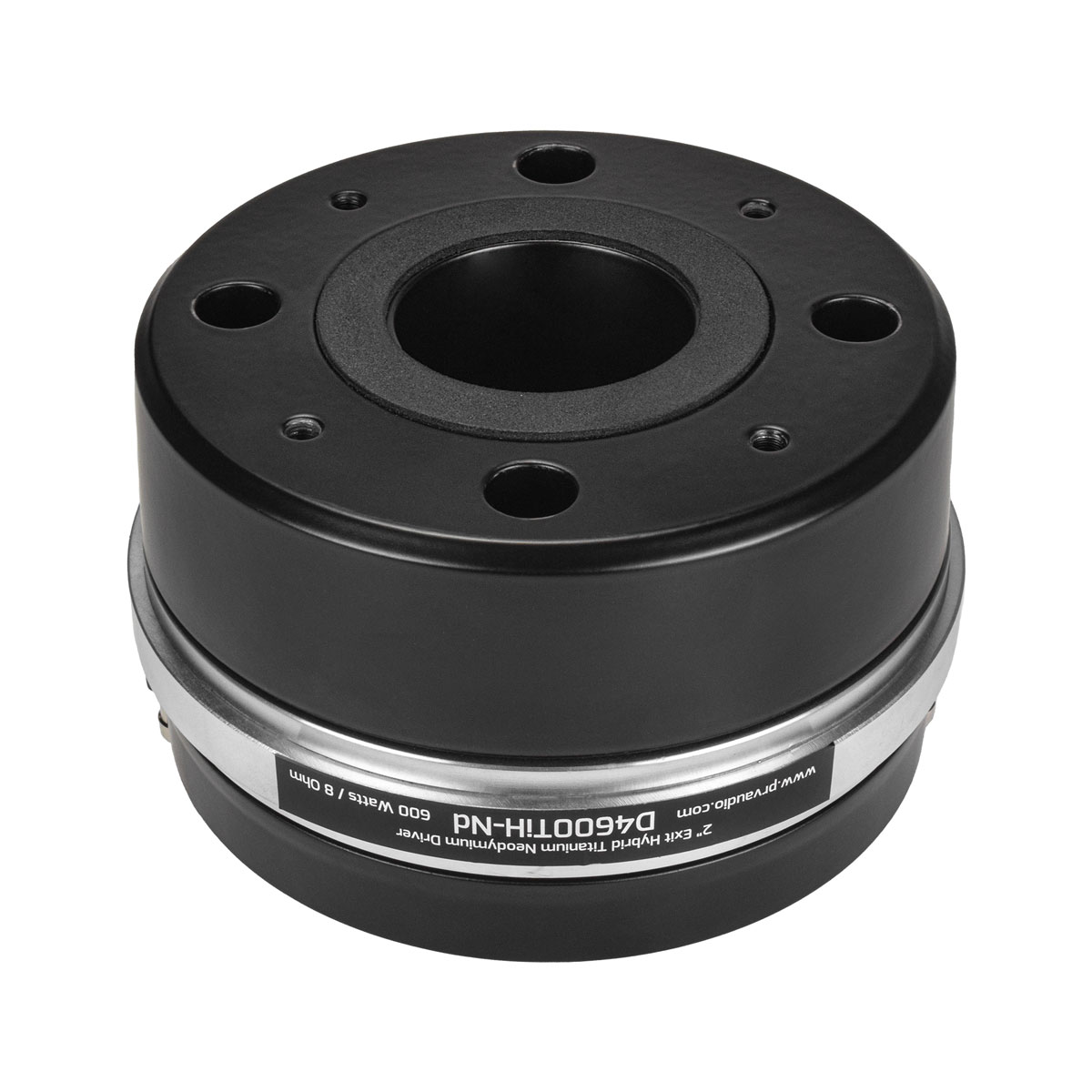

- Mounting
- Bolt-on, M6 x 4 on a 4" (102 mm) bolt circle
- Overall Dimensions
- 5.75" (146 mm) dia., 4.03" (102.5 mm) deep
- Net Weight
- 8.60 lbs
- Weight
- 9.3 lbs
- Dimensions
- 6.25 × 6.75 × 5.25 in
- Exit Throat
- 2" (50 mm)
- Diaphragm
- Titanium-Mylar hybrid
