01 Overview
The details
Product Overview

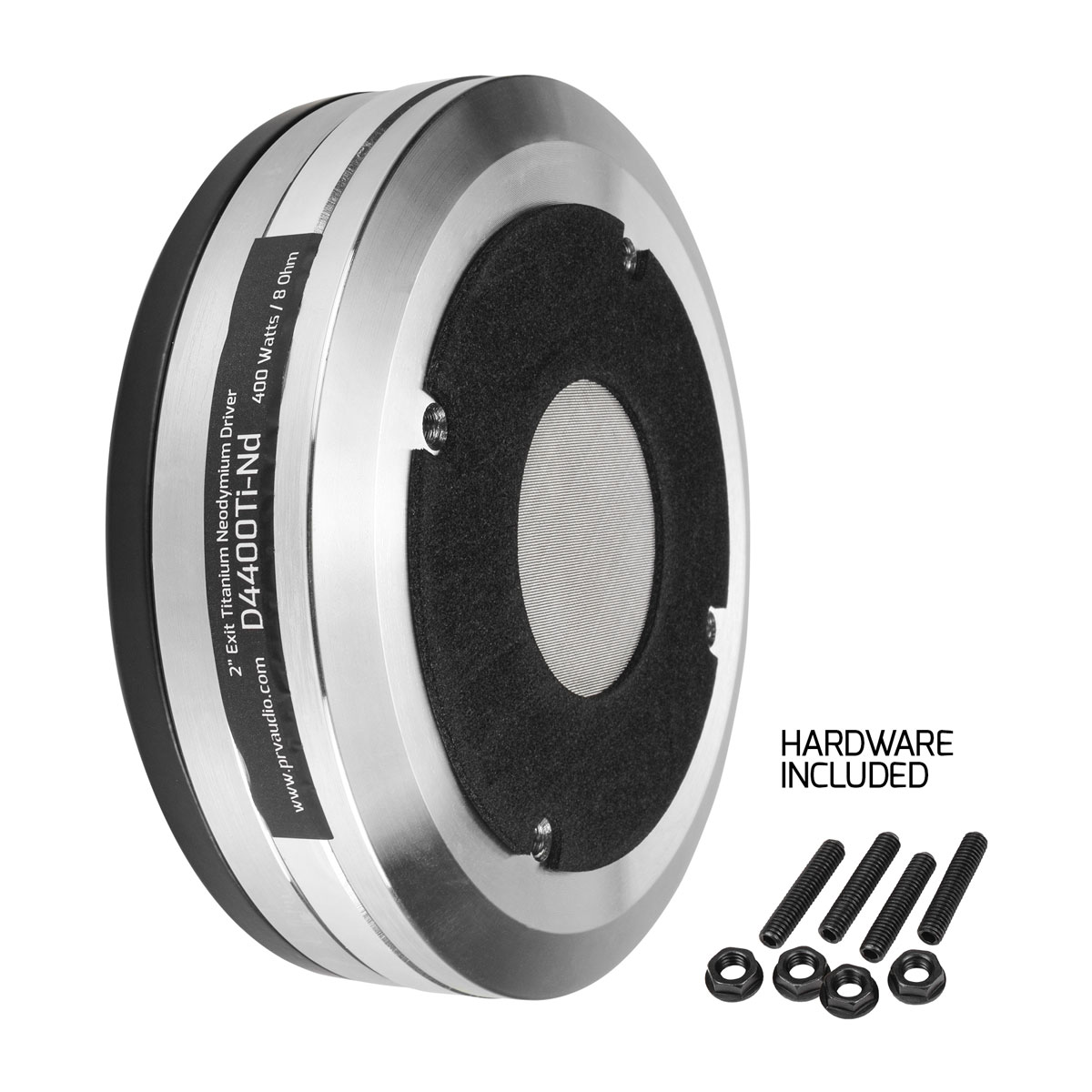

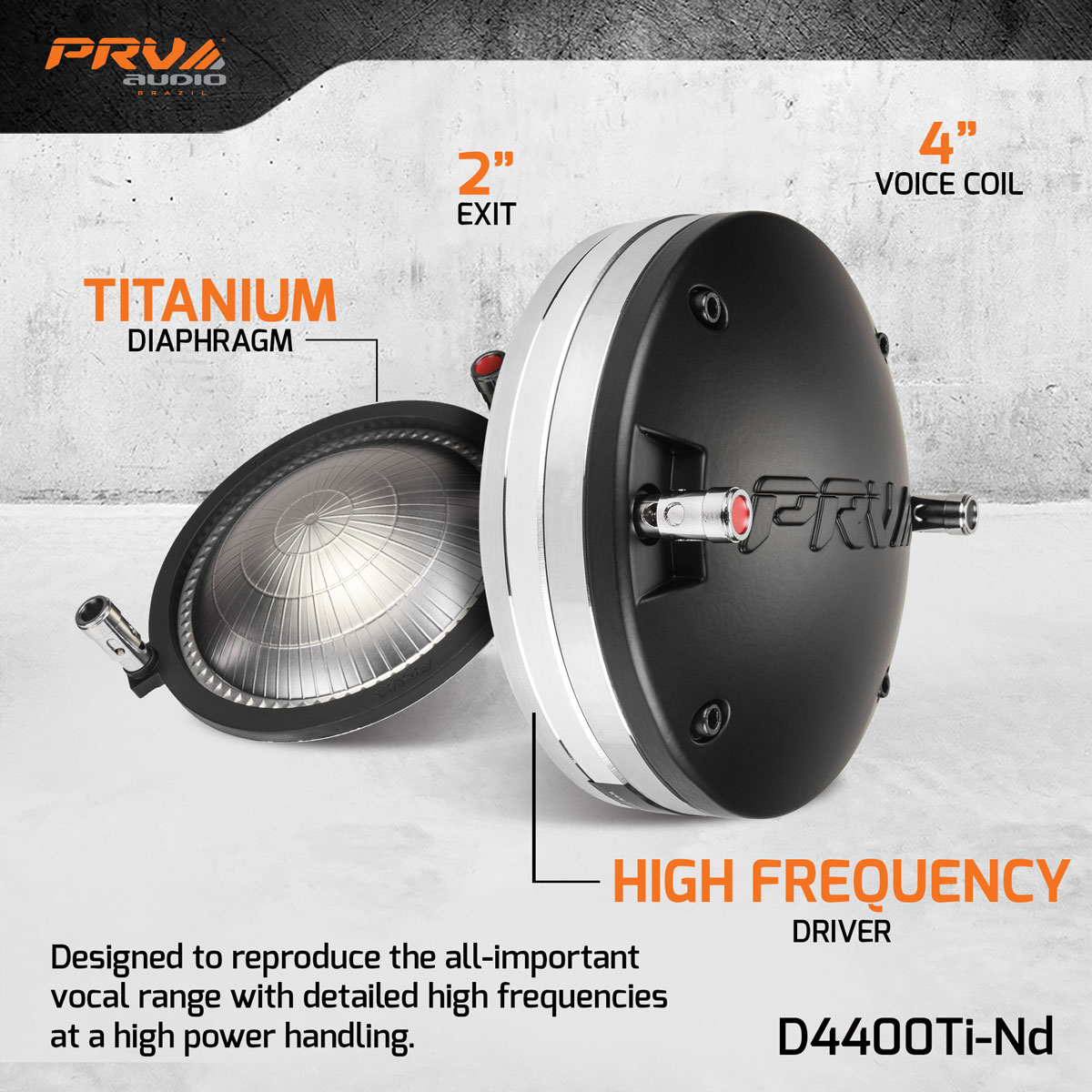

The PRV D4400Ti-Nd puts a titanium-Mylar diaphragm on a large 4" voice coil with a neodymium motor, keeping it compact and light without giving up output. Rated at 110 dB, it is aimed at pro audio, competition and 3-way car audio systems. Mounting hardware is included.
Key Features
- 200 W nominal, 400 W RMS program, 800 W peak
- 110 dB sensitivity (2.83V/1m)
- Titanium-Mylar diaphragm, 4" CCAW voice coil
- Neodymium motor, 8.82 lbs
- Mounting hardware included
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers

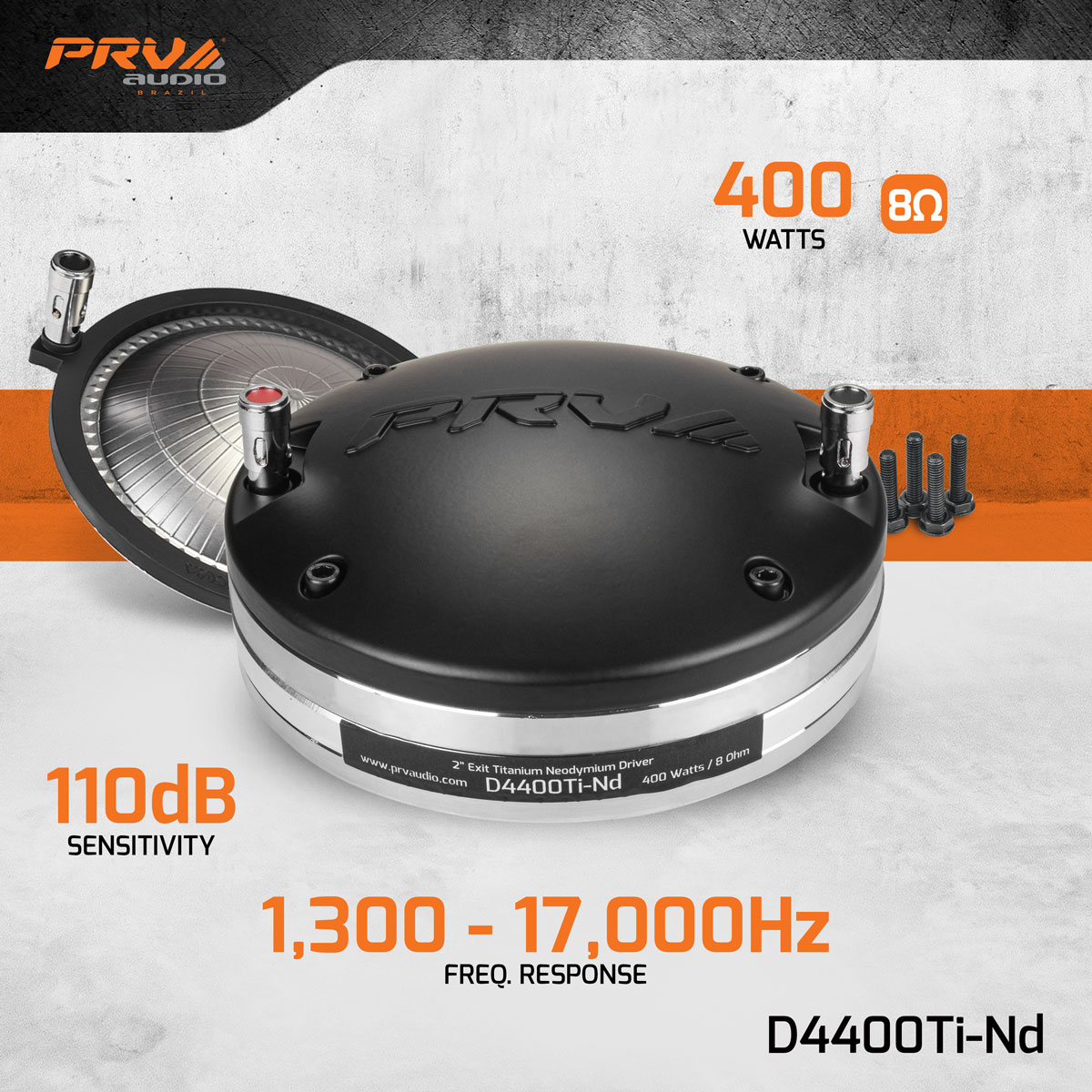

RMS Power 01
400W
Continuous rating
Peak Power 02
800W
Short-burst rating
Sensitivity 03
110dB
Efficiency
Size 04
4in
Nominal
- Impedance
- 8 Ohm
- Nominal Power Handling
- 200 W
- Continuous Program Power (RMS)
- 400 W
- Max Peak Power
- 800 W
- Recommended Hi Pass Crossover
- 1,400 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 110 dB
- Frequency Response
- 1,300 – 19,000 Hz
- Voice Coil Diameter
- 4" (101.6 mm)
- Magnet
- Neodymium
- Mounting
- Bolt-on, M6 x 4 on a 4" (102 mm) bolt circle
- Overall Dimensions
- 6.06" (154 mm) dia., 2.48" (63 mm) deep
- Net Weight
- 8.82 lbs (4.00 kg)
- Weight
- 10.1 lbs
- Dimensions
- 6.5 × 6.5 × 3.75 in
- Exit Throat
- 2" (50 mm)
- Diaphragm
- Titanium-Mylar
