PRV
PRV 3 inch 8 Ohm Titanium Bullet Super Tweeter v2 PRV-TW350Tiv2
$17.91
3″ square 8 Ohm titanium super tweeter v2, 120 W RMS and 105 dB, for multi-tweeter pro arrays.
RMS Power120W
Peak Power240W
Sensitivity105dB
01 Overview
The details
Product Overview

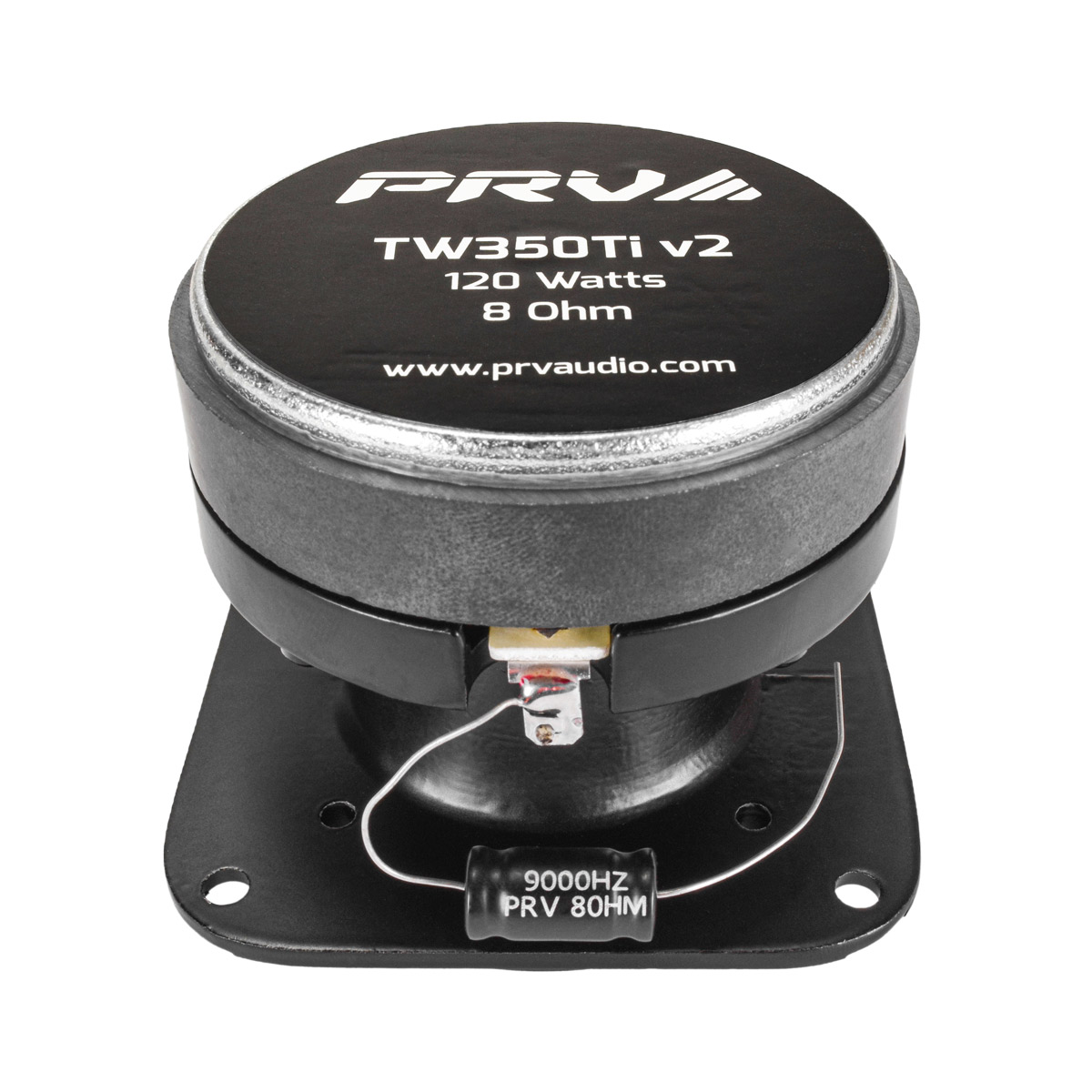

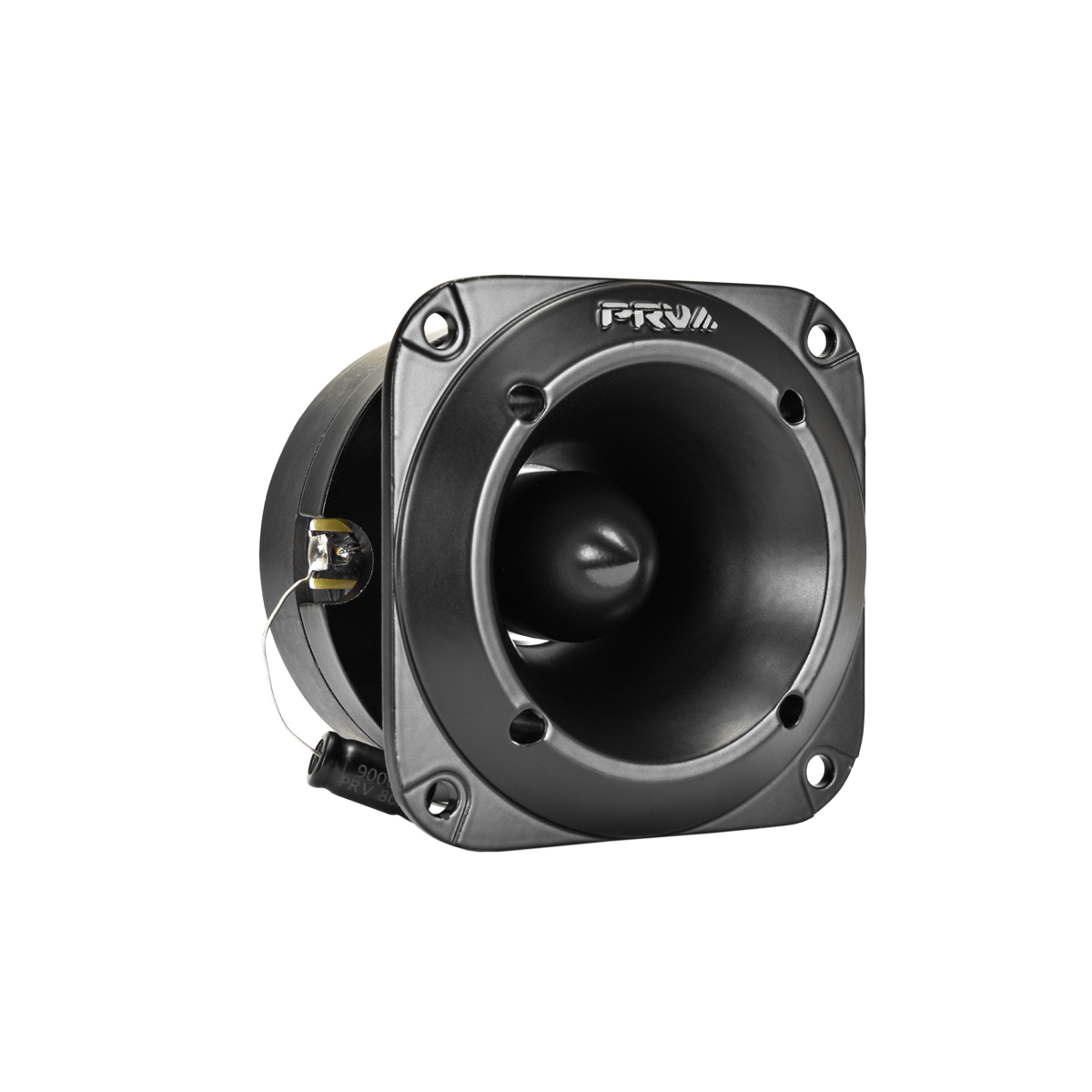

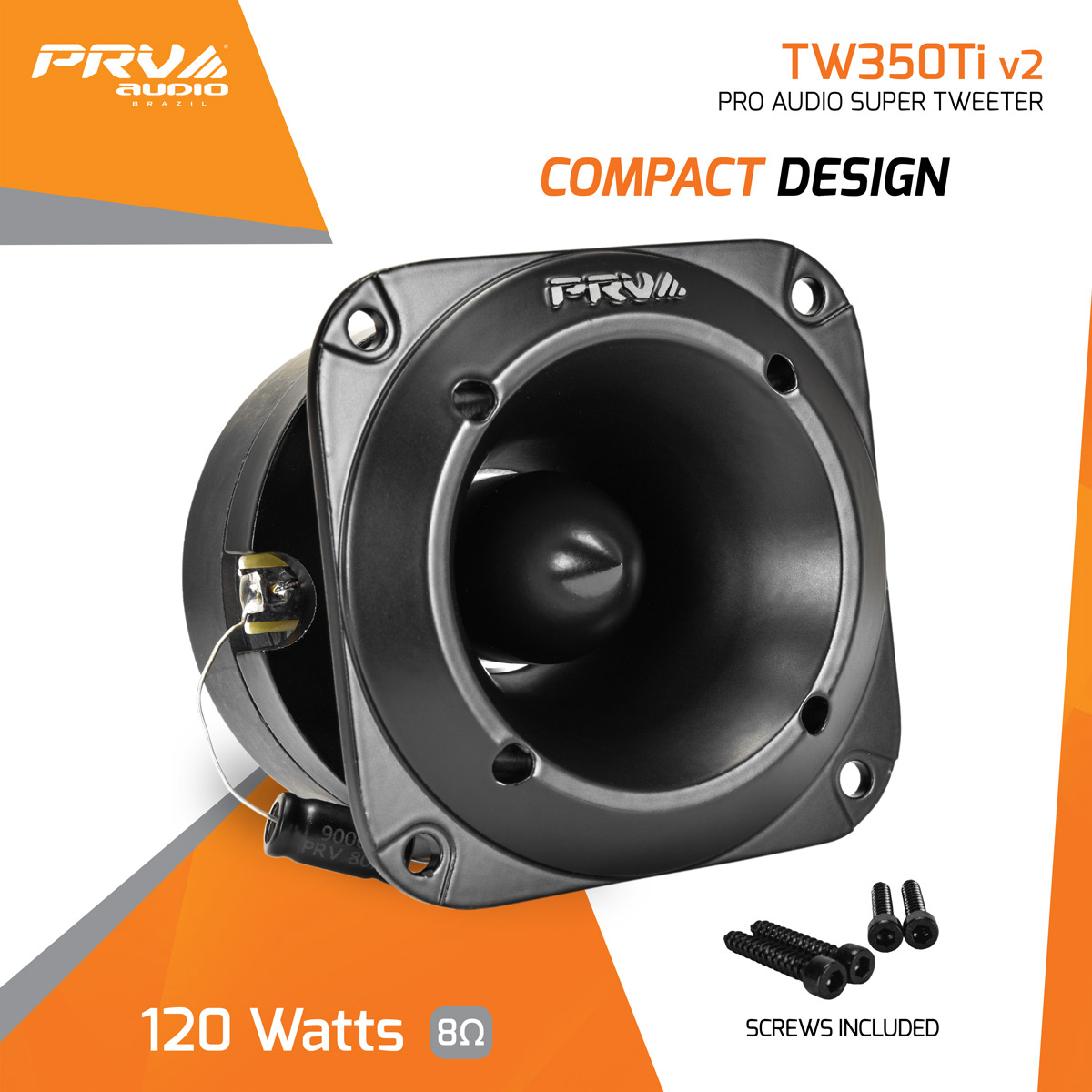

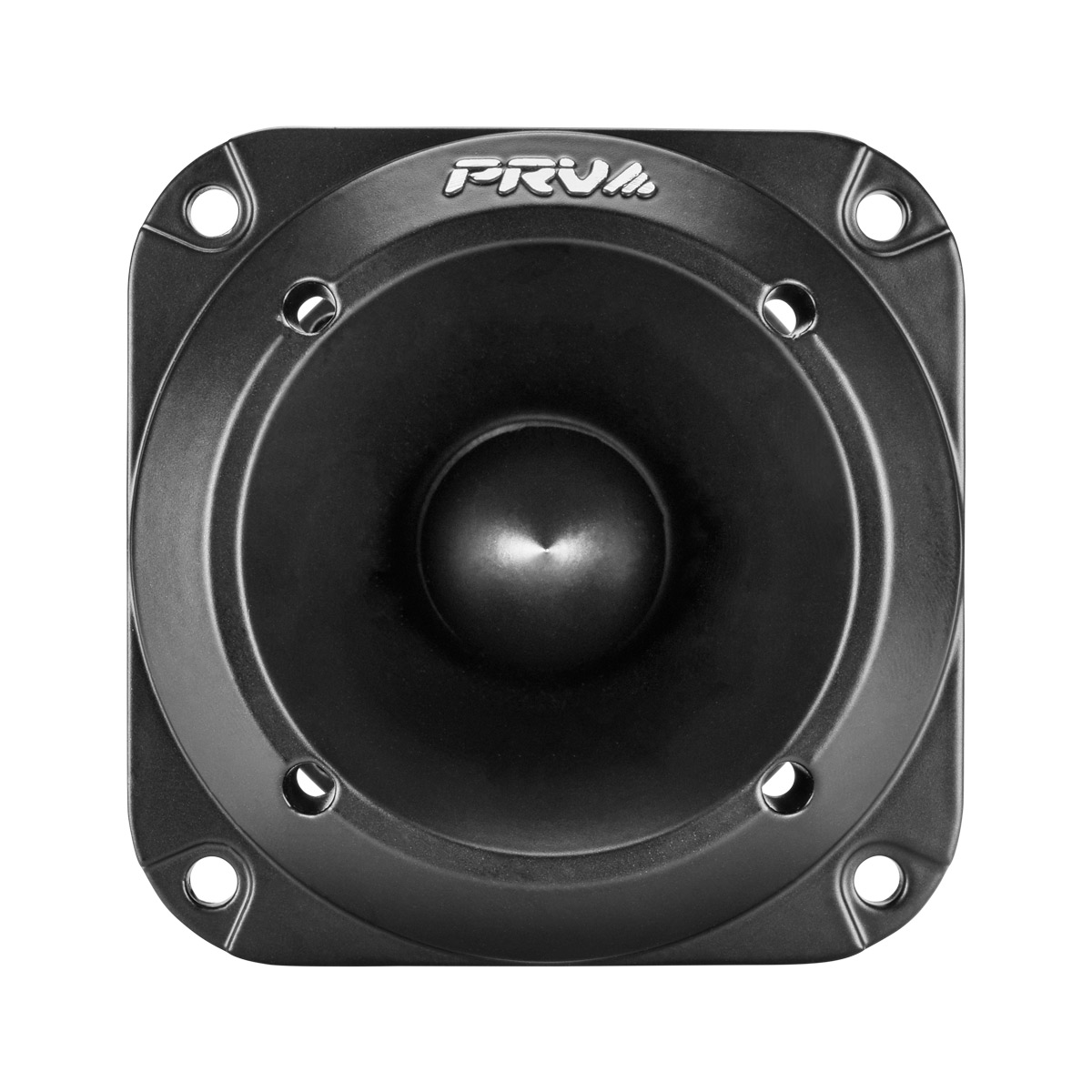

The PRV TW350Ti v2 pairs a light, rigid titanium diaphragm with a large magnet for efficient, smooth highs. Built-in capacitors roll off the lows, and the square 3" faceplate with hidden terminals makes it easy to install in arrays of eight or more tweeters in pro audio systems.
Key Features
- 60 W nominal, 120 W RMS program, 240 W peak
- 105 dB sensitivity (2.83V/1m)
- Titanium diaphragm, 1" voice coil
- Square 3" faceplate, hidden terminals
- Built-in capacitors
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
120W
Continuous rating
Peak Power 02
240W
Short-burst rating
Sensitivity 03
105dB
Efficiency
Size 04
1in
Nominal
- Impedance
- 8 Ohm
- Nominal Power Handling
- 60 W
- Continuous Program Power (RMS)
- 120 W
- Max Peak Power
- 240 W
- Recommended Hi Pass Crossover
- 5,000 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 105 dB
- Frequency Response
- 4,500 – 20,000 Hz
- Voice Coil Diameter
- 1" (25 mm)
- Magnet
- Ferrite

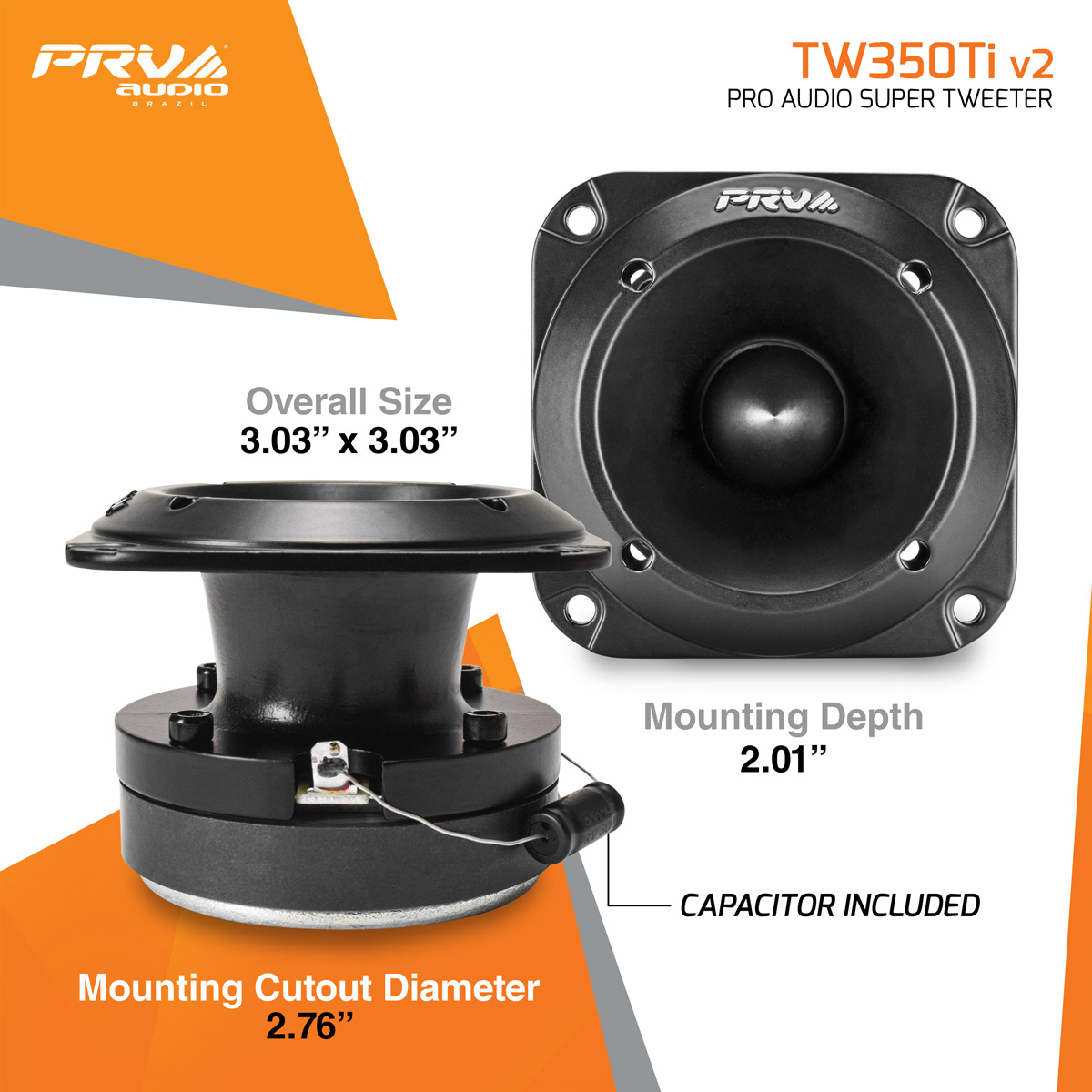

- Mounting Depth
- 2.01" (51 mm)
- Cutout
- 2.76" (70 mm)
- Overall Dimensions
- 3.03" x 3.03" (77 mm), 2.36" (60 mm) deep
- Net Weight
- 1.1 lbs (0.50 kg)
- Weight
- 1.3 lbs
- Dimensions
- 3.5 × 3.25 × 2.75 in
- Diaphragm
- Titanium
03 Reviews (0)
Reviews (0)
You must be logged in to post a review.
04 Complete the build
Shop all Power it right
Related products
-
SoundQubedHDX Pro Audio Midrange and Tweeter 1400 watt RMS Package
$419.60Add to cart -

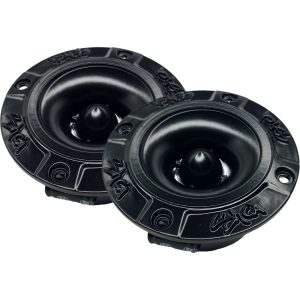

Sky High Car AudioPROTW1B Mini Bullet Tweeters 1″ VC 4 ohm SHCA-SH-PROTW1B
