PRV
PRV 4 inch 8 Ohm Titanium Bullet Super Tweeter WHITE PRV-TW700TiWHITE
$39.91
4″ square 8 Ohm titanium super tweeter in white, 240 W RMS and 107 dB, built-in capacitor.
RMS Power240W
Peak Power480W
Sensitivity107dB
01 Overview
The details
Product Overview

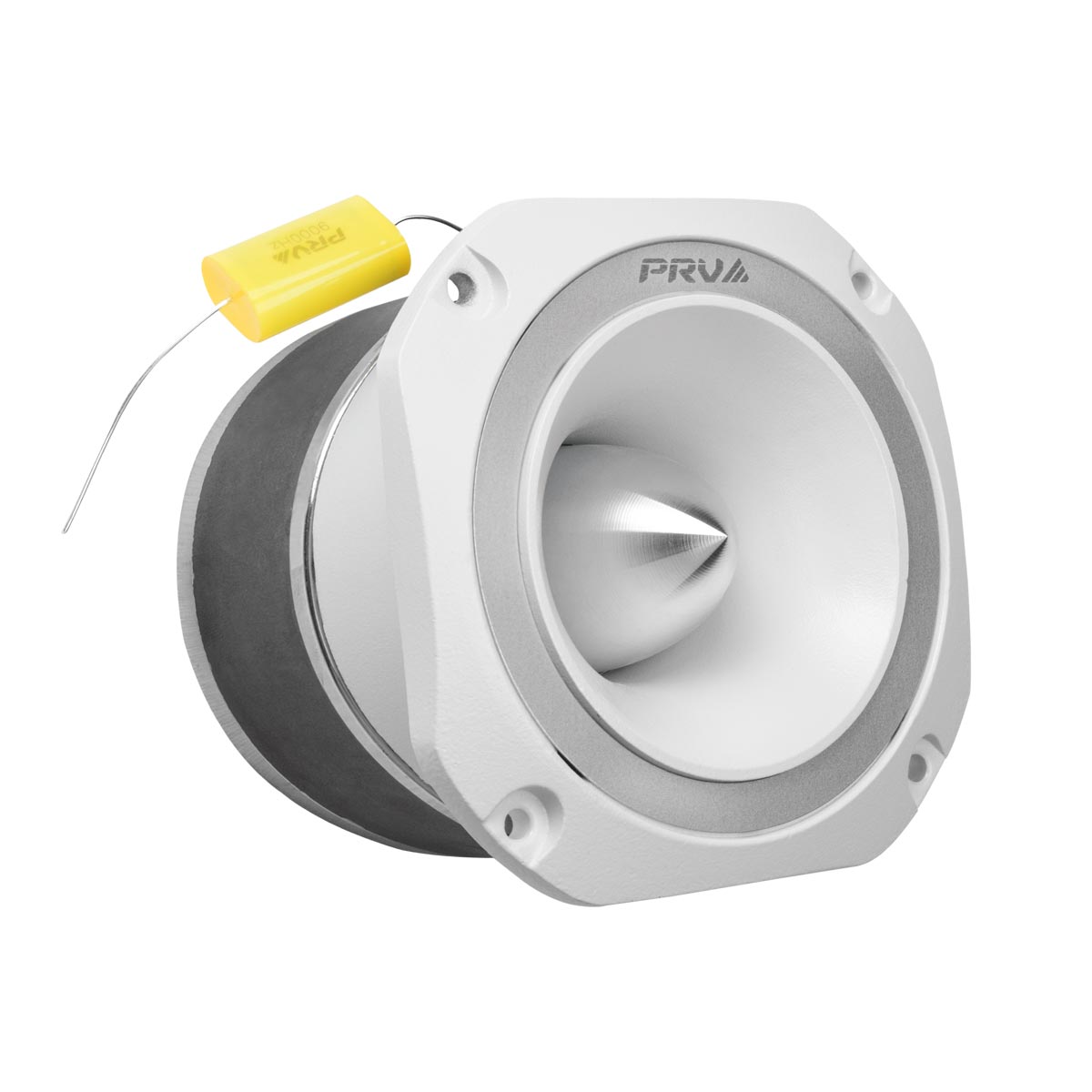

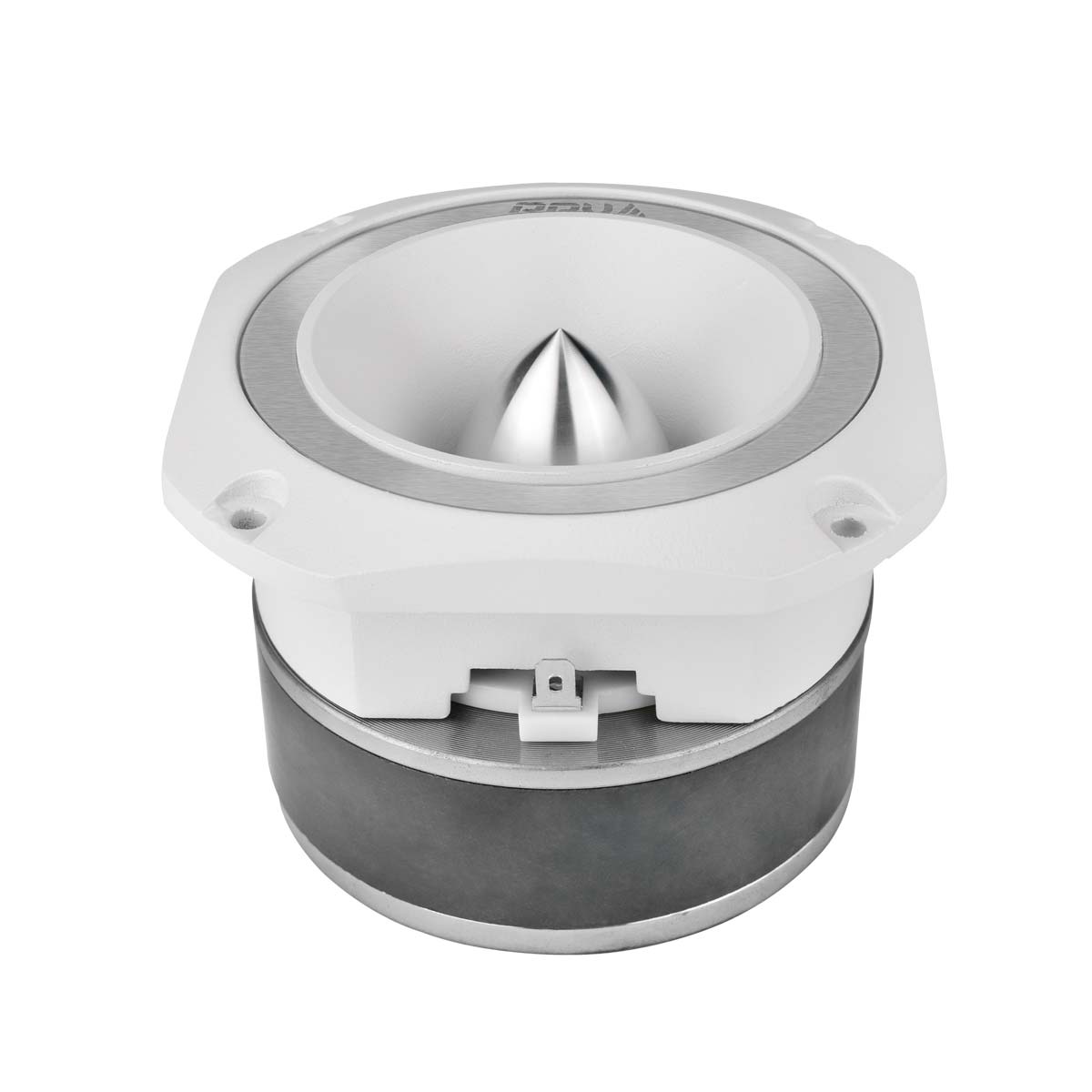

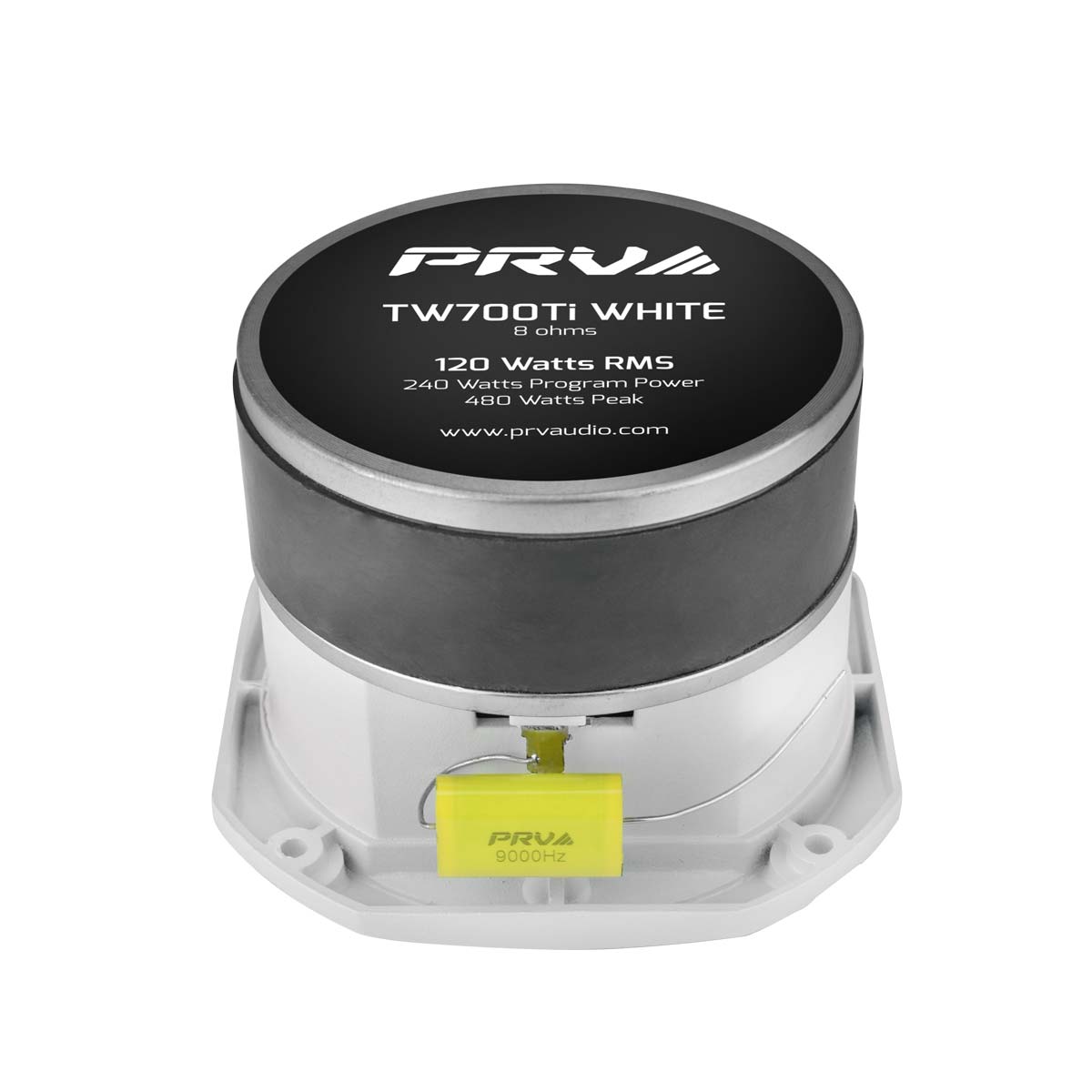

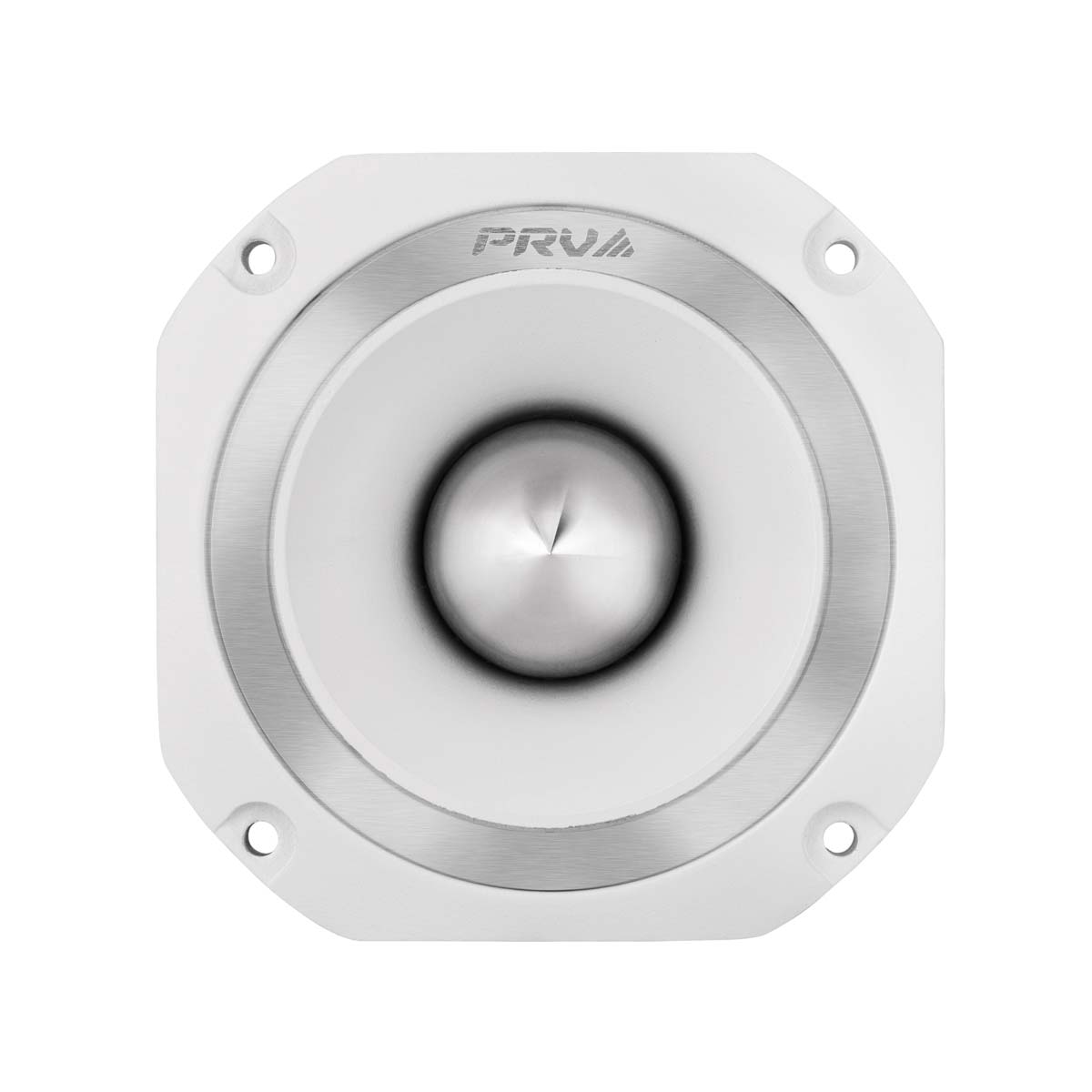

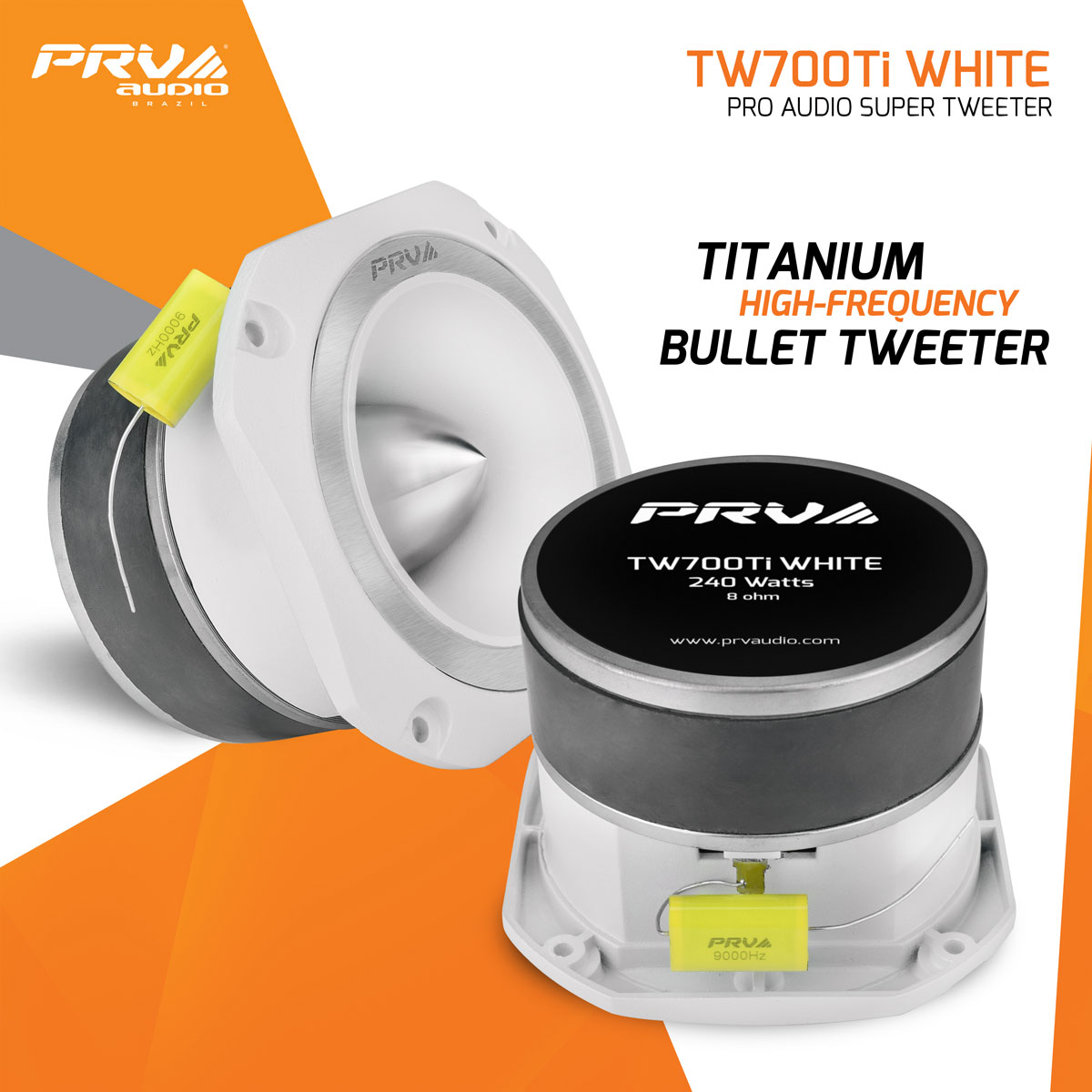

The PRV TW700Ti WHITE is a square-faceplate super tweeter with flat sides that allow easy side-by-side mounting in arrays. An oversized magnet system boosts sensitivity and lowers distortion at high SPL, the 1.5" voice coil handles 240 W of program power, and a built-in capacitor protects the driver.
Key Features
- 120 W nominal, 240 W RMS program, 480 W peak
- 107 dB sensitivity (2.83V/1m)
- Titanium diaphragm, 1.5" voice coil
- Square faceplate for side-by-side mounting
- Built-in capacitor, white finish
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
240W
Continuous rating
Peak Power 02
480W
Short-burst rating
Sensitivity 03
107dB
Efficiency
Size 04
1.5in
Nominal
- Impedance
- 8 Ohm
- Nominal Power Handling
- 120 W
- Continuous Program Power (RMS)
- 240 W
- Max Peak Power
- 480 W
- Recommended Hi Pass Crossover
- 5,000 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 107 dB
- Frequency Response
- 3,500 – 20,000 Hz
- Voice Coil Diameter
- 1.5" (38 mm)
- Magnet
- Ferrite
- Finish
- White

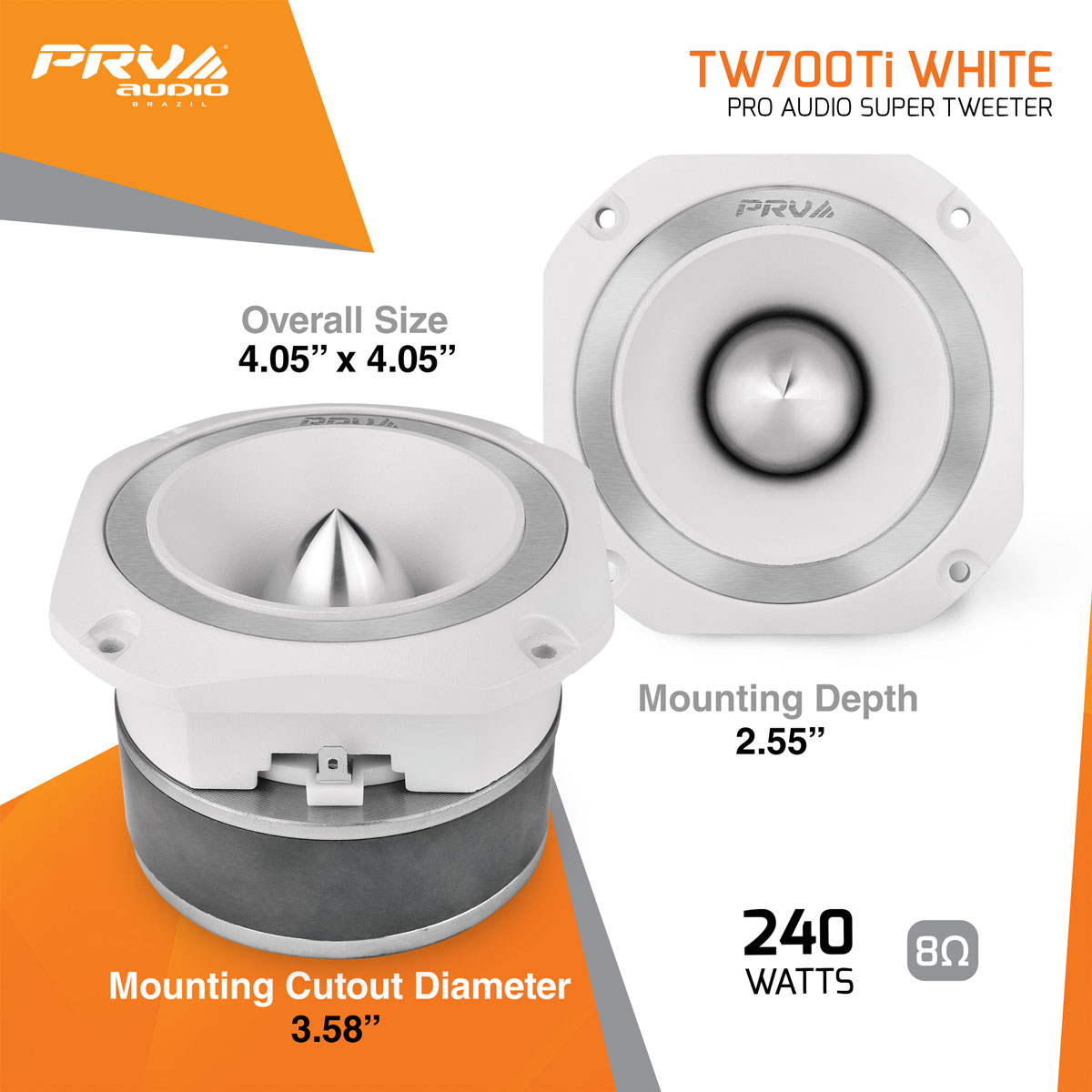

- Mounting Depth
- 2.55" (64.9 mm)
- Cutout
- 3.58" (91 mm)
- Overall Dimensions
- 4.05" x 4.05" (103 mm), 2.97" (75.54 mm) deep
- Net Weight
- 3.48 lbs (1.58 kg)
- Weight
- 3.6 lbs
- Dimensions
- 4.25 × 4.75 × 3.25 in
- Diaphragm
- Titanium
03 Reviews (0)
Reviews (0)
You must be logged in to post a review.
04 Complete the build
Shop all Power it right
Related products
-
SoundQubed1.6 inch Compression Neodymium Super Bullet Tweeter LED Light SQ-HDX-PT2N
$59.95Add to cart -
Sky High Car Audio6 x 9 inch Coaxial Mid-range Speaker with Tweeter SH-P69
$101.95Add to cart -

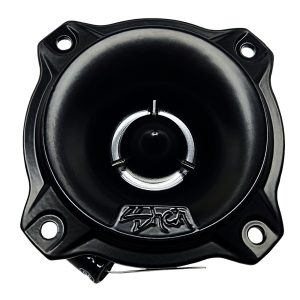

Sky High Car AudioSHCA PRO-TW1E Mini Bullet Tweeters 1″ VC 4 ohm – Single
