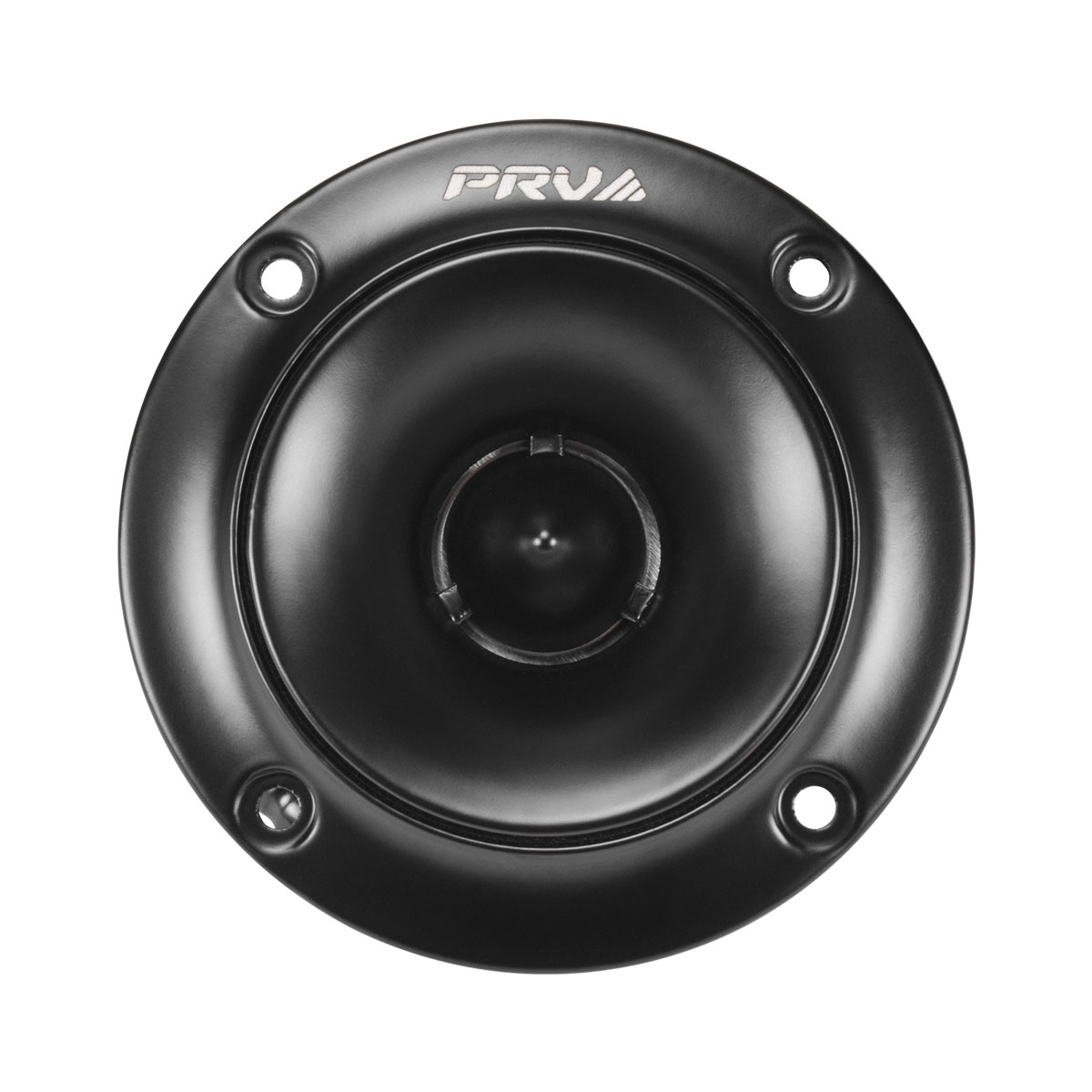

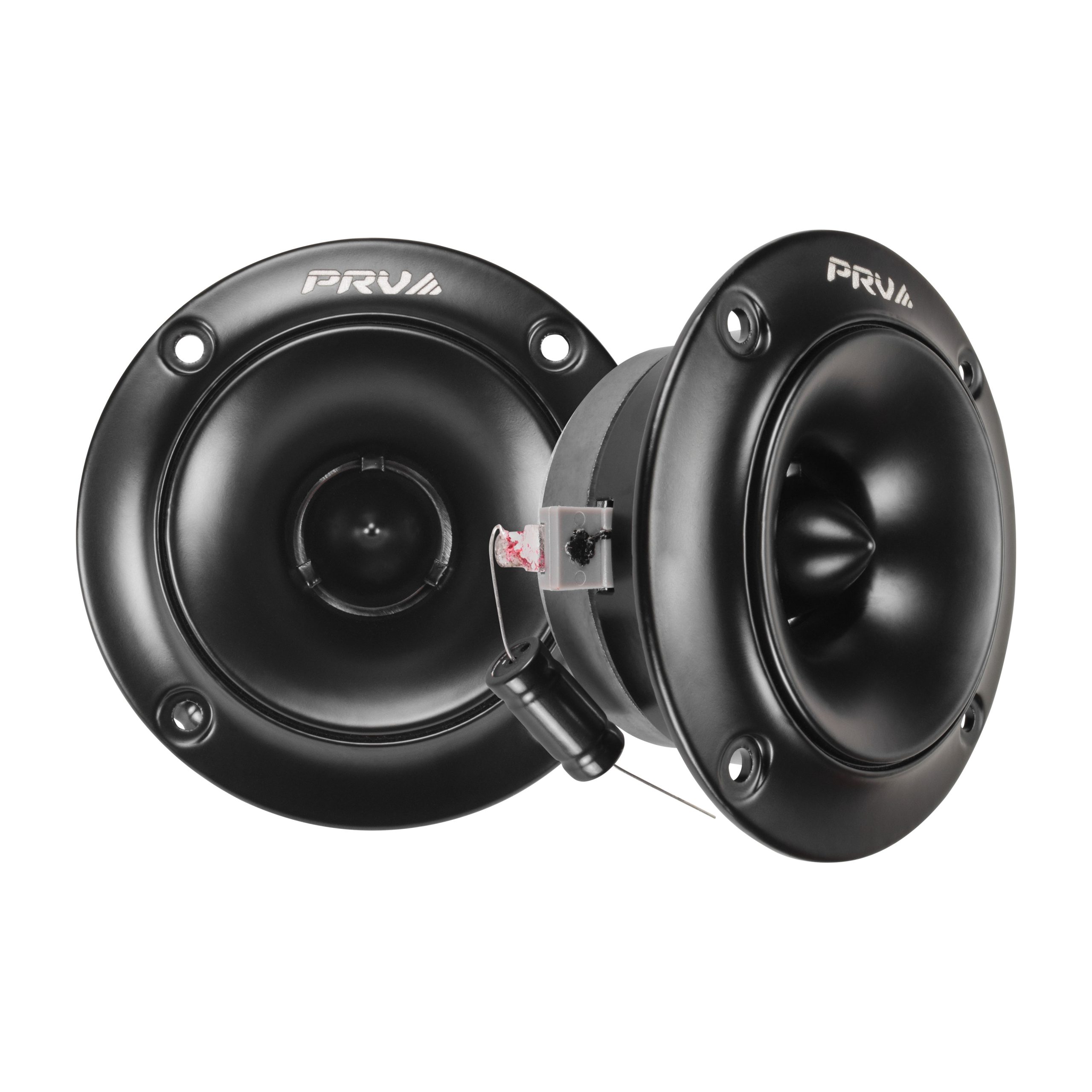

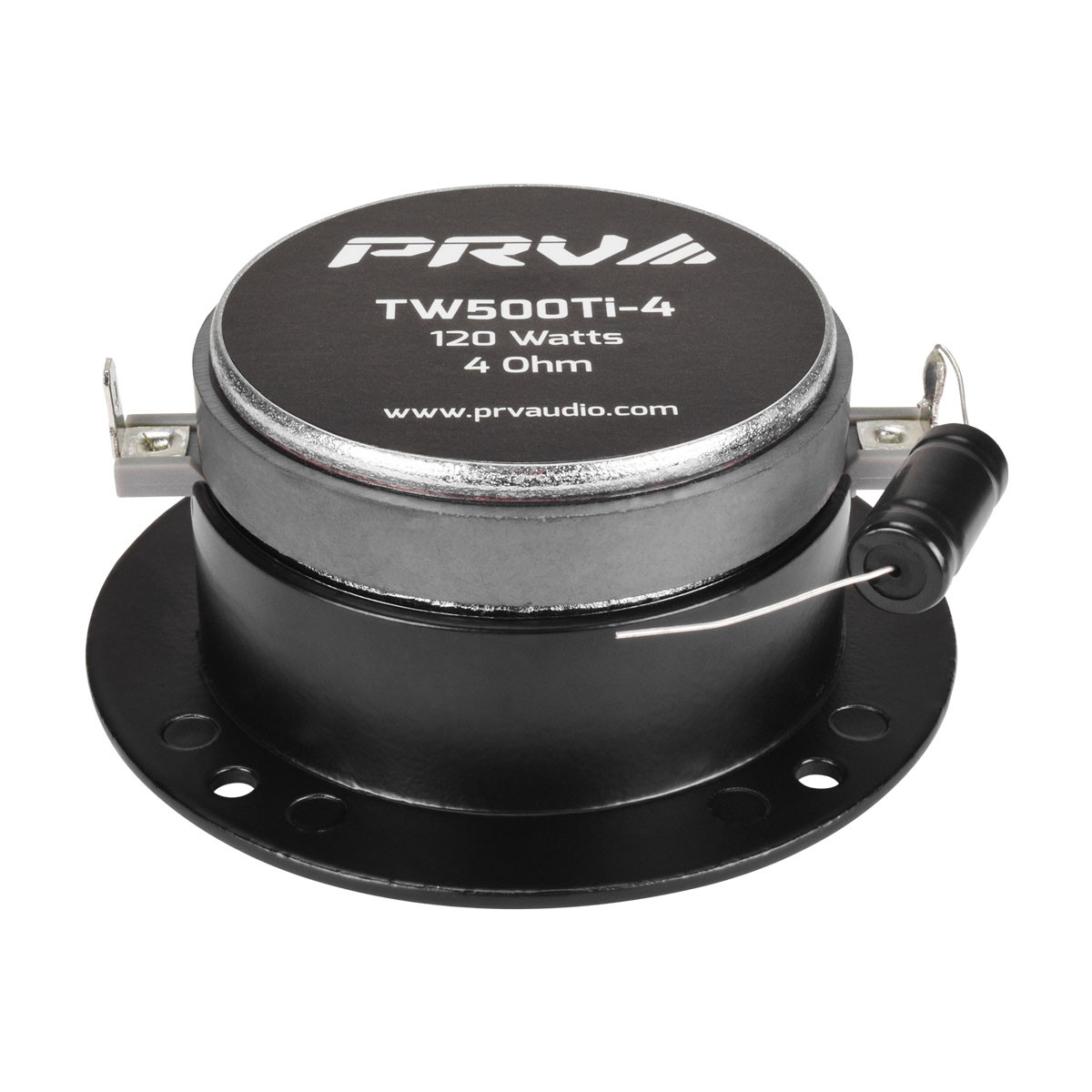

PRV 4 Ohm Titanium Bullet Super Tweeter PAIR PRV-TW500Ti-4
$34.91
Pair of shallow 4 Ohm titanium bullet super tweeters, 120 W RMS each and 104 dB, built-in capacitor.
RMS Power120W
Peak Power240W
Sensitivity104dB
01 Overview
The details
Product Overview
The PRV TW500Ti-4 pair brings detailed highs to tight mounting spaces with a shallow 1.42" mounting depth. A titanium diaphragm gives accurate, detailed treble from 4.5 kHz to 20 kHz, and a built-in capacitor provides low-frequency protection. Sold as a pair.
Key Features
- 60 W nominal, 120 W RMS program, 240 W peak (each)
- 104 dB sensitivity (2.00V/1m)
- Titanium diaphragm, 1" voice coil
- Built-in capacitor

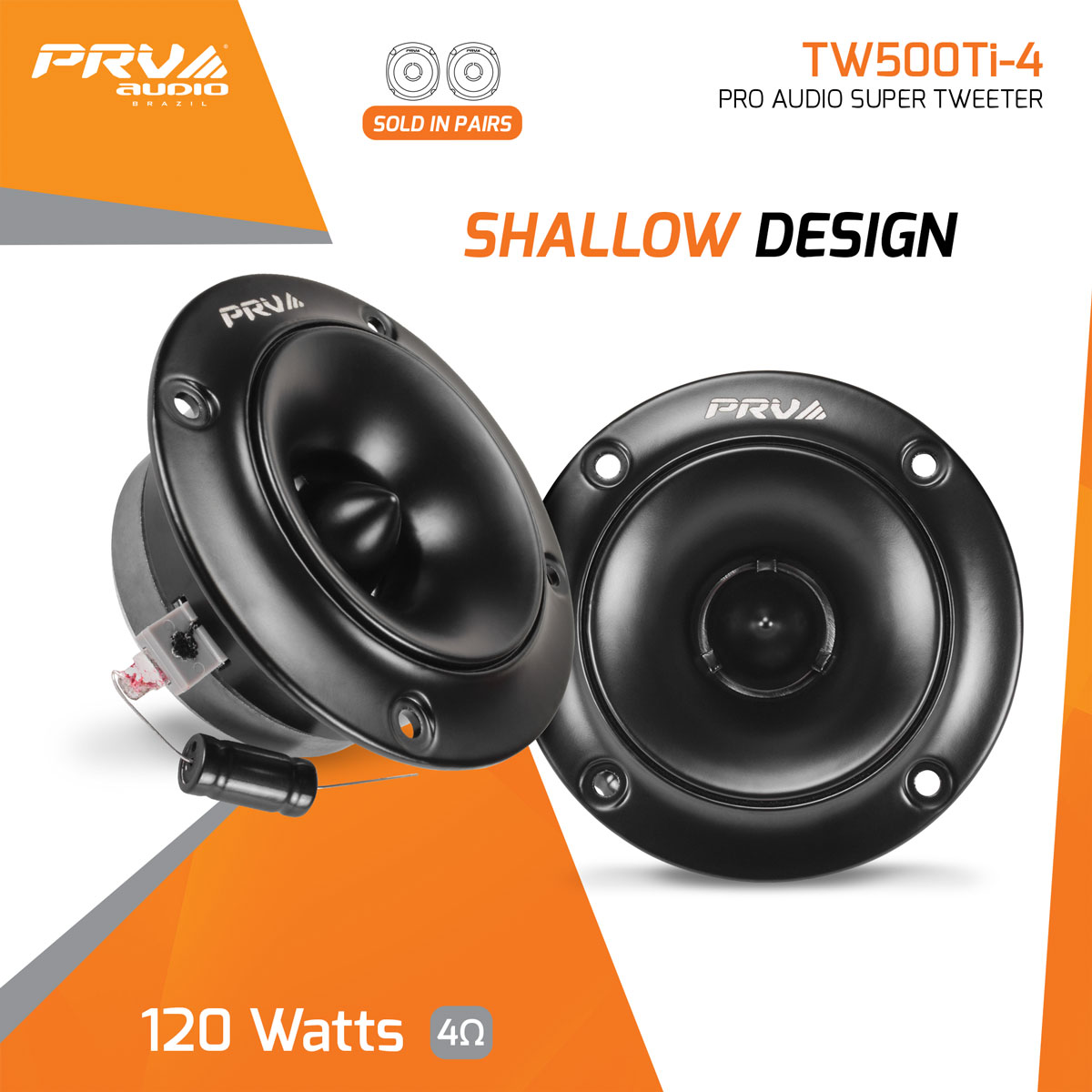

- Shallow 1.42" mounting depth
- Sold as a pair
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
120W
Continuous rating
Peak Power 02
240W
Short-burst rating
Sensitivity 03
104dB
Efficiency
Size 04
1in
Nominal
- Impedance
- 4 Ohm
- Nominal Power Handling
- 60 W
- Continuous Program Power (RMS)
- 120 W
- Max Peak Power
- 240 W
- Recommended Hi Pass Crossover
- 6,000 Hz, 12 dB/octave
- Sensitivity (2.00V at 1m)
- 104 dB
- Frequency Response
- 4,500 – 20,000 Hz
- Voice Coil Diameter
- 1" (25 mm)
- Magnet
- Ferrite

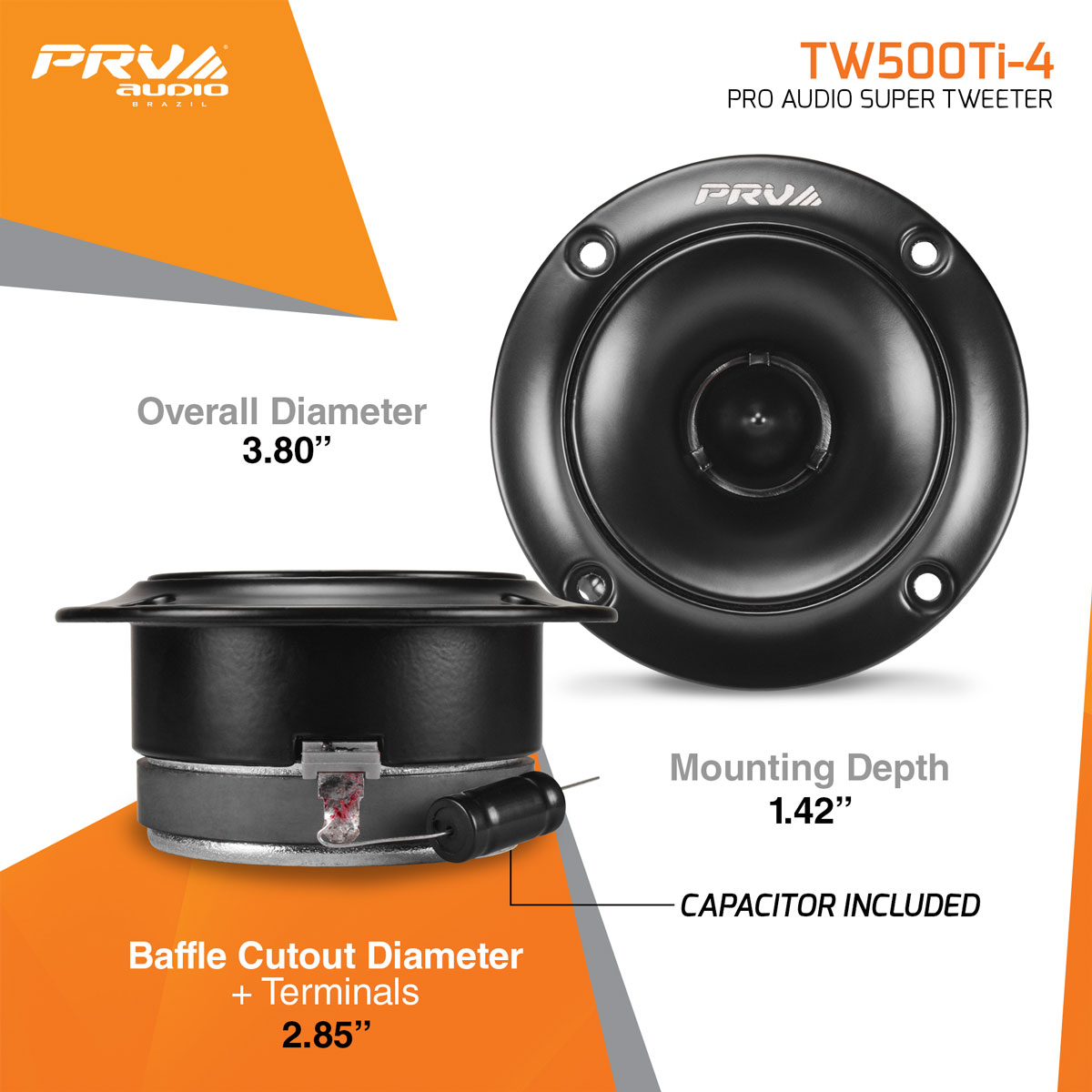

- Mounting Depth
- 1.42" (36 mm)
- Cutout
- 2.85" (72.5 mm)
- Overall Dimensions
- 3.80" (96.5 mm) dia., 1.73" (44 mm) deep
- Net Weight
- 1.0 lb (0.45 kg)
- Weight
- 2.7 lbs
- Dimensions
- 5.25 × 9.5 × 3.75 in
- Diaphragm
- Titanium
- Sold As
- Pair
