PRV
PRV 6×9 inch 4 Ohm Full Range Speaker PRV-69FR250-4
$74.91
6×9″ 4 Ohm full range speaker with whizzer cone, 250 W RMS, plays 75 Hz to 18 kHz without a tweeter.
RMS Power250W
Peak Power500W
Sensitivity94dB
01 Overview
The details
Product Overview
The PRV 69FR250-4 covers roughly 75 Hz to 18 kHz from a single driver, so it can run without a separate tweeter. A secondary whizzer cone extends the top end, and 94 dB sensitivity means it gets loud on modest amplifier power. A good fit for rear decks and custom builds.
Key Features
- 250 W RMS continuous program power, 500 W peak
- 94 dB sensitivity (2.00V/1m)
- Dual-cone design with whizzer cone
- 75 – 18,000 Hz full range response
- Ferrite motor in an aluminum frame
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
250W
Continuous rating
Peak Power 02
500W
Short-burst rating
Sensitivity 03
94dB
Efficiency
Size 04
1.5in
Nominal
- Impedance
- 4 Ohm
- Nominal Power Handling
- 125 W
- Continuous Program Power (RMS)
- 250 W
- Max Peak Power
- 500 W
- Recommended Hi Pass Crossover
- 80 Hz, 12 dB/octave
- Sensitivity (2.00V at 1m)
- 94 dB
- Frequency Response
- 75 – 18,000 Hz
- Voice Coil Diameter
- 1.5" (38 mm)
- Voice Coil Wire
- CCAW
- Former Material
- Kapton
- Magnet
- Ferrite
- Frame Material
- Aluminum

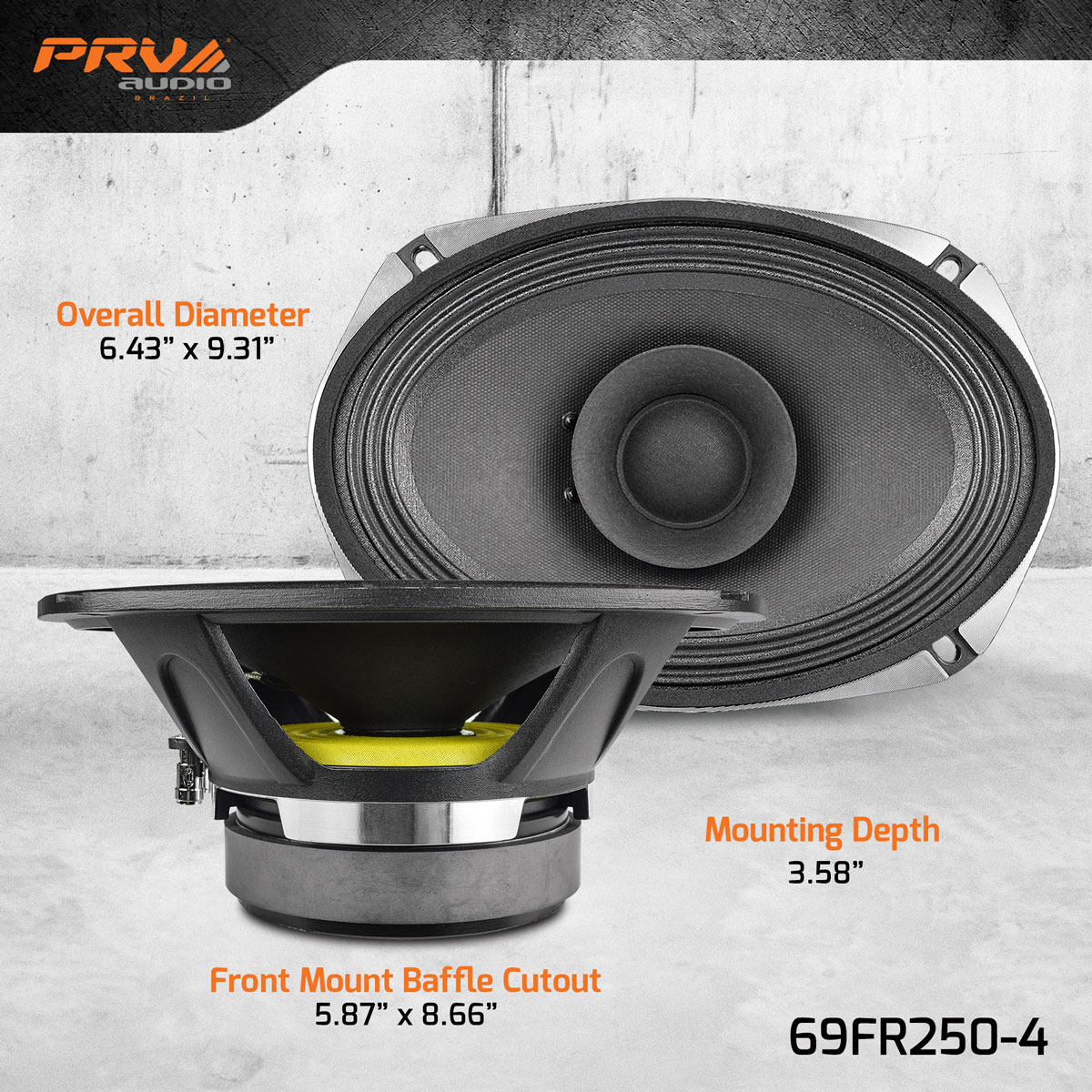

- Mounting Depth
- 3.58" (91 mm)
- Cutout
- 5.87" x 8.66" (149 x 220 mm)
- Overall Dimensions
- 6.43" x 9.31" (163.5 x 236.5 mm), 3.85" (98 mm) deep
- Net Weight
- 5.29 lbs (2.4 kg)
- Weight
- 5.29 lbs
- Dimensions
- 6.43 × 9.31 × 3.85 in
