PRV

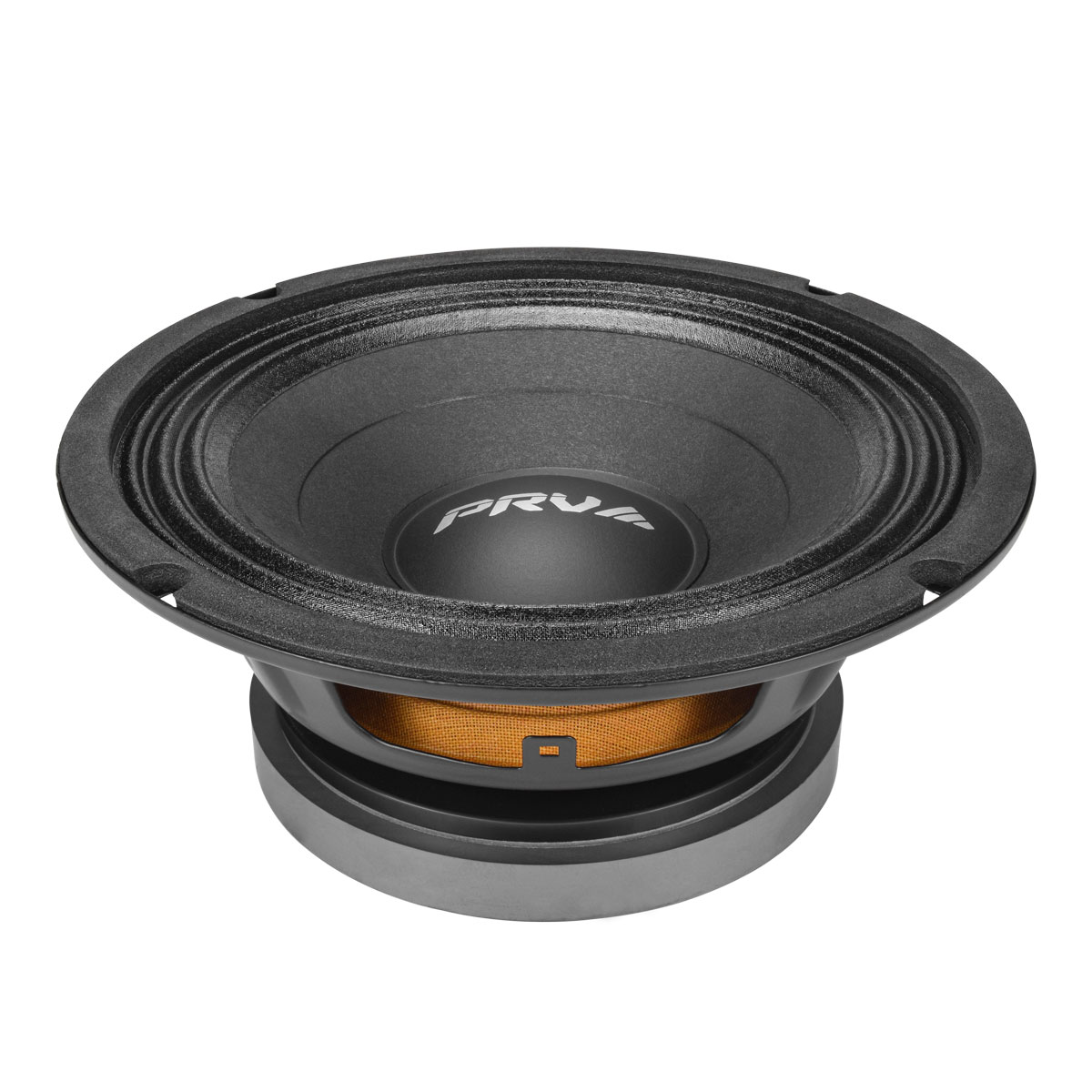

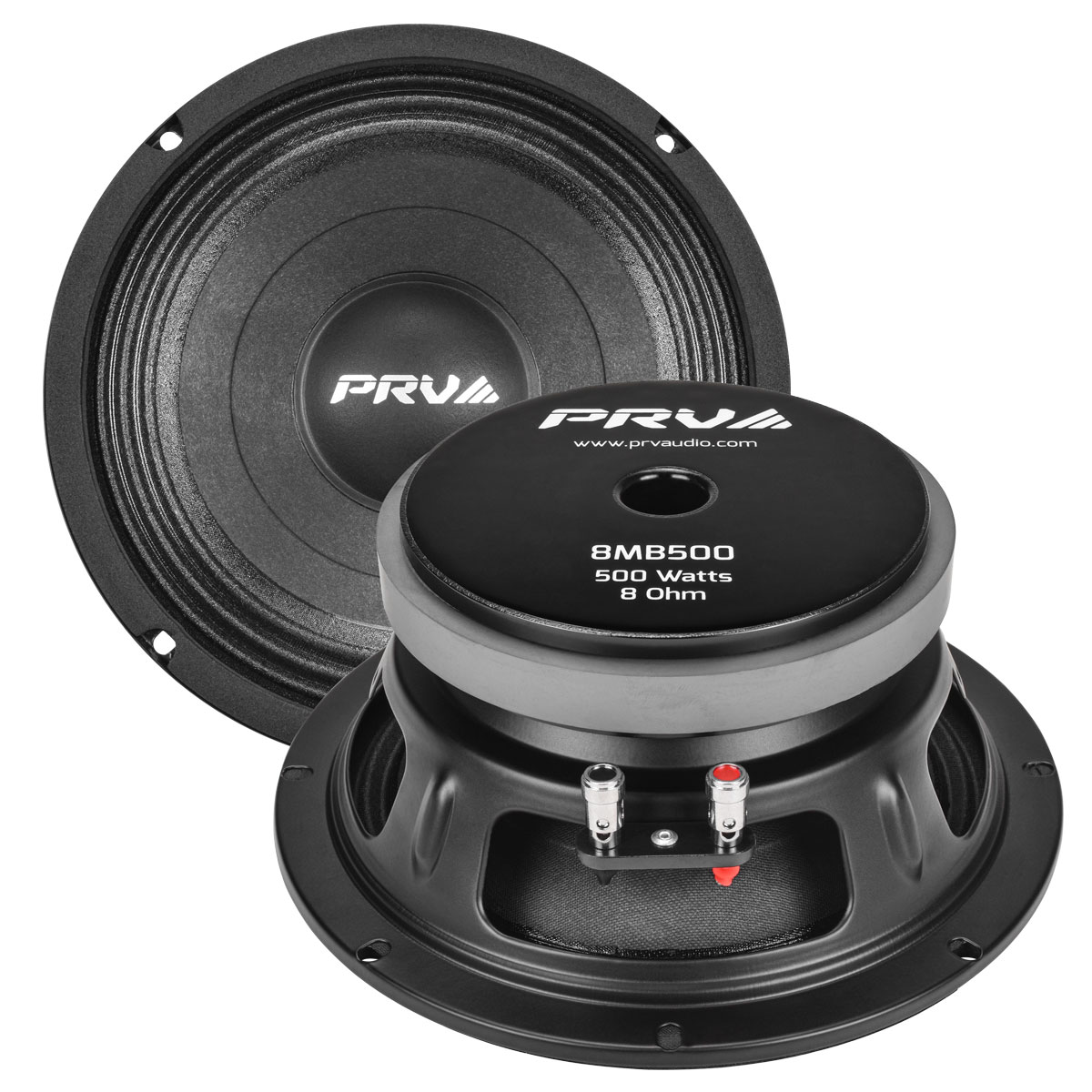

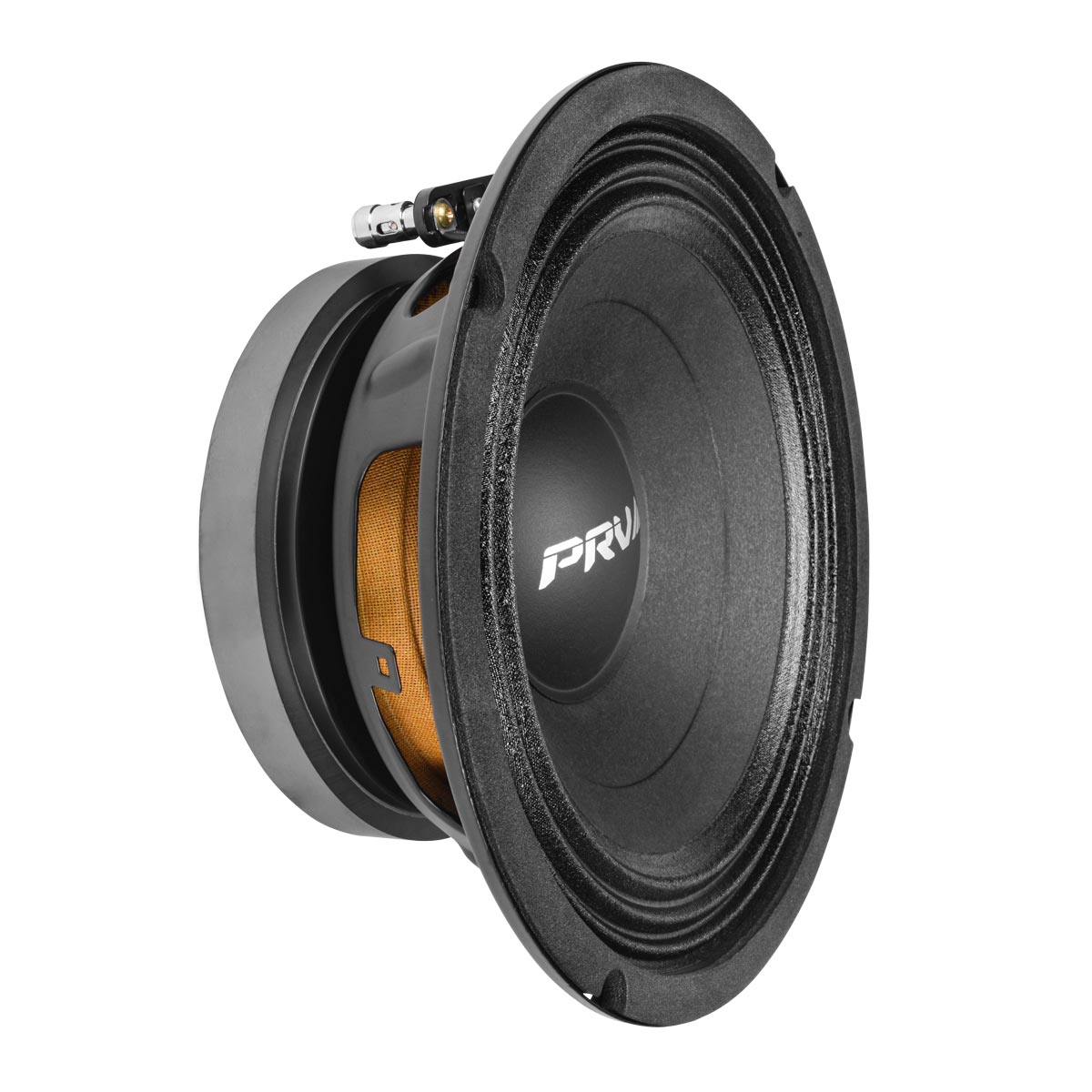

PRV 8 inch 8 Ohm MidBass Speaker PRV-8MB500
$42.91

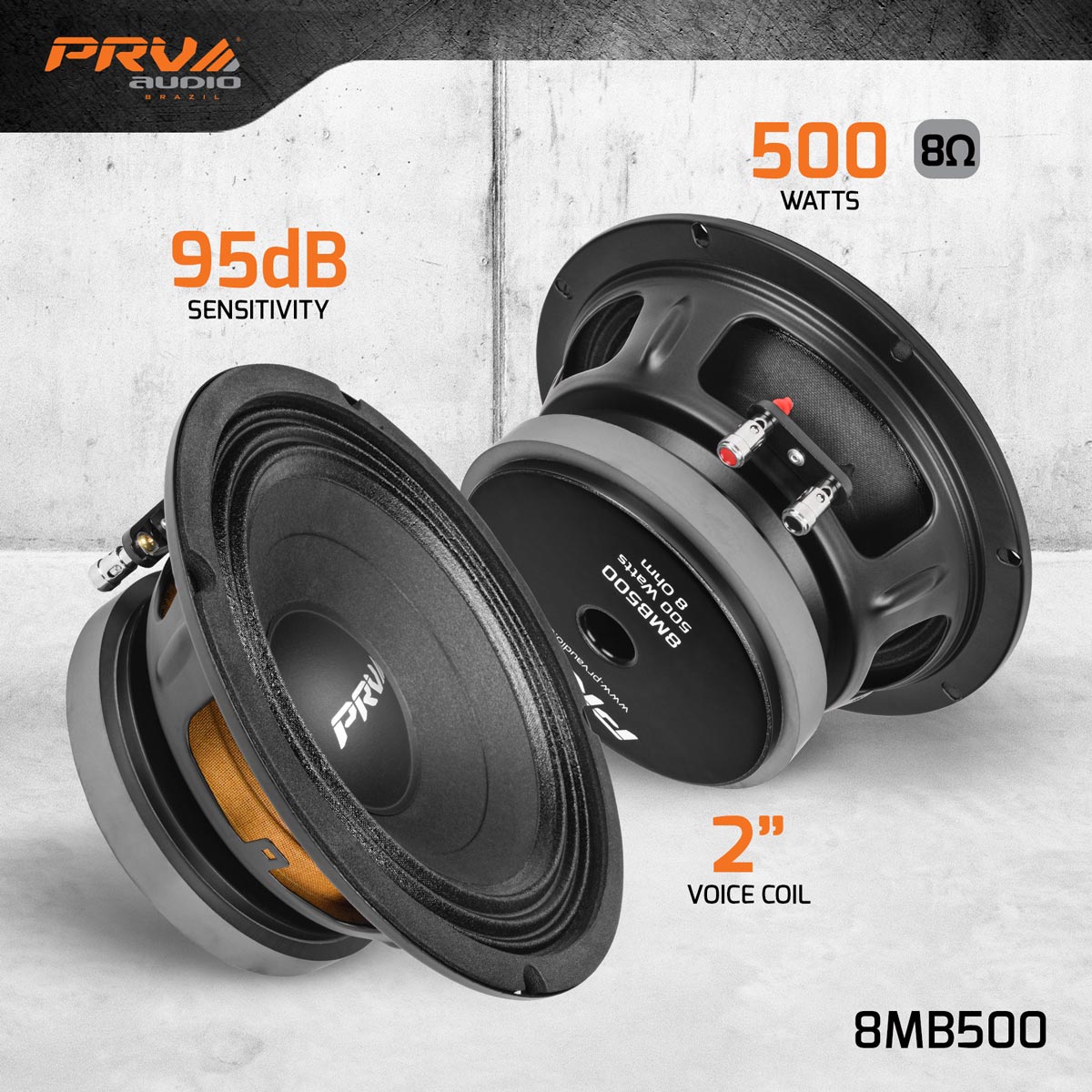

8″ 8 Ohm pro audio midbass, 500 W RMS and 95 dB, paper cone with triple-roll surround.
RMS Power500W
Sensitivity95dB
Size2in
01 Overview
The details
Product Overview
The PRV 8MB500 is built for strong midbass punch and clear vocals in doors and 3-way systems. A naturally damped paper cone and cloth triple-roll surround keep cone travel smooth and controlled, and the high-temperature 2" voice coil handles 500 W RMS of sustained power.
Key Features
- 500 W RMS continuous program power
- 95 dB sensitivity (2.83V/1m)
- Paper cone with cloth triple-roll surround
- 2" high-temperature CCAW voice coil
- Ferrite motor in a stamped steel frame
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
500W
Continuous rating
Sensitivity 02
95dB
Efficiency
Size 03
2in
Nominal
Weight 04
5.55lb
Per unit
- Impedance
- 8 Ohm
- Continuous Program Power (RMS)
- 500 W

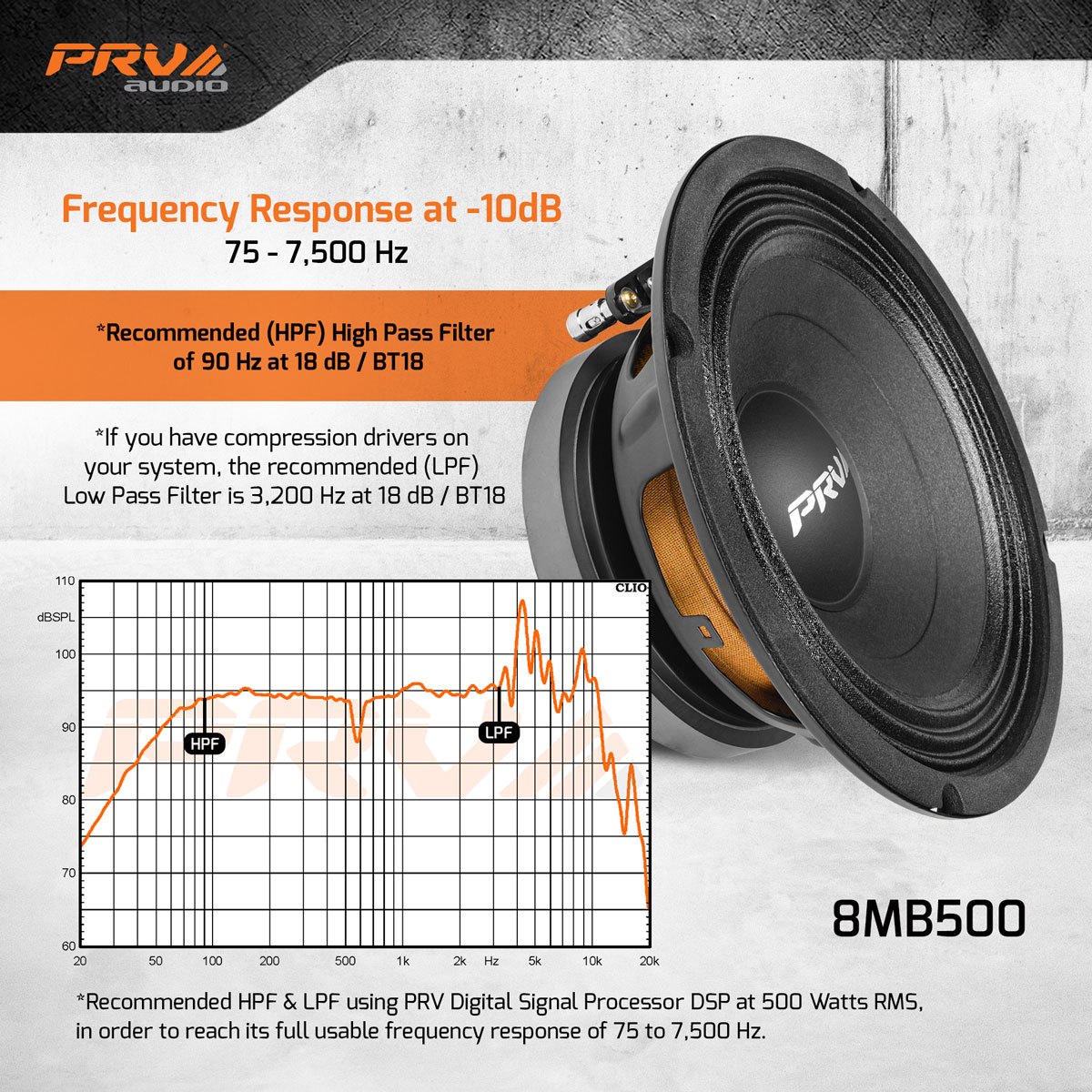

- Recommended Hi Pass Crossover
- 95 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 95 dB
- Frequency Response
- 75 – 7,500 Hz
- Voice Coil Diameter
- 2" (50 mm)
- Voice Coil Wire
- CCAW
- Former Material
- Kapton
- Cone
- Paper
- Surround
- Cloth triple-roll
- Magnet
- Ferrite
- Frame Material
- Stamped steel

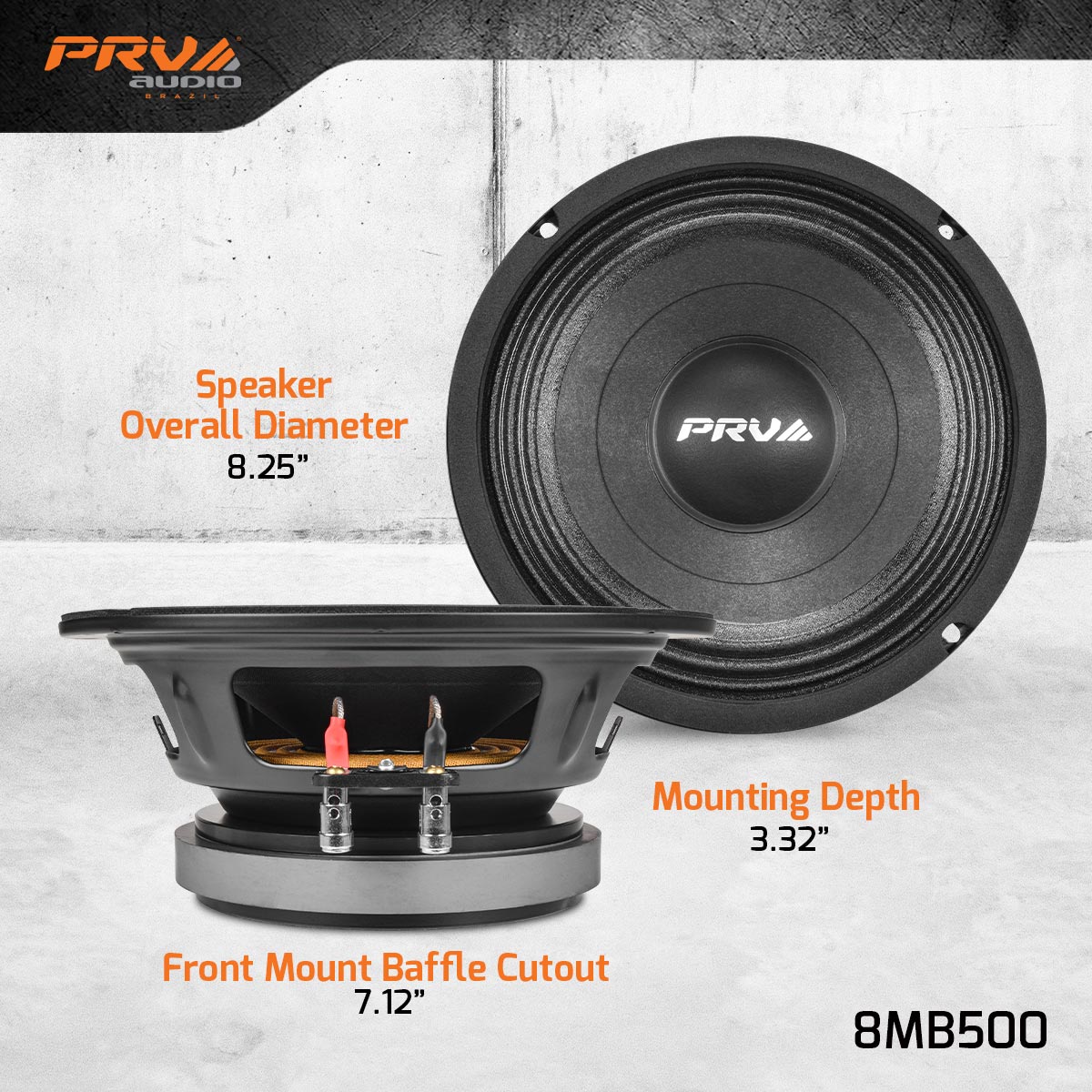

- Mounting Depth
- 3.32" (84.4 mm)
- Cutout
- 7.12" (181 mm)
- Overall Dimensions
- 8.25" (209.5 mm) dia., 3.62" (92 mm) deep
- Net Weight
- 5.55 lbs (2.52 kg)
- Weight
- 6 lbs
- Dimensions
- 9 × 9 × 4.5 in
03 Reviews (0)
Reviews (0)
You must be logged in to post a review.
04 Complete the build
Shop all Power it right
Related products
-
Sky High Car Audio8 inch SH-P8 COAXIAL MID-RANGE LOUDSPEAKER WITH 1″ BULLET
$101.95Add to cart -
Trinity Audio SolutionsTrinity Audio Solutions 8 inch M Series 8″ 400w RMS Subwoofer TAS-M8
$179.99Select options This product has multiple variants. The options may be chosen on the product page -

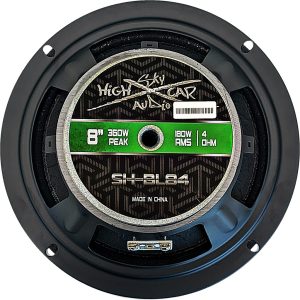

Sky High Car Audio8 inch 4 ohm Midrange Loudspeaker Sky High Car Audio SH-BL84
