PRV MDX1200.4 Full Range 4 Channel MINI Amplifier 1 or 2 Ohm PRV-MDX1200.4

The mini MDX1200.4 1 Ohm delivers 1200 Watts RMS power over 4 channels in a compact, modern amplifier.

Designed for high performance systems that require high power output but have very little space to spare, the MDX Series features exclusive and patented technologies that ensure a high definition sound quality in the most compact and reliable design.

Engineered to be the most efficient amplifier able to deliver impressive power output while minimizing the strain on your electrical system. This means you can enjoy the benefits of high power performance without draining your battery quickly.

Its high power output with its multichannel technology eliminates the need for multiple amplifiers, when you can use this amplifier in 4, 3 or 2 channel configurations.

The MDX Series is ideal for motorsport applications such as custom motorcycles, ATVs and Slingshots!

300 Watts at 1 Ohm per Channel 600 Watts at 2 Ohm per Bridged Channel

High Output that takes up little space!

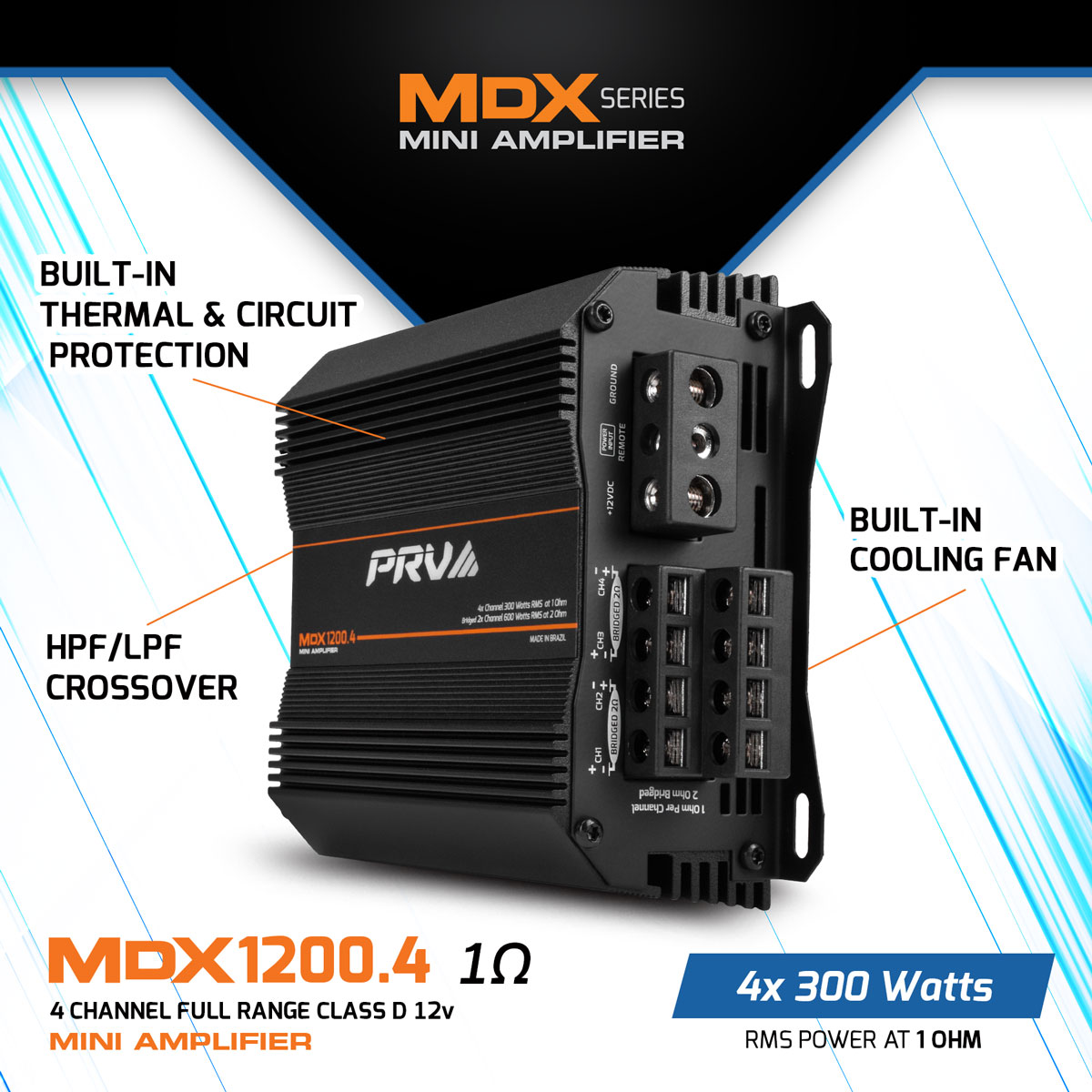

Featuring a mini heavy-duty heatsink, as well as a built-in cooling fan, this amplifier runs cool under even the most demanding playlists.

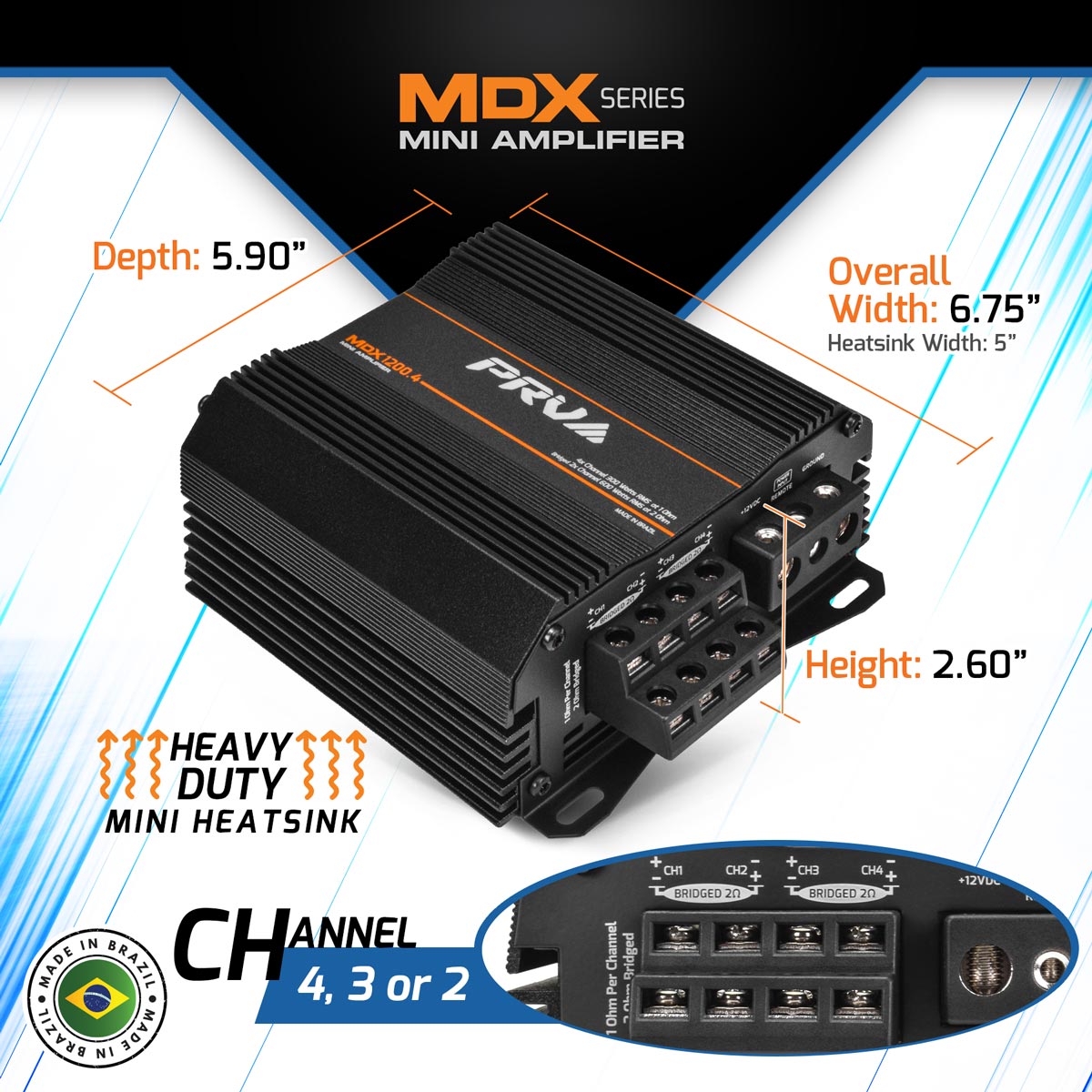

At only 2.75 lbs allows any custom system to achieve the highest performance and weight ratio possible.

PRV Audio MDX1200.4 1 Ohm MINI 4 Channel Car Audio Amplifier 4 x 300 Watts RMS at 1 Ohm – Ultra Compact Stereo Amp

Popular Installation configurations with this amplifier:

4 Channel Configuration for 4 Ohm Components Its high power output channels allow you to install 4x 4 Ohm speakers, drivers or tweeters in parallel per channel, giving up to 75 watts per component.

2 Channel Configuration for 4 Ohm Components Its high power output channels allow you to install 2x 4 Ohm speakers or drivers in parallel per channel, giving up to 300 watts per component.

2 Channel Configuration (Bridged) for 8 Ohm components Its high power output channels allow you to install 4x 8 Ohm speakers or drivers in parallel per channel, giving up to 150 watts per component.

Before Installing:

You must follow the instructions for the product’s installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:

• Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment.

• Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference; Minimum recommended installation distance between amplifier is 1.25”.

• Always use OFC 4 AWG Copper wire for power and ground and minimum of 12 AWG speaker wire and good quality connectors. Copper-clad aluminum wire (CCAW) must not be used. This guarantees reliability and performance.

• To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 60A fuse 12 inches away from the battery as a safety precaution.

The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 60Hz to 1KHz sinusoidal signal and THD <= 1%, with resistant load referring to the indicated measurements. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications ( with speakers ), any load test ( resistant load ) is not recommended.

PRV Audio products are guaranteed for a period of ONE (1) YEAR from the date of original purchase against any manufacturer’s defects in material and workmanship under normal use.

GENERAL SPECIFICATIONS

The power rated data are based on equipment from the PRV Audio Group laboratory. Frequency reference of 60Hz to 1kHz with THD+N to ≤1 % in impedances referring to the indicated in each measurement. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications (with speakers), any load test (resistant load) is not recommended.
