PRV Moto Series 2.25 inch 4 Ohm Neodymium Short Horn Tweeter BLACK PRV-MT2.2TWB-4
$92.91
Moto Series 2.25″ short horn neodymium tweeter in black, 4 Ohm, 120 W RMS and 107 dB.
RMS Power120W
Peak Power240W
Sensitivity107dB
01 Overview
The details
Product Overview
The PRV MT2.2TWB-4 is a Moto Series short-barrel horn tweeter for motorcycles, UTVs and other tight installs. A titanium diaphragm, high-temperature voice coil and neodymium motor deliver strong high-frequency output, and two flush-mount options with a slotted front ring and included tool fit different baffle thicknesses. A protection capacitor and mounting hardware are included.
Key Features
- 60 W nominal, 120 W RMS program, 240 W peak
- 107 dB sensitivity (2.00V/1m)
- Titanium diaphragm, neodymium motor

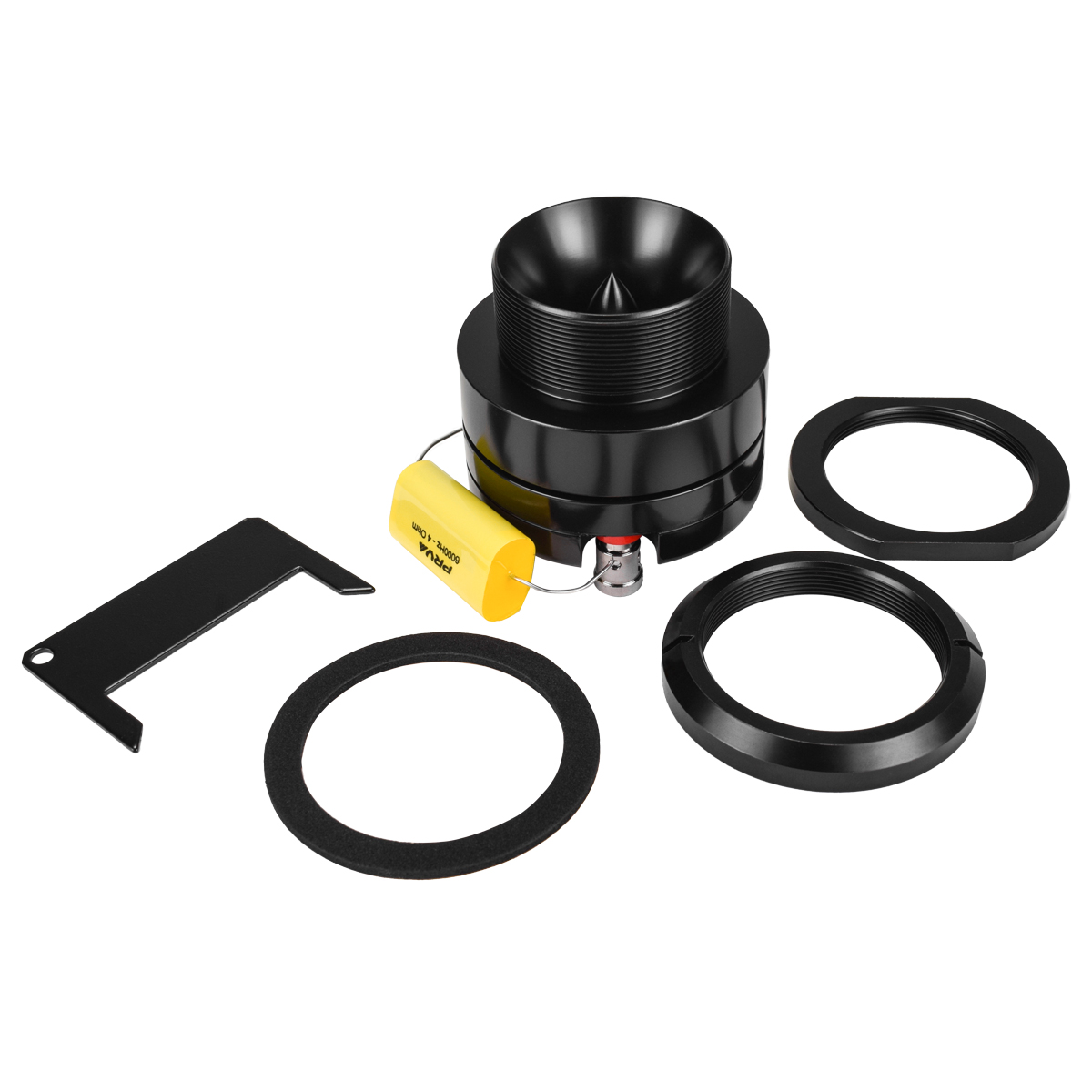

- Two flush-mount options, tightening tool included
- Capacitor included, black finish
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
120W
Continuous rating
Peak Power 02
240W
Short-burst rating
Sensitivity 03
107dB
Efficiency
Size 04
1.0in
Nominal
- Impedance
- 4 Ohm
- Nominal Power Handling
- 60 W
- Continuous Program Power (RMS)
- 120 W
- Max Peak Power
- 240 W
- Recommended Hi Pass Crossover
- 6,000 Hz, 12 dB/octave
- Sensitivity (2.00V at 1m)
- 107 dB
- Frequency Response
- 4,500 – 20,000 Hz
- Voice Coil Diameter
- 1.0"
- Magnet
- Neodymium
- Finish
- Black

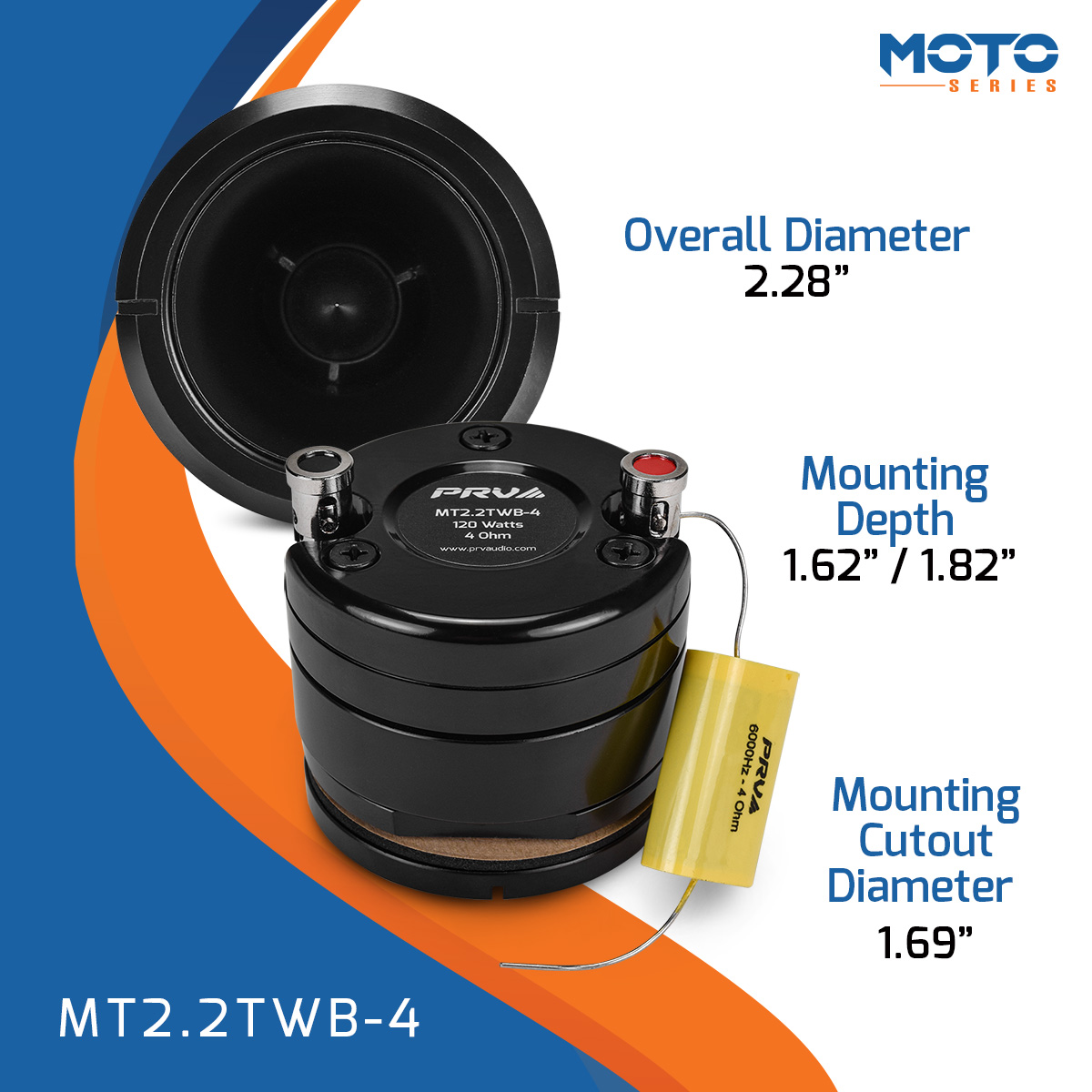

- Mounting Depth
- 1.62" / 1.82"
- Cutout
- 1.69"
- Overall Dimensions
- 2.28" dia., 2.34" high
- Net Weight
- 1.1 lbs
- Weight
- 1.25 lbs
- Dimensions
- 3.75 × 3.5 × 3.5 in
- Diaphragm
- Titanium
