Description

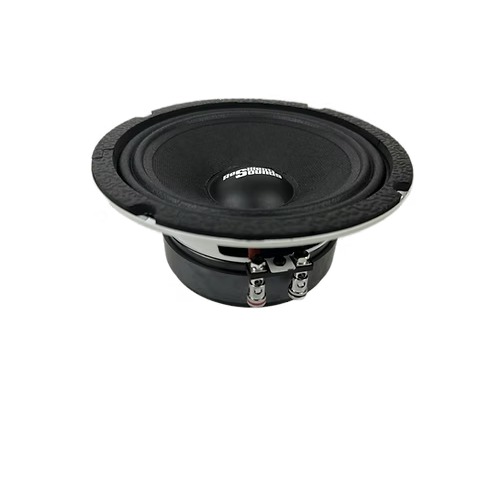

Product Overview
500 Watts Max Power Handling
1.5″ Voice Coil
94 dB Sensitivity
135HZ-13KHz of frequency response
GENERAL SPECIFICATIONS
Nominal Diameter 6.5” (165.1mm)
Max Power Handling 500 w
RMS Power Handling 250 w
Frequency Response 135Hz-13KHZ
Nominal Impedance 4ohm
Sensitivity 94 dB
Magnet Ferrite
Voice Coil Diameter 1.5″
Voice Coil Wire CCAW
THIELE-SMALL PARAMETERS
Equivalent Volume Vas 3.06 L
Free Air Resonance Fs 137 Hz
Mechanical Factor Qms 5.18
Electrical Factor Qes 0.93
Total Factor Qts 0.79
Cone Area Sd 128.6cm²
Mechanical Mass Mms 9.64 g
BI Factor BI 5.43 Tm
Dc Resistance Re 3.2 Ohms
MOUNTING INFO
Overall Diameter 6.57”(167mm)
Front Mount Baffle Cutout 5.64″(143mm)
Mounting Depth 2.67″(68mm)
Overall Depth 2.99″(76mm)
Technical Data
| Specification | Details |
|---|---|
| Size | 6.5 inch |
| RMS Power | 250 Watts RMS |
| Peak Power | 500 Watts Max |
| Impedance | 4 Ohms |
| Voice Coil | 1.5 inch |
| Sensitivity | 94 dB |
| Frequency Response | 135 Hz – 13 kHz |
| Mounting Depth | 2.67″ |
| Cutout Diameter | 5.64″ |
