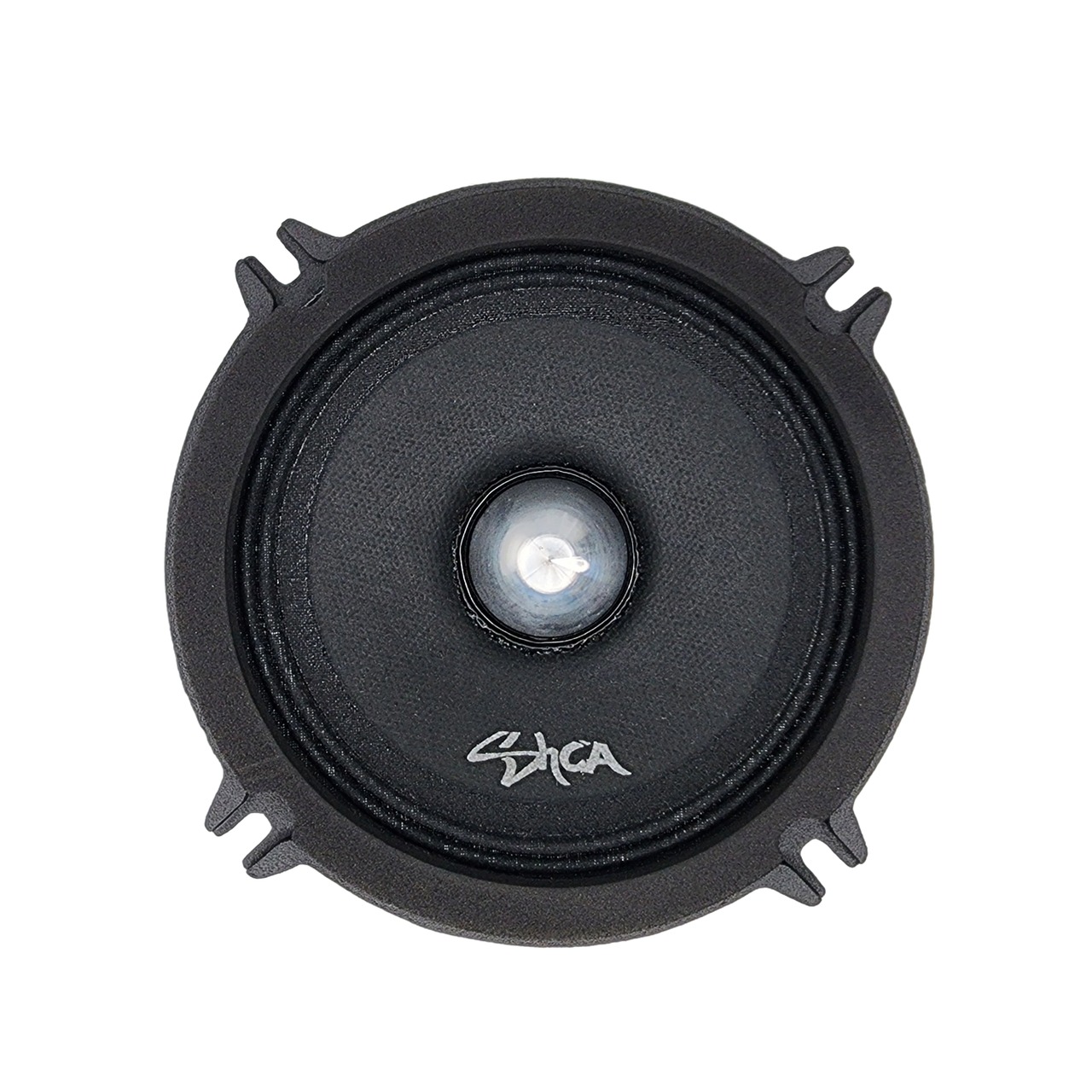

Sky High Car Audio SH-EL524BNEO 5.25 inch Neodymium Bullet Midrange Speaker

Sky High Car Audio SH-EL524BNEO 5.25” Midrange Loudspeaker with Bullet and Neodymium Magnet

Experience unmatched audio clarity with the Sky High Car Audio SH-EL524BNEO 5.25” Midrange Loudspeaker. Designed for superior sound performance, this compact yet powerful speaker features a neodymium magnet and CNC aluminum bullet for exceptional efficiency and precision.

Outstanding Sound Performance

The SH-EL524BNEO delivers crystal-clear audio with a frequency response of 250Hz to 16KHz, making it perfect for capturing midrange vocals and instrumentals. With an RMS power handling of 200W and a peak power of 400W, this speaker ensures high-quality sound with minimal distortion, even at high volumes. Its 94dB sensitivity enhances efficiency, making it ideal for various car audio setups.

Durable and Lightweight Construction

Built with a non-pressed paper cone and cloth surround, this speaker provides durability without sacrificing performance. The CNC-machined aluminum bullet enhances sound dispersion, while the aluminum basket offers strength and corrosion resistance for long-term reliability.

Advanced Motor System

The SH-EL524BNEO is powered by a 1.2-inch Kapton voice coil with CCAW winding for superior thermal and electrical performance. The neodymium magnet, weighing 5.52 ounces, ensures a strong magnetic field for accurate sound reproduction in a lightweight design.

Compact and Versatile Design

This 5.25-inch loudspeaker is designed for seamless installation in tight spaces, with a mounting depth of just 1.96 inches and a front baffle cutout of 4.64 inches. The included grille not only protects the speaker but also adds a sleek finish to your setup.

Perfect for Midrange Audio Clarity

Engineered to excel in midrange frequencies, the SH-EL524BNEO delivers clean vocals and instrumentals, ensuring a balanced and immersive audio experience in any vehicle.

Specifications:

•Nominal Diameter: 5.25 inches / 133mm

•Nominal Impedance: 4 Ohms

•Continuous Power Rating: 130W

•RMS Power Handling: 200W

•Max Power Handling: 400W

•Sensitivity (1w/1m): 94dB

•Frequency Response: 250Hz – 16KHz

•Recommended High-Pass Crossover: 260Hz

Features:

•Cone Material: Non-Pressed Paper

•Bullet Material: CNC Aluminum

•Surround Material: Cloth

•Basket Material: Aluminum

•Magnet Material: Neodymium

•Magnet Weight: 5.52 Oz

•Voice Coil Diameter: 1.2 inches / 30.48mm

•Voice Coil Former Material: Kapton

•Winding Material: CCAW

Measurements:

•Overall Diameter: 5.25 inches / 133.5mm

•Overall Diameter (with grille): 6.48 inches / 164.8mm

•Mounting Depth: 1.96 inches / 50mm

•Front Mount Baffle Cutout: 4.64 inches / 118mm

•Overall Depth (with grille): 2.65 inches / 67.5mm

Upgrade your car audio system with the Sky High Car Audio SH-EL524BNEO. Sold individually, this midrange loudspeaker combines precision engineering with reliable performance to deliver an exceptional listening experience every time.

Please note: This speaker is sold individually.
