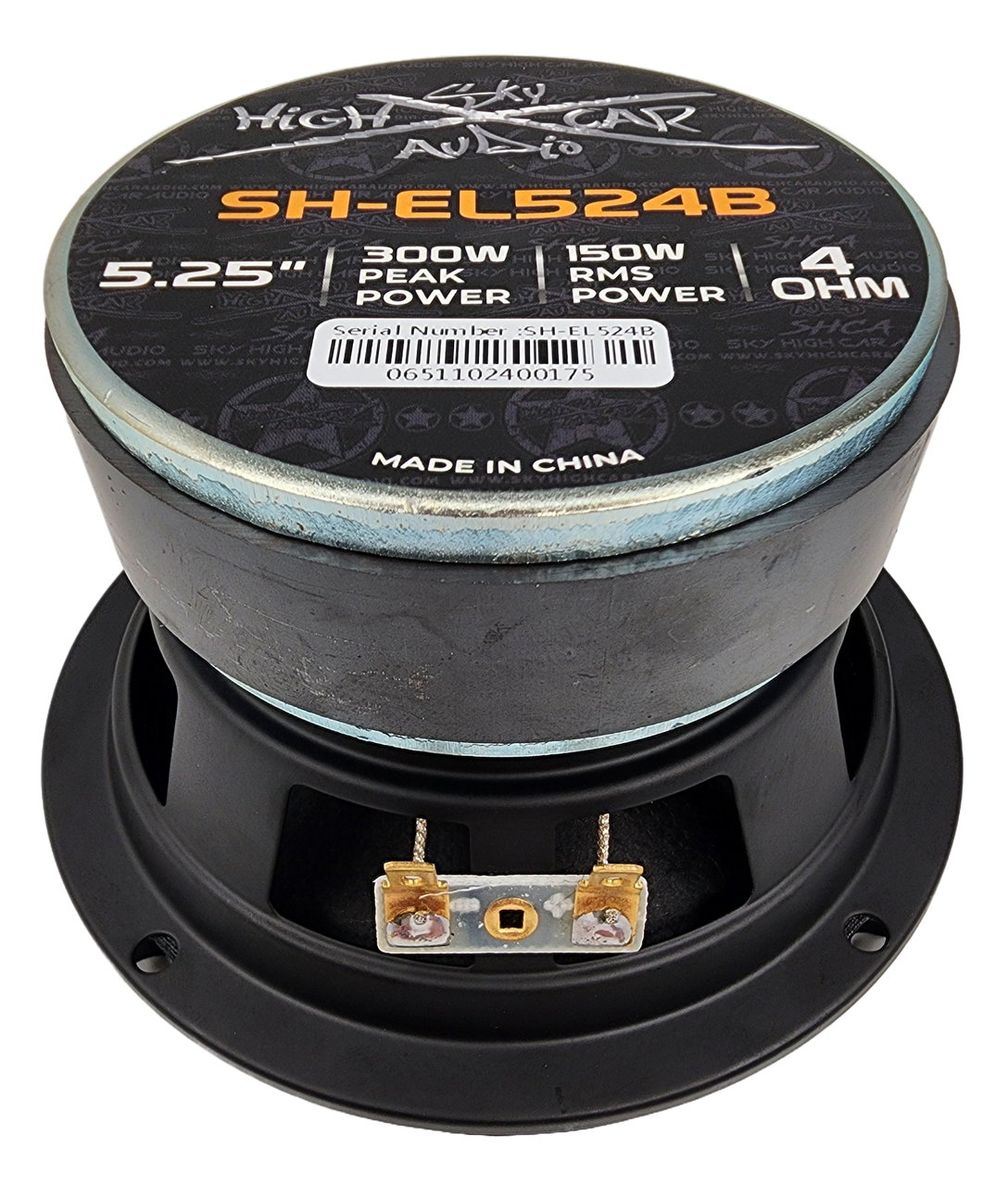

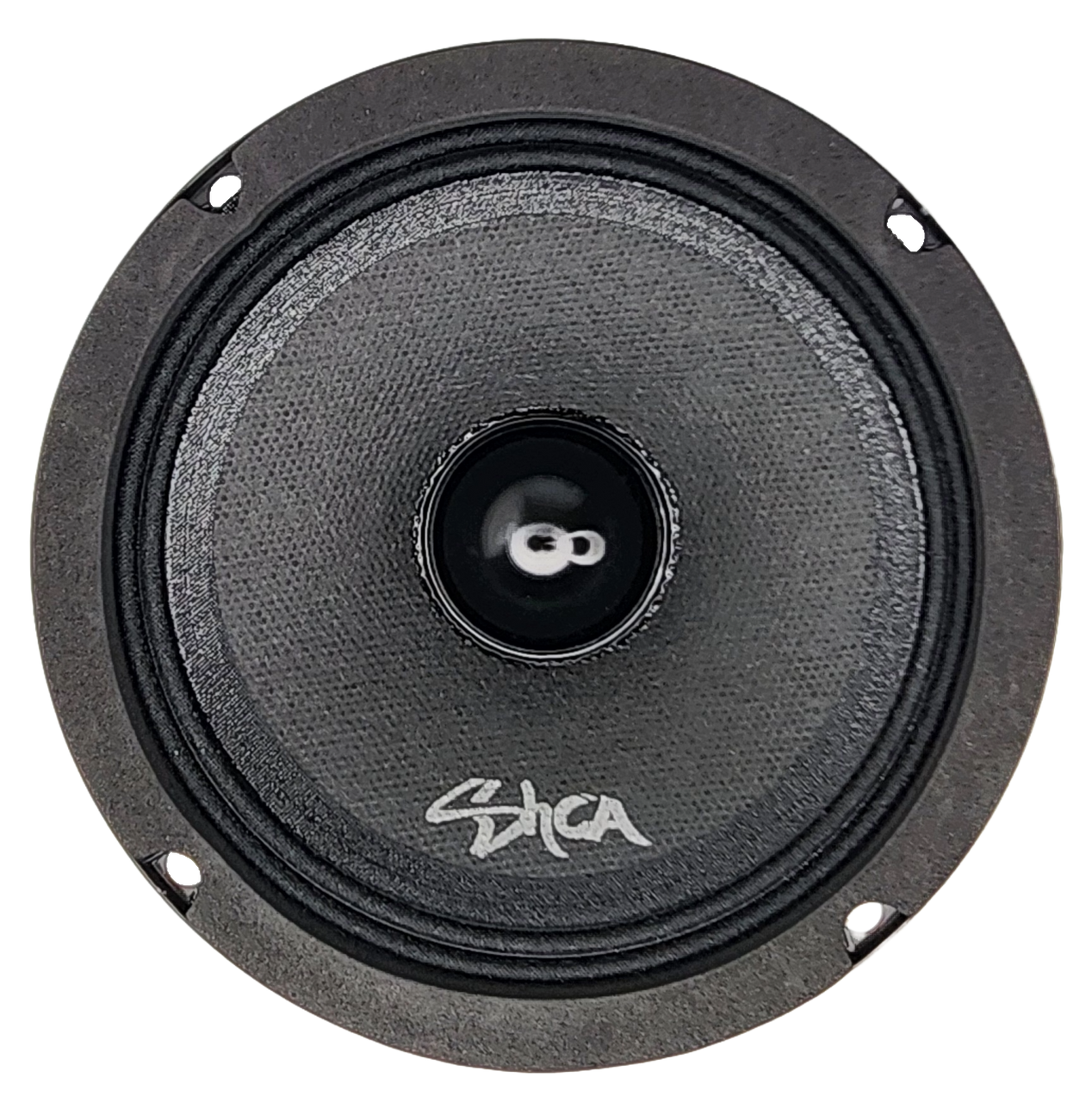

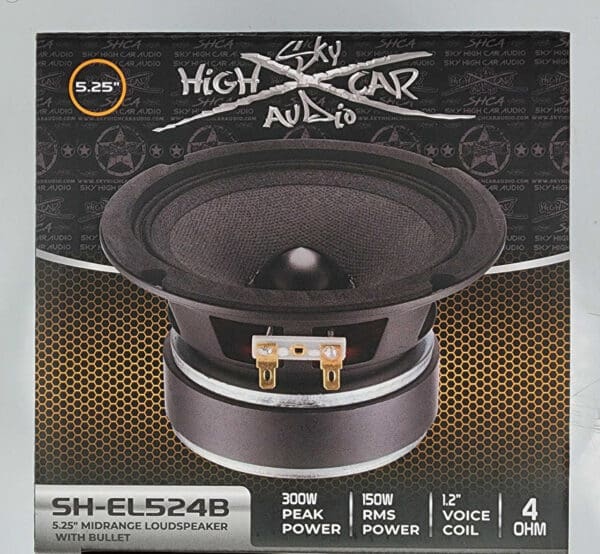

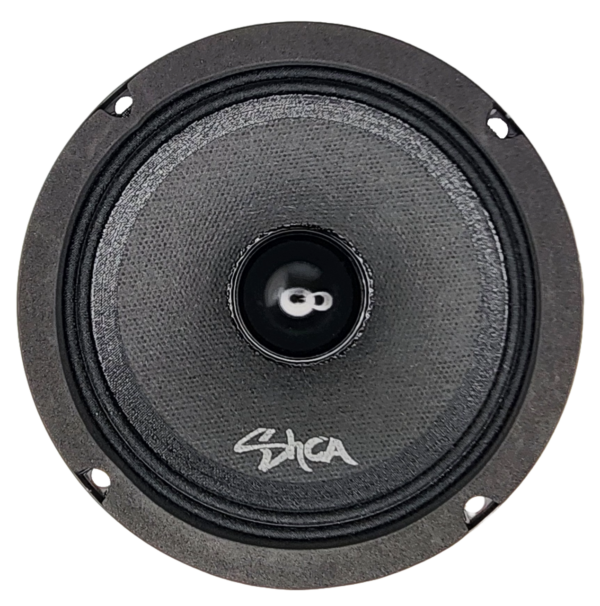

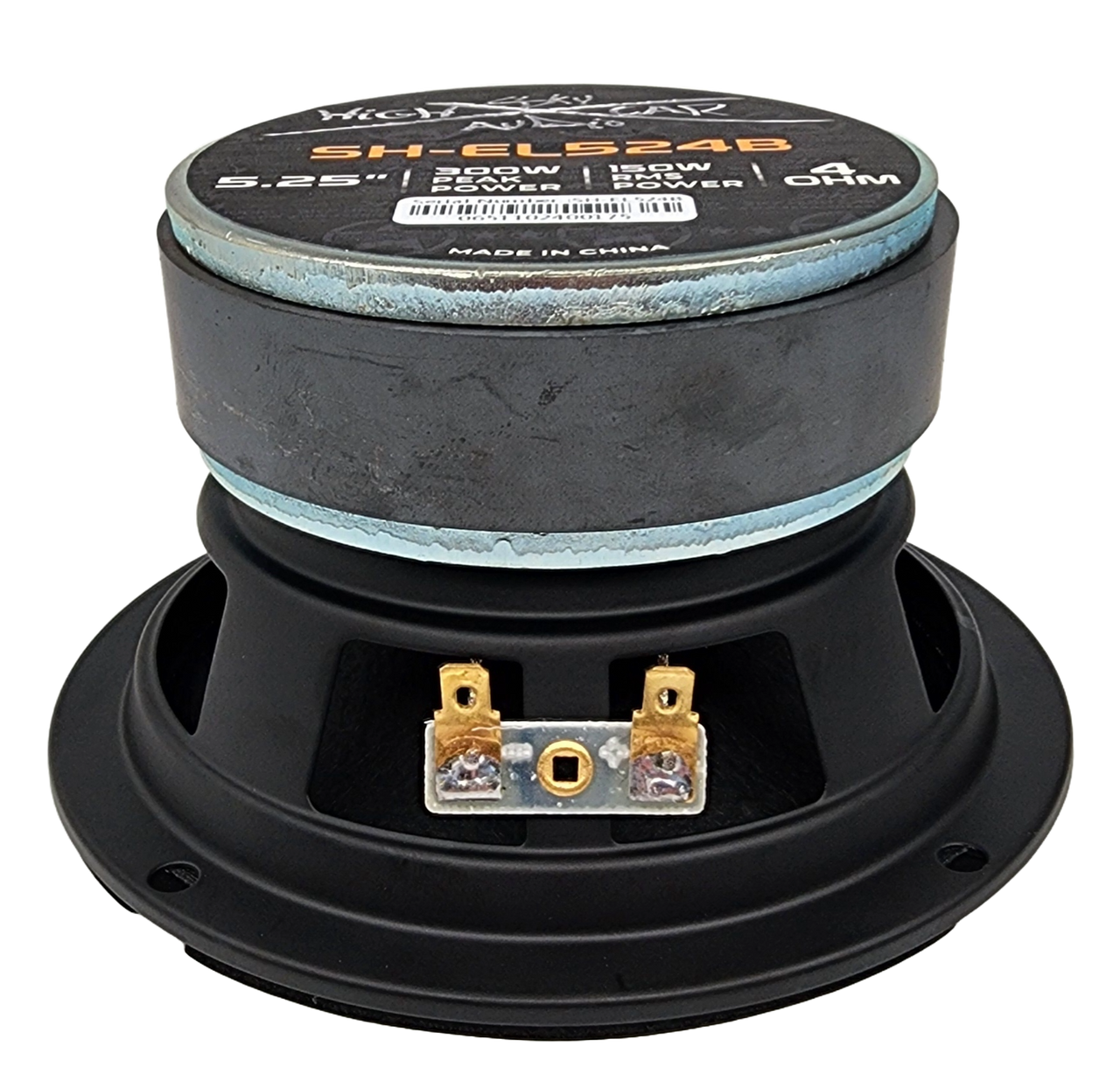

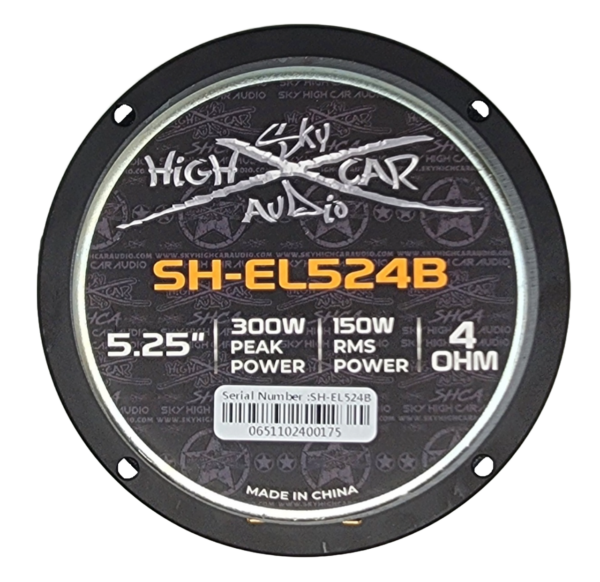

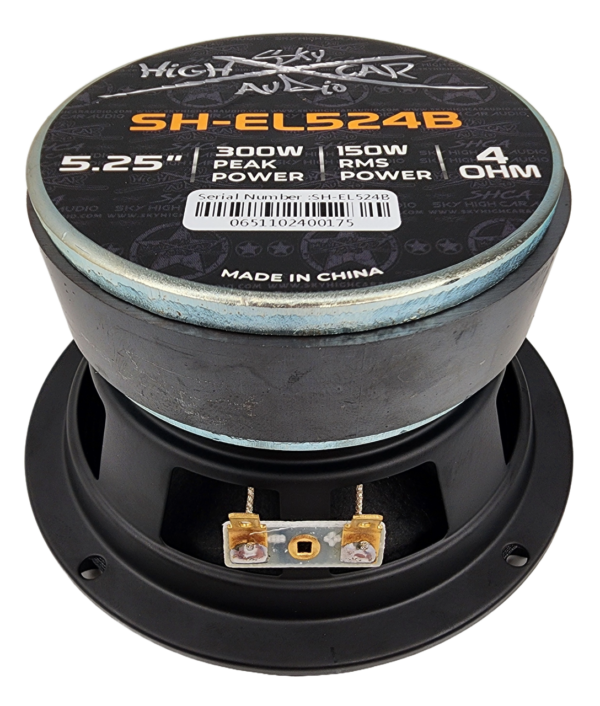

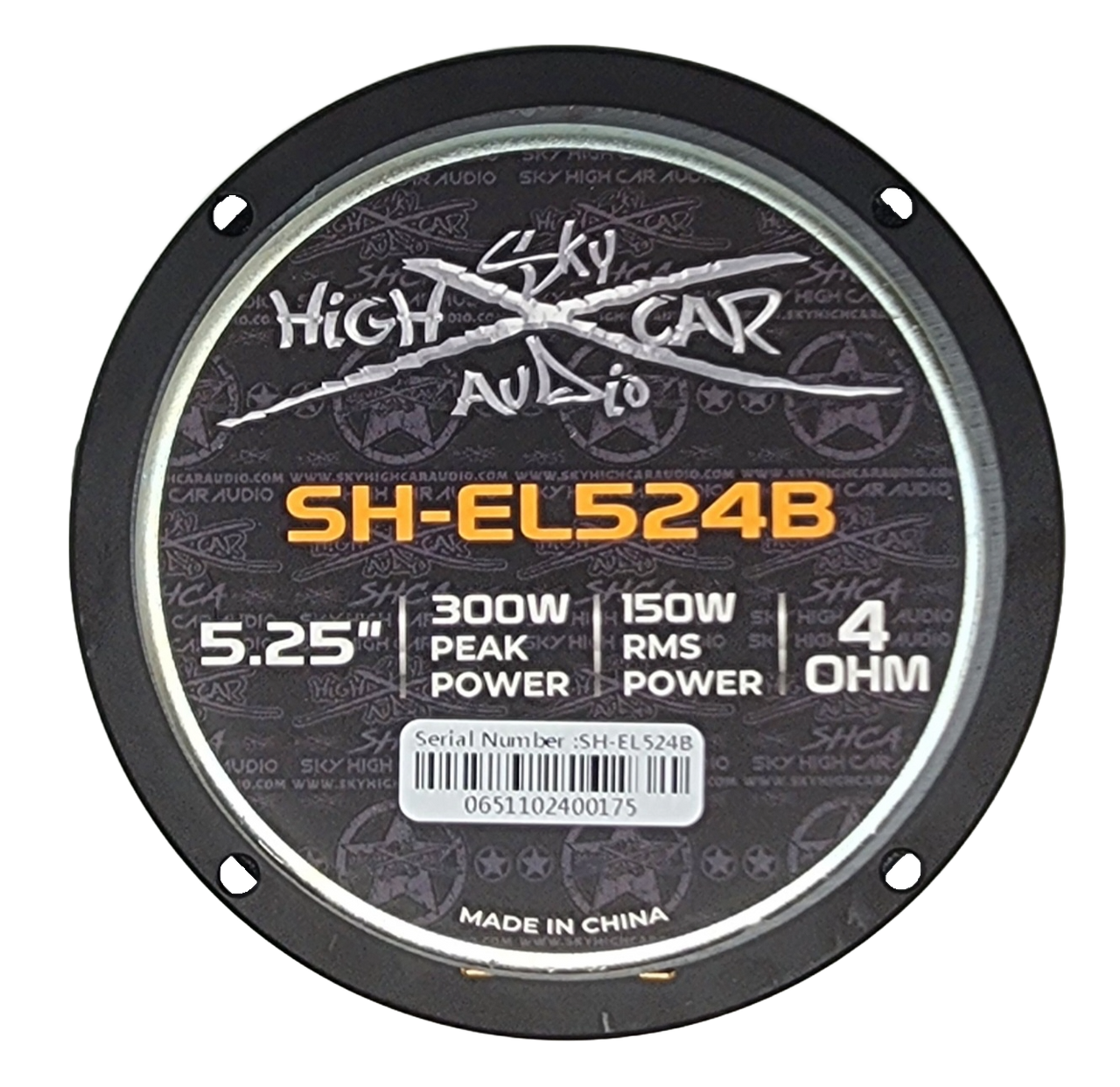

Sky High Car Audio SH-EL524B 5.25” Midrange Loudspeaker with Bullet
Upgrade your car audio system with the Sky High Car Audio SH-EL524B 5.25” Midrange Loudspeaker, expertly engineered for superior performance and reliability. Perfect for enhancing vocal clarity and midrange detail, this compact yet powerful speaker is an excellent choice for car audio enthusiasts.
Crisp and Dynamic Sound
With a frequency response of 200Hz to 16KHz and a sensitivity of 93dB, the SH-EL524B ensures accurate sound reproduction. The speaker’s 150W RMS power handling and 300W peak power capacity deliver vibrant and immersive audio, making every drive a concert-like experience.
Durable Construction
The SH-EL524B features a lightweight yet robust paper cone paired with a CNC aluminum bullet, offering exceptional rigidity for precise sound. The cloth surround adds durability while maintaining flexibility, ensuring long-lasting performance even under demanding conditions.
High-Quality Motor Design
Equipped with a 1.2-inch Kapton voice coil and CCAW winding, the motor system delivers high efficiency and reliable performance. A sturdy 18.5-ounce ferrite magnet provides the power needed for clean, distortion-free sound, even at high volumes.
Compact and Versatile
The speaker’s compact size and dimensions—overall diameter of 5 inches and a mounting depth of 2.6 inches—make it easy to install in a variety of car setups. Its versatile design ensures seamless integration into your existing audio system.
Built for Precision
The SH-EL524B is optimized for detailed midrange sound, ensuring crisp vocals and rich instrumentals for a truly immersive listening experience.

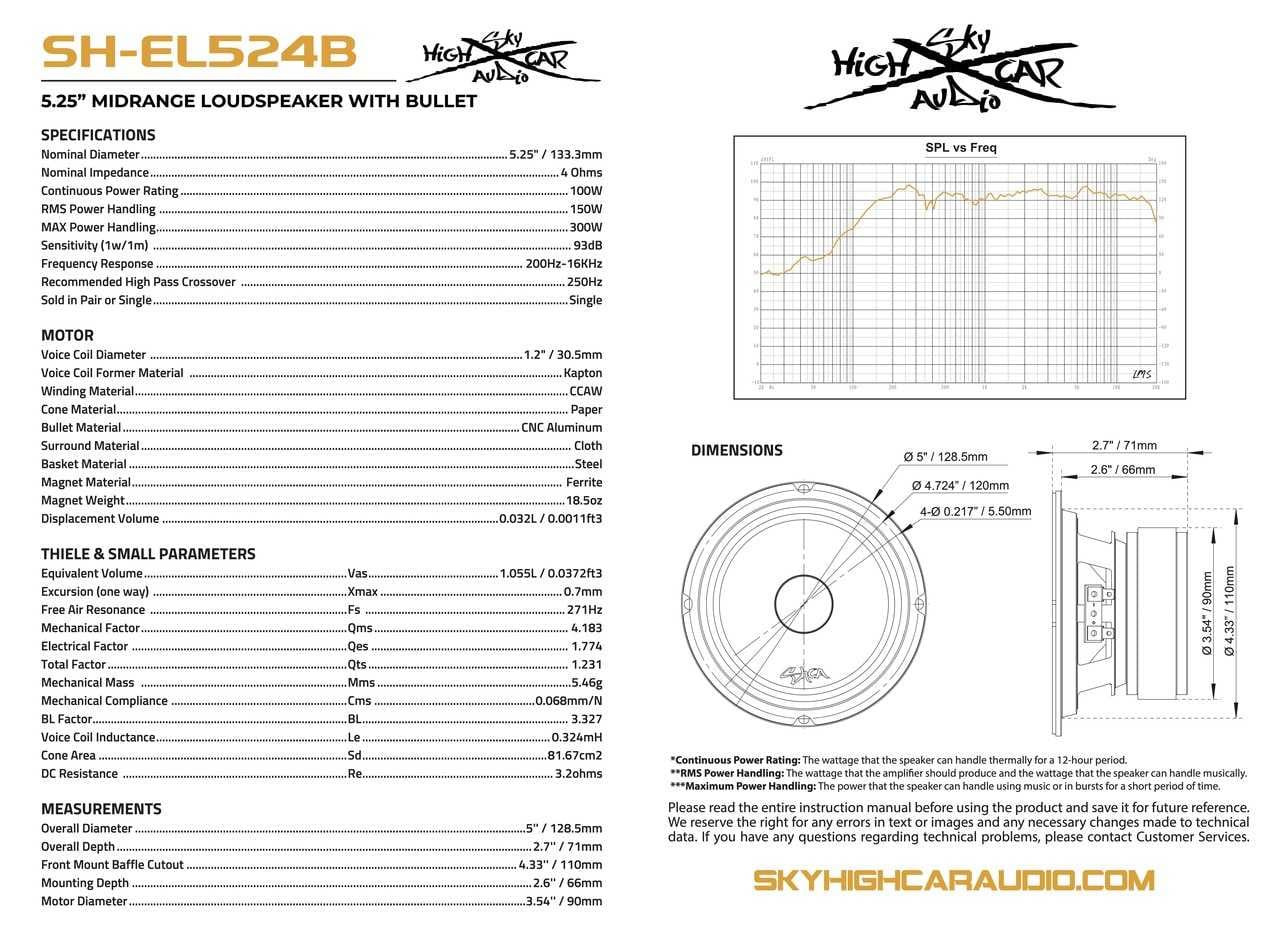

Specifications:
•Nominal Diameter: 5.25 inches / 133.3mm
•Nominal Impedance: 4 Ohms
•Continuous Power Rating: 100W
•RMS Power Handling: 150W
•Max Power Handling: 300W
•Sensitivity (1w/1m): 93dB
•Frequency Response: 200Hz – 16KHz
•Recommended High Pass Crossover: 250Hz
Features:
•Cone Material: Paper
•Bullet Material: CNC Aluminum
•Surround Material: Cloth
•Basket Material: Steel
•Magnet Material: Ferrite (18.5 Oz)
•Voice Coil Diameter: 1.2 inches / 30.5mm
•Voice Coil Former Material: Kapton
•Winding Material: CCAW
Measurements:
•Overall Diameter: 5 inches / 128.5mm
•Mounting Depth: 2.6 inches / 66mm
•Front Mount Baffle Cutout: 4.33 inches / 110mm
Experience high-quality midrange sound with the Sky High Car Audio SH-EL524B 5.25” Midrange Loudspeaker and elevate your car audio system to new heights.
Please note: This speaker is sold individually.
